Advantages of Superelastic medical nitinol rod Alloys

Superelastic medical nitinol rod alloys represent a revolutionary advancement in biomedical engineering and materials science, offering unprecedented capabilities that have transformed modern medical device manufacturing. The medical nitinol rod, composed of a precisely balanced nickel-titanium alloy, exhibits extraordinary superelastic properties that allow it to undergo substantial deformation and return to its original shape without permanent damage. This unique characteristic, combined with excellent biocompatibility and fatigue resistance, makes medical nitinol rod an indispensable material for cardiovascular stents, orthodontic devices, surgical instruments, and minimally invasive medical tools. The ability of these alloys to function reliably within the human body while withstanding millions of loading cycles has established nitinol as the material of choice for next-generation medical applications.

Exceptional Mechanical Properties and Shape Recovery Capabilities

Superior Superelasticity for Medical Applications

The superelastic behavior of medical nitinol rod is fundamentally different from conventional elastic materials, offering strain recovery capabilities that exceed 10% without permanent deformation. This remarkable property stems from a reversible phase transformation between austenite and martensite crystal structures, which occurs at body temperature. When medical nitinol rod experiences mechanical stress, the material transforms from its austenite phase to stress-induced martensite, allowing it to accommodate large strains. Upon removal of the stress, the material instantly reverts to its original austenitic structure, recovering its initial shape completely. This superelastic plateau, typically occurring at stress levels between 400-600 MPa, provides a nearly constant force over large deformation ranges, which is particularly valuable in medical devices like self-expanding stents and orthodontic archwires. The medical nitinol rod manufactured by Baoji Hanz Metal Material Co., Ltd. exhibits ultimate tensile strengths ranging from 1103 to 1378 MPa, with elongation exceeding 10% and permanent set less than 0.5% after 8% strain, demonstrating exceptional mechanical reliability for demanding medical applications.

Customizable Transformation Temperatures for Diverse Medical Environments

One of the most significant advantages of medical nitinol rod is the ability to precisely engineer its transformation temperature (Af) to match specific clinical requirements. Baoji Hanz Metal Material Co., Ltd. produces medical nitinol rod with Af temperatures ranging from -10°C to 100°C, enabling customization for various medical applications and environmental conditions. For cardiovascular devices that must function at body temperature (37°C), the transformation temperature is carefully controlled to ensure the device remains in its superelastic austenitic state throughout its service life. Low-temperature superelastic nitinol alloy variants, with Af temperatures between -20°C and -10°C, are particularly valuable for devices that must maintain superelastic properties even when exposed to cold environments or during cryogenic medical procedures. The precise composition control, typically maintaining a Ni:Ti ratio of 50:50 in accordance with ASTM F2063 standards, allows for fine-tuning of these transformation characteristics. Even minor compositional adjustments of 0.1% can shift the transformation temperature by approximately 10°C, demonstrating the sophisticated metallurgical control required to produce medical-grade nitinol. This customizability ensures that medical nitinol rod can be optimized for applications ranging from orthodontic treatments to complex cardiovascular interventions, where temperature variations might otherwise compromise device performance.

Outstanding Fatigue Resistance and Durability

Medical nitinol rod demonstrates exceptional fatigue resistance that far surpasses conventional metallic biomaterials, making it ideal for devices subjected to repetitive loading cycles within the human body. Cardiovascular stents, for instance, must endure approximately 40 million cardiac cycles per year, and medical nitinol rod has proven capable of withstanding over 10^8 cycles without failure when properly processed and surface treated. This extraordinary fatigue life results from the unique deformation mechanism of superelastic alloys, where stress-induced martensitic transformation distributes strain uniformly throughout the material rather than concentrating it at crack initiation sites. The medical nitinol rod produced with diameters ranging from 0.1mm to 3mm maintains consistent mechanical properties across all sizes, with surface treatments including polished, pickled, and black oxide finishes to enhance corrosion resistance and biocompatibility. The density of 6.45 g/cm³ provides an optimal balance between strength and flexibility, while the high-purity composition minimizes the risk of premature failure due to inclusions or compositional inhomogeneities. Baoji Hanz Metal Material Co., Ltd. employs advanced production and testing equipment to ensure each medical nitinol rod meets stringent quality requirements, with production process monitoring documents retained for at least five years to guarantee traceability and quality assurance.

Enhanced Biocompatibility and Clinical Safety

Superior Corrosion Resistance in Physiological Environments

The medical nitinol rod exhibits remarkable corrosion resistance in physiological environments, a critical requirement for any material intended for long-term implantation in the human body. The naturally forming titanium oxide (TiO₂) surface layer on medical nitinol rod provides excellent protection against corrosion in chloride-rich bodily fluids, preventing the release of nickel ions that could trigger adverse biological responses. This passive oxide layer, typically 3-5 nanometers thick, spontaneously regenerates if damaged, ensuring continuous protection throughout the device's lifetime. Baoji Hanz Metal Material Co., Ltd. implements rigorous surface treatment protocols, including electropolishing and passivation processes, to optimize the surface quality of medical nitinol rod and enhance its corrosion resistance. Studies have demonstrated that properly processed medical nitinol rod releases nickel ions at rates well below the threshold for cytotoxic effects, even after years of implantation. The company's adherence to ASTM F2063 standards ensures that each medical nitinol rod batch undergoes comprehensive corrosion testing, including immersion tests in simulated body fluids and electrochemical impedance spectroscopy to verify the integrity of the passive layer. This attention to surface chemistry is particularly important for cardiovascular applications, where even minor corrosion could lead to device failure or thrombogenic complications.

Minimal Inflammatory Response and Tissue Compatibility

Medical nitinol rod has demonstrated exceptional tissue compatibility in numerous clinical studies, with inflammatory responses comparable to or better than established biomedical materials like stainless steel and cobalt-chromium alloys. The material's unique combination of chemical composition and surface properties minimizes protein adsorption and reduces the activation of inflammatory cascades when implanted. Histological examinations of tissues surrounding medical nitinol rod implants have consistently shown thin, well-organized fibrous capsules with minimal chronic inflammation, indicating excellent integration with biological systems. The superelastic nature of medical nitinol rod also contributes to improved biocompatibility by reducing mechanical mismatch between the implant and surrounding tissues. Unlike rigid materials that can cause stress shielding and tissue erosion, medical nitinol rod's flexibility allows for more natural tissue interactions and reduced localized stress concentrations. Baoji Hanz Metal Material Co., Ltd. ensures that all medical nitinol rod products undergo comprehensive biocompatibility testing in accordance with ISO 10993 standards, evaluating cytotoxicity, sensitization, irritation, and systemic toxicity. The company's quality control system, certified under ISO9001, SGS, and TUV guidelines, guarantees that each medical nitinol rod meets the highest international standards for medical device materials, providing clinicians and patients with confidence in the safety and reliability of nitinol-based medical devices.

Thromboresistance and Hemocompatibility

For cardiovascular applications, the thromboresistance of medical nitinol rod is paramount to preventing device-related complications such as in-stent thrombosis and restenosis. Medical nitinol rod exhibits favorable hemocompatibility characteristics, with studies showing reduced platelet adhesion and activation compared to other metallic biomaterials. The smooth, oxide-passivated surface of properly processed medical nitinol rod minimizes the formation of thrombi by reducing the available sites for platelet attachment and limiting the activation of coagulation cascades. The superelastic properties of medical nitinol rod further enhance its hemocompatibility by enabling the fabrication of stents and other intravascular devices with optimal geometries that minimize flow disturbances and reduce shear stress on blood cells. Baoji Hanz Metal Material Co., Ltd. produces medical nitinol rod with various surface finishes, including highly polished surfaces with roughness values below 0.1 μm Ra, which have been shown to significantly improve hemocompatibility. The company's technical team provides comprehensive consultation on surface treatment selection to optimize the thromboresistance of specific medical device applications. Additionally, the medical nitinol rod's composition adheres strictly to the Ni:Ti ratio of 50:50 specified in ASTM F2063, ensuring consistent material properties and predictable biological responses across different production batches.

Versatile Manufacturing and Clinical Applications

Precision Processing and Customization Capabilities

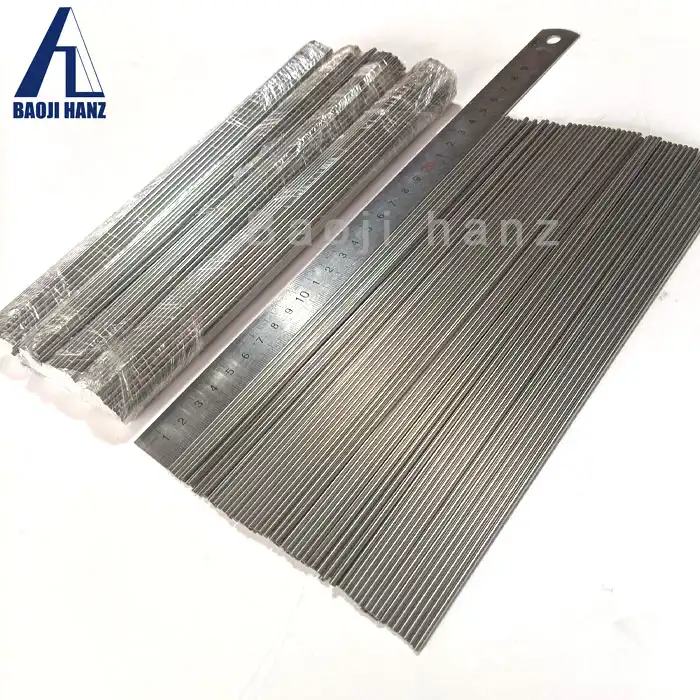

The medical nitinol rod manufactured by Baoji Hanz Metal Material Co., Ltd. offers exceptional versatility in processing and customization, enabling the fabrication of complex medical devices with precise dimensional tolerances. The company's advanced production facilities can produce medical nitinol rod in diameters ranging from 0.1mm to 3mm, with lengths customized to specific application requirements. This wide range of available sizes allows manufacturers to select the optimal medical nitinol rod dimensions for applications from fine orthodontic wires to robust surgical instruments. The material readily accommodates various secondary processing operations including bending, welding, decoiling, cutting, and punching, without compromising its superelastic properties when appropriate heat treatment protocols are followed. Baoji Hanz Metal Material Co., Ltd. provides comprehensive technical support throughout the manufacturing process, with professional customer service staff and technicians available to address questions regarding optimal processing parameters, heat treatment cycles, and quality control procedures. The company's commitment to on-time delivery and high efficiency, combined with retention of production process monitoring documents for at least five years, ensures complete traceability and quality assurance. Whether producing medical nitinol rod for minimally invasive surgical tools, endovascular devices, or orthodontic applications, the company's OEM services enable customization of sizes, alloy compositions, and surface treatments to meet the specific requirements of each clinical application.

Wide Range of Medical Device Applications

Medical nitinol rod has revolutionized numerous medical specialties through its unique combination of superelasticity, biocompatibility, and fatigue resistance. In interventional cardiology, medical nitinol rod serves as the foundation for self-expanding stents that can be compressed into small-diameter catheters for minimally invasive delivery and then expand to their predetermined diameter upon deployment in target vessels. The superelastic properties of medical nitinol rod ensure that these stents maintain radial force against vessel walls while accommodating the natural pulsatile motion of arteries without generating excessive stress on surrounding tissues. In orthodontics, medical nitinol rod enables the creation of archwires that deliver constant, gentle forces over extended periods, reducing patient discomfort and potentially shortening treatment times compared to stainless steel alternatives. Surgical instrument manufacturers utilize medical nitinol rod to produce flexible, kink-resistant tools for minimally invasive procedures, where the ability to navigate tortuous anatomical pathways while maintaining sufficient stiffness for tissue manipulation is essential. Baoji Hanz Metal Material Co., Ltd. supports these diverse applications by providing medical nitinol rod with carefully controlled transformation temperatures and mechanical properties optimized for specific clinical environments. The company's expertise in shape memory and superelastic alloys, developed over seven years of specialized manufacturing experience, ensures that each medical nitinol rod batch delivers consistent, reliable performance in demanding medical applications.

Economic Advantages and Supply Chain Reliability

Beyond its technical merits, medical nitinol rod from Baoji Hanz Metal Material Co., Ltd. offers significant economic advantages through direct supply relationships and competitive pricing structures. The company's position as a China factory, China supplier, China manufacturer, and China wholesale provider of medical nitinol rod eliminates intermediary costs, delivering cost savings directly to medical device manufacturers and healthcare institutions. Large stock inventories of standard sizes enable fast delivery times of 25-30 working days, reducing production delays and allowing for more responsive manufacturing schedules. The company's minimum order quantity of just 1 kg accommodates both small-scale research projects and large-scale commercial production, with pricing structures that reward volume purchases and provide discounts for established customers. Quality assurance is never compromised for cost efficiency, with every medical nitinol rod batch undergoing rigorous testing before packaging in soft paper inside wooden cases suitable for export. Before delivery, Baoji Hanz Metal Material Co., Ltd. provides customers with photographs of finished products, packaging details, and material test certificates (MTC), ensuring complete transparency and customer satisfaction. The company's professional service approach aims to reduce purchasing costs while maintaining the highest quality standards, supported by certifications under ISO9001, SGS, and TUV guidelines that verify compliance with international quality management systems.

Conclusion

The advantages of superelastic medical nitinol rod alloys encompass exceptional mechanical properties, superior biocompatibility, and remarkable manufacturing versatility that have established this material as indispensable in modern medical device development. From cardiovascular stents to orthodontic appliances, medical nitinol rod continues to enable innovative solutions that improve patient outcomes and advance minimally invasive medical techniques. As a leading China factory, China supplier, China manufacturer, and China wholesale provider of medical nitinol rod, Baoji Hanz Metal Material Co., Ltd. leverages seven years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy to deliver cost-effective, high-quality solutions with fast delivery from extensive stock inventories. Our OEM services provide customized sizes, specific alloy compositions, and tailored packaging options to meet your exact requirements. We invite you to partner with us for your medical nitinol rod needs and experience the advantages of working directly with a trusted manufacturer committed to excellence. Contact us today at baojihanz-niti@hanztech.cn to discuss how our medical nitinol rod solutions can enhance your medical device innovations.

References

1. Duerig T, Pelton A, Stöckel D. An overview of nitinol medical applications. Materials Science and Engineering: A, 1999, 273-275: 149-160.

2. Morgan NB. Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 2004, 378(1-2): 16-23.

3. Shabalovskaya SA. Surface, corrosion and biocompatibility aspects of Nitinol as an implant material. Bio-Medical Materials and Engineering, 2002, 12(1): 69-109.

4. Ryhänen J, Niemi E, Serlo W, Niemelä E, Sandvik P, Pernu H, Salo T. Biocompatibility of nickel-titanium shape memory metal and its corrosion behavior in human cell cultures. Journal of Biomedical Materials Research, 1997, 35(4): 451-457.

5. Pelton AR, Schroeder V, Mitchell MR, Gong XY, Barney M, Robertson SW. Fatigue and durability of Nitinol stents. Journal of the Mechanical Behavior of Biomedical Materials, 2008, 1(2): 153-164.
