Best SMA Nitinol Spring Designs for High Performance

Basic Material Specification & Industry Core Knowledge

1. Fundamental Composition & Basic Properties

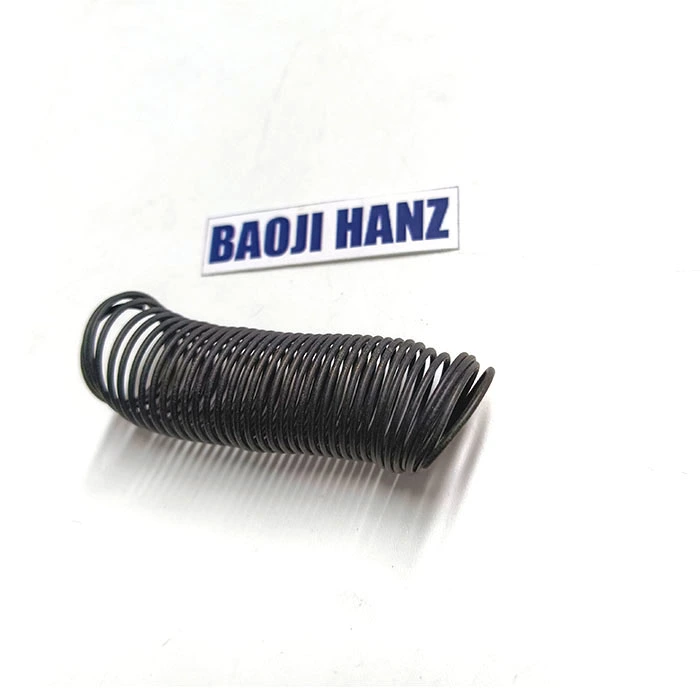

SMA Nitinol Spring is a binary intermetallic alloy mainly composed of Nickel (Ni) and Titanium (Ti) with an approximate atomic ratio of 1:1. The conventional mass ratio is 55%–56% Nickel and 44%–45% Titanium. Trace alloying elements like Cr, Fe and Nb are added to adjust phase transition temperature and mechanical performances.

• Density: 6.4–6.5 g/cm³, lightweight advantage
• Melting point: 1240–1310℃ ~ 1310℃
• Adjustable phase transition temperature range: -50℃ to 100℃
• Material Grade Classification
  1. Industrial Grade: Impurity content ≤0.5%, applied in common mechanical elastic components
  2. Medical Grade: Impurity content ≤0.05%, low nickel release and superior biocompatibility, for implanted medical springs





2. Phase Transformation Mechanism & Core Functional Effects

The high-performance characteristics of Nitinol springs derive from thermoelastic reversible martensitic phase transformation. High-temperature stable phase is Austenite (B2 cubic structure), and low-temperature stable phase is Martensite (B19′ monoclinic structure). The diffusion-free reversible transformation can be activated by temperature or external stress.

2.1 Shape Memory Effect (SME)

• Below Mf (martensite finish temperature): Martensite phase features low hardness and good ductility, easy to be deformed and maintain deformed shape
• Above Af (austenite finish temperature): Reverse phase transformation occurs, restoring original preset shape with shape recovery rate up to 99.9%
• Four critical phase transition temperatures: Ms, Mf, As, Af

2.2 Superelasticity (SE / Pseudoelasticity)

• Applicable condition: Ambient temperature higher than Af, fully austenitic state
• Working principle: External force induces martensitic transformation to achieve ultra-large elastic deformation
• Recoverable strain range: 7%–14%, far higher than conventional metal spring materials
• Stable stress platform: 400–600 MPa, stable force output for high-precision elastic structures

3. Key Mechanical & Functional Advantages

1. Excellent Deformation Recovery PerformanceRecoverable strain reaches 7%–14%; residual deformation less than 0.1% after 10⁷ cyclic services, outstanding fatigue resistance.
2. Adjustable Modulus & StrengthAustenite phase: Elastic modulus 60–80 GPa, tensile strength 800–1200 MPa; Martensite phase: Elastic modulus 20–40 GPa, soft and easy for assembly forming.
3. Superior Vibration Damping CapacityDamping performance is 10 times that of ordinary steel, ideal for vibration reduction and noise reduction scenarios.
4. Outstanding Corrosion Resistance & BiocompatibilityOutperforms 316L stainless steel in salt spray, seawater and body fluid corrosion resistance; medical-grade Nitinol is widely used in implantable precision springs.
5. Fast Thermal/Electric Drive ResponseRealize rapid phase transformation via Joule heating with millisecond-level response speed, suitable for intelligent drive SMA springs.

4. Material Selection Principles for High-Performance Nitinol Spring Design

1. Confirm working temperature to match phase transition parameters

• Superelastic spring: Select alloy with Af＜25℃, work steadily at room temperature
• Shape memory drive spring: Customize Af at 37℃–60℃ for temperature-triggered reset action

1. Match wire material state by load demandCold-drawn Nitinol wire for high-load bearing; annealed wire for complex-shaped spring processing
2. Select material grade according to service environmentHigh-cycle fatigue and medical application adopt high-purity medical-grade raw materials; general industrial scenes choose cost-effective industrial-grade materials
3. Optimize heat treatment processAdopt aging treatment at 400–500℃ to precipitate Ni₄Ti₃ nano-phases, stabilize phase transformation performance and extend service life

5. Performance Comparison with Traditional Spring Materials



Performance Index	Nitinol SMA Alloy	316L Stainless Steel	Carbon Steel
Maximum Recoverable Strain	7%–14%	＜0.5%	＜0.3%
Service Fatigue Life	10⁷ cycles	10⁶ cycles	10⁵ cycles
Vibration Damping	Excellent	Low	Very Low
Corrosion Resistance	Premium	Good	Poor
Biocompatibility	Medical grade excellent	Fair	Poor
Driving Mode	Thermal / Electric / Mechanical	Pure mechanical force	Pure mechanical force
Material Cost	High	Medium	Low

6. Conclusion

The core competitiveness of high-performance SMA Nitinol springs is based on unique reversible martensitic phase transformation. Material composition, purity grade and post-processing heat treatment determine phase transition characteristics, elastic performance, fatigue life and application scenarios. Rational material parameter matching is the primary premise to design high-stability, long-life and high-response SMA springs.

The SMA Nitinol Spring , with its unique shape memory effect and excellent super elasticity, possesses core advantages such as strong deformation recovery ability, excellent fatigue resistance, corrosion resistance, good biocompatibility, and sensitive temperature control drive. Different from traditional steel springs, it can achieve dual drive by temperature and stress, and is suitable for high-precision, long-life, and intelligent industrial conditions.

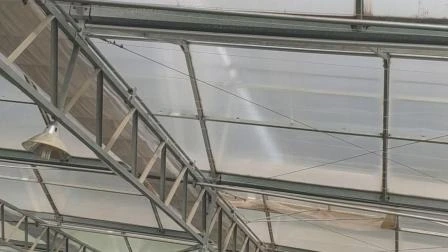

This product has now been widely applied in mainstream fields such as medical and medical equipment, automotive manufacturing, smart home, industrial automation, precision electronics, and agricultural temperature control equipment. From small-sized precision micro springs to large-sized industrial drive springs, it can be customized for production. At the same time, the material selection and process design can be adjusted according to the customer's working environment, phase change temperature, elastic parameters, and size specifications to meet various high-performance assembly usage standards.

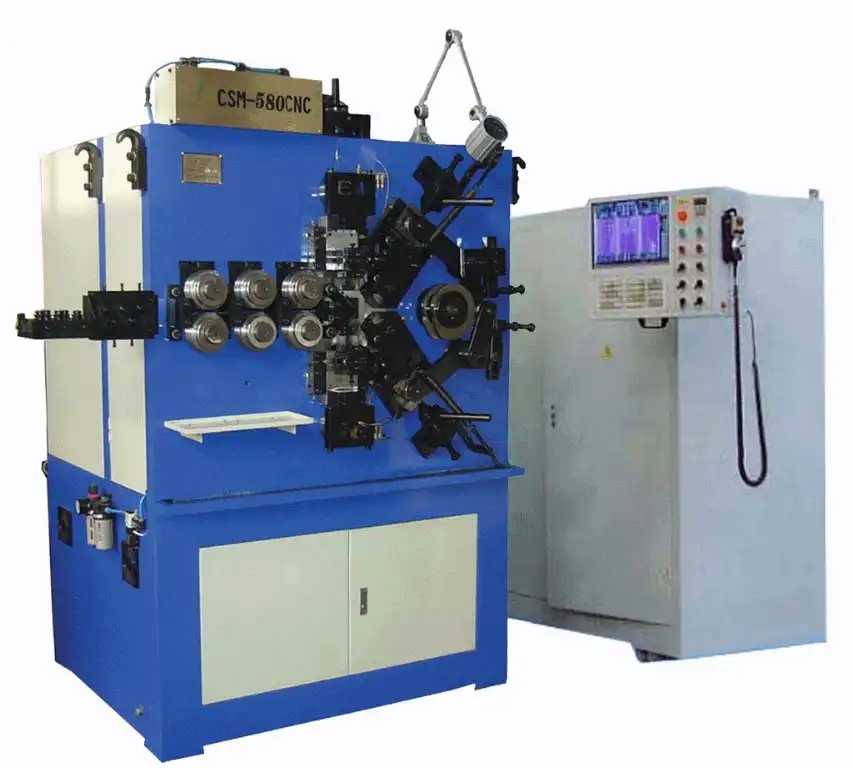

Our factory can provide one-stop services including full-category SMA Nitinol Spring design, sample production, batch production, heat treatment and shaping. We support custom drawings, parameter optimization and technical solution integration. Overseas and domestic merchants are welcome to consult, negotiate and cooperate in depth.
