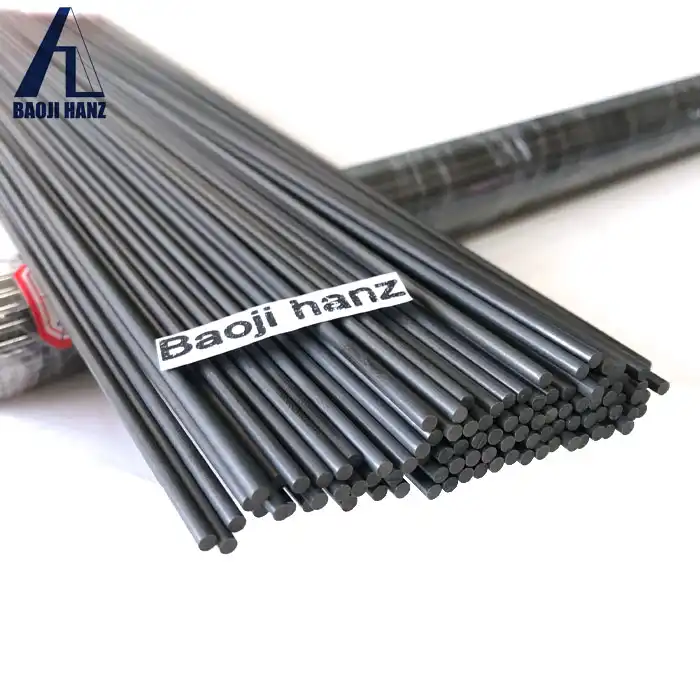

Can a 3mm Nitinol Rod Be Used in Aerospace Actuators?

Aerospace engineers constantly face the challenge of finding lightweight yet powerful actuator materials that can withstand extreme temperatures and deliver reliable performance in critical flight systems. Yes, a 3mm nitinol rod can indeed be used in aerospace actuators, offering exceptional shape memory properties, superelasticity, and the ability to generate significant actuation force in a compact form factor. This makes the 3mm nitinol rod particularly valuable for space-constrained applications such as wing morphing mechanisms, satellite deployment systems, and precision control surfaces where traditional actuators would add excessive weight and complexity.

Understanding the Unique Properties of 3mm Nitinol Rods for Actuator Applications

The 3mm nitinol rod represents an optimal diameter for aerospace actuator design, combining substantial mechanical strength with manageable thermal response characteristics. Nitinol, composed of approximately fifty percent nickel and fifty percent titanium in near-equal atomic ratios, exhibits a thermoelastic martensitic phase transformation that enables its remarkable shape memory effect and superelastic behavior. When a 3mm nitinol rod undergoes deformation at lower temperatures, it retains this altered configuration until heated above its austenite finish temperature, typically ranging from negative ten degrees Celsius to one hundred degrees Celsius depending on the specific alloy composition. This transformation temperature range can be precisely tailored through careful control of the nickel-to-titanium ratio and post-processing heat treatments, allowing engineers to customize the 3mm nitinol rod actuator response for specific aerospace operating conditions. The rod's three-millimeter diameter provides sufficient cross-sectional area to generate meaningful actuation forces while maintaining the rapid thermal response necessary for dynamic aerospace control applications. According to ASTM F2063 specifications, which govern superelastic nitinol materials, these 3mm nitinol rod products demonstrate ultimate tensile strengths between one thousand one hundred and three megapascals for standard superelastic grades up to one thousand three hundred seventy-eight megapascals for specialized high-strength compositions. The material density of six point four five grams per cubic centimeter makes 3mm nitinol rod actuators significantly lighter than conventional electromagnetic or hydraulic alternatives, directly addressing the aerospace industry's perpetual weight reduction objectives.

Shape Memory Effect and Actuation Mechanisms in 3mm Diameter Nitinol

The shape memory effect in 3mm nitinol rod actuators operates through a crystallographic phase transition between the low-temperature martensitic phase and the high-temperature austenitic phase. During the cooling cycle, the austenitic crystal structure transforms into twinned martensite, which can be easily deformed through detwinning mechanisms that require relatively modest applied stresses. When a deformed 3mm nitinol rod is subsequently heated above its austenite start temperature, the material undergoes a reverse transformation back to the parent austenitic phase, generating substantial recovery stresses that can exceed two hundred megapascals while recovering strains up to eight percent with less than zero point five percent permanent set. This recovery stress capability enables 3mm nitinol rod actuators to perform mechanical work during the heating phase, making them suitable for aerospace applications requiring controlled displacement and force output. The actuation stroke achievable with a 3mm nitinol rod depends on its active length, with typical aerospace designs utilizing rod lengths between fifty and three hundred millimeters to produce linear displacements ranging from four to twenty-four millimeters. The thermal hysteresis inherent in the martensitic transformation, typically spanning thirty to fifty degrees Celsius between heating and cooling cycles, provides natural position stability at intermediate temperatures and prevents unwanted oscillations in aerospace control systems.

Superelastic Properties and Fatigue Performance of Three Millimeter Nitinol Rods

Beyond shape memory actuation, 3mm nitinol rod materials can exhibit superelastic behavior when their austenite finish temperature falls below the operating environment temperature. In this superelastic regime, the 3mm nitinol rod can undergo stress-induced martensitic transformation upon mechanical loading, accommodating strains up to six percent while maintaining nearly constant stress plateaus around four hundred to five hundred megapascals. Upon unloading, the stress-induced martensite spontaneously transforms back to austenite, allowing the 3mm nitinol rod to recover its original shape without requiring thermal activation. This superelastic response proves particularly valuable for aerospace actuators subjected to dynamic loading conditions or those requiring passive energy absorption capabilities during flight maneuvers or landing operations. The fatigue resistance of 3mm nitinol rod actuators represents a critical performance parameter for aerospace applications where millions of operational cycles may be required over the component service life. Research on superelastic nitinol demonstrates fatigue lifetimes exceeding ten million cycles at strain amplitudes around three percent, significantly outperforming conventional spring materials. The three-millimeter diameter provides favorable surface-to-volume ratios that facilitate uniform heat treatment processing and minimize internal stress concentrations that could otherwise initiate fatigue crack propagation. Surface finishing treatments such as electropolishing or mechanical polishing can further enhance the fatigue performance of 3mm nitinol rod actuators by removing surface defects and improving corrosion resistance in the harsh environmental conditions encountered during aerospace operations.

Aerospace Actuator Design Considerations for 3mm Nitinol Rod Integration

Integrating 3mm nitinol rod actuators into aerospace systems requires careful consideration of thermal management, mechanical boundary conditions, and control system architectures. The activation temperature of the 3mm nitinol rod must be matched to the expected operational temperature envelope of the aerospace platform, accounting for ambient temperature variations, aerodynamic heating effects, and solar radiation exposure in space environments. For aircraft applications operating in tropospheric conditions with ambient temperatures typically ranging from negative fifty to positive fifty degrees Celsius, 3mm nitinol rod actuators with austenite finish temperatures between twenty and forty degrees Celsius provide reliable operation with modest electrical heating requirements. Satellite and spacecraft applications present more extreme thermal environments, with components experiencing temperature swings from negative one hundred fifty degrees Celsius in Earth's shadow to positive one hundred twenty degrees Celsius under direct solar illumination. In such scenarios, 3mm nitinol rod actuators can be designed with specialized thermal control systems including insulation, radiative coatings, and phase change materials to maintain controlled activation cycles. The mechanical attachment methods for 3mm nitinol rod actuators must accommodate the high recovery stresses generated during transformation while preventing premature failure through stress concentration at connection points. Typical aerospace mounting configurations employ threaded end fittings, swaged terminals, or crimped connectors that distribute loads over sufficient engagement lengths to prevent localized yielding of the 3mm nitinol rod material.

Electrical Heating Systems for Three Millimeter Nitinol Actuator Control

Most aerospace 3mm nitinol rod actuators employ resistive electrical heating through direct current flow to trigger the martensitic-to-austenitic transformation. The electrical resistance of a 3mm nitinol rod, approximately one hundred microohm-centimeters at room temperature, enables practical heating with voltages ranging from twelve to forty-eight volts depending on the active rod length. A typical two-hundred-millimeter-long 3mm nitinol rod actuator requires approximately twenty to thirty watts of continuous electrical power to maintain activation against convective and radiative heat losses in atmospheric conditions. This power requirement proves advantageous compared to continuously-energized electromagnetic actuators or high-pressure hydraulic systems that demand substantially greater power consumption or complex fluid management systems. The thermal time constant for activating a 3mm nitinol rod through resistive heating depends on the electrical power density, ambient conditions, and thermal mass of connected mechanical components. Typical activation times range from one to five seconds for free-standing 3mm nitinol rod actuators in still air, though these response times can be reduced through higher power pulses or improved through pre-heating strategies that maintain the actuator temperature just below the transformation threshold. Advanced control electronics can modulate the applied electrical current to achieve proportional position control of 3mm nitinol rod actuators through careful regulation of the fraction of material transformed between martensitic and austenitic phases. Such proportional control systems enable 3mm nitinol rod actuators to serve not merely as binary on-off devices but as precision positioning actuators suitable for aerodynamic control surface trim adjustments or antenna pointing mechanisms.

Mechanical Performance and Force Generation in Aerospace 3mm Nitinol Rods

The mechanical force output capability of a 3mm nitinol rod actuator stems from the recovery stress developed during the shape memory transformation, which can theoretically reach values approaching the material's yield strength in the austenitic condition. For a 3mm diameter rod with a circular cross-sectional area of approximately seven square millimeters, maximum recovery forces between seven hundred and one thousand newtons become achievable, though practical aerospace actuator designs typically operate at conservative stress levels around one hundred to one hundred fifty megapascals to ensure adequate fatigue life margins. This force capacity enables a single 3mm nitinol rod actuator to drive mechanical loads comparable to electromagnetic solenoids with significantly larger package dimensions and mass. The work output per unit mass for 3mm nitinol rod actuators, calculated as the product of stress, strain, and density, reaches values around one hundred fifty kilojoules per kilogram, substantially exceeding the specific work capabilities of electromagnetic and pneumatic actuator technologies. This high specific work output directly translates to mass savings in aerospace applications where every gram of reduced weight yields compounded benefits through decreased fuel consumption, extended flight range, or increased payload capacity. The stroke-to-length ratio of 3mm nitinol rod actuators, typically achieving four to eight percent recoverable strain, necessitates relatively long actuator lengths to produce substantial linear displacements. Aerospace applications requiring large stroke outputs may employ mechanical amplification linkages, lever systems, or cascaded actuator arrangements to convert the high-force, short-stroke output of 3mm nitinol rod elements into lower-force, longer-stroke motions suitable for wing flap deflection or control surface positioning.

Practical Aerospace Applications Utilizing 3mm Nitinol Rod Actuators

The aerospace industry has progressively adopted 3mm nitinol rod actuators across diverse applications ranging from satellite deployment mechanisms to adaptive wing structures. In satellite systems, 3mm nitinol rod actuators provide reliable, lightweight solutions for boom deployment, antenna unfolding, and solar panel extension mechanisms that must function after prolonged storage in launch configurations. The shape memory properties of 3mm nitinol rods enable these deployable structures to fold into compact launch volumes and subsequently expand to full operational configurations through solar heating or dedicated electrical activation, eliminating the need for complex motor-driven deployment systems with their associated mass penalties and failure modes. Aircraft morphing wing technologies represent another promising application domain for 3mm nitinol rod actuators, where arrays of these shape memory elements can actively change wing camber, twist distribution, or control surface deflection to optimize aerodynamic performance across varying flight conditions. Research aircraft have demonstrated successful integration of 3mm nitinol rod actuator arrays into wing structures, achieving smooth, distributed shape changes that conventional hinged control surfaces cannot replicate. The silent operation of 3mm nitinol rod actuators, which produce no electromagnetic interference and generate minimal acoustic signatures, proves particularly valuable for military aerospace platforms where stealth characteristics and electromagnetic compatibility constitute critical design requirements.

Landing Gear and Mechanism Applications for Three Millimeter Nitinol Elements

Aircraft landing gear systems present opportunities for 3mm nitinol rod actuator integration in safety-critical locking mechanisms, position indicators, and retraction assist functions. The high reliability and fail-safe characteristics of properly designed 3mm nitinol rod actuators, which maintain their last activated position without continuous power consumption, make them suitable for applications requiring positive mechanical locking with minimal parasitic weight. Some aerospace designers have explored 3mm nitinol rod actuators for nose wheel steering lock release mechanisms and landing gear door sequencing controls, where the binary nature of shape memory activation aligns well with the discrete locked-unlocked states required for these functions. The corrosion resistance of nitinol materials, superior to conventional steel alloys used in aerospace mechanisms, provides additional durability benefits for landing gear components exposed to runway contaminants, deicing chemicals, and marine environments during naval aviation operations. The three-millimeter diameter strikes an optimal balance for landing gear mechanism applications, providing sufficient mechanical strength to withstand impact loads during landing events while maintaining manageable electrical heating requirements for activation. Testing protocols for aerospace landing gear applications demand extensive qualification campaigns including temperature cycling, vibration exposure, shock loading, and corrosion resistance validation to ensure 3mm nitinol rod actuators meet the rigorous safety standards governing flight-critical systems.

Environmental Control and Thermal Management Systems Using 3mm Nitinol Rods

Beyond primary flight control applications, 3mm nitinol rod actuators find utility in aerospace environmental control systems where temperature-responsive actuation provides passive thermal regulation without electronic control systems. Cabin ventilation louvers, avionics bay cooling ducts, and battery thermal management systems can employ 3mm nitinol rod actuators that autonomously open or close based on component temperatures, providing inherent thermal runaway protection and reducing electrical system complexity. The austenite finish temperature of the 3mm nitinol rod can be precisely specified to trigger at predetermined threshold temperatures, creating thermostatic actuation without requiring sensors, controllers, or electrical power. This passive thermal management approach proves particularly valuable for battery systems in electric aircraft where thermal management critically affects safety and performance. A 3mm nitinol rod actuator positioned to control cooling airflow can automatically increase ventilation when battery temperatures rise above safe operating limits, providing an additional layer of thermal protection independent of primary battery management systems. The predictable, repeatable transformation characteristics of properly manufactured 3mm nitinol rods according to ASTM F2063 standards ensure consistent thermostatic response over thousands of thermal cycles throughout the aerospace component service life.

Material Specifications and Quality Requirements for Aerospace-Grade 3mm Nitinol Rods

Aerospace applications demand rigorous material specifications and quality control procedures to ensure 3mm nitinol rod actuators deliver consistent performance under operational conditions. The fundamental material composition must be controlled within tight tolerances, as variations of just zero point one atomic percent nickel can shift transformation temperatures by approximately ten degrees Celsius, potentially causing actuator malfunction in thermally critical aerospace environments. High-purity nitinol feedstock minimizes undesirable inclusions such as carbides, oxides, or titanium-rich precipitates that can act as stress concentrators and initiate premature fatigue failures. The manufacturing process for aerospace-grade 3mm nitinol rods typically begins with vacuum induction melting or vacuum arc remelting techniques that provide superior compositional control and reduced contamination compared to atmospheric melting methods. Following primary melting, the ingot undergoes hot working operations including forging and extrusion to break down the cast microstructure and achieve refined grain sizes that enhance mechanical properties and fatigue resistance. The 3mm diameter rod is subsequently produced through multi-pass drawing operations with intermediate annealing treatments to prevent excessive work hardening and maintain material ductility. Final heat treatment processes, referred to as shape-setting or training procedures, establish the memorized shape configuration and precisely adjust the transformation temperatures to meet aerospace application requirements. These shape-setting treatments involve constraining the 3mm nitinol rod in the desired final configuration and heating to temperatures between four hundred and five hundred fifty degrees Celsius for durations ranging from five to thirty minutes, followed by controlled cooling to lock in the programmed shape memory response.

Surface Finishing and Protective Treatments for Three Millimeter Nitinol Actuator Rods

Surface condition significantly influences the fatigue life and corrosion resistance of 3mm nitinol rod actuators in aerospace service. As-drawn rod surfaces exhibit circumferential tool marks and residual tensile stresses from the drawing dies that can reduce fatigue performance by twenty to thirty percent compared to properly finished surfaces. Aerospace applications typically specify electropolished, mechanically polished, or pickled surface finishes that remove surface defects and residual stresses while establishing beneficial compressive surface stress states. Electropolishing removes ten to thirty micrometers of surface material through anodic dissolution, producing smooth surfaces with Ra values below zero point two micrometers that minimize stress concentration effects and improve corrosion resistance in chloride-containing aerospace environments. Black oxide coatings, formed through controlled thermal oxidation in air at elevated temperatures, provide a thin titanium dioxide layer that enhances radiative heat transfer characteristics and offers modest corrosion protection for 3mm nitinol rod actuators. Advanced protective coatings including diamond-like carbon, titanium nitride, or plasma-sprayed ceramics can be applied to 3mm nitinol rod surfaces for specialized aerospace applications requiring enhanced wear resistance or electrical insulation properties, though such coatings must be carefully validated to ensure they do not impede the underlying shape memory transformation or introduce coating-substrate interfacial stresses that could compromise fatigue performance.

Testing and Qualification Standards for Aerospace 3mm Nitinol Rod Components

Qualifying 3mm nitinol rod actuators for aerospace applications requires comprehensive testing programs that verify material properties, functional performance, and environmental durability. Initial material characterization includes differential scanning calorimetry measurements to precisely determine transformation temperatures, tensile testing to establish stress-strain response and recovery strain capabilities, and cyclic loading tests to quantify fatigue life under representative operating conditions. Functional testing of complete 3mm nitinol rod actuator assemblies validates force output, stroke displacement, activation time, and repeatability across the expected temperature range. These functional tests typically examine actuator performance over at least one hundred activation cycles to identify any degradation or drift in operating characteristics. Environmental qualification testing subjects 3mm nitinol rod actuators to temperature cycling between operational extremes, often spanning negative fifty-five to positive one hundred twenty-five degrees Celsius for aircraft applications or even wider ranges for space systems. Vibration testing according to aerospace standards such as MIL-STD-810 or RTCA DO-160 ensures 3mm nitinol rod actuators withstand the dynamic loading environment encountered during flight operations, launch acceleration, or rocket motor firing events. Additional specialized tests may include electromagnetic interference susceptibility, flammability resistance, outgassing characteristics for space applications, and compatibility with aerospace fluids including fuels, hydraulic oils, and cleaning solvents.

Conclusion

The 3mm nitinol rod has proven itself as a viable and advantageous actuator material for aerospace applications, offering unique combinations of shape memory actuation, lightweight construction, and reliable performance that conventional technologies cannot match for certain applications.

Cooperate with Baoji Hanz Metal Material Co., Ltd.

Baoji Hanz Metal Material Co., Ltd. stands as a specialized China 3mm nitinol rod manufacturer with seven years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy development and production. As a leading China 3mm nitinol rod supplier, we maintain complete production and processing equipment, advanced research and development capabilities, and professional testing facilities that ensure every High Quality 3mm nitinol rod meets stringent international standards including ISO9001, SGS, and TUV certifications. Our China 3mm nitinol rod factory offers competitive advantages through direct supply that eliminates intermediary costs, fast delivery from extensive standard size inventory, and comprehensive OEM services tailoring specific dimensions, alloy compositions, and packaging options to your aerospace actuator requirements. When you need 3mm nitinol rod for sale, our technical team provides professional consultation on material selection, transformation temperature specification, and application engineering support throughout your project lifecycle. With 3mm nitinol rod price structures based on quantity and specifications, our wholesale programs deliver cost-effective solutions for aerospace manufacturers seeking reliable China 3mm nitinol rod wholesale partnerships. Contact our team at baojihanz-niti@hanztech.cn to discuss your aerospace actuator requirements and discover how our High Quality 3mm nitinol rod products can enhance your next-generation aerospace system performance.

References

1. Hartl, D.J., and Lagoudas, D.C., "Aerospace Applications of Shape Memory Alloys," Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering.

2. Jani, J.M., Leary, M., Subic, A., and Gibson, M.A., "A Review of Shape Memory Alloy Research, Applications and Opportunities," Materials & Design.

3. Van Humbeeck, J., "Shape Memory Alloys: A Material and a Technology," Advanced Engineering Materials.

4. Stoeckel, D., "Nitinol Medical Devices and Implants," Minimally Invasive Therapy & Allied Technologies.

5. Otsuka, K., and Wayman, C.M., "Shape Memory Materials," Cambridge University Press.
