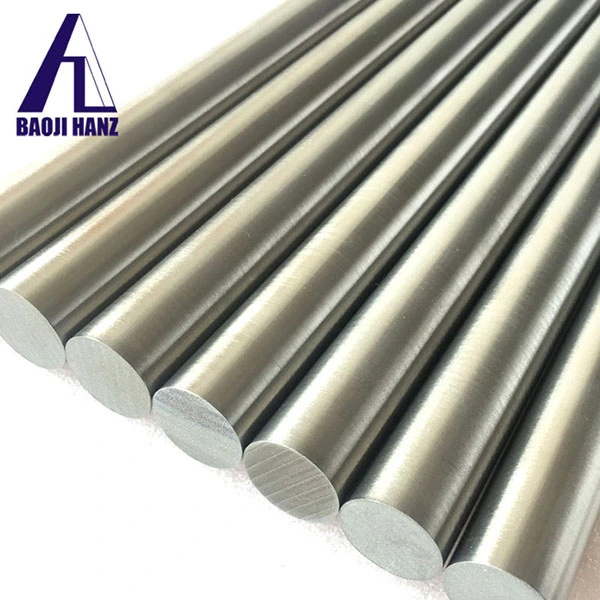

Customizable Af Temperatures: Your Nitinol Rod, Your Rules

In the rapidly evolving world of advanced materials, the ability to customize Austenite finish (Af) temperatures in nitinol rod applications has emerged as a game-changing capability that empowers engineers and manufacturers to achieve unprecedented precision in their designs. The nitinol rod, with its unique shape memory and superelastic properties, offers remarkable versatility through temperature customization, allowing professionals to tailor these extraordinary materials to meet specific operational requirements across diverse industries. This customization capability transforms the traditional one-size-fits-all approach into a precision-engineered solution where each nitinol rod can be optimized for its intended environment and application parameters. The significance of customizable Af temperatures cannot be overstated, as it directly impacts the performance characteristics, reliability, and functionality of the final product in critical applications ranging from medical devices to aerospace components.

Understanding Af Temperature Customization in Nitinol Rods

The Science Behind Austenite Finish Temperature Control

The Austenite finish (Af) temperature represents the critical threshold at which a nitinol rod completes its transformation from the martensitic to austenitic phase during the heating process. This fundamental property determines when the material recovers its programmed shape and exhibits its characteristic superelastic behavior. In nitinol rod manufacturing, the Af temperature is meticulously controlled through precise compositional adjustments, particularly the nickel-to-titanium ratio, which typically ranges from 50:50 to 56:44. Even minute variations in this composition can shift the Af temperature by several degrees, making it possible to engineer nitinol rod products with Af temperatures ranging from -10°C to 100°C. The transformation temperature is also influenced by thermomechanical processing parameters, including annealing temperatures, cooling rates, and aging treatments. Advanced manufacturing techniques allow for the creation of nitinol rod products with extremely narrow temperature tolerance bands, ensuring consistent performance across multiple units. Understanding these scientific principles enables engineers to specify the exact Af temperature needed for their particular application, whether it requires activation at body temperature for medical implants or at sub-zero temperatures for aerospace applications.

Material Composition and Its Impact on Temperature Properties

The relationship between material composition and Af temperature in nitinol rod production is both complex and precisely controllable through advanced metallurgical techniques. The primary alloying elements, nickel and titanium, must be balanced with extraordinary precision to achieve the desired transformation temperatures. A nitinol rod with higher nickel content typically exhibits lower transformation temperatures, while increased titanium content raises these critical temperatures. Third-element additions, such as copper, iron, or chromium, can further modify the transformation behavior and provide additional temperature control options. The manufacturing process at specialized facilities involves careful control of melting conditions, including vacuum induction melting and electron beam remelting, to ensure homogeneous composition throughout the nitinol rod. Quality control measures include spectroscopic analysis and differential scanning calorimetry to verify that each batch meets the specified Af temperature requirements. The microstructural characteristics, including grain size and precipitate distribution, also play crucial roles in determining the final transformation temperatures. Modern nitinol rod production facilities employ sophisticated heat treatment protocols that can fine-tune the Af temperature to within ±2°C of the target value, providing unprecedented control over the material's thermal behavior.

Advanced Manufacturing Techniques for Temperature Precision

Contemporary nitinol rod manufacturing employs cutting-edge techniques to achieve remarkable precision in Af temperature control, utilizing sophisticated equipment and processes that ensure consistent thermal properties throughout the material. The production process begins with vacuum induction melting, where raw materials are carefully weighed and melted under controlled atmospheric conditions to prevent contamination and ensure uniform composition. Following the melting process, the material undergoes hot working operations, including forging and rolling, to achieve the desired mechanical properties and grain structure. The nitinol rod then undergoes precise heat treatment cycles, where temperature, time, and atmosphere are meticulously controlled to achieve the target Af temperature. Advanced furnace systems with multiple temperature zones allow for gradient heat treatments, enabling the creation of nitinol rod products with varying transformation temperatures along their length if required. Cold working operations, such as drawing and straightening, are performed with careful attention to the work hardening effects that can influence the final transformation behavior. The final annealing process is conducted in controlled atmosphere furnaces, with temperature monitoring systems that ensure uniformity within ±1°C throughout the entire nitinol rod. Quality assurance protocols include comprehensive testing of transformation temperatures using differential scanning calorimetry and mechanical testing to verify that the material meets all specified requirements.

Applications and Benefits of Temperature-Customized Nitinol Rods

Medical Device Applications and Temperature Requirements

The medical industry represents one of the most demanding applications for temperature-customized nitinol rod products, where precise Af temperature control is essential for patient safety and device functionality. Cardiovascular stents manufactured from nitinol rod materials require specific transformation temperatures that ensure proper deployment at body temperature while maintaining structural integrity during storage and handling at room temperature. The customizable Af temperature capability allows medical device manufacturers to optimize their products for specific anatomical locations and patient populations, with some applications requiring transformation temperatures slightly below body temperature for immediate activation upon implantation. Orthodontic archwires crafted from nitinol rod materials benefit from precisely controlled Af temperatures that provide optimal force delivery throughout the treatment process, with temperatures typically set between 25°C and 37°C to ensure appropriate activation in the oral environment. Surgical instruments incorporating nitinol rod components can be engineered with higher Af temperatures to prevent unwanted shape changes during sterilization procedures while still providing the desired superelastic properties during use. The biocompatibility of nitinol rod materials is maintained across all temperature ranges, with ASTM F2063 compliance ensuring that the material meets the stringent requirements for implantable medical devices. Advanced medical applications, such as neurovascular devices and minimally invasive surgical tools, require nitinol rod products with extremely precise temperature control to ensure predictable performance in critical procedures.

Industrial and Aerospace Applications

The industrial sector has embraced temperature-customized nitinol rod technology for applications requiring reliable actuation and control mechanisms that operate across diverse thermal environments. In aerospace applications, nitinol rod components must function reliably across extreme temperature ranges, from the sub-zero conditions of high-altitude flight to the elevated temperatures encountered during atmospheric re-entry. The ability to customize Af temperatures enables engineers to design nitinol rod actuators that remain dormant during cold storage and transport but activate precisely when exposed to operational temperatures. Industrial automation systems utilize nitinol rod components with carefully selected Af temperatures to create thermally activated switches, valves, and positioning mechanisms that provide fail-safe operation without external power sources. The oil and gas industry has found valuable applications for nitinol rod technology in downhole tools, where high-temperature variants with Af temperatures exceeding 100°C are required to function in geothermal environments. Manufacturing equipment incorporating nitinol rod components benefits from the material's ability to provide consistent force and displacement characteristics across varying operational temperatures. The customizable nature of Af temperatures allows industrial designers to create nitinol rod solutions that are optimized for specific environmental conditions, ensuring reliable performance throughout the equipment's operational life cycle.

Emerging Applications and Future Developments

The frontier of nitinol rod applications continues to expand as researchers and engineers discover new ways to leverage the unique properties of temperature-customized materials in innovative applications. Smart textiles and wearable technologies are beginning to incorporate nitinol rod elements with precisely controlled Af temperatures to create responsive fabrics that adapt to changing environmental conditions or user requirements. The automotive industry is exploring the use of nitinol rod components in adaptive aerodynamic systems, where temperature-controlled shape changes can optimize vehicle performance across different driving conditions. Consumer electronics manufacturers are investigating the potential of nitinol rod actuators for creating more durable and responsive user interfaces that can withstand repeated use while maintaining precise operation. The construction industry is beginning to recognize the potential of nitinol rod technology for creating self-healing structures and adaptive building systems that respond to environmental changes. Research into multi-functional nitinol rod applications is exploring the possibility of creating materials with multiple transformation temperatures, enabling complex shape changes and actuation sequences. The development of hybrid nitinol rod systems that combine shape memory and superelastic properties with other advanced materials promises to open new application areas in robotics, aerospace, and biomedical engineering. As manufacturing techniques continue to advance, the precision of Af temperature control in nitinol rod products is expected to improve further, enabling even more sophisticated applications that require extremely narrow temperature tolerance bands.

Quality Control and Standardization in Temperature-Customized Nitinol Rods

Testing and Validation Protocols

Comprehensive testing and validation protocols are essential for ensuring that temperature-customized nitinol rod products meet the exacting requirements of modern applications. The primary testing method for Af temperature verification involves differential scanning calorimetry (DSC), which provides precise measurement of transformation temperatures with accuracy typically within ±1°C. Each batch of nitinol rod production undergoes systematic DSC analysis to verify that the Af temperature falls within the specified range, with statistical process control methods ensuring consistent quality across multiple production runs. Mechanical testing protocols include tensile testing, fatigue testing, and superelastic cycling to verify that the material maintains its specified properties at the target Af temperature. Microstructural analysis using scanning electron microscopy and X-ray diffraction provides insights into the phase composition and grain structure that influence transformation behavior. Chemical composition analysis through inductively coupled plasma spectroscopy ensures that the nickel-titanium ratio and any alloying elements are within the specified tolerances. Accelerated aging tests simulate long-term service conditions to verify that the Af temperature remains stable over the expected service life of the nitinol rod. Environmental testing protocols expose the material to various temperature and humidity conditions to ensure consistent performance across different storage and operating environments. The validation process includes comprehensive documentation of all test results, with certificates of analysis provided to customers detailing the specific properties of each nitinol rod batch.

International Standards and Compliance Requirements

The production of temperature-customized nitinol rod products must comply with various international standards and regulatory requirements that ensure consistent quality and performance across different markets and applications. ASTM F2063 serves as the primary standard for nitinol rod materials used in medical applications, specifying requirements for chemical composition, mechanical properties, and transformation temperatures. ISO 5832-11 provides additional guidance for the characterization of nickel-titanium alloys used in surgical implants, with specific requirements for biocompatibility and corrosion resistance. The European Union's Medical Device Regulation (MDR) imposes stringent requirements for nitinol rod products used in medical devices, including comprehensive documentation of material properties and manufacturing processes. Aerospace applications require compliance with AS9100 quality management standards, which mandate rigorous process control and traceability throughout the nitinol rod manufacturing process. The automotive industry follows TS 16949 standards for nitinol rod components used in vehicle systems, ensuring consistent quality and reliability across global supply chains. Quality management systems based on ISO 9001 principles provide the framework for continuous improvement in nitinol rod manufacturing processes. Regulatory compliance extends beyond material properties to include packaging, labeling, and documentation requirements that vary by region and application. The increasing globalization of nitinol rod markets has led to greater harmonization of standards, with many manufacturers seeking multiple certifications to serve diverse international markets.

Traceability and Documentation Systems

Modern nitinol rod manufacturing facilities implement comprehensive traceability and documentation systems that track every aspect of production from raw materials to final delivery. Each batch of nitinol rod production is assigned unique identification codes that link to detailed records of material composition, processing parameters, and test results. Raw material certificates provide documentation of the source and purity of nickel and titanium feedstock, with chain of custody records maintaining traceability throughout the supply chain. Process control records document every step of the manufacturing process, including melting parameters, hot working conditions, heat treatment cycles, and final inspection results. Quality control databases maintain comprehensive records of all test results, with statistical analysis tools identifying trends and potential issues before they impact product quality. Customer-specific documentation packages include certificates of analysis, material test reports, and compliance declarations that verify conformance to specified requirements. Digital documentation systems provide secure access to historical records, enabling rapid response to customer inquiries and regulatory audits. The implementation of blockchain technology in some facilities provides additional security and immutability for critical documentation related to nitinol rod production. These comprehensive documentation systems not only ensure compliance with regulatory requirements but also provide valuable data for continuous improvement initiatives and product development activities.

Conclusion

The advancement of customizable Af temperature technology in nitinol rod manufacturing represents a paradigm shift that empowers engineers and manufacturers to achieve unprecedented precision in material performance. Through sophisticated compositional control, advanced manufacturing techniques, and rigorous quality assurance protocols, temperature-customized nitinol rod products deliver reliable solutions across diverse applications ranging from life-saving medical devices to cutting-edge aerospace systems. The ability to precisely control transformation temperatures has opened new possibilities for innovation while ensuring that each nitinol rod meets the exacting requirements of its intended application, ultimately providing superior performance and reliability in critical systems worldwide.

As a leading China nitinol rod factory with seven years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. stands at the forefront of this technological revolution. Our position as a trusted China nitinol rod supplier and China nitinol rod manufacturer is built on our commitment to innovation, quality, and customer satisfaction. We offer significant cost advantages through our direct supply chain, combined with fast delivery from our extensive stock of standard sizes. As a premier China nitinol rod wholesale provider, we invite you to experience the difference that customizable Af temperature technology can make in your applications. Our OEM services are designed to meet your specific needs, whether you require custom sizes, specific alloy compositions, or specialized packaging options. Contact us today at baojihanz-niti@hanztech.cn to discover how our temperature-customized nitinol rod solutions can transform your next project.
