How are NiTi alloy strands manufactured and processed?

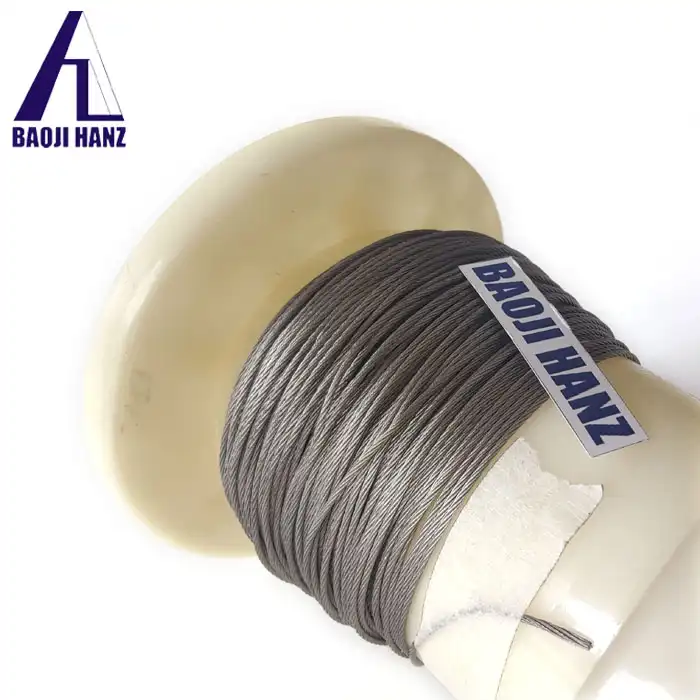

NiTi alloy strands, also known as Nitinol strands, represent a remarkable achievement in materials engineering, combining the unique properties of nickel and titanium to create a material with exceptional characteristics. The manufacturing and processing of NiTi Alloy Strand involves sophisticated techniques that transform raw materials into highly functional components used across various industries. These specialized alloy strands exhibit remarkable shape memory and superelastic properties, making them invaluable in applications ranging from medical devices to aerospace components. The complex manufacturing process involves precise material selection, controlled melting, multiple forming stages, and specific heat treatments that collectively determine the final performance characteristics of the NiTi Alloy Strand.

Raw Material Preparation and Melting Process

Selection of High-Purity Raw Materials

The journey of manufacturing NiTi Alloy Strand begins with the careful selection of raw materials. High-purity nickel and titanium are essential starting components, as even minor impurities can significantly affect the final properties of the alloy. The raw materials undergo rigorous quality control processes to ensure they meet the required specifications. Typically, nickel with a purity of at least 99.9% and titanium with 99.8% purity are selected for premium-grade NiTi Alloy Strand production. Baoji Hanz Metal Material Co., Ltd. places particular emphasis on material selection, sourcing only the highest quality raw materials to ensure superior performance in the finished product. This meticulous approach to raw material procurement directly influences the mechanical properties, transformation temperatures, and overall reliability of the final NiTi Alloy Strand.

Vacuum Induction Melting Techniques

Once the raw materials have been selected, they undergo precise melting processes to create a homogeneous alloy. Vacuum induction melting (VIM) is the preferred method for NiTi Alloy Strand production because it minimizes contamination and ensures uniform composition throughout the melt. This process takes place in a controlled environment at temperatures reaching approximately 1240-1310°C, which is the melting point of the nickel-titanium alloy. The vacuum environment prevents oxidation and the inclusion of unwanted gases that could compromise the integrity of the final product. With a density of about 6.45 g/cm³, the molten alloy requires careful handling and monitoring during this critical phase. The precise ratio of nickel to titanium is meticulously controlled, as even slight variations can dramatically alter the properties of the resulting NiTi Alloy Strand, particularly its transformation temperatures and mechanical behavior.

Composition Control and Homogenization

Achieving the precise composition is crucial for the performance of NiTi Alloy Strand. The typical composition ranges from 54-57% nickel by weight, with the balance being titanium. At Baoji Hanz Metal Material Co., Ltd., advanced analytical techniques are employed to monitor the composition throughout the melting process, ensuring that the target specifications are met. Following the initial melt, the alloy undergoes homogenization processes to ensure uniform distribution of elements throughout the ingot. This step is critical for eliminating segregation and ensuring consistent properties in the final NiTi Alloy Strand. The homogenization typically involves holding the material at elevated temperatures for extended periods, allowing diffusion processes to equalize the composition throughout the material. This attention to composition control is what enables the company to guarantee the remarkable tensile strength of approximately 800-1500 MPa in their finished NiTi Alloy Strand products.

Primary and Secondary Processing Methods

Hot Working and Initial Forming

The transformation of the homogenized ingot into a workable form involves hot working techniques. At temperatures above the recrystallization point, the NiTi Alloy Strand material is more ductile and can be formed without developing significant internal stresses. Hot rolling and hot drawing are common processes used to reduce the cross-section of the ingot and create the initial wire or rod form. During this phase, the material undergoes significant deformation, which helps break down the as-cast structure and refine the grain size. The hot working process typically operates in temperature ranges between 800-900°C, carefully controlled to avoid oxidation while maintaining optimal formability. Baoji Hanz Metal Material Co., Ltd. employs specialized equipment designed specifically for processing nickel-titanium alloys, ensuring that the material maintains its integrity throughout this demanding process. This initial forming stage is fundamental to developing the microstructure that will ultimately support the unique properties of the NiTi Alloy Strand.

Cold Working and Dimensional Refinement

Following hot working, the material undergoes cold working processes that further refine its dimensions and enhance its mechanical properties. Cold drawing is the predominant technique used for NiTi Alloy Strand production, where the material is pulled through a series of progressively smaller dies to reduce its diameter. This process significantly increases the tensile strength and hardness of the material, approaching the upper limits of the 800-1500 MPa range. Cold working also induces work hardening, which alters the transformation behavior of the alloy. The degree of cold work is carefully controlled, as it directly influences both the superelastic properties and the shape memory effect of the final NiTi Alloy Strand. Between drawing steps, intermediate annealing treatments may be necessary to restore ductility and prevent fracture during subsequent processing. Baoji Hanz Metal Material Co., Ltd. maintains precise control over the cold working parameters, ensuring that each batch of NiTi Alloy Strand meets the specified dimensional tolerances and mechanical properties required for its intended application.

Surface Treatment and Finishing Operations

The final stage of the primary and secondary processing involves surface treatments and finishing operations that prepare the NiTi Alloy Strand for its intended application. Surface cleaning processes remove any contaminants or oxides that may have formed during previous processing steps. This typically involves chemical etching or electropolishing to achieve a clean, smooth surface finish. For some applications, specialized coatings may be applied to enhance specific properties such as biocompatibility, wear resistance, or electrical insulation. Quality control at this stage includes dimensional verification, surface inspection, and mechanical testing to ensure that the NiTi Alloy Strand meets all specified requirements. With ISO9001:2015 and ISO13485:2016 certifications, Baoji Hanz Metal Material Co., Ltd. implements rigorous quality control procedures throughout the finishing process, ensuring that each meter of NiTi Alloy Strand—with a minimum order quantity (MOQ) of 500 meters—meets or exceeds industry standards before being released for shipment or further processing.

Heat Treatment and Property Optimization

Shape Setting and Memory Training

One of the most critical steps in the manufacturing of NiTi Alloy Strand is the shape-setting process, which establishes the "remembered" shape that the material will return to when heated. This process involves constraining the material in the desired configuration and then subjecting it to a specific heat treatment. Typically, shape-setting temperatures range between 450-550°C with holding times varying from several minutes to several hours, depending on the complexity of the shape and the dimensional stability required. During this process, the crystallographic structure of the NiTi Alloy Strand is reorganized, creating the blueprint for the shape memory effect. For more complex applications, specialized fixtures and tooling are designed to maintain precise geometry during the heat treatment. Baoji Hanz Metal Material Co., Ltd. offers customized shape-setting services to meet specific client requirements, utilizing their extensive experience in working with nickel-titanium alloys to achieve optimal results. This capability is particularly valuable for OEM clients seeking tailored NiTi Alloy Strand solutions for specialized applications.

Aging and Precipitation Hardening

Aging treatments are employed to optimize the transformation characteristics and mechanical properties of NiTi Alloy Strand. This process involves holding the material at intermediate temperatures (typically 350-500°C) for controlled periods to facilitate the formation of nickel-rich precipitates within the alloy matrix. These precipitates play a crucial role in determining the transformation temperature, hysteresis, and mechanical response of the material. By carefully controlling the aging parameters, manufacturers can fine-tune the properties of the NiTi Alloy Strand to meet specific application requirements. For instance, longer aging times generally increase the transformation temperature and yield strength while reducing the transformation strain. Baoji Hanz Metal Material Co., Ltd. employs advanced thermal processing equipment with precise temperature control to ensure consistent aging results across different production batches. This level of process control allows them to offer NiTi Alloy Strand with predictable and reliable performance characteristics, essential for critical applications in medical, aerospace, and automotive industries.

Property Verification and Testing

The final phase of heat treatment is followed by comprehensive testing to verify that the NiTi Alloy Strand exhibits the desired properties. Differential scanning calorimetry (DSC) is commonly used to determine transformation temperatures, while tensile testing confirms mechanical properties such as ultimate tensile strength (typically 800-1500 MPa), plateau stresses, and elongation. Cyclic testing evaluates fatigue resistance and functional stability over repeated transformation cycles. For applications with specific requirements, additional tests may include corrosion resistance, biocompatibility, and thermal cycling stability. With their ISO9001:2015 and ISO13485:2016 certifications, Baoji Hanz Metal Material Co., Ltd. maintains a fully equipped testing laboratory to ensure that every batch of NiTi Alloy Strand meets both industry standards and customer specifications. This rigorous testing regime provides customers with confidence in the consistency and reliability of the material, which is essential for applications where failure is not an option. The company's commitment to quality ensures that their NiTi Alloy Strand delivers exceptional performance across a wide range of operating conditions.

Conclusion

The manufacturing and processing of NiTi Alloy Strand require a sophisticated blend of metallurgical knowledge, precision engineering, and quality control. From raw material selection to final property verification, each step in the process plays a vital role in determining the performance characteristics of the finished product. The unique combination of shape memory and superelastic properties makes these materials invaluable across numerous industries.

Are you looking for a reliable partner to supply high-quality NiTi Alloy Strand for your next project? With 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. offers direct supply advantages that can significantly reduce your costs. We maintain a large stock of standard sizes for fast delivery and provide comprehensive OEM services tailored to your specific requirements. Contact us today at baojihanz-niti@hanztech.cn to discover how our premium NiTi alloy solutions can enhance your products and processes.

References

1. Morgan, N.B. and Friend, C.M. (2001) "A review of shape memory alloy processing methods and materials properties for medical applications," Journal of Materials Engineering and Performance, 10(3), pp. 373-377.

2. Otsuka, K. and Ren, X. (2005) "Physical metallurgy of Ti–Ni-based shape memory alloys," Progress in Materials Science, 50(5), pp. 511-678.

3. Pfeifer, R., Herzog, D., Hustedt, M. and Barcikowski, S. (2010) "Pulsed Nd:YAG laser cutting of NiTi shape memory alloy tubes for medical applications," Journal of Materials Processing Technology, 210(14), pp. 1918-1925.

4. Robertson, S.W., Pelton, A.R. and Ritchie, R.O. (2012) "Mechanical fatigue and fracture of Nitinol," International Materials Reviews, 57(1), pp. 1-36.

5. Stoeckel, D., Pelton, A. and Duerig, T. (2004) "Self-expanding nitinol stents: material and design considerations," European Radiology, 14(2), pp. 292-301.

6. Mohd Jani, J., Leary, M., Subic, A. and Gibson, M.A. (2014) "A review of shape memory alloy research, applications and opportunities," Materials & Design, 56, pp. 1078-1113.
