How are TiNi shape memory ropes manufactured?

TiNi shape memory ropes represent a remarkable innovation in materials science, combining the unique properties of Nitinol (Nickel-Titanium alloy) with specialized manufacturing techniques. These ropes possess the extraordinary ability to return to their pre-programmed shape when subjected to specific temperature changes or mechanical stress. The manufacturing process of Memory shape TiNi rope involves several sophisticated steps, from raw material selection to final processing, all requiring precise control and advanced technology to ensure the resulting product exhibits optimal shape memory and superelastic properties for various demanding applications.

Raw Material Preparation and Processing

Selection of High-Purity Materials

The manufacturing of Memory shape TiNi rope begins with the careful selection of raw materials. High-purity nickel and titanium are essential components that determine the final quality of the Nitinol alloy. The purity levels of these metals are critical, as even minor impurities can significantly affect the shape memory and superelastic properties of the final product. Typically, manufacturers like Baoji Hanz Metal Material Co., Ltd. utilize nickel and titanium with purity levels exceeding 99.95%. These materials undergo rigorous quality control tests to ensure they meet the stringent requirements necessary for medical, aerospace, and industrial applications. The exact ratio of nickel to titanium is precisely controlled, usually maintained at approximately 55% nickel and 45% titanium by weight, though this can be adjusted based on the specific requirements of the Memory shape TiNi rope's intended application.

Vacuum Induction Melting Process

Once the raw materials have been selected, they undergo a vacuum induction melting (VIM) process. This sophisticated technique is crucial for creating a homogeneous alloy with consistent properties throughout. During the VIM process, the nickel and titanium are melted together in a vacuum environment to prevent oxidation and contamination, which could compromise the shape memory properties of the final product. The molten metals are carefully mixed to ensure uniform composition, with precise temperature control maintained throughout the process. The molten alloy is then cast into ingots, which serve as the base material for further processing steps. This melting process is particularly important for Memory shape TiNi rope production, as it establishes the fundamental crystalline structure that enables the material's unique shape memory capabilities.

Initial Forming and Hot Working

After the ingots have been created, they undergo hot working processes to transform them into more manageable forms for subsequent rope manufacturing. This typically involves hot rolling operations at temperatures above the recrystallization point of the Nitinol alloy (approximately 600-800°C). The hot working process helps break down the as-cast structure of the metal and creates a more refined grain structure that is essential for optimal performance of Memory shape TiNi rope. During this stage, the material is repeatedly heated and worked, gradually reducing its diameter while improving its mechanical properties. The hot working phase also helps to introduce the necessary thermomechanical history into the material, which is crucial for establishing the proper crystallographic structures that enable shape memory effects in the final product.

Wire Drawing and Rope Formation

Cold Drawing and Intermediate Annealing

The transformation from ingot to wire involves a series of cold drawing operations interspersed with intermediate annealing treatments. Cold drawing is performed at room temperature and involves pulling the material through progressively smaller dies to reduce its diameter. This process significantly increases the material's strength but also introduces work hardening. To prevent excessive hardening that could make further processing impossible, intermediate annealing treatments are performed. These heat treatments temporarily return the material to a more workable state by relieving internal stresses. For Memory shape TiNi rope manufacturing, this process is particularly delicate as it directly influences the superelastic and shape memory properties. The wire drawing process continues until the desired diameter is achieved, typically ranging from 0.3 to 0.7mm for standard Memory shape TiNi rope products, though Baoji Hanz Metal Material Co., Ltd. offers customized dimensions based on specific customer requirements.

Twisting and Strand Configuration

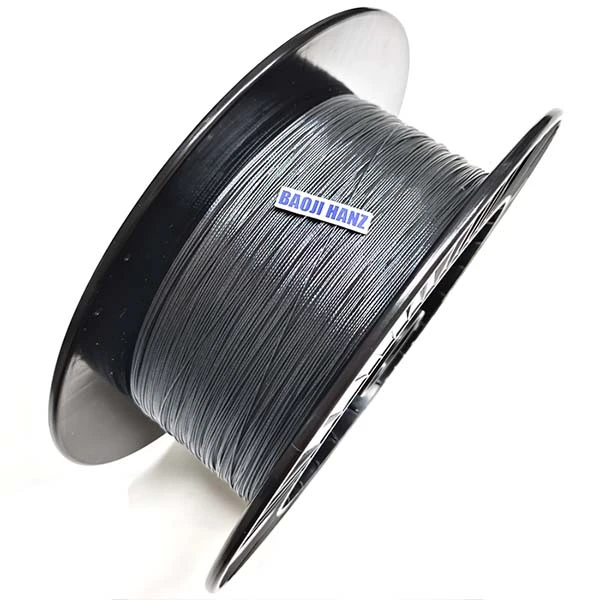

Once the individual wires have reached the appropriate diameter, they are twisted together to form the rope structure. The most common configuration for Memory shape TiNi rope is the 1×7 construction, consisting of one central wire surrounded by six outer wires. This arrangement provides an optimal balance of flexibility, strength, and shape memory performance. The twisting process is precisely controlled to ensure uniform tension and positioning of each wire within the rope structure. The pitch of the twist (the distance over which the strands make one complete revolution around the core) is carefully calibrated to provide the desired mechanical properties in the final product. Different applications may require variations in the strand configuration, and manufacturers like Baoji Hanz Metal Material Co., Ltd. offer customized designs to meet specific performance requirements across various industries, from fishing applications to highly specialized medical devices.

Surface Treatment and Finishing

The final stage in the wire drawing and rope formation process involves surface treatment and finishing operations. Memory shape TiNi rope can be produced with either a bright or black surface finish, depending on the intended application. The bright finish is achieved through chemical polishing or electropolishing processes, which remove a thin layer of material from the surface to create a smooth, reflective appearance. The black finish, often preferred for applications where low reflectivity is desired, is typically achieved through controlled oxidation processes. Surface treatments also serve to improve corrosion resistance and biocompatibility, which are crucial for Memory shape TiNi rope used in medical applications. Specialized coating processes may be applied for specific applications, such as PTFE coatings for reduced friction or specialized biocompatible coatings for medical devices. With a tensile strength of approximately 1450 MPa and compliance with standards such as GB24627-2009 and ASTMF2063, the finished rope undergoes rigorous quality testing before being packaged for shipment.

Heat Treatment and Shape Setting

Shape Memory Programming

The critical phase that transforms standard Nitinol rope into Memory shape TiNi rope with functional shape memory properties is the shape programming process. During this stage, the rope is physically constrained in the desired "memory" configuration using specialized fixtures or forms. The constrained rope is then subjected to a precise heat treatment, typically at temperatures between 400-550°C for a specified duration. This heat treatment establishes the crystallographic arrangement that the material will "remember" and return to when subsequently heated above its transformation temperature. The exact temperature and duration of this heat treatment are carefully controlled based on the specific composition of the alloy and the desired transformation temperature in the final product. This process essentially "programs" the Memory shape TiNi rope to remember its configured shape, allowing it to return to this form after deformation when triggered by the appropriate stimulus, whether that's a specific temperature change or mechanical stress relief.

Transformation Temperature Adjustment

One of the most valuable aspects of Memory shape TiNi rope is the ability to customize its transformation temperature—the temperature at which it transitions between martensite and austenite phases, triggering the shape memory effect. This transformation temperature can be precisely adjusted through careful control of the alloy composition and specific heat treatment protocols. Baoji Hanz Metal Material Co., Ltd. utilizes advanced thermal processing equipment to achieve transformation temperatures ranging from -100°C to +100°C, depending on the specific application requirements. The transformation temperature adjustment is a critical aspect of Memory shape TiNi rope manufacturing, as it determines when and how the material will exhibit its shape memory behavior. For example, medical applications might require activation at body temperature, while aerospace applications might need transformation at specific environmental conditions. The transformation temperature is verified through differential scanning calorimetry (DSC) testing, which provides precise measurements of the material's phase transformation characteristics.

Quality Control and Testing

The final heat treatment and shape setting process is followed by comprehensive quality control procedures to ensure the Memory shape TiNi rope meets all specified performance requirements. These tests include verification of transformation temperatures, measurement of recovery forces, cycling stability tests, and evaluation of fatigue resistance. Advanced testing equipment is used to measure the specific shape memory properties, including the percentage of shape recovery, the force exerted during shape recovery, and the number of transformation cycles the material can withstand without degradation. For applications requiring precise performance parameters, such as medical devices or aerospace components, additional specialized tests may be conducted. Memory shape TiNi rope manufactured by Baoji Hanz Metal Material Co., Ltd. undergoes rigorous quality assurance processes, including both destructive and non-destructive testing methods, to ensure consistent performance across a range of operating conditions. Each batch is carefully documented and certified to meet or exceed industry standards such as ASTMF2063 for medical-grade Nitinol materials.

Conclusion

The manufacturing of TiNi shape memory ropes involves a sophisticated multi-stage process combining metallurgical expertise with precise thermal and mechanical processing. From raw material selection through shape programming, each step requires exacting control to produce Memory shape TiNi rope with consistent and reliable performance characteristics for demanding applications across various industries.
