How do bidirectional nickel titanium alloy springs work?

​​​​​​​Bidirectional nickel titanium alloy springs represent one of the most fascinating advancements in materials science, utilizing the unique properties of nitinol to perform automatic two-way shape transformations in response to temperature changes. Unlike conventional springs that only work in one direction, bidirectional nickel titanium alloy springs can extend when heated and contract when cooled (or vice versa), without requiring an external mechanical force for the return movement. This remarkable capability stems from the spring's "memory" of two different shapes at different temperatures, achieved through specialized training processes during manufacturing.

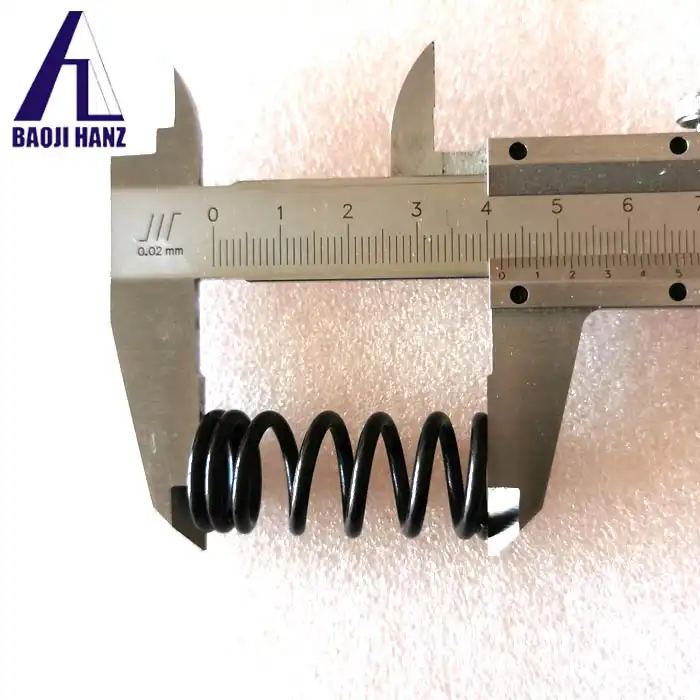

The Science Behind Bidirectional Nitinol Spring Technology

Shape Memory Effect Fundamentals

Bidirectional nickel titanium alloy springs operate based on the shape memory effect, which is a unique property of certain alloys, particularly nitinol (an alloy of nickel and titanium). This effect allows the material to "remember" and return to a predetermined shape when subjected to specific temperature changes. The fundamental mechanism behind this phenomenon lies in the material's crystalline structure. At lower temperatures, nitinol exists in a martensite phase with a twinned structure that can be easily deformed. When heated above its transformation temperature, it transforms to an austenite phase and reverts to its original shape. What makes bidirectional nickel titanium alloy springs special is their ability to remember two different shapes—one at high temperature and another at low temperature—enabling automatic movement in both directions without external mechanical force. This bidirectional capability requires sophisticated processing techniques including precise composition control (typically 55-56% nickel by weight) and specialized training procedures where the spring undergoes multiple thermal cycles under specific stress conditions to establish both shape memories. The transformation temperatures can be customized between -50°C and 200°C depending on the application requirements, with options for low temperature (0-20°C), normal temperature (20-40°C), or high temperature (40-120°C) activation points.

Microstructural Transformations

The exceptional performance of bidirectional nickel titanium alloy springs stems from complex microstructural transformations that occur at the atomic level. During temperature changes, these springs undergo a reversible, solid-state phase transformation between austenite and martensite crystal structures. When cooled from the austenite phase, the material enters a twinned martensite state where atoms rearrange themselves without changing the macroscopic shape. The training process for bidirectional functionality introduces dislocations and internal stress fields that create preferential variants of martensite, allowing the spring to adopt different shapes at different temperatures. These microstructural changes are repeatable through hundreds of thousands of cycles, with the bidirectional nickel titanium alloy spring capable of maintaining performance through 100,000 to 1 million transformation cycles. Electron microscopy studies reveal that the stability and consistency of these transformations depend on several factors, including precise alloy composition, heat treatment parameters, and training methods. The material's phase transformation temperatures (identified as Mf, Ms, As, and Af) can be precisely controlled through composition adjustments and thermomechanical processes, allowing manufacturers like Baoji Hanz Metal Material Co., Ltd. to produce springs with transformation temperatures tailored to specific applications, including body-temperature-activated medical devices (37°C). This microstructural precision enables bidirectional nickel titanium alloy springs to deliver reliable and consistent performance across varying environmental conditions.

Manufacturing and Training Process

The production of high-quality bidirectional nickel titanium alloy springs involves a sophisticated manufacturing process requiring precision engineering and specialized equipment. The process begins with material preparation, where high-purity nickel and titanium (meeting ASTM F2063 standards) are melted together under vacuum conditions to create an alloy with precisely controlled composition. The resulting material undergoes multiple stages of hot and cold working to form wires with diameters ranging from 0.1mm to 5mm. These wires are then wound around mandrels to create springs with outer diameters between 2mm and 50mm and free lengths of 5mm to 200mm. The critical stage in producing bidirectional nickel titanium alloy springs is the training process, which involves subjecting the springs to a series of thermal cycles under carefully controlled mechanical constraints. This complex procedure typically consists of holding the spring in a deformed position at high temperature, cooling it, releasing the constraint, and then cycling between high and low temperatures multiple times. Each spring can be customized with specific parameters including 3-20 effective turns (affecting elasticity) and driving forces ranging from 0.1N to 50N depending on wire diameter and heat treatment processes. After training, springs undergo surface polishing treatments to enhance corrosion resistance and improve mechanical performance. Before leaving the factory, each batch undergoes rigorous testing to verify transformation temperatures, mechanical properties, and cycling stability, ensuring they meet ISO 13485 certification standards for medical applications when applicable.

Applications and Performance Characteristics

Medical and Biomedical Applications

Bidirectional nickel titanium alloy springs have revolutionized numerous medical devices and procedures due to their biocompatibility and unique functional properties. In minimally invasive surgery, these springs enable self-expanding stents, catheter steering mechanisms, and guidewires that can navigate through complex vascular pathways with reduced trauma to surrounding tissues. The ability to activate at body temperature (37°C) makes them ideal for implantable devices that can perform specific functions after insertion. Orthodontic applications benefit from bidirectional nickel titanium alloy springs that exert consistent, gentle forces on teeth over extended periods, providing more comfortable and efficient tooth movement compared to traditional materials. These springs can be manufactured with wire diameters as fine as 0.2mm for delicate medical instruments while maintaining precise actuation forces between 0.1N and 50N. Their exceptional fatigue resistance—withstanding up to 1 million transformation cycles—ensures long-term reliability in permanent or semi-permanent implants. Perhaps most importantly, the corrosion resistance of properly processed bidirectional nickel titanium alloy springs makes them highly compatible with body fluids and biological environments. Surgical robotics represent an emerging application area, where these springs provide controlled movements in articulating instruments and end-effectors. The springs' compliance with ISO 13485 standards ensures they meet the stringent requirements for medical devices, while their ability to function across temperature ranges from -50°C to 150°C (with high-temperature variants reaching 200°C) allows for use in both cryogenic procedures and high-temperature sterilization processes.

Automotive and Industrial Applications

The automotive and industrial sectors have increasingly adopted bidirectional nickel titanium alloy springs for applications requiring reliable operation under demanding conditions. In modern vehicles, these springs serve in thermal management systems, automatically adjusting cooling circuit flows based on engine temperature without requiring electronic controls or external power sources. Their superelastic properties also make them valuable in vibration damping components that can absorb energy across a wide frequency range with minimal fatigue. Industrial valve systems benefit from bidirectional nickel titanium alloy springs that can open or close in response to temperature thresholds, providing fail-safe operation in process control systems. The springs' ability to withstand harsh environments while maintaining functionality has led to their implementation in heavy machinery where conventional materials would rapidly degrade. With operating temperature ranges from -50°C to 150°C (and specialized variants reaching 200°C), these springs function reliably in virtually all industrial climate conditions. Their resistance to corrosion further extends their applicability in chemical processing and outdoor equipment. The customizable dimensions (wire diameter Φ0.1~5mm, spring outer diameter Φ2~50mm) and variable number of turns (3~20) allow engineers to precisely match spring characteristics to specific applications. Additionally, the high fatigue resistance of bidirectional nickel titanium alloy springs, with lifecycle ratings between 100,000 and 1 million actuation cycles, significantly reduces maintenance requirements and extends component lifespans in industrial settings. These properties have made them particularly valuable in safety-critical systems where reliable operation is essential even after long periods of inactivity.

Consumer Electronics and Smart Home Technologies

Bidirectional nickel titanium alloy springs have found innovative applications in consumer electronics and smart home technologies, where their compact size and autonomous operation provide significant advantages. In mobile devices, these springs are utilized in camera module autofocus mechanisms, haptic feedback systems, and in the hinges of foldable displays where their superelasticity provides both movement and shock absorption functions. The springs' lightweight nature (significantly lighter than steel counterparts with similar strength) contributes to the trend toward miniaturization in electronic devices while maintaining durability. In smart home applications, bidirectional nickel titanium alloy springs enable self-adjusting ventilation systems that respond to room temperature, automatic window openers that provide natural cooling when needed, and temperature-controlled water valves that prevent scalding or freezing without requiring electronic controls. Their silent operation makes them particularly suitable for applications where noise would be disruptive. The precise actuation force control possible with these springs (customizable between 0.1N and 50N) allows manufacturers to create devices with exactly the right feel and function for consumer interfaces. Additionally, their impressive cycling durability ensures long-term reliability in daily-use consumer products. As the Internet of Things continues to expand, bidirectional nickel titanium alloy springs offer an energy-efficient alternative to motor-driven actuators in certain applications, as they require no electricity to maintain their position or to change states in response to temperature fluctuations. With Baoji Hanz Metal Material Co., Ltd.'s capability to produce springs with customized transformation temperatures, manufacturers can precisely match actuation points to application requirements across the consumer technology spectrum.

Material Selection and Design Considerations

Composition and Transformation Temperature Control

The precise composition of bidirectional nickel titanium alloy springs plays a crucial role in determining their transformation temperatures and functional properties. Minor adjustments in the nickel-titanium ratio significantly impact the temperatures at which phase transformations occur. Typically, these alloys contain approximately 55-56% nickel by weight, with the remainder primarily consisting of titanium. At this composition range, the material exhibits optimal shape memory and superelastic characteristics. However, to achieve specific transformation temperatures for different applications, manufacturers like Baoji Hanz Metal Material Co., Ltd. employ various strategies including the addition of tertiary elements such as copper, iron, or chromium in precisely controlled amounts. These compositional modifications allow the creation of bidirectional nickel titanium alloy springs with transformation temperature ranges categorized as low temperature (0-20°C), normal temperature (20-40°C), or high temperature (40-120°C). For medical applications, springs with transformation temperatures near body temperature (37°C) are particularly valuable, enabling automatic actuation once implanted. The transformation behavior is further influenced by thermomechanical processing history, with cold working and annealing treatments affecting both the transformation temperatures and the magnitude of the shape memory effect. Advanced manufacturing facilities utilize sophisticated equipment for composition analysis, including X-ray fluorescence and inductively coupled plasma spectroscopy, to ensure exact conformity to material specifications. This precise composition control, combined with proprietary heat treatment processes, enables the production of bidirectional nickel titanium alloy springs with transformation temperatures accurate to within ±2°C—a critical factor for applications requiring reliable activation at specific environmental conditions.

Dimensional Parameters and Force Characteristics

The mechanical performance and functional capabilities of bidirectional nickel titanium alloy springs are heavily influenced by their dimensional parameters. Baoji Hanz Metal Material Co., Ltd. offers these springs with wire diameters ranging from 0.1mm to 5mm and outer spring diameters between 2mm and 50mm, allowing for applications from microscale medical devices to larger industrial components. The free length of the springs can vary from 5mm to 200mm, while the effective number of turns (typically between 3 and 20) significantly impacts elasticity and movement characteristics. These dimensional parameters must be carefully selected based on the specific requirements of each application. The driving force generated by bidirectional nickel titanium alloy springs—ranging from 0.1N to 50N depending on design—is determined by a complex interplay between wire diameter, spring geometry, and heat treatment conditions. For precise actuation applications, springs can be calibrated to deliver specific forces at designated temperatures, providing predictable and repeatable performance. The relationship between force, displacement, and temperature follows non-linear patterns unique to shape memory alloys, requiring specialized design approaches different from those used for conventional springs. Advanced finite element analysis and computational models guide the design process, allowing engineers to predict performance before physical prototyping. The hardness of these springs typically falls between 42-50 HRC, balancing strength with the flexibility required for shape memory functionality. This careful balancing of dimensional parameters allows bidirectional nickel titanium alloy springs to achieve remarkable performance characteristics, including the ability to recover from strains exceeding 8% without permanent deformation—far beyond the capabilities of conventional spring materials. For applications with strict space constraints or specific force requirements, custom designs can be developed with minimum order quantities as low as 100 pieces, with delivery times of 20-25 days for specialized configurations.

Surface Treatment and Environmental Adaptation

The surface characteristics of bidirectional nickel titanium alloy springs significantly influence their performance, longevity, and compatibility with different operating environments. Standard springs undergo polishing processes that remove surface irregularities, reducing potential stress concentration points and enhancing fatigue resistance. For applications in corrosive environments, additional surface treatments can be applied to further improve the already impressive corrosion resistance of nitinol. These treatments can include electropolishing, which creates a titanium-oxide-rich surface layer that provides superior biocompatibility for medical applications, or specialized passivation processes for industrial uses in aggressive chemical environments. The surface condition also affects transformation behavior, as surface defects can serve as nucleation sites for phase transformations, potentially altering the temperature response characteristics of bidirectional nickel titanium alloy springs. For medical applications, surface treatments must comply with ISO 13485 standards, ensuring biocompatibility and minimizing risks of adverse tissue reactions. In aerospace and automotive applications, where exposure to temperature extremes and varied atmospheric conditions is common, surface treatments are optimized to maintain functionality across the full operating temperature range of -50°C to 150°C (with high-temperature variants extending to 200°C). Beyond corrosion resistance, surface treatments can enhance wear resistance—a critical factor for applications involving repeated contact with other components. The surface finish also impacts frictional characteristics, which can be tuned based on application requirements. For electronic applications, where electrical conductivity might be relevant, specific surface treatments ensure consistent electrical properties. Baoji Hanz Metal Material Co., Ltd. utilizes advanced surface analysis techniques, including scanning electron microscopy and atomic force microscopy, to verify surface quality and uniformity. These comprehensive surface treatment capabilities ensure that bidirectional nickel titanium alloy springs maintain optimal performance throughout their operational life, even under challenging environmental conditions.

Conclusion

Bidirectional nickel titanium alloy springs represent a remarkable advancement in materials technology, offering unique two-way shape memory capabilities that enable autonomous movement in response to temperature changes. Their exceptional properties—combining shape memory effect, superelasticity, and fatigue resistance—make them invaluable across medical, automotive, industrial, and consumer electronics applications where conventional materials simply cannot deliver equivalent functionality.

For your specific bidirectional nitinol spring needs, Baoji Hanz Metal Material Co., Ltd. brings 7 years of specialized expertise in Nitinol Shape Memory Alloy technology. We offer direct supply advantages that translate to cost savings for your projects, combined with fast delivery from our extensive inventory of standard sizes. Looking for customized solutions? Our OEM services can tailor spring dimensions, transformation temperatures, and performance characteristics to your exact specifications. Experience the difference that cutting-edge nitinol technology can make in your applications—contact us today at baojihanz-niti@hanztech.cn to discuss how our bidirectional nickel titanium alloy springs can enhance your products.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (2002). Shape Memory Materials. Cambridge University Press.

2. Duerig, T. W., Melton, K. N., Stöckel, D., & Wayman, C. M. (2013). Engineering Aspects of Shape Memory Alloys. Butterworth-Heinemann.

3. Lagoudas, D. C. (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science & Business Media.

4. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

5. Sun, L., & Huang, W. M. (2010). Nature of the multistage transformation in shape memory alloys upon heating. Metal Science and Heat Treatment, 52(3), 113-117.

6. Morgan, N. B. (2004). Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 378(1-2), 16-23.
