How do Nickel-Titanium Strands exhibit shape memory and superelasticity?

Nickel-Titanium Strands, commonly known as Nitinol, represent a remarkable advancement in metallurgical engineering, exhibiting two extraordinary properties that have revolutionized various industries: shape memory effect and superelasticity. These unique characteristics stem from the alloy's ability to undergo a solid-state phase transformation between two different crystal structures—austenite and martensite—in response to temperature changes or applied stress. When a Nickel-Titanium Strand is deformed in its martensitic state, it can return to its pre-set shape upon heating above its transformation temperature, demonstrating the shape memory effect. Alternatively, when stressed at temperatures above its transformation point, the material exhibits superelasticity, allowing it to withstand significant deformation and return to its original shape upon stress removal, making Nickel-Titanium Strands invaluable across medical, aerospace, and industrial applications.

The Science Behind Nitinol's Unique Properties

Crystalline Transformations in Nickel-Titanium Strands

Nickel-Titanium Strands derive their remarkable properties from a unique solid-state phase transformation that occurs at the atomic level within the material. This transformation involves the shifting between two distinct crystalline structures: austenite and martensite. The austenite phase, stable at higher temperatures, has a cubic crystal structure that is highly ordered and symmetrical. In contrast, the martensite phase, stable at lower temperatures, possesses a monoclinic crystal structure that is less symmetrical. The transition between these two phases is what enables both the shape memory effect and superelasticity in Nickel-Titanium Strands. When the alloy is cooled from the austenite phase, it transforms to martensite without any visible macroscopic shape change, a process known as twinned martensite formation. However, when stress is applied to this twinned martensite, it undergoes detwinning, resulting in a macroscopic shape change. This transformation occurs within specific temperature ranges that are determined by the precise composition of the alloy, typically consisting of Nickel (50-60%) and Titanium (40-50%), as produced by Baoji Hanz Metal Material Co., Ltd. The company's advanced manufacturing processes ensure that their Nickel-Titanium Strands maintain consistent transformation temperatures across batches, with operating capabilities ranging from -100°C to 300°C, making them suitable for diverse environmental conditions and applications.

The Thermal-Mechanical Processing Connection

The unique properties of Nickel-Titanium Strands are not inherent in the raw material but are carefully engineered through precise thermal-mechanical processing techniques. The processing history of these alloys significantly influences their final behavior and performance characteristics. At Baoji Hanz Metal Material Co., Ltd., the production of Nickel-Titanium Strands involves sophisticated annealing, cold working, and shape-setting procedures that determine the transformation temperatures and mechanical properties of the final product. Cold working introduces dislocations in the crystalline structure, which affects the transformation behavior and can increase the strength of the material up to 1,500 MPa. Subsequent heat treatment, typically performed between 400°C and 550°C, relieves internal stresses and sets the "memory" shape that the material will return to upon heating. The precise control over these processes allows for the customization of Nickel-Titanium Strands with diameters ranging from ultra-fine 0.1mm to robust 3mm, with each size exhibiting consistent performance characteristics. The sophisticated production facilities at Baoji Hanz enable the creation of strands with tailored elongation properties up to 8%, ensuring that clients across industrial and medical sectors receive materials that precisely meet their specifications. This meticulous approach to thermal-mechanical processing is essential for producing Nickel-Titanium Strands that reliably demonstrate both shape memory and superelasticity in practical applications.

Compositional Effects on Performance Characteristics

The precise composition of Nickel-Titanium Strands plays a crucial role in determining their functional properties, including transformation temperatures, mechanical strength, and corrosion resistance. Even minor variations in the nickel-to-titanium ratio can significantly alter the alloy's behavior. Typically, commercially viable Nickel-Titanium Strands contain approximately 50-60% nickel and 40-50% titanium by atomic percentage, with transformation temperatures being particularly sensitive to this ratio. An increase in nickel content by just 1% can lower the transformation temperature by approximately 100°C, allowing for precise control over when and how the material exhibits its shape memory or superelastic properties. Additionally, trace elements or tertiary additions such as copper, iron, or chromium can be incorporated to fine-tune specific characteristics for specialized applications. Baoji Hanz Metal Material Co., Ltd. leverages advanced metallurgical expertise to maintain strict compositional control during the manufacturing process, ensuring that their Nickel-Titanium Strands meet the ASTM F2063 standard for consistency and reliability. With a density of approximately 6.45g/cm³, these alloys offer an excellent strength-to-weight ratio, making them particularly valuable in weight-sensitive applications. The company's sophisticated production equipment and rigorous quality control processes guarantee that each strand delivers predictable performance characteristics, whether it's being used in delicate medical devices requiring biocompatibility or industrial applications demanding exceptional durability under harsh conditions. This precise compositional control is fundamental to creating Nickel-Titanium Strands that exhibit optimal shape memory and superelasticity properties tailored to specific operational requirements.

Mechanisms of Shape Memory and Superelasticity

The Shape Memory Effect Explained

The shape memory effect in Nickel-Titanium Strands refers to the remarkable ability of the material to "remember" and return to a predetermined shape when heated above a specific transformation temperature. This phenomenon occurs through a well-defined thermomechanical process that begins with the alloy in its austenite phase at high temperature. When cooled below its transformation temperature without any applied stress, the material transforms into twinned martensite without any macroscopic shape change. In this martensite phase, the Nickel-Titanium Strand can be easily deformed as the twinned structure accommodates the strain by converting to detwinned martensite. The material remains in this deformed state until it is heated above its austenite finish temperature (Af), at which point it transforms back to the austenite phase and simultaneously recovers its original, pre-set shape. This property makes Nickel-Titanium Strands invaluable in applications requiring controlled, one-way movement in response to temperature changes. Baoji Hanz Metal Material Co., Ltd. specializes in producing high-quality Nickel-Titanium Strands with precisely engineered transformation temperatures, allowing for customization based on specific application requirements. Their strands, available in diameters ranging from 0.1mm to 3mm, can be programmed to activate at specific temperatures within the operational range of -100°C to 300°C. The shape memory effect can be engineered to generate significant recovery forces, with tensile strengths reaching up to 1,000 MPa, enabling these strands to perform mechanical work during shape recovery—a characteristic that has revolutionized the design of actuators, fasteners, and medical devices where controlled movement is critical to functionality.

Superelasticity Under Stress Conditions

Superelasticity, also known as pseudoelasticity, represents another extraordinary property of Nickel-Titanium Strands that complements their shape memory capabilities. Unlike conventional elasticity in metals, which typically allows for strain recovery of less than 1%, superelastic Nickel-Titanium Strands can withstand strains of up to 8% and still return to their original shape upon removal of the applied stress, without requiring any temperature change. This phenomenon occurs when the material is maintained at a temperature above its austenite finish temperature (Af) but below a temperature known as Md (the highest temperature at which martensite can be stress-induced). When stress is applied to the austenitic Nickel-Titanium Strand within this temperature range, it undergoes a stress-induced transformation to martensite, accommodating large deformations without permanent plastic deformation. Upon removal of the stress, the martensite becomes thermodynamically unstable and reverts to the austenite phase, resulting in complete shape recovery. Baoji Hanz Metal Material Co., Ltd. has perfected the manufacturing process to produce superelastic Nickel-Titanium Strands with consistent and reliable performance characteristics. Their products exhibit a hysteresis behavior during loading and unloading cycles, which can be advantageous in applications requiring energy absorption or damping characteristics. With tensile strengths reaching up to 1,500 MPa, these superelastic strands provide exceptional durability while maintaining their ability to recover from substantial deformations. This unique combination of strength and flexibility makes Baoji Hanz's Nickel-Titanium Strands particularly valuable in applications subject to repeated deformation cycles, such as medical stents, orthodontic wires, eyeglass frames, and vibration dampening systems in aerospace and automotive industries.

Two-Way Memory Effect and Training Processes

While the standard shape memory effect in Nickel-Titanium Strands is inherently one-way, certain applications benefit from a more sophisticated behavior known as the two-way shape memory effect (TWSME), wherein the material can remember and alternate between two distinct shapes in response to temperature changes alone, without external mechanical manipulation. This advanced behavior is not an intrinsic property of the alloy but is achieved through specific training processes that introduce a preferential arrangement of dislocations in the material's microstructure. Baoji Hanz Metal Material Co., Ltd. employs several specialized training methods to impart two-way memory to their Nickel-Titanium Strands, including constrained thermal cycling, stress-assisted aging, and thermomechanical cycling. These processes induce internal stresses that guide the material toward a specific shape during the martensitic transformation upon cooling, even without external forces. While the strain recovery in TWSME (typically 2-4%) is generally lower than in the one-way effect, it enables autonomous actuation in response to ambient temperature changes, which is particularly valuable in thermal actuators and self-regulating systems. The company's advanced research and development capabilities allow for the customization of Nickel-Titanium Strands with precisely calibrated transformation characteristics, including controlled transformation temperatures and recovery forces. Available in custom lengths with diameters ranging from 0.1mm to 3mm, these trained two-way memory strands can be engineered to switch between predetermined configurations within specific temperature ranges, typically between -100°C and 300°C depending on the alloy composition. This specialized capability expands the functional versatility of Nickel-Titanium Strands, enabling innovative solutions in sectors where repetitive motion in response to thermal cycling is required, such as in thermal regulators, HVAC systems, and self-adjusting medical devices.

Industrial and Medical Applications

Advanced Medical Device Implementations

Nickel-Titanium Strands have revolutionized medical device design due to their unique combination of biocompatibility, shape memory, and superelasticity. In vascular medicine, these alloys have enabled the development of self-expanding stents that can be compressed into a small diameter catheter for minimally invasive delivery, then automatically expand to their predetermined shape once deployed in the blood vessel. This property significantly reduces surgical trauma and recovery time for patients. Orthodontic applications represent another major medical use, where Nickel-Titanium Strands serve as archwires that apply constant, gentle forces to teeth over extended periods due to their superelastic plateau stress characteristics, reducing patient discomfort while improving treatment efficiency. Surgical instruments benefit from the material's exceptional flexibility and kink resistance, allowing for improved maneuverability through complex anatomical pathways during minimally invasive procedures. Baoji Hanz Metal Material Co., Ltd. produces medical-grade Nickel-Titanium Strands that comply with stringent ASTM F2063 standards, ensuring consistent performance and safety for these critical applications. Their manufacturing processes maintain precise control over transformation temperatures and mechanical properties, with products offering tensile strengths of up to 1,000 MPa and elongation capabilities of up to 8%. These specifications are crucial for applications such as guidewires, where the material must navigate tortuous vascular pathways without permanent deformation. The company's production capabilities extend to ultra-fine diameter strands (as small as 0.1mm), which are essential for micro-surgical tools and implantable devices where space constraints are significant. The biocompatibility of their Nickel-Titanium Strands makes them suitable for long-term implantation, with high corrosion resistance even in the challenging environment of the human body.

Aerospace and Automotive Engineering Applications

The exceptional properties of Nickel-Titanium Strands have found numerous applications in aerospace and automotive engineering, where performance under extreme conditions and weight reduction are paramount concerns. In aircraft systems, these alloys serve as actuators that can be activated by electrical heating to control various components, offering significant weight savings compared to conventional hydraulic or pneumatic systems. Vibration damping is another critical application, where the superelastic properties of Nickel-Titanium Strands enable the absorption of mechanical energy, reducing structural fatigue and improving passenger comfort. Baoji Hanz Metal Material Co., Ltd. produces aerospace-grade Nickel-Titanium Strands with tightly controlled compositions (50-60% nickel, 40-50% titanium) and transformation temperatures, ensuring reliable operation across the extreme temperature ranges encountered in flight conditions, from -100°C to 300°C. In automotive applications, these strands are employed in thermal actuators for climate control systems, impact absorption mechanisms for enhanced safety, and in various sensor applications where their unique electrical resistance properties during transformation can be leveraged. The high tensile strength (up to 1,500 MPa) and exceptional fatigue resistance of these strands make them particularly valuable in components subject to repeated cycling or high-stress environments. Baoji Hanz's manufacturing capabilities allow for customized Nickel-Titanium Strands with specific diameters (0.1mm to 3mm) and transformation characteristics tailored to the precise requirements of each application. Their advanced production processes ensure consistent material properties across batches, a critical factor for aerospace and automotive components where reliability and predictable performance are essential. The company's commitment to research and development has led to innovations in Nickel-Titanium Strand production that address industry-specific challenges, such as enhanced fatigue life for components subject to high-cycle operations and improved stability of transformation temperatures under varying environmental conditions.

Emerging Applications in Smart Materials and Structures

Nickel-Titanium Strands are at the forefront of smart material technology, enabling structures and systems that can sense and respond to their environment without external control mechanisms. In civil engineering, these alloys are being integrated into structural components to create self-centering systems that can absorb seismic energy during earthquakes and return to their original position afterward, significantly reducing permanent structural damage. Smart textile applications utilize fine Nickel-Titanium Strands to create fabrics that can change their porosity or shape in response to temperature changes, offering potential applications in adaptive clothing, medical compression garments, and space suits. Baoji Hanz Metal Material Co., Ltd. is actively advancing the development of Nickel-Titanium Strands for these emerging applications, with research focusing on enhancing fatigue life, expanding functional temperature ranges, and improving manufacturing consistency for ultra-fine diameter strands (down to 0.1mm) that maintain reliable shape memory and superelastic properties. The company's production capabilities extend to custom lengths and specialized surface treatments that optimize the performance of Nickel-Titanium Strands in specific environments. In the field of soft robotics, these alloys enable the creation of artificial muscles that can generate significant force while maintaining flexibility, with potential applications in prosthetics, assistive devices, and industrial automation. Energy harvesting represents another innovative application area, where the hysteresis behavior of superelastic Nickel-Titanium Strands during cycling can be harnessed to convert mechanical energy into electrical energy. With tensile strengths reaching 1,500 MPa and elongation capabilities of up to 8%, Baoji Hanz's Nickel-Titanium Strands provide the mechanical properties necessary for these demanding applications. The company's commitment to advanced research and development, coupled with its sophisticated production and testing equipment, positions it as a leader in supplying high-quality Nickel-Titanium Strands for next-generation smart material systems that will continue to expand the boundaries of material science and engineering applications.

Conclusion

Nickel-Titanium Strands exemplify the remarkable intersection of materials science and engineering innovation, offering unparalleled shape memory and superelasticity through their unique crystalline transformations. These properties have revolutionized numerous industries, from medical devices to aerospace applications, providing solutions that would be impossible with conventional materials.

Need custom Nickel-Titanium Strands for your next project? With 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. delivers superior quality with cost advantages through direct supply. Our large stock ensures fast delivery of standard sizes, while our OEM services can meet your specific requirements for custom sizes, alloy compositions, or packaging options. Contact us today at baojihanz-niti@hanztech.cn to discover how our Nickel-Titanium solutions can transform your innovations into reality.

Other related product catalogues

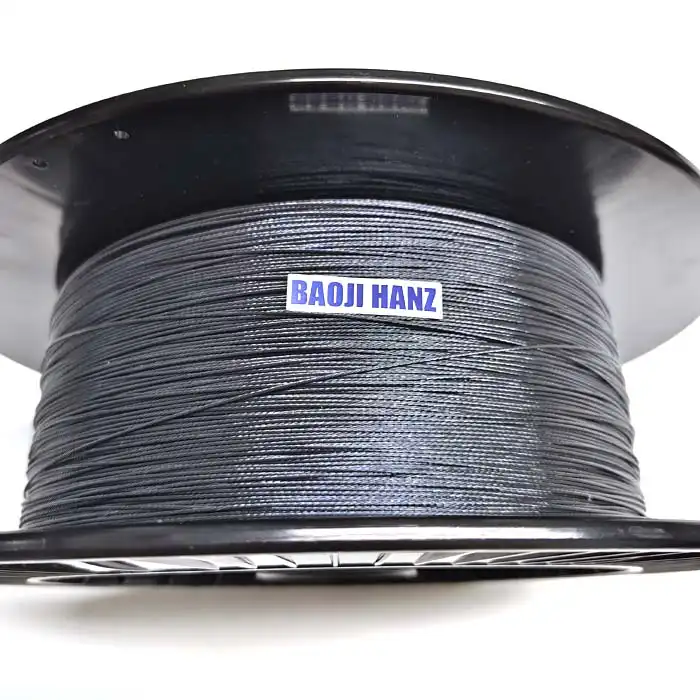

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (2002). Shape Memory Materials. Cambridge University Press.

2. Duerig, T. W., Melton, K. N., Stockel, D., & Wayman, C. M. (2013). Engineering Aspects of Shape Memory Alloys. Butterworth-Heinemann.

3. Sun, L., & Huang, W. M. (2010). Nature of the multistage transformation in shape memory alloys upon heating. Metal Science and Heat Treatment, 52(3), 113-120.

4. Lagoudas, D. C. (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science & Business Media.

5. Morgan, N. B. (2004). Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 378(1-2), 16-23.

6. Jani, J. M., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.
