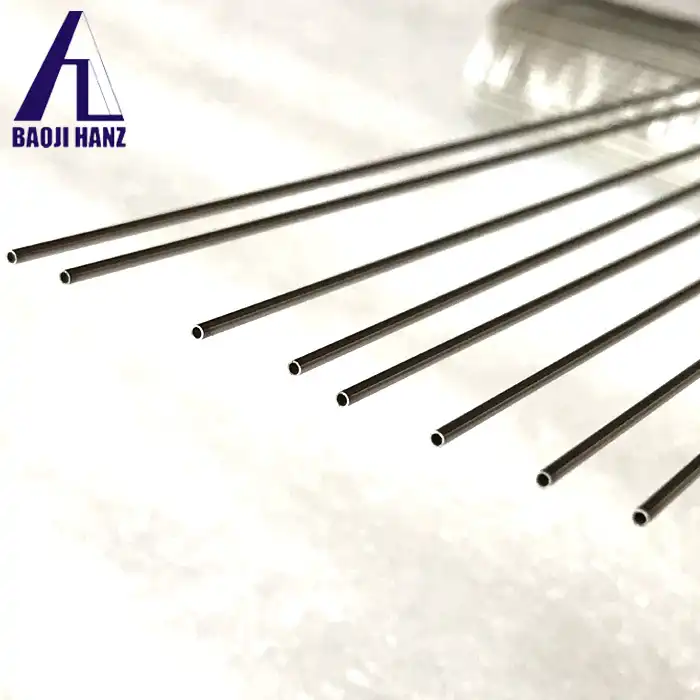

How Do Nitinol Capillary Tubes Ensure Long-Lasting Performance in Your High-Stress Industrial Applications?

In today's demanding industrial landscape, finding materials that can withstand extreme conditions while maintaining functionality has become increasingly critical. Nitinol memory alloy capillary tubes represent a revolutionary solution for high-stress applications across various industries. These remarkable tubes, composed of nickel-titanium alloy, offer exceptional durability and performance through their unique shape memory properties and superelasticity. With the ability to return to predetermined shapes after deformation and withstand thousands of cycles without fatigue, nitinol memory alloy capillary tubes are transforming how engineers approach challenges in aerospace, medical, automotive, and industrial sectors where reliability under stress is paramount.

The Unique Properties That Make Nitinol Capillary Tubes Ideal for High-Stress Environments

Shape Memory Effect: The Foundation of Nitinol's Exceptional Performance

The fundamental characteristic that distinguishes nitinol memory alloy capillary tubes from conventional materials is their remarkable shape memory effect. This extraordinary property allows the material to "remember" and return to a predetermined shape when subjected to specific temperature conditions. When a nitinol memory alloy capillary tube is deformed at one temperature, it can maintain that deformed state until heated above its transformation temperature, at which point it recovers its original, pre-programmed shape with considerable force. This ability stems from the unique crystalline structure of the nickel-titanium alloy, which undergoes a phase transformation between austenite and martensite states. In high-stress industrial applications, this property proves invaluable as it enables components to automatically restore their functional shape after experiencing deformation due to mechanical stress, impact, or other environmental factors. The shape memory effect is particularly beneficial in aerospace applications where components may experience extreme temperature variations and mechanical stresses yet must maintain precise geometries for optimal performance. Baoji Hanz Metal Material Co., Ltd. has perfected the manufacturing process of these tubes through advanced metallurgical technology, ensuring precise control of the alloy's composition and microstructure, which directly influences the consistency and reliability of the shape memory response.

Superelasticity: Withstanding Extreme Deformation Without Permanent Damage

Superelasticity represents another crucial property of nitinol memory alloy capillary tubes that makes them exceptionally well-suited for high-stress industrial applications. Unlike conventional metal alloys that deform permanently when stretched beyond their elastic limit, superelastic nitinol can undergo strains of up to 8% and still return to its original shape without permanent deformation. This extraordinary characteristic results from stress-induced martensite transformation rather than the temperature-induced transformation seen in the shape memory effect. When stress is applied to a nitinol memory alloy capillary tube in its austenitic phase, it transforms to martensite, allowing significant deformation. Upon removal of the stress, the material spontaneously reverts to austenite and recovers its original configuration. In industrial settings where equipment experiences repeated flexing, bending, or compression, this property significantly extends the operational lifespan of components. The superelasticity of these tubes ensures they can withstand severe mechanical stress without developing the fatigue that typically affects conventional materials. Manufactured to exacting standards by Baoji Hanz Metal Material Co., Ltd., these tubes deliver consistent performance even after thousands of deformation cycles, making them ideal for applications where reliability is non-negotiable. This capability translates directly into reduced maintenance requirements and extended service life for critical industrial components.

Superior Corrosion Resistance: Maintaining Integrity in Harsh Environments

The exceptional corrosion resistance of nitinol memory alloy capillary tubes constitutes a third critical property that ensures their long-lasting performance in high-stress industrial applications. Unlike many conventional metals that rapidly deteriorate when exposed to corrosive substances, nitinol forms a stable titanium oxide layer on its surface that provides remarkable protection against oxidation and chemical attack. This inherent corrosion resistance allows nitinol memory alloy capillary tubes to maintain their structural integrity and functional properties even when deployed in harsh environments containing moisture, saline solutions, bodily fluids, or industrial chemicals. The material exhibits particularly impressive resistance to pitting and crevice corrosion, which are common failure mechanisms in many industrial settings. In marine applications, aerospace environments, and chemical processing facilities, this corrosion resistance proves invaluable for maintaining operational integrity over extended periods. Baoji Hanz Metal Material Co., Ltd. enhances this natural advantage through stringent quality control processes that ensure consistent alloy composition and surface finish quality across all their nitinol memory alloy capillary tubes. This attention to detail results in products that not only meet but exceed industry standards for corrosion resistance, providing customers with components that maintain their critical properties even in the most challenging industrial environments.

Advanced Manufacturing Techniques for Enhanced Performance in Industrial Applications

Precision Control of Alloy Composition and Transformation Temperatures

The exceptional performance of nitinol memory alloy capillary tubes in high-stress industrial applications begins with meticulous control over their composition and transformation temperatures during manufacturing. Baoji Hanz Metal Material Co., Ltd. employs sophisticated metallurgical techniques to achieve precise nickel-titanium ratios, typically ranging between 50.5% and 56% nickel by weight. Even minor variations in this composition can significantly alter the transformation temperature, which determines when the shape memory effect activates. Through vacuum induction melting and vacuum arc remelting processes, our engineers can control these parameters with extraordinary precision, creating nitinol memory alloy capillary tubes with transformation temperatures tailored to specific application requirements. This level of customization allows industrial designers to select tubes that activate their shape memory properties at exactly the right temperature for their particular operating environment, whether that's the cold temperatures of aerospace applications or the warm conditions of automotive systems. Additionally, our manufacturing processes carefully manage the addition of tertiary elements like copper, iron, or chromium, which can be incorporated in trace amounts to further fine-tune transformation behavior. The result is nitinol memory alloy capillary tubes with highly predictable and reliable performance characteristics that maintain their functional properties throughout their operational lifetime, even under the extreme conditions typical of high-stress industrial applications.

Advanced Heat Treatment and Cold Working Processes

The transformation from raw nitinol material to high-performance capillary tubes involves sophisticated heat treatment and cold working processes that significantly enhance the material's properties. Baoji Hanz Metal Material Co., Ltd. utilizes precise thermal processing techniques to establish the shape memory effect in our nitinol memory alloy capillary tubes. This involves a carefully controlled sequence of annealing, aging, and quenching operations at specific temperatures and durations. During the shape-setting process, the capillary tubes are fixed in the desired configuration and then subjected to temperatures between 400°C and 550°C for predetermined periods before being rapidly cooled. This procedure effectively "programs" the material to remember this shape. Subsequently, the tubes undergo cold working processes, including drawing and rolling operations, which introduce dislocations in the crystal structure and significantly enhance the material's strength and fatigue resistance. The degree of cold working is precisely calibrated to achieve the optimal balance between superelasticity and shape memory properties. Our manufacturing facilities are equipped with state-of-the-art equipment that maintains temperature uniformity within ±2°C during heat treatment, ensuring consistent properties throughout each batch of nitinol memory alloy capillary tubes. This combination of sophisticated heat treatment and controlled cold working results in products with superior mechanical properties that can withstand the extreme stresses and repeated cycling encountered in demanding industrial applications without experiencing premature failure.

Surface Engineering and Quality Control Processes

The long-lasting performance of nitinol memory alloy capillary tubes in high-stress industrial environments is further ensured through advanced surface engineering and rigorous quality control processes. Baoji Hanz Metal Material Co., Ltd. implements sophisticated surface treatments to optimize the performance characteristics of our products. Electropolishing procedures remove surface imperfections and create an enhanced titanium oxide layer that improves both corrosion resistance and biocompatibility. For applications with exceptional demands, our nitinol memory alloy capillary tubes can undergo additional passivation treatments or specialized coatings to further improve their resistance to particular environmental challenges. Every production batch undergoes comprehensive testing to verify conformance with ISO 9001:2015, ISO 13485:2016, and EU CE standards. This includes differential scanning calorimetry to confirm transformation temperatures, tensile testing to verify mechanical properties, and cyclic testing to ensure fatigue resistance meets or exceeds specifications. Our quality assurance protocols also include surface analysis using scanning electron microscopy and energy-dispersive X-ray spectroscopy to confirm the absence of inclusions or contaminants that could compromise performance. Each nitinol memory alloy capillary tube is individually inspected for dimensional accuracy and surface quality before being certified for release. This exhaustive approach to quality control ensures that every product from Baoji Hanz Metal Material Co., Ltd. delivers consistent, reliable performance even in the most demanding high-stress industrial applications.

Industry-Specific Applications and Performance Benefits

Medical Device Applications: Combining Flexibility with Uncompromising Reliability

In the medical device industry, nitinol memory alloy capillary tubes have revolutionized the design and functionality of numerous interventional and implantable devices. The combination of superelasticity, shape memory, and biocompatibility makes these tubes ideal for applications where flexibility and reliability are paramount. Nitinol memory alloy capillary tubes are extensively utilized in endovascular stents, where their superelastic properties allow the stent to be compressed into a delivery catheter and then expand to a predetermined diameter once deployed in a blood vessel. This capability enables minimally invasive procedures that significantly reduce patient recovery time and complications. Similarly, in guidewires and catheter reinforcements, these tubes provide the perfect balance of flexibility for navigation through tortuous vascular pathways while maintaining sufficient pushability and torque transmission. The material's compatibility with MRI procedures and resistance to sterilization processes further enhances its value in medical applications. Baoji Hanz Metal Material Co., Ltd. produces medical-grade nitinol memory alloy capillary tubes with exceptional consistency in wall thickness and mechanical properties, critical factors for medical device performance. Our manufacturing processes comply with ISO 13485:2016 standards, ensuring that these components meet the stringent requirements for medical applications. The fatigue resistance of our nitinol tubes significantly exceeds that of conventional materials, allowing medical devices to withstand the millions of cycles of deformation that occur in applications like heart valve frames or orthopedic implants. This exceptional durability translates into increased device longevity and improved patient outcomes in high-stress applications within the human body.

Aerospace and Defense: Performance Under Extreme Conditions

The aerospace and defense sectors place extraordinary demands on materials, requiring functionality across extreme temperature ranges and under severe mechanical stress. Nitinol memory alloy capillary tubes excel in these environments, providing reliable performance where conventional materials would fail. In aircraft hydraulic systems, these tubes offer vibration dampening and resistance to pressure fluctuations while maintaining structural integrity even during rapid temperature changes encountered at varying altitudes. Their shape memory properties enable the development of adaptive structures and self-deploying mechanisms that can transform between configurations in response to environmental conditions or command signals. In satellite deployment systems, nitinol memory alloy capillary tubes provide reliable actuation mechanisms that can be tightly packaged during launch and then deploy to predetermined configurations when triggered by temperature changes in orbit. The material's extraordinary fatigue resistance is particularly valuable in applications subject to continuous vibration or repetitive motion, such as control surface actuators or landing gear components. Baoji Hanz Metal Material Co., Ltd. produces aerospace-grade nitinol memory alloy capillary tubes with tightly controlled transformation temperatures and exceptional consistency in mechanical properties. Our tubes undergo specialized testing protocols that simulate the extreme conditions encountered in aerospace applications, including thermal cycling between -60°C and +120°C and exposure to vacuum environments. The superior performance of these tubes in high-stress aerospace applications results from our precise manufacturing processes and rigorous quality control, ensuring they maintain their critical functional properties throughout their operational lifetime, even under the most challenging conditions.

Industrial Automation and Energy: Enhancing Efficiency and Durability

In industrial automation and energy applications, nitinol memory alloy capillary tubes offer innovative solutions for challenges involving thermal management, vibration control, and reliable actuation in harsh environments. These versatile components are increasingly utilized in industrial sensors and control systems where their unique properties provide advantages over conventional technologies. In energy production facilities, nitinol memory alloy capillary tubes serve as reliable thermal actuators that can respond to temperature changes by altering their configuration, enabling passive safety systems that don't require external power sources. Their exceptional corrosion resistance makes them suitable for deployment in geothermal energy systems, where exposure to mineral-rich hot water would rapidly degrade conventional materials. In industrial robotics and automation equipment, these tubes provide durable flexible joints and connectors that can withstand millions of operation cycles without developing fatigue failure. The material's inherent damping capacity also makes it valuable for reducing vibration in precision machinery and instrumentation. Baoji Hanz Metal Material Co., Ltd. manufactures industrial-grade nitinol memory alloy capillary tubes with customizable dimensions and transformation temperatures to meet specific application requirements. Our products undergo rigorous testing to ensure they maintain their functional properties even after extended exposure to industrial chemicals, high-pressure environments, or abrasive conditions. By leveraging advanced manufacturing techniques and stringent quality control processes, we produce nitinol tubes that deliver exceptional performance and longevity in the most demanding industrial applications, helping our customers improve equipment reliability while reducing maintenance requirements and downtime.

Conclusion

Nitinol memory alloy capillary tubes represent a breakthrough material solution for high-stress industrial applications across multiple sectors. Their unique combination of shape memory properties, superelasticity, and exceptional corrosion resistance enables unprecedented performance and reliability in environments where conventional materials would rapidly fail. From medical devices to aerospace components and industrial automation systems, these remarkable tubes continue to expand the possibilities for engineers seeking materials that can withstand extreme conditions.

Ready to transform your high-stress applications with the exceptional durability of nitinol memory alloy capillary tubes? With 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. offers unmatched quality and customization capabilities. Take advantage of our direct supply chain for significant cost savings and benefit from fast delivery from our extensive stock of standard sizes. Our dedicated team is eager to develop custom solutions tailored to your specific requirements. Contact us today at baojihanz-niti@hanztech.cn to discuss how our nitinol capillary tubes can revolutionize the performance and longevity of your critical industrial components.
