How do Nitinol compression springs work?

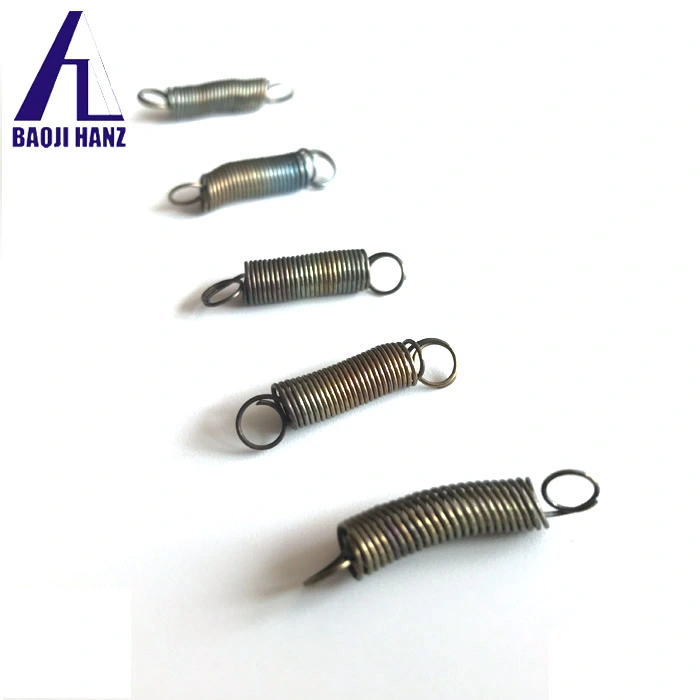

The Fundamentals of Nitinol Compression Springs

Composition and Structure of Nitinol

Nitinol, an acronym for Nickel Titanium Naval Ordnance Laboratory, is an extraordinary alloy composed of nearly equal parts nickel and titanium. This unique composition grants Nitinol its exceptional properties, including shape memory and superelasticity. The crystal structure of Nitinol can exist in two distinct phases: austenite and martensite. The austenite phase occurs at higher temperatures and exhibits a cubic crystal structure, while the martensite phase exists at lower temperatures and features a more complex, twinned monoclinic structure. The ability of Nitinol to transition between these phases is the key to its shape memory effect. When a Nitinol compression spring is deformed in its martensite phase, it can be easily manipulated and will retain its new shape. However, upon heating to its austenite phase, the spring "remembers" its original form and returns to it, exerting a significant force in the process. This phase transformation is reversible, allowing Nitinol springs to cycle between shapes repeatedly.

Manufacturing Process of Nitinol Compression Springs

The production of Nitinol compression springs involves a sophisticated manufacturing process that requires precision and expertise. Initially, Nitinol wire or rod is formed through a series of melting, casting, and drawing operations to achieve the desired diameter and composition. The wire is then wound into a spring shape using specialized machinery that can handle the unique properties of Nitinol. After winding, the springs undergo a critical heat treatment process known as shape-setting. During this stage, the springs are constrained in their desired configuration and heated to temperatures typically ranging from 450°C to 550°C. This process aligns the crystal structure of the Nitinol and imparts the shape memory effect. The duration and temperature of the heat treatment are carefully controlled to optimize the spring's performance characteristics.

Unique Properties of Nitinol Compression Springs

Nitinol compression springs possess a suite of exceptional properties that set them apart from conventional spring materials. Their shape memory effect allows them to recover their original shape after significant deformation, making them ideal for applications requiring large stroke lengths or complex motions. The superelasticity of Nitinol enables these springs to undergo substantial strain without permanent deformation, providing excellent fatigue resistance and reliability. Moreover, Nitinol exhibits outstanding biocompatibility, corrosion resistance, and a low elastic modulus comparable to that of bone. These attributes make Nitinol compression springs particularly valuable in medical applications, such as orthodontic devices and cardiovascular stents. The material's high damping capacity also makes it useful in vibration control and energy absorption systems across various industries.

Operating Principles of Nitinol Compression Springs

Shape Memory Effect in Action

The shape memory effect is the cornerstone of Nitinol compression spring functionality. When a Nitinol spring is cooled below its transformation temperature, it enters the martensite phase and becomes easily deformable. In this state, the spring can be compressed or stretched significantly without permanent damage to its crystal structure. Upon heating above the transformation temperature, the Nitinol transitions to its austenite phase, triggering a dramatic return to its pre-set shape. This transformation is accompanied by a substantial force generation, as the spring attempts to overcome any constraints and resume its original configuration. The magnitude of this force can be precisely controlled through careful design of the spring geometry and composition. The shape memory effect enables Nitinol compression springs to perform complex mechanical tasks with minimal external energy input, making them invaluable in applications such as thermal actuators and self-expanding medical devices.

Superelasticity and Stress-Induced Martensite

Superelasticity is another crucial aspect of Nitinol compression spring behavior. This phenomenon occurs when Nitinol is stressed at temperatures above its austenite finish temperature. As the spring is compressed, the applied stress induces a phase transformation from austenite to martensite, allowing the material to accommodate large strains without permanent deformation. Upon release of the stress, the martensite reverts to austenite, and the spring returns to its original shape. This stress-induced phase transformation gives Nitinol springs their remarkable elastic properties, enabling them to undergo strains of up to 8% without yielding. In comparison, conventional spring materials like stainless steel typically yield at strains of less than 1%. The superelastic behavior of Nitinol compression springs results in excellent fatigue resistance and the ability to store and release large amounts of elastic energy.

Temperature-Dependent Behavior

The performance of Nitinol compression springs is intimately tied to temperature. The transformation temperatures at which the material shifts between austenite and martensite phases can be fine-tuned through adjustments in the alloy composition and processing. This temperature sensitivity allows for the creation of springs with specific activation temperatures tailored to their intended applications. For instance, a Nitinol spring designed for a body-temperature actuator might have an austenite finish temperature slightly below 37°C, ensuring that it remains in its superelastic state when implanted. Conversely, a spring intended for a thermal safety valve might be engineered to trigger at a precise elevated temperature. Understanding and controlling these temperature-dependent properties is crucial for optimizing Nitinol compression spring performance across diverse operating environments.

Applications and Advantages of Nitinol Compression Springs

Medical and Biomedical Applications

The biocompatibility and unique mechanical properties of Nitinol make it an ideal material for various medical applications. In orthodontics, Nitinol compression springs are used to apply consistent, gentle forces for tooth movement, capitalizing on the material's superelasticity to provide long-term, controlled adjustments. Cardiovascular stents made from Nitinol can be compressed into a small diameter for minimally invasive insertion, then expand to their full size once deployed in the blood vessel, taking advantage of both shape memory and superelastic effects. Nitinol compression springs also find use in orthopedic implants, where their low elastic modulus and excellent fatigue resistance make them suitable for load-bearing applications. In neurosurgery, shape memory Nitinol clips are employed for aneurysm treatment, providing secure closure with minimal tissue damage. The temperature-sensitive behavior of Nitinol springs enables the development of smart medical devices that can respond to body temperature or external stimuli, opening new avenues for targeted drug delivery and non-invasive surgical techniques.

Aerospace and Automotive Engineering

In the aerospace industry, Nitinol compression springs offer significant advantages in terms of weight reduction and reliability. Their high power-to-weight ratio makes them attractive for actuator systems in aircraft and spacecraft, where every gram matters. The material's ability to function over a wide temperature range and resist fatigue makes it suitable for demanding aerospace environments, from the extreme cold of high altitudes to the heat of re-entry. Automotive engineers are increasingly turning to Nitinol compression springs for applications such as adaptive damping systems and self-adjusting components. The springs' superelastic properties allow for the creation of suspension systems that can adapt to varying road conditions, enhancing both comfort and performance. In safety systems, Nitinol springs can be used in impact-absorbing structures, leveraging their high energy absorption capacity to improve crash protection.

Industrial and Consumer Products

The versatility of Nitinol compression springs extends to a wide range of industrial and consumer applications. In robotics and automation, these springs enable the design of compact, powerful actuators that can perform complex movements with minimal energy input. The material's corrosion resistance makes it valuable in marine and chemical processing environments, where traditional spring materials might degrade rapidly. Consumer products benefit from the unique properties of Nitinol springs in various ways. Eyeglass frames incorporating Nitinol components can bend and flex without breaking, returning to their original shape when released. In the field of wearable technology, Nitinol springs are being explored for energy harvesting applications, converting body heat or motion into electrical energy. The material's ability to undergo large deformations without fatigue also makes it promising for use in flexible electronic devices and adaptive textiles.

Conclusion

Nitinol compression springs represent a remarkable fusion of materials science and engineering, offering unparalleled performance in a wide array of applications. Their unique combination of shape memory, superelasticity, and biocompatibility continues to drive innovation across industries, from life-saving medical devices to cutting-edge aerospace technologies. As research in this field progresses, we can anticipate even more exciting developments and applications for these extraordinary components. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
