How do TiNi Shape Memory Ropes Work?

Shape memory alloys have revolutionized various industries with their remarkable properties, and TiNi (Titanium-Nickel) shape memory ropes represent one of the most fascinating applications of this technology. Memory shape TiNi rope, a specialized form of Nitinol, exhibits the extraordinary ability to "remember" its original shape and return to it after deformation when exposed to specific temperature changes or stress conditions. This unique capability makes TiNi ropes invaluable in applications ranging from medical devices to aerospace components. The working principle behind these remarkable materials involves a complex interplay of crystalline structures, phase transformations, and thermomechanical properties that allow them to transition between different states while maintaining their functional integrity.

The Science Behind TiNi Shape Memory Ropes

Crystalline Structure and Phase Transformations

The remarkable properties of Memory shape TiNi rope stem from its unique crystalline structure and the phase transformations that occur within the material. At its core, Nitinol exists in two different temperature-dependent phases: austenite (the higher temperature phase) and martensite (the lower temperature phase). When a Memory shape TiNi rope is in its martensitic phase, it can be easily deformed and will maintain that deformation until heated. Upon heating above its transformation temperature, the material undergoes a solid-state phase transformation to the austenitic phase, causing the atoms to rearrange themselves in their original crystalline configuration. This atomic-level reorganization is what enables the rope to "remember" and return to its pre-programmed shape with remarkable precision. The transformation temperatures can be precisely controlled during manufacturing by adjusting the nickel-titanium ratio and through specialized processing techniques, allowing Baoji Hanz Metal Material Co., Ltd. to create Memory shape TiNi ropes with transformation temperatures tailored to specific application requirements, whether they need to activate at body temperature for medical applications or at higher temperatures for industrial use.

Superelastic Properties and Stress-Induced Transformations

Memory shape TiNi rope exhibits exceptional superelastic properties, which arise from a different mechanism than the thermal shape memory effect. In the superelastic mode, the material operates above its transformation temperature, in the austenitic phase. When stress is applied to the rope, it induces a transformation from austenite to stress-induced martensite, allowing the material to accommodate large strains of up to 8-10% without permanent deformation. Once the stress is removed, the material spontaneously reverts to austenite and recovers its original shape without requiring any temperature change. This remarkable property makes Memory shape TiNi rope ideal for applications requiring exceptional resilience and flexibility. The superelastic Memory shape TiNi ropes produced by Baoji Hanz Metal Material Co., Ltd. undergo rigorous quality control to ensure consistent performance, with strength ratings of up to 1450 MPa. The manufacturing process involving hot rolling, drawing, annealing, and twisting creates a perfectly balanced microstructure that maximizes both the superelastic range and fatigue resistance. This enables the ropes to withstand thousands of deformation cycles while maintaining their functionality, far outperforming conventional materials in applications where repeated flexing or bending is required.

Thermomechanical Processing and Property Optimization

The specific performance characteristics of Memory shape TiNi rope are heavily influenced by its thermomechanical processing history. Baoji Hanz Metal Material Co., Ltd. has developed sophisticated processing techniques that optimize the material's properties for specific applications. The manufacturing process begins with precise control of the alloy composition, typically containing approximately 55-56% nickel by weight balanced with titanium. Following initial melting and casting, the material undergoes hot rolling, cold drawing to achieve the desired diameter (ranging from 0.3 to 0.7mm for standard products), and carefully controlled heat treatments that establish the material's transformation temperatures and mechanical properties. For rope configurations, individual wires are typically arranged in configurations such as 1×7 (one central wire surrounded by six outer wires), though custom configurations are available to meet specific requirements. Each step in the processing sequence influences the final performance of the Memory shape TiNi rope, from its transformation temperatures to its fatigue resistance and force output when recovering its shape. Through careful optimization of these processing parameters, experienced manufacturers can tailor the material's behavior for applications ranging from highly flexible fishing leaders that resist kinking to precision actuators that generate specific forces when activated thermally.

Manufacturing and Design Considerations

Material Composition and Purity Requirements

The performance of Memory shape TiNi rope is highly dependent on its material composition and purity. Even slight variations in the nickel-titanium ratio can significantly alter transformation temperatures and mechanical properties. Baoji Hanz Metal Material Co., Ltd. maintains stringent control over alloy composition, utilizing high-purity raw materials and sophisticated melting techniques to ensure consistency. The standard Memory shape TiNi rope adheres to specifications outlined in GB24627-2009 and ASTM F2063, which establish requirements for chemical composition, mechanical properties, and dimensional tolerances. Oxygen, carbon, and other interstitial elements must be kept below critical thresholds as they can dramatically affect the material's performance. The manufacturing process begins with vacuum induction melting followed by vacuum arc remelting to achieve the highest possible purity. This attention to material quality ensures that the Memory shape TiNi rope performs consistently and reliably across various applications, from fishing equipment to medical devices. The company's commitment to material excellence is reflected in their advanced R&D facilities and testing equipment, which allow for continuous improvement of alloy formulations and processing techniques to meet evolving market demands and push the boundaries of what's possible with shape memory alloys.

Rope Configuration and Structural Design

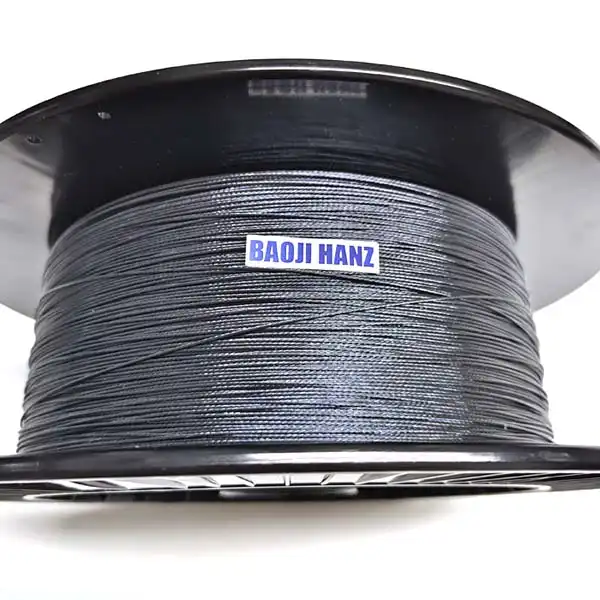

The structural design of Memory shape TiNi rope significantly influences its mechanical properties and functional performance. Baoji Hanz Metal Material Co., Ltd. offers various configurations, with the standard being 1×7 construction (one central wire surrounded by six outer wires) in diameters ranging from 0.3 to 0.7mm, though custom designs are available to meet specific application requirements. This multi-wire construction provides an optimal balance of flexibility, strength, and shape memory functionality. The twisting process, which follows hot rolling, drawing, and annealing, creates a rope structure that distributes stress evenly throughout the cross-section, enhancing fatigue resistance and overall durability. The surface treatment of Memory shape TiNi rope can be customized as either black oxide or bright finish, depending on aesthetic requirements and environmental considerations. For applications requiring enhanced functionality, the rope can undergo additional processing services such as bending, welding, decoiling, cutting, and punching to create complex geometries or specialized end fittings. The structural design must carefully balance competing requirements such as flexibility, recovery force, transformation temperature range, and fatigue resistance to ensure optimal performance in the intended application. Customized designs may incorporate variable pitch, variable diameter sections, or hybrid constructions that combine nitinol with other materials to achieve specific performance characteristics.

Training and Programming Shape Memory Effects

One of the most critical aspects of Memory shape TiNi rope production is the training process that programs the material's shape memory effect. This training establishes the "memorized" shape that the material will return to when heated above its transformation temperature. Baoji Hanz Metal Material Co., Ltd. employs precise fixtures and specialized heat treatment processes to impart the desired memorized shape into the material. The training process typically involves constraining the Memory shape TiNi rope in the desired configuration and subjecting it to temperatures between 450-550°C for a controlled duration, followed by rapid cooling. This high-temperature annealing allows the atoms to rearrange themselves into their lowest energy state while in the constrained position, effectively "setting" this configuration as the austenitic parent phase that the material will revert to upon heating. For more complex applications, multiple training cycles may be employed to refine the shape memory response and ensure consistent performance over thousands of actuation cycles. The precision of this training process directly impacts the accuracy of shape recovery and the functional performance of the final product. Advanced applications may require two-way shape memory effects, where the material remembers shapes at both high and low temperatures, requiring even more sophisticated training protocols involving cyclic thermomechanical treatments. Baoji Hanz's expertise in these specialized processes ensures that their Memory shape TiNi rope products deliver consistent and reliable performance across diverse applications.

Applications and Performance Characteristics

Industrial and Engineering Applications

Memory shape TiNi rope has found numerous applications in industrial and engineering contexts, where its unique combination of properties offers solutions to complex design challenges. In the automotive industry, these materials are used in thermal actuators, valve controls, and damping systems that can adapt to different operating conditions. The aerospace sector utilizes Memory shape TiNi rope for deployable structures, vibration damping, and shape-adaptive components that can morph in response to environmental conditions, offering weight savings and enhanced performance. The strength rating of 1450 MPa offered by Baoji Hanz Metal Material Co., Ltd.'s products makes them suitable for high-load applications where conventional materials would fail. The rope's ability to undergo significant deformation without permanent damage also makes it valuable in seismic protection systems for buildings and infrastructure, absorbing energy during earthquakes while maintaining structural integrity. Industrial robotics represents another growing application area, where the material's combination of flexibility, strength, and controlled actuation enables the development of more dexterous and adaptive robotic manipulators. The customizable nature of Memory shape TiNi rope, available through Baoji Hanz's OEM services, allows engineers to specify exact dimensions, transformation temperatures, and mechanical properties tailored to their specific applications, whether they require the 0.3-0.7mm standard sizes or custom configurations designed for particular loading conditions and operational environments.

Medical and Biomedical Applications

The biocompatibility and unique mechanical properties of Memory shape TiNi rope have made it an invaluable material in medical and biomedical applications. In the field of minimally invasive surgery, nitinol guidewires and catheters take advantage of the material's superelasticity to navigate through tortuous blood vessels while minimizing trauma to surrounding tissues. The material's ability to conform to body temperature makes it ideal for implantable devices such as stents, which can be compressed for delivery and then expand to their predetermined shape once deployed in the body. Orthodontic archwires made from Memory shape TiNi rope apply constant, gentle forces for tooth movement due to their unique stress-strain characteristics. Baoji Hanz Metal Material Co., Ltd.'s commitment to manufacturing according to ASTM F2063 standards ensures their materials meet the stringent requirements for medical applications, including precise control of transformation temperatures and surface quality. The company's processing capabilities, including bending, welding, decoiling, cutting, and punching, enable the production of complex medical components with precise geometries. Beyond traditional medical devices, Memory shape TiNi rope is also being explored for applications in drug delivery systems, where controlled actuation can release therapeutic agents at specific times or in response to physiological triggers. The material's fatigue resistance ensures reliable performance over thousands of cycles, making it suitable for long-term implants and reusable medical instruments that must withstand repeated sterilization and use.

Consumer and Specialty Applications

Memory shape TiNi rope has expanded beyond industrial and medical applications to find its way into various consumer and specialty products where its unique properties offer distinct advantages. In the fishing industry, leaders and tackle components made from Memory shape TiNi rope provide exceptional kink resistance and durability, with the material's superelastic properties allowing the line to recover from sharp bends without permanent deformation. This application takes advantage of the material specifications offered by Baoji Hanz Metal Material Co., Ltd., including diameters from 0.3 to 0.7mm and the 1×7 construction that balances strength and flexibility. In the fashion and eyewear industries, memory shape TiNi rope components are used in flexible frames that can withstand significant deformation without breaking and return to their original shape after bending. Smart textiles represent another emerging application, where fine Memory shape TiNi rope filaments are integrated into fabrics to create garments that can change shape or stiffness in response to temperature or electrical stimulation. The material's corrosion resistance makes it suitable for marine applications, including anchoring systems and underwater equipment that must withstand harsh saltwater environments. Sports equipment designers have also embraced this innovative material for applications ranging from golf club shafts that dampen vibration to running shoe components that adapt to the wearer's gait. Through their OEM services, Baoji Hanz works closely with product developers to create customized Memory shape TiNi rope components tailored to specific consumer applications, offering various surface finishes (black or bright) and precise dimensional control to meet aesthetic and functional requirements.

Conclusion

Memory shape TiNi rope represents a remarkable convergence of materials science and engineering, offering unprecedented capabilities through its unique combination of shape memory and superelastic properties. Throughout this exploration of how these innovative materials work, we've examined their crystalline structure, manufacturing processes, and diverse applications across multiple industries. As we continue to discover new applications for this versatile material, its importance in solving complex engineering challenges will only grow.

Are you looking to incorporate the extraordinary properties of Memory shape TiNi rope into your next project? With 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. offers unmatched quality and service. Save money with our direct supply chain advantages and benefit from fast delivery from our extensive stock of standard sizes. Contact us today at baojihanz-niti@hanztech.cn to discuss how our custom OEM services can provide tailored solutions for your specific requirements, whether you need specialized dimensions, unique alloy compositions, or custom processing.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (2002). Shape Memory Materials. Cambridge University Press.

2. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273-275, 149-160.

3. Sun, L., & Huang, W. M. (2010). Nature of the multistage transformation in shape memory alloys upon heating. Metal Science and Heat Treatment, 52(3), 113-120.

4. Jani, J. M., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

5. Lagoudas, D. C. (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science & Business Media.

6. Miyazaki, S., & Otsuka, K. (1989). Development of shape memory alloys. ISIJ International, 29(5), 353-377.
