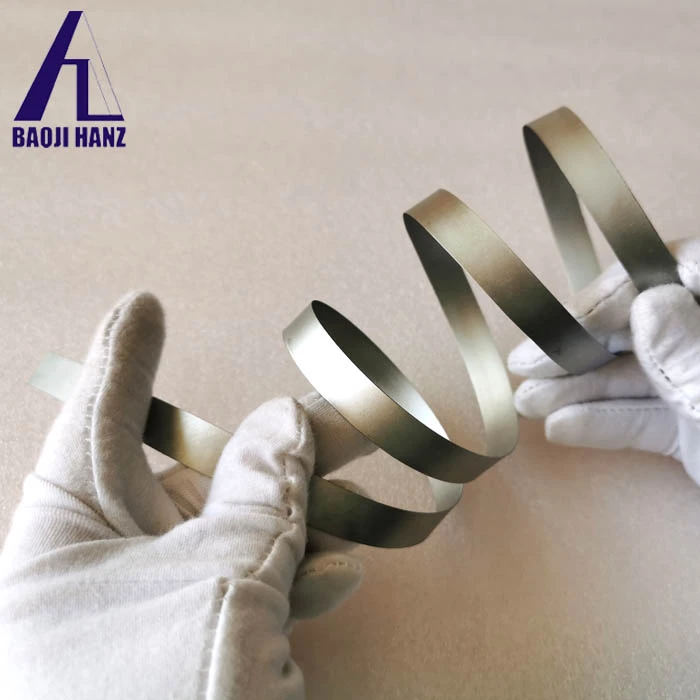

How do you customize Nitinol strips?

Composition and Heat Treatment

Alloy Composition Adjustment

The foundation of customizing Nitinol strips lies in the precise adjustment of the alloy composition. The ratio of nickel to titanium in the alloy significantly influences its properties. Typically, Nitinol contains approximately 55-56% nickel by weight, with the remainder being titanium. However, slight variations in this composition can lead to substantial changes in the material's behavior. By carefully controlling the percentages of nickel and titanium, manufacturers can tailor the transformation temperatures, which are critical for shape memory applications. Additionally, trace elements such as copper, iron, or niobium may be added to further modify the alloy's characteristics. The composition adjustment process requires sophisticated melting and mixing techniques to ensure homogeneity throughout the material.

Heat Treatment Processes

Heat treatment is a crucial step in customizing nickel titanium strips, as it directly affects the material's microstructure and, consequently, its mechanical properties. The heat treatment process typically involves several stages, including solution annealing, aging, and shape setting. Solution annealing is performed at high temperatures, often above 800°C, to homogenize the material and eliminate any residual stresses. The subsequent aging process, conducted at lower temperatures, helps to fine-tune the transformation temperatures and mechanical strength of the alloy. The duration and temperature of each heat treatment stage are carefully controlled to achieve the desired properties. Rapid cooling techniques, such as water quenching, may be employed to lock in specific microstructural features. Advanced heat treatment equipment, including vacuum furnaces and controlled atmosphere ovens, ensures precise temperature control and prevents unwanted oxidation during the process.

Transformation Temperature Control

One of the most critical aspects of customizing Nitinol strips is controlling their transformation temperatures. These temperatures define the points at which the material transitions between its martensite and austenite phases, which are responsible for its shape memory and superelastic behaviors. The austenite finish temperature (Af) is particularly important, as it determines the temperature at which the material fully recovers its programmed shape. By manipulating the alloy composition and applying specific heat treatments, manufacturers can adjust the Af temperature to suit various applications, ranging from body temperature for medical devices to higher temperatures for industrial uses. Differential scanning calorimetry (DSC) and bend and free recovery (BFR) tests are commonly used to verify and fine-tune the transformation temperatures of customized Nitinol strips.

Shape Setting and Surface Treatments

Shape Memory Programming

Shape setting is a fundamental process in customizing nickel titanium strips, particularly for applications that require specific geometries or complex shapes. This process involves physically deforming the material at elevated temperatures, typically above its recrystallization temperature. The Nitinol strip is constrained in the desired shape using specialized fixtures or molds and then subjected to a heat treatment cycle. During this cycle, the material's crystal structure reorganizes, effectively "memorizing" the new shape. The duration and temperature of the shape-setting process are carefully controlled to ensure optimal shape retention without compromising the material's other properties. After cooling, the Nitinol strip can be deformed at lower temperatures but will return to its programmed shape when heated above its transformation temperature. This shape memory effect can be fine-tuned to achieve various degrees of recovery force and displacement, making it possible to create customized actuators, sensors, and medical devices.

Surface Modification Techniques

Surface treatments play a crucial role in enhancing the performance and functionality of customized Nitinol strips. Various techniques can be employed to modify the surface properties of the material, depending on the intended application. Electropolishing is a common method used to smoothen the surface of Nitinol strips, reducing microscopic irregularities and improving corrosion resistance. This process also helps to remove the oxide layer formed during manufacturing, creating a more uniform and biocompatible surface. For applications requiring increased wear resistance or reduced friction, techniques such as ion implantation or physical vapor deposition (PVD) coating can be applied. These methods can introduce hardened layers or low-friction coatings onto the Nitinol surface. In medical applications, where biocompatibility is paramount, surface treatments like passivation or titanium nitride coating may be employed to enhance the material's interaction with biological tissues and fluids.

Texture and Patterning

Advanced manufacturing techniques allow for the creation of intricate textures and patterns on nickel titanium strips, further expanding their customization possibilities. Laser texturing can be used to create microscopic surface features that influence the material's interaction with its environment. For instance, in medical stents, specific surface patterns can promote endothelialization and reduce the risk of thrombosis. Photochemical etching is another technique that enables the production of complex patterns and geometries on Nitinol strips. This process can create precise openings, slots, or mesh-like structures that are difficult to achieve through conventional machining methods. Such patterning can be crucial for applications requiring specific fluid flow characteristics or mechanical flexibility. Additionally, micro-embossing techniques can be employed to impart functional textures on the surface of Nitinol strips, enhancing their grip, light-reflecting properties, or fluid-handling capabilities.

Dimensional Control and Quality Assurance

Precision Thickness Control

Achieving precise thickness control is a critical aspect of customizing nickel titanium strips. The thickness of the strip directly influences its mechanical properties, flexibility, and shape memory behavior. Advanced rolling techniques, such as precision cold rolling, are employed to produce Nitinol strips with tightly controlled thicknesses. These processes can achieve tolerances as low as ±0.0005 inches (±0.0127 mm), ensuring consistency across the entire length of the strip. For ultra-thin applications, specialized techniques like vapor deposition or sputter coating may be used to create Nitinol films with thicknesses in the nanometer range. Throughout the rolling process, sophisticated thickness measurement systems, including laser and X-ray gauges, continuously monitor and adjust the strip thickness to maintain the desired specifications. This level of precision is essential for applications such as microactuators, thin-film sensors, and miniaturized medical devices.

Width and Length Customization

Customizing the width and length of nickel titanium strips is crucial for meeting the dimensional requirements of specific applications. Precision slitting techniques are employed to achieve accurate and consistent strip widths, with tolerances as tight as ±0.001 inches (±0.0254 mm). These techniques utilize high-precision cutting tools and advanced guiding systems to ensure clean edges and minimal material waste. For applications requiring curved or non-linear strips, specialized forming processes can be implemented to shape the Nitinol material along its length while maintaining its cross-sectional properties. Length customization is typically achieved through precision cutting methods, such as laser cutting or wire electrical discharge machining (EDM), which can produce strips with exact lengths and clean, burr-free ends. These cutting processes can also be used to create complex end geometries or features that facilitate integration into larger assemblies.

Quality Control and Testing

Rigorous quality control and testing procedures are essential in the customization of Nitinol strips to ensure consistent performance and reliability. Non-destructive testing methods, such as eddy current testing and X-ray fluorescence spectroscopy, are employed to verify the material composition and detect any internal defects or inclusions. Mechanical testing, including tensile tests and fatigue cycling, is conducted to evaluate the strength, elasticity, and durability of the customized strips. For shape memory applications, specialized equipment is used to measure and analyze the transformation temperatures and shape recovery characteristics of the material. Surface quality is assessed using techniques such as atomic force microscopy (AFM) and scanning electron microscopy (SEM) to ensure that the desired surface treatments and textures have been successfully applied. Additionally, biocompatibility testing may be performed for Nitinol strips intended for medical applications. Throughout the customization process, statistical process control methods are implemented to monitor key parameters and maintain tight quality tolerances.

Conclusion

Customizing nickel titanium strips is a multifaceted process that combines materials science, engineering, and advanced manufacturing techniques. By carefully controlling composition, heat treatment, shape setting, surface treatments, and dimensional parameters, manufacturers can create Nitinol strips tailored to specific applications. This level of customization enables the development of innovative products across various industries, from medical devices to aerospace components, harnessing the unique properties of this remarkable shape memory alloy. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
