How do you heat 1x7 Nitinol wire to activate its shape memory?

Activating the shape memory of 1x7 Nitinol wire black requires precise heating techniques to unlock its remarkable properties. The process involves carefully heating the wire to its transformation temperature, typically around 100-130°C (212-266°F), depending on the specific alloy composition. For optimal results, use a controlled heat source such as a heat gun, oven, or hot water bath. Gradually increase the temperature while monitoring the wire's response. As it reaches the critical point, the 1x7 Nitinol wire black will undergo a phase transformation, reverting to its pre-programmed shape. Maintain the temperature for a short duration to ensure complete activation. It's crucial to avoid overheating, which can damage the wire's unique properties. After heating, allow the wire to cool naturally, solidifying its new shape. This process harnesses the superelastic and shape memory characteristics that make Nitinol an invaluable material in various industries.

Understanding the Properties of 1x7 Nitinol Wire

Composition and Structure

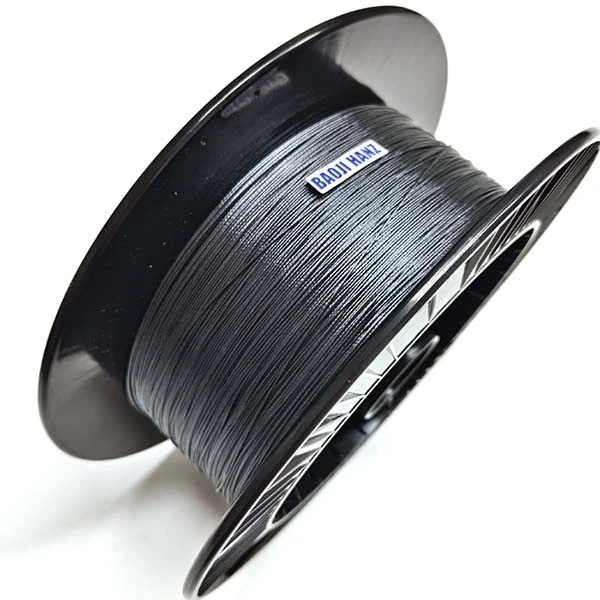

1x7 Nitinol wire is a sophisticated alloy composed primarily of nickel and titanium. Its unique structure consists of one central wire surrounded by six outer strands, creating a robust and flexible configuration. This arrangement enhances the wire's strength-to-diameter ratio, making it ideal for applications requiring both durability and malleability. The precise ratio of nickel to titanium in the alloy determines its specific properties, including transformation temperature and superelasticity.

Shape Memory Effect

The shape memory effect is the hallmark characteristic of Nitinol wire. This phenomenon allows the material to "remember" and return to a predetermined shape when heated to its transformation temperature. At the molecular level, this occurs due to a reversible, temperature-dependent phase transformation between two crystal structures: martensite at lower temperatures and austenite at higher temperatures. When cooled, the wire can be deformed, but upon heating, it reverts to its original shape, demonstrating the remarkable shape memory property.

Superelasticity

Another crucial property of 1x7 Nitinol wire black is its superelasticity. This characteristic allows the wire to undergo significant deformation and then return to its original shape upon removal of the stress, without requiring heat activation. Superelasticity occurs due to stress-induced phase transformations between austenite and martensite. This property makes Nitinol wire exceptionally resilient and capable of withstanding repeated deformation cycles without fatigue, a feature highly valued in numerous applications.

Heating Methods for Activating Shape Memory in 1x7 Nitinol Wire

Heat Gun Method

Using a heat gun is a versatile and controlled method for activating the shape memory of 1x7 Nitinol wire. Set the heat gun to the appropriate temperature range, typically between 100-130°C. Hold the gun at a consistent distance from the wire, moving it slowly and evenly along the length to ensure uniform heating. This method allows for precise temperature control and is particularly useful for activating specific sections of the wire or working with complex shapes. Monitor the wire closely for signs of transformation, such as slight movement or color changes, indicating the activation of its shape memory properties.

Oven Heating Technique

For larger quantities or longer lengths of 1x7 Nitinol wire black, oven heating provides a uniform and controlled environment. Preheat the oven to the wire's transformation temperature, ensuring accurate temperature settings. Place the wire on a heat-resistant surface or fixture that maintains the desired shape. Heat the wire for the recommended duration, typically a few minutes, depending on the wire's thickness and the specific alloy composition. This method is advantageous for batch processing and ensures consistent heating across the entire length of the wire, resulting in uniform shape memory activation.

Hot Water Bath Approach

A hot water bath offers a gentle and precise method for activating Nitinol wire's shape memory. Heat water to the required transformation temperature using a thermometer for accuracy. Immerse the wire in the water, ensuring it's fully submerged and arranged in the desired final shape. Maintain the water temperature for the necessary duration, typically a few minutes. This method is particularly effective for delicate or intricate shapes as it provides even heating without the risk of localized overheating. After activation, carefully remove the wire and allow it to cool, setting its new shape.

Practical Considerations and Safety Measures

Temperature Control and Monitoring

Precise temperature control is paramount when heating 1x7 Nitinol wire to activate its shape memory. Utilize reliable temperature measurement tools such as infrared thermometers or thermocouples to accurately monitor the wire's temperature throughout the heating process. Maintain a steady temperature within the specified range for your specific Nitinol alloy, typically between 100-130°C. Avoid temperature fluctuations or overshooting, as this can affect the wire's performance or potentially damage its unique properties. Implement a systematic approach to temperature control, recording and adjusting as necessary to ensure consistent results across multiple activations.

Handling and Fixture Design

Proper handling and fixture design are crucial for successful shape memory activation of 1x7 Nitinol wire black. Design fixtures that securely hold the wire in the desired final shape during heating. Use materials that can withstand the activation temperatures without deforming or reacting with the Nitinol. Consider the wire's tendency to contract during activation and allow for this movement in your fixture design. Handle the wire with care, avoiding sharp bends or kinks that could compromise its integrity. When working with longer lengths, ensure even support to prevent sagging or uneven heating. Implement clean handling practices to avoid contamination that could affect the wire's performance or surface properties.

Safety Protocols and Protective Measures

Adhering to safety protocols is essential when working with heated 1x7 Nitinol wire. Always wear appropriate personal protective equipment, including heat-resistant gloves, safety glasses, and suitable clothing. Ensure proper ventilation in the work area, especially when using heat guns or ovens, to prevent the accumulation of potentially harmful fumes. Implement fire safety measures, including having extinguishing equipment readily available. Be cautious of the wire's rapid shape change during activation, which could pose pinching or entanglement risks. Establish clear procedures for handling emergencies and train all personnel involved in the heating process. Regularly inspect and maintain all heating equipment to ensure safe and efficient operation.

Conclusion

Mastering the technique of heating 1x7 Nitinol wire black to activate its shape memory is crucial for harnessing its full potential. By understanding the material's properties and employing precise heating methods, you can unlock the remarkable capabilities of this innovative alloy. Remember, successful activation depends on careful temperature control, proper handling, and adherence to safety protocols. With these considerations in mind, you can effectively utilize Nitinol wire in a wide range of applications, from medical devices to aerospace engineering. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
