How do you manufacture super elastic nitinol pipes?

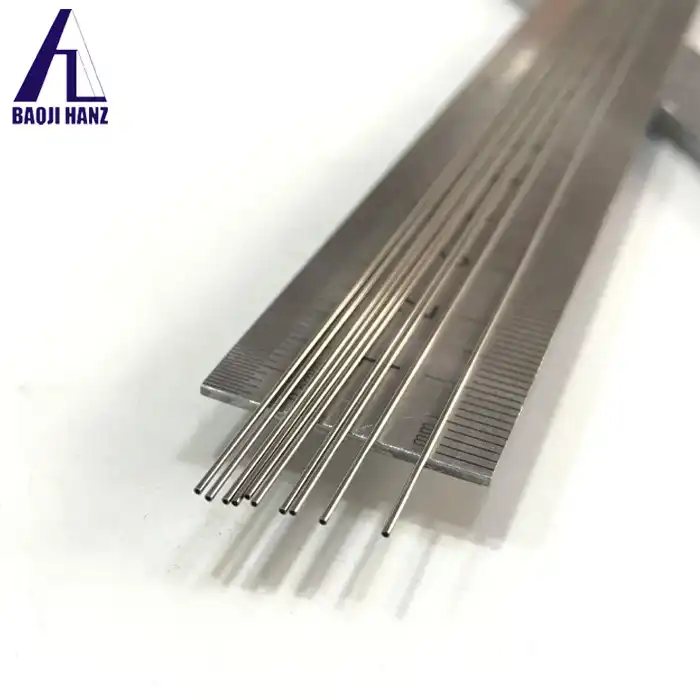

The Fundamentals of Super Elastic Nitinol Pipes

Understanding Nitinol's Unique Properties

Super elastic nitinol pipes are crafted from an extraordinary alloy that combines nickel and titanium in nearly equal proportions. This material possesses a remarkable ability to undergo substantial deformation and return to its original shape upon the removal of stress. The superelasticity of nitinol stems from its unique crystalline structure, which can transition between two distinct phases: austenite and martensite. This phase transformation occurs in response to temperature changes or applied stress, enabling nitinol to exhibit its exceptional elasticity and shape memory effects.

Applications of Super Elastic Nitinol Pipes

The unparalleled properties of super elastic nitinol pipes have led to their widespread adoption across various industries. In the medical field, these pipes are utilized in the production of stents, guidewires, and catheter systems, where their flexibility and biocompatibility are paramount. Aerospace engineers harness nitinol pipes for hydraulic and pneumatic systems, taking advantage of their resistance to fatigue and corrosion. The automotive sector employs these pipes in advanced suspension systems and actuators, while the consumer electronics industry incorporates them into antenna designs and robotic components. The versatility of super elastic nitinol pipes continues to expand their applications, driving ongoing research and development in material science.

Advantages of Super Elastic Nitinol Pipes

Super elastic nitinol pipes offer a myriad of benefits that set them apart from conventional materials. Their exceptional elasticity allows for significant deformation without permanent damage, making them ideal for applications requiring repeated flexing or bending. The shape memory effect of nitinol pipes enables them to return to a predetermined shape when heated, opening up possibilities for innovative designs and self-actuating mechanisms. These pipes also boast excellent corrosion resistance, biocompatibility, and a high strength-to-weight ratio. Moreover, their ability to dampen vibrations and absorb energy makes them valuable in applications where shock absorption is crucial. The unique combination of these properties makes super elastic nitinol pipes an indispensable material in numerous high-performance applications.

The Manufacturing Process of Super Elastic Nitinol Pipes

Raw Material Preparation and Alloying

The journey of manufacturing super elastic nitinol pipes begins with the careful selection and preparation of raw materials. High-purity nickel and titanium are precisely measured and combined in a ratio that typically ranges from 50.6% to 51.0% nickel by atomic weight. The exact composition is crucial as it directly influences the alloy's transformation temperatures and mechanical properties. These elements are then melted together in a vacuum or inert gas environment using specialized furnaces, such as vacuum induction melting (VIM) or vacuum arc remelting (VAR) systems. These advanced melting techniques ensure the removal of impurities and promote homogeneity in the resulting ingot. The molten alloy is carefully controlled and solidified to form a uniform, high-quality nitinol ingot that serves as the foundation for subsequent processing steps.

Hot Working and Cold Drawing

Once the nitinol ingot is produced, it undergoes a series of hot working processes to refine its microstructure and shape it into a form suitable for pipe production. This typically involves hot forging or extrusion at temperatures above the alloy's recrystallization point, which helps to break down the as-cast structure and improve its overall properties. The hot-worked material is then subjected to multiple stages of cold drawing, a process that gradually reduces the diameter of the nitinol rod while increasing its length. Cold drawing is performed at temperatures below the alloy's recrystallization temperature, inducing work hardening and imparting strength to the material. Between drawing steps, the nitinol may undergo intermediate annealing treatments to relieve internal stresses and maintain workability. This iterative process of drawing and annealing continues until the desired pipe dimensions are achieved, with careful control of reduction ratios and processing parameters to ensure optimal mechanical properties and surface quality.

Tube Forming and Welding

The transformation of nitinol rod into a tubular form involves sophisticated tube forming techniques. One common method is tube drawing, where the solid rod is first drilled to create a hollow center, then drawn over a mandrel to achieve the desired inner and outer diameters. Alternatively, sheet rolling and welding techniques may be employed, particularly for larger diameter pipes. In this approach, nitinol sheets are carefully rolled into a cylindrical shape and welded along the seam using advanced welding methods such as laser welding or electron beam welding. These precision welding techniques ensure a strong, uniform joint that maintains the superelastic properties of the base material. Throughout the tube forming process, strict dimensional controls are maintained to achieve the required tolerances for wall thickness and diameter. The formed tubes then undergo rigorous inspection, including non-destructive testing methods like ultrasonic or eddy current testing, to verify their integrity and ensure they meet the stringent quality standards demanded by high-performance applications.

Heat Treatment and Final Processing

Shape Setting and Annealing

Heat treatment plays a pivotal role in imparting the desired superelastic properties to nitinol pipes. The shape-setting process involves fixing the nitinol pipe in the desired final configuration and subjecting it to a carefully controlled heat treatment. This treatment, typically performed at temperatures ranging from 450°C to 550°C, allows the material to "memorize" its shape. The duration and temperature of this heat treatment are meticulously calibrated based on the specific alloy composition and the intended application of the pipe. Following shape setting, the nitinol pipes undergo an annealing process to relieve internal stresses induced during manufacturing and optimize their superelastic behavior. Annealing temperatures and durations are precisely controlled to achieve the desired balance between strength and elasticity. This heat treatment stage is crucial in determining the transformation temperatures of the nitinol alloy, which directly influence its superelastic performance across different operating conditions.

Surface Treatment and Passivation

The surface quality of super elastic nitinol pipes is of paramount importance, particularly in medical and aerospace applications where cleanliness and biocompatibility are critical. After heat treatment, the pipes undergo a series of surface treatments to enhance their performance and durability. Chemical etching is often employed to remove any surface oxides or contaminants that may have formed during previous processing steps. This is followed by electropolishing, a sophisticated electrochemical process that smoothens the surface at a microscopic level, reducing roughness and improving corrosion resistance. The final step in surface preparation is passivation, which involves creating a thin, protective oxide layer on the nitinol surface. This passivation layer not only enhances corrosion resistance but also contributes to the biocompatibility of the material. For certain applications, additional surface modifications such as coating or texturing may be applied to further tailor the properties of the nitinol pipes to specific requirements.

Quality Control and Testing

The manufacturing process of super elastic nitinol pipes concludes with rigorous quality control measures and comprehensive testing protocols. Each pipe undergoes a battery of tests to verify its mechanical properties, dimensional accuracy, and performance characteristics. Tensile testing is conducted to evaluate the stress-strain behavior and confirm the superelastic properties of the material. Fatigue testing assesses the pipe's ability to withstand repeated cyclic loading, crucial for applications involving continuous flexing or pulsatile flow. Differential scanning calorimetry (DSC) may be employed to analyze the transformation temperatures of the nitinol alloy, ensuring they meet the specified requirements. Non-destructive testing methods, such as X-ray inspection or eddy current testing, are utilized to detect any internal defects or inconsistencies in the pipe structure. Surface analysis techniques, including scanning electron microscopy (SEM) and atomic force microscopy (AFM), are used to evaluate surface quality and verify the effectiveness of passivation treatments. Only after passing this stringent battery of tests are the super elastic nitinol pipes cleared for use in their intended applications, ensuring the highest standards of quality and reliability.

Conclusion

The manufacture of super elastic nitinol pipes is a complex process that demands precision, expertise, and advanced technology. From raw material preparation to final quality control, each step is crucial in producing pipes that exhibit the remarkable properties of nitinol. As research continues and manufacturing techniques evolve, we can expect even more innovative applications for these extraordinary components across various industries. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
