How does a nitinol rod demonstrate shape memory?

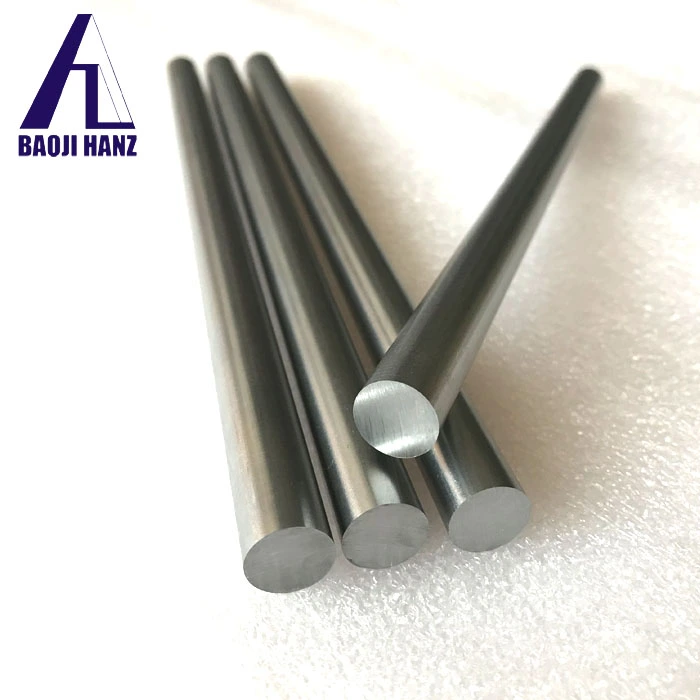

The Science Behind Shape Memory Nitinol Rods

Crystal Structure and Phase Transformations

The shape memory effect in nitinol rods arises from their unique crystalline structure, which allows for reversible phase transformations. At elevated temperatures, nitinol exists in the austenite phase, characterized by a cubic structure. Upon cooling, it transforms into the more flexible martensite phase, which has a complex, twinned structure. This transformation is essential for the shape memory behavior of nitinol. The martensite phase can be easily deformed, but when heated above its transformation temperature, the rod returns to its original austenite shape, demonstrating its ability to recover after deformation.

Stress-Induced Martensitic Transformation

An important feature of shape memory nitinol rods is the stress-induced martensitic transformation. When a nitinol rod in the austenite phase is subjected to stress, it can directly transform into martensite, exhibiting superelastic behavior. This means it can endure significant strains without permanent deformation, reverting to its austenite phase and original shape once the stress is removed. This property is particularly valuable in applications requiring flexibility and shape recovery, such as medical stents and orthodontic wires.

Temperature-Dependent Behavior

The shape memory effect is influenced by temperature, with transformation temperatures adjustable during manufacturing. This allows for precise control over the activation of the shape memory effect, making nitinol rods suitable for various thermal actuators and temperature-responsive devices. By adjusting the alloy composition and processing methods, engineers can create nitinol rods with specific transformation temperatures tailored for diverse uses, from body-temperature-activated medical devices to high-temperature industrial actuators.

Demonstrating Shape Memory in Nitinol Rods

The Bending Test

One of the most straightforward ways to demonstrate the shape memory effect in nitinol rods is through a simple bending test. A straight nitinol rod at room temperature can be severely bent or coiled without breaking. Upon heating the deformed rod, typically using hot water or a heat gun, it will rapidly straighten back to its original form.This dramatic demonstration showcases the rod's ability to "remember" its initial shape, even after significant plastic deformation. The speed and completeness of the shape recovery can be truly astonishing, especially for those unfamiliar with shape memory alloys.

The Two-Way Shape Memory Effect

While the one-way shape memory effect is impressive, some nitinol rods can be trained to exhibit a two-way shape memory effect. In this case, the rod can remember two different shapes: one at low temperatures and another at high temperatures. This behavior is achieved through a special thermomechanical training process.To demonstrate this, a nitinol rod can be programmed to form a specific shape, such as a coil, at low temperatures and then straighten out when heated. Upon cooling, it will automatically revert to the coiled shape without any external force. This two-way effect greatly expands the potential applications for shape memory nitinol rods in various actuator and sensor designs.

Superelasticity Demonstration

The superelastic properties of nitinol rods are highlighted in cyclic loading tests. In the austenite phase, these rods can withstand large strains beyond traditional metals without permanent deformation. After unloading, they quickly return to their original shape, demonstrating exceptional elasticity. This quality makes them ideal for applications like flexible surgical instruments and durable eyeglass frames.

Applications and Future Prospects of Shape Memory Nitinol Rods

Medical Applications

The biocompatibility and unique properties of nitinol rods have revolutionized medical applications. In minimally invasive surgery, nitinol stents can be compressed for easy insertion and expand to provide support. Nitinol orthodontic archwires apply gentle, consistent forces for efficient tooth movement. Additionally, their temperature responsiveness enables the development of smart catheters and guidewires that navigate complex vascular pathways with enhanced control and safety.

Aerospace and Automotive Industries

In the aerospace sector, shape memory nitinol rods are used for morphing structures and adaptive components, such as actuators for aircraft flaps and helicopter rotor blades, enhancing performance under various flight conditions. Similarly, in the automotive industry, they are utilized in self-repairing car bodies, smart fasteners, and adaptive engine valves, potentially improving efficiency and reducing emissions.

Consumer Electronics and Robotics

Nitinol's miniaturization capabilities are also making waves in consumer electronics and robotics. Micro-actuators crafted from nitinol are employed in camera autofocus systems and haptic feedback devices, while their application in robotics enables the development of soft actuators that mimic natural muscle movements. This is particularly advantageous in biomimetic robotics, where researchers aim to create robots capable of navigating complex environments with the adaptability and flexibility found in living organisms. The shape memory and superelastic characteristics of nitinol rods play a crucial role in achieving lifelike movements and behaviors.

Conclusion

Shape memory nitinol rods represent a fascinating intersection of materials science and engineering ingenuity. Their ability to remember and return to a pre-programmed shape, combined with superelastic properties, opens up a world of innovative applications across multiple industries. As research continues to advance, we can expect even more groundbreaking uses for these remarkable materials in the future.If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
