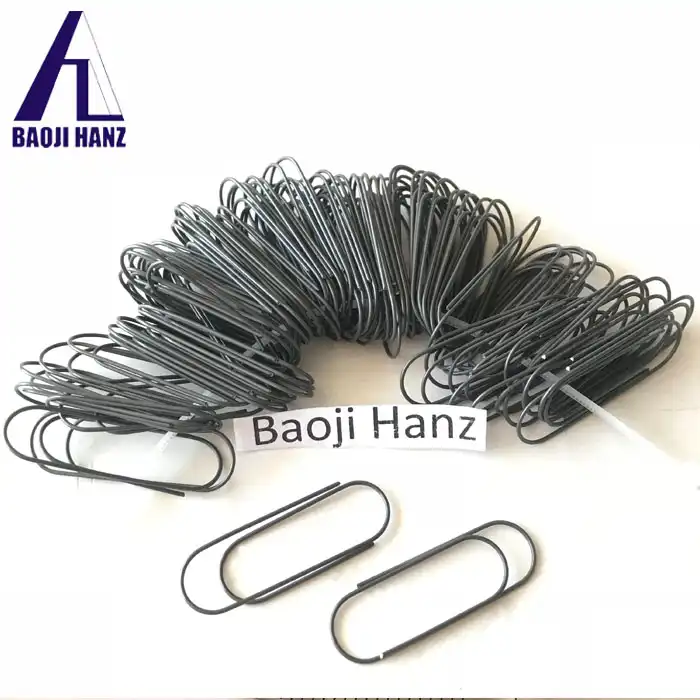

How does a self-bending nitinol paperclip work?

A self-bending nitinol paperclip is a fascinating demonstration of the unique properties of shape memory alloys. These paperclips, made from nitinol (nickel-titanium alloy), have the remarkable ability to change shape when exposed to heat. At room temperature, the paperclip appears ordinary and can be bent into various shapes. However, when heated above its transformation temperature, typically around 50°C (122°F), the paperclip "remembers" its original shape and returns to it. This behavior is due to nitinol's shape memory effect, a result of its crystal structure transitioning between two phases: martensite at lower temperatures and austenite at higher temperatures. The shape memory effect allows the paperclip to repeatedly transform between its deformed state and its pre-programmed shape, making it an intriguing example of smart materials in action. This phenomenon not only captivates observers but also illustrates the potential applications of nitinol in various fields, from medical devices to aerospace engineering.

The Science Behind Self-Bending Nitinol Paperclips

Crystal Structure and Phase Transformation

The behavior of self-bending nitinol paperclips is rooted in the unique crystal structure of the nitinol alloy. At room temperature, nitinol exists in a low-temperature phase called martensite. In this phase, the crystal structure is relatively flexible, allowing the paperclip to be easily deformed. When heated above its transformation temperature, the crystal structure undergoes a dramatic change, shifting to the high-temperature austenite phase. This phase transformation is the key to the shape memory effect observed in nitinol paperclips. The austenite phase has a more rigid crystal structure, which corresponds to the paperclip's original, programmed shape. As the temperature increases, the atoms in the nitinol alloy rearrange themselves, causing the paperclip to revert to its pre-set configuration. This transformation occurs at the atomic level, resulting in a macroscopic change that we can observe with the naked eye.

Shape Memory Effect in Action

The shape memory effect in self-bending nitinol paperclips is a reversible process. When the paperclip cools back down to room temperature, it returns to the martensite phase. However, it retains its original shape unless an external force is applied to deform it again. This ability to "remember" and return to a pre-programmed shape is what gives nitinol its name - "Nickel Titanium Naval Ordnance Laboratory," where it was first developed. The shape memory effect can be triggered multiple times without degradation of the material's properties. This repeatability makes nitinol paperclips not just a novelty item, but also a practical demonstration of the potential applications of shape memory alloys in various industries.

Temperature-Induced Transformation

The transformation temperature of nitinol can be fine-tuned by adjusting the ratio of nickel to titanium in the alloy. For self-bending paperclips, the transformation temperature is typically set just above room temperature, usually around 50°C (122°F). This ensures that the paperclip remains stable at room temperature but can be easily activated with mild heat sources such as warm water or body heat. When exposed to heat, the paperclip undergoes a rapid transformation. The speed of this change can be quite dramatic, often occurring within seconds. This quick response to temperature change is another characteristic that makes nitinol paperclips so captivating and demonstrates the responsive nature of shape memory alloys.

Manufacturing Process of Self-Bending Nitinol Paperclips

Alloy Preparation

The manufacturing process of self-bending nitinol paperclips begins with the careful preparation of the nitinol alloy. This involves precise control of the nickel-titanium ratio, as even small variations can significantly affect the alloy's properties. The metals are melted together in a vacuum or inert gas environment to prevent oxidation and ensure purity. The resulting ingot is then processed through various stages to achieve the desired shape and properties. Advanced techniques such as vacuum arc remelting or electron beam melting may be employed to further refine the alloy's composition and remove any impurities. This level of precision is crucial for achieving consistent performance in the final product. Companies like Baoji Hanz Metal Material Co., Ltd. specialize in producing high-quality nitinol alloys with tightly controlled compositions.

Shape Setting and Training

Once the nitinol wire is produced, it must be "trained" to remember the desired paperclip shape. This process, known as shape setting, involves heating the wire to a high temperature (typically around 500°C or 932°F) while it is constrained in the desired paperclip shape. The wire is then rapidly cooled, often by quenching in water. This heat treatment process aligns the crystal structure of the nitinol in a way that corresponds to the paperclip shape. The shape-setting process requires precise control of temperature, time, and cooling rate. These parameters are carefully optimized to ensure that the paperclip will reliably return to its programmed shape when heated. Multiple cycles of shape setting may be performed to reinforce the memory effect and improve the paperclip's performance.

Quality Control and Testing

After manufacturing, each batch of self-bending nitinol paperclips undergoes rigorous quality control checks. These tests ensure that the paperclips exhibit the correct transformation temperature and shape memory behavior. Samples are typically subjected to repeated heating and cooling cycles to verify their performance and durability. Advanced testing methods, such as differential scanning calorimetry (DSC), may be used to precisely measure the transformation temperatures of the nitinol alloy. X-ray diffraction analysis can provide insights into the crystal structure of the material, ensuring that it meets the required specifications. These sophisticated quality control measures are essential for producing reliable and consistent self-bending nitinol paperclips.

Applications and Future Potential of Nitinol Technology

Medical Applications

The unique properties demonstrated by self-bending nitinol paperclips have far-reaching implications in the medical field. Nitinol's shape memory and superelastic properties make it an ideal material for a variety of medical devices. For instance, stents used in cardiovascular procedures can be made from nitinol, allowing them to be compressed for insertion and then expand to their functional shape once inside the blood vessel. Orthodontic archwires made from nitinol provide consistent, gentle force for moving teeth, improving the efficiency of dental treatments. In minimally invasive surgery, nitinol instruments can change shape within the body, reaching areas that would be difficult to access with traditional rigid tools. The biocompatibility of nitinol further enhances its suitability for medical applications, making it a valuable material in the ongoing development of advanced medical technologies.

Aerospace and Automotive Industries

The aerospace and automotive sectors are increasingly exploring the potential of nitinol technology. In aircraft design, nitinol actuators can be used to create morphing structures that change shape in response to different flight conditions, potentially improving aerodynamic efficiency. These shape-changing capabilities could lead to more fuel-efficient and adaptable aircraft designs. In the automotive industry, nitinol is being investigated for use in impact-absorbing structures and self-repairing car bodies. The material's ability to return to its original shape after deformation could potentially reduce repair costs and improve vehicle safety. As research in these areas progresses, we may see more widespread adoption of nitinol-based components in future vehicles and aircraft.

Consumer Electronics and Smart Materials

The principles behind self-bending nitinol paperclips are inspiring innovations in consumer electronics and smart materials. Shape memory alloys like nitinol are being incorporated into wearable technology, creating devices that can adapt to the user's body shape or respond to environmental changes. In the realm of smart textiles, nitinol fibers could be used to create clothing that changes its insulation properties based on temperature. Looking to the future, researchers are exploring the potential of nitinol in creating self-assembling structures. Imagine furniture that could fold itself for easy storage or packaging that could open automatically under specific conditions. As our understanding of nitinol and other shape memory alloys grows, we can expect to see increasingly sophisticated applications that blur the line between materials and machines.

Conclusion

Self-bending nitinol paperclips showcase the remarkable properties of shape memory alloys, demonstrating the potential for materials that can adapt and respond to their environment. From their microscopic crystal structure to their macroscopic shape-changing abilities, these paperclips offer a glimpse into the future of smart materials. As research continues and manufacturing techniques advance, we can anticipate exciting developments in fields ranging from medicine to aerospace, all inspired by the simple yet captivating behavior of a self-bending paperclip. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge university press.

2. Lagoudas, D. C. (Ed.). (2008). Shape memory alloys: modeling and engineering applications. Springer Science & Business Media.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design,

4. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: a review. Materials & Design,

5. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering

6. Machado, L. G., & Savi, M. A. (2003). Medical applications of shape memory alloys. Brazilian journal of medical and biological research,
