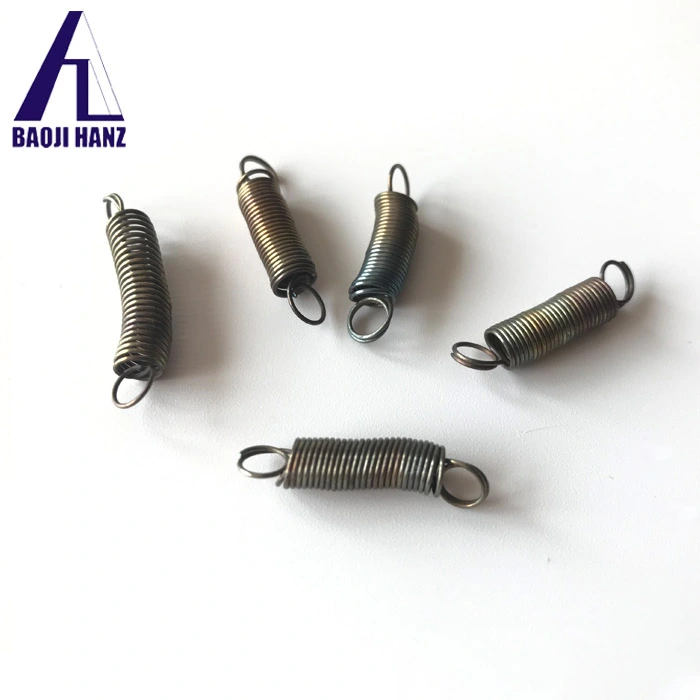

How does a superelastic Nitinol spring work?

The Science Behind Superelastic Nitinol Springs

Crystal Structure and Phase Transformations

At the heart of a superelastic Nitinol spring's functionality lies its unique crystal structure. Nitinol, an equiatomic alloy of nickel and titanium, exhibits two distinct crystal phases: austenite and martensite. The austenite phase, stable at higher temperatures, has a cubic crystal structure, while the martensite phase, stable at lower temperatures, has a monoclinic crystal structure. The ability of Nitinol to transition between these phases gives rise to its superelastic properties. When a superelastic Nitinol spring is subjected to stress, it undergoes a stress-induced phase transformation from austenite to martensite. This transformation occurs without the need for temperature changes, allowing the spring to accommodate large strains without permanent deformation. As the stress is removed, the material reverts to its original austenitic phase, recovering its initial shape.

Stress-Strain Behavior

The stress-strain curve of a superelastic Nitinol spring is markedly different from that of conventional materials. Instead of following Hooke's law, which describes a linear relationship between stress and strain, Nitinol exhibits a plateau region in its stress-strain curve. This plateau corresponds to the phase transformation from austenite to martensite. During loading, the spring initially behaves elastically until it reaches a critical stress level. At this point, the plateau begins, and the material can undergo large strains with minimal increase in stress. Upon unloading, the spring follows a different path, creating a hysteresis loop. This unique behavior allows Nitinol springs to absorb and release energy efficiently, making them ideal for applications requiring vibration damping or energy storage.

Temperature Dependence

While super elastic nitinol springs can operate without temperature changes, their behavior is still temperature-dependent. The transformation temperatures – austenite start (As), austenite finish (Af), martensite start (Ms), and martensite finish (Mf) – play a crucial role in determining the spring's properties. For superelastic behavior to occur, the operating temperature must be above Af. This temperature sensitivity allows for the design of springs with specific operating ranges, tailored to various applications.

Properties and Advantages of Superelastic Nitinol Springs

Exceptional Elasticity

The most striking feature of superelastic Nitinol springs is their ability to undergo large deformations without permanent damage. While conventional metal springs typically have elastic strains of less than 1%, Nitinol springs can recover strains of up to 8-10%. This extraordinary elasticity allows for the design of compact springs capable of large displacements, opening up new possibilities in miniaturization and space-constrained applications. The high elasticity of Nitinol springs also contributes to their fatigue resistance. Unlike traditional springs that may experience fatigue failure due to cyclic loading, superelastic Nitinol springs can withstand millions of loading cycles without significant degradation in performance. This durability makes them ideal for applications requiring long-term reliability and reduced maintenance.

Shape Memory Effect

While not directly related to their superelastic behavior, the shape memory effect is another remarkable property of Nitinol springs. When deformed below their transformation temperature, Nitinol springs can "remember" and return to their original shape upon heating. This property, although distinct from superelasticity, adds another dimension to the versatility of Nitinol springs, allowing for the creation of temperature-activated devices and actuators.

Biocompatibility and Corrosion Resistance

Nitinol's excellent biocompatibility makes it an ideal material for medical applications. Superelastic Nitinol springs can be safely used in various medical devices, implants, and surgical instruments. The material's resistance to corrosion further enhances its suitability for both medical and industrial applications, ensuring long-term stability and performance even in challenging environments.

Applications of Superelastic Nitinol Springs

Medical Devices and Implants

The biocompatibility and unique properties of super elastic nitinol springs have revolutionized the medical industry. These springs are widely used in minimally invasive surgical tools, allowing for the creation of instruments that can navigate through complex anatomical structures with minimal trauma to surrounding tissues. Cardiovascular stents, dental archwires, and orthopedic implants are just a few examples of medical devices that leverage the benefits of Nitinol springs. In the field of neurosurgery, Nitinol springs have enabled the development of advanced aneurysm coils. These tiny springs can be inserted into cerebral aneurysms, where they expand to fill the space and promote blood clotting, effectively treating this life-threatening condition. The superelastic nature of the springs allows them to conform to the irregular shape of the aneurysm, providing a more effective and less invasive treatment option.

Aerospace and Automotive Industries

The aerospace and automotive sectors have embraced super elastic nitinol springs for their exceptional performance under extreme conditions. In aircraft, these springs are used in vibration damping systems, helping to reduce fatigue and improve the longevity of critical components. The ability of Nitinol springs to operate reliably across a wide temperature range makes them particularly valuable in aerospace applications, where components must function in both the extreme cold of high altitudes and the heat generated during re-entry. In the automotive industry, superelastic Nitinol springs find applications in advanced suspension systems, providing superior ride comfort and handling. Their ability to absorb and release energy efficiently makes them ideal for use in active damping systems, allowing for real-time adjustments to road conditions. Additionally, Nitinol springs are being explored for use in energy-harvesting systems, converting the mechanical energy of vehicle vibrations into electrical energy to power onboard electronics.

Consumer Electronics and Robotics

The miniaturization trend in consumer electronics has created a demand for compact, high-performance components. Superelastic Nitinol springs offer a solution to many design challenges in this field. In mobile devices, these springs are used in impact protection systems, helping to absorb shocks and prevent damage to sensitive components. The springs' ability to provide consistent force over a wide range of displacements makes them ideal for tactile feedback mechanisms in touchscreens and keyboards. In robotics, superelastic Nitinol springs are enabling the development of more advanced and lifelike actuators. Their high energy density and ability to mimic biological muscle behavior make them invaluable in the creation of soft robotics and prosthetic devices. By combining Nitinol springs with smart materials and control systems, researchers are pushing the boundaries of what's possible in human-robot interaction and biomimetic design.

Conclusion

Super elastic nitinol springs represent a remarkable advancement in materials science, offering a unique combination of properties that enable innovative solutions across various industries. Their ability to undergo large deformations, coupled with their biocompatibility and durability, continues to drive research and development in fields ranging from medicine to aerospace. As our understanding of these fascinating materials grows, we can expect to see even more exciting applications emerge, pushing the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
