How does shape memory nitinol differ from other shape memory alloys?

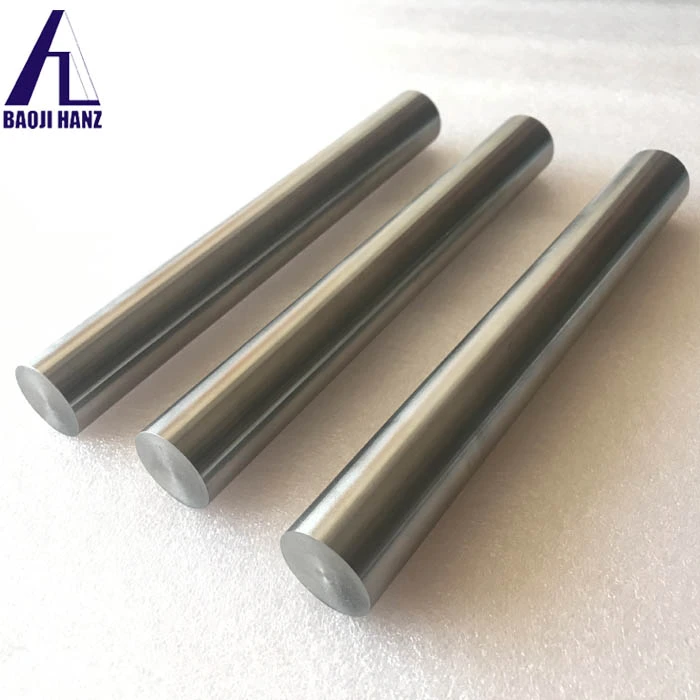

Composition and Structure of Shape Memory Nitinol

Chemical Composition of Nitinol

Shape memory nitinol, a remarkable alloy in the realm of smart materials, is primarily composed of nickel and titanium. The name "nitinol" itself is an acronym derived from its constituent elements: Nickel Titanium Naval Ordnance Laboratory. Typically, the composition of nitinol consists of approximately 55-56% nickel and 44-45% titanium by weight. This precise balance of elements is crucial for achieving the desired shape memory and superelastic properties that set nitinol apart from other alloys. The unique atomic structure of nitinol allows for its exceptional behavior. At the microscopic level, nitinol exists in two distinct crystal structures or phases: austenite and martensite. The transformation between these phases is the key to nitinol's shape memory effect. The austenite phase, stable at higher temperatures, has a cubic crystal structure, while the martensite phase, stable at lower temperatures, has a more complex monoclinic or orthorhombic structure. It's worth noting that the exact composition of nitinol can be fine-tuned to adjust its transformation temperatures and mechanical properties. Small variations in the nickel-titanium ratio or the addition of trace elements like copper or niobium can significantly alter the alloy's characteristics, allowing for customization to suit specific applications.

Crystal Structure and Phase Transformations

The shape memory effect in nitinol is intrinsically linked to its ability to undergo reversible phase transformations. When cooled from the austenite phase, nitinol transforms into the martensite phase without a change in macroscopic shape, a process known as twinning. This twinned martensite can be easily deformed by applying stress, resulting in a new shape. Upon heating, the material undergoes a reverse transformation from martensite to austenite. During this process, the atoms in the crystal lattice rearrange themselves to their original austenitic positions, causing the material to revert to its pre-deformed shape. This phenomenon is what gives nitinol its "memory" of its original form. The temperature at which this transformation occurs is called the transition temperature or activation temperature. It can be precisely controlled through the alloy's composition and processing, making nitinol highly adaptable for various applications. The transformation can also be stress-induced, leading to nitinol's superelastic behavior, where it can undergo large deformations and return to its original shape upon removal of the stress.

Microstructure and Its Impact on Properties

The microstructure of Shape memory nitinol ingots plays a pivotal role in determining its macroscopic properties. The size, orientation, and distribution of grains within the material significantly influence its shape memory and mechanical characteristics. Finer grain structures generally lead to improved shape memory properties and faster response times. Heat treatment processes are crucial in tailoring the microstructure of nitinol. Annealing at different temperatures can alter the grain size and distribution, affecting the material's transformation temperatures and mechanical strength. Additionally, the presence of precipitates or impurities can impact the movement of phase boundaries, thus influencing the shape memory effect. The texture of the material, which refers to the preferred orientation of crystal grains, also affects its behavior. Highly textured nitinol can exhibit anisotropic properties, meaning its shape memory effect and mechanical properties vary depending on the direction of applied stress. This characteristic can be advantageous in certain applications where directional properties are desired.

Unique Properties of Shape Memory Nitinol

Shape Memory Effect

The shape memory effect is the hallmark property of nitinol, setting it apart from conventional materials. This phenomenon allows nitinol to "remember" and return to a predetermined shape when heated above its transformation temperature. The mechanism behind this effect is rooted in the material's ability to undergo a reversible, solid-state phase transformation between its low-temperature (martensite) and high-temperature (austenite) phases. When nitinol is in its martensitic phase, it can be easily deformed. However, upon heating above its transformation temperature, it reverts to its austenitic phase, recovering its original shape with considerable force. This process can be repeated numerous times without degradation, making nitinol ideal for applications requiring repetitive shape changes. The shape memory effect in nitinol is particularly robust compared to other shape memory alloys. It can recover strains of up to 8%, which is significantly higher than most other materials. This exceptional recovery capacity, combined with its biocompatibility, makes nitinol a preferred choice in medical devices such as stents, orthodontic wires, and surgical instruments.

Superelasticity

Superelasticity, also known as pseudoelasticity, is another remarkable property of nitinol. This characteristic allows the material to undergo large deformations and return to its original shape upon removal of the applied stress, without the need for temperature change. Superelastic nitinol can withstand strains of up to 10% without permanent deformation, far exceeding the elastic limit of most metals. The superelastic behavior of nitinol is due to a stress-induced phase transformation. When stress is applied, the austenitic crystal structure transforms into martensite. This transformation accommodates the large strains without permanent deformation. When the stress is removed, the material reverts to its austenitic structure, recovering its original shape. This property makes nitinol exceptionally resilient and durable, ideal for applications requiring high flexibility and resistance to fatigue. Eyeglass frames, cell phone antennas, and orthodontic archwires are just a few examples where nitinol's superelasticity is leveraged to great effect.

Biocompatibility and Corrosion Resistance

One of the most valuable attributes of nitinol, particularly in medical applications, is its excellent biocompatibility. The alloy forms a stable titanium oxide layer on its surface, which provides a barrier against corrosion and prevents the release of nickel ions into the body. This characteristic makes nitinol safe for long-term implantation and direct contact with bodily fluids and tissues. Nitinol's corrosion resistance is superior to many other metallic biomaterials, including stainless steel. It demonstrates high resistance to pitting and crevice corrosion in chloride-containing environments, such as the human body. This property, combined with its unique mechanical characteristics, makes nitinol an ideal material for various medical implants and devices. The biocompatibility of nitinol extends beyond its corrosion resistance. The material also exhibits excellent wear resistance and has a modulus of elasticity closer to that of bone compared to other metallic implant materials. This mechanical compatibility reduces stress shielding effects in orthopedic applications, promoting better integration with surrounding tissues.

Comparing Nitinol to Other Shape Memory Alloys

Copper-Based Shape Memory Alloys

Copper-based shape memory alloys, such as Cu-Zn-Al and Cu-Al-Ni systems, offer an alternative to nitinol in certain applications. These alloys are generally less expensive than nitinol and can be easier to manufacture. However, they have several limitations when compared to shape memory nitinol ingots. One significant difference is the magnitude of the shape memory effect. While nitinol can recover strains of up to 8%, copper-based alloys typically recover only 4-5% strain. This limitation restricts their use in applications requiring large shape changes. Additionally, copper-based alloys often suffer from poor stability during thermal cycling, leading to a degradation of the shape memory effect over time. Copper-based shape memory alloys also exhibit lower corrosion resistance compared to nitinol, making them less suitable for applications in harsh environments or medical implants. Their transformation temperatures are more sensitive to compositional changes, which can make precise control of their properties more challenging during production.

Iron-Based Shape Memory Alloys

Iron-based shape memory alloys, including Fe-Mn-Si and Fe-Ni-Co-Ti systems, have garnered interest due to their potential for lower cost and higher strength compared to nitinol. These alloys can exhibit shape memory effects and, in some cases, magnetic shape memory properties. However, they also present several drawbacks when compared to nitinol. The shape memory effect in iron-based alloys is generally less pronounced than in nitinol. They typically recover smaller strains and require higher stresses to induce the shape memory effect. This limitation reduces their effectiveness in applications requiring large, reversible deformations. Iron-based alloys also tend to have higher density than nitinol, which can be a disadvantage in applications where weight is a critical factor. Their transformation temperatures are often higher than those of nitinol, limiting their use in applications that require shape changes near room temperature or body temperature.

Advantages of Nitinol Over Other Shape Memory Alloys

Shape memory nitinol ingots possess several distinct advantages over other shape memory alloys, cementing their position as the preferred choice in many applications. Firstly, nitinol exhibits a more pronounced and reliable shape memory effect, capable of recovering larger strains with greater consistency over repeated cycles. This superior performance makes nitinol more suitable for applications requiring precise and repeatable shape changes. Nitinol's superelastic properties are unmatched by most other shape memory alloys. Its ability to undergo large, reversible deformations without permanent damage sets it apart, particularly in applications requiring high flexibility and fatigue resistance. This characteristic is especially valuable in medical devices and high-performance engineering components. The biocompatibility of nitinol is another significant advantage. Its resistance to corrosion in biological environments and the formation of a stable oxide layer make it ideal for medical implants and devices. Other shape memory alloys often lack this level of biocompatibility, limiting their use in medical applications.

Conclusion

Shape memory nitinol ingotsstands out among shape memory alloys due to its exceptional properties and versatility. Its unique composition, robust shape memory effect, superelasticity, and biocompatibility make it superior for many applications. While other alloys have their merits, nitinol's balanced set of characteristics ensures its continued prominence in fields ranging from medicine to aerospace, driving innovation and technological advancement. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
