How does super elastic nitinol behave under stress?

The Unique Properties of Super Elastic Nitinol

Composition and Crystal Structure

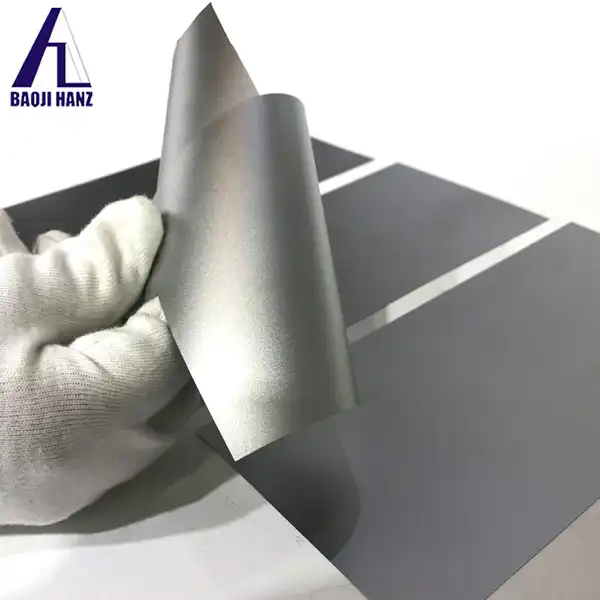

Super elastic nitinol foil is an equiatomic alloy of nickel and titanium, with a near 50-50 atomic percentage composition. This precise balance of elements gives rise to its extraordinary properties. At the atomic level, super elastic nitinol exhibits a crystal structure that can transition between two distinct phases: austenite and martensite. The austenite phase is stable at higher temperatures and has a cubic crystal structure, while the martensite phase is stable at lower temperatures and possesses a monoclinic crystal structure. This phase transformation is the key to understanding the material's behavior under stress.

Shape Memory Effect

One of the most fascinating properties of super elastic nitinol is its shape memory effect. This phenomenon allows the material to "remember" its original shape even after significant deformation. When heated above a certain temperature, known as the austenite finish temperature, the material will spontaneously return to its pre-deformed shape. This shape memory effect is closely related to the material's superelasticity, as both properties stem from the reversible phase transformation between austenite and martensite.

Superelasticity

Superelasticity, also known as pseudoelasticity, is the hallmark characteristic of super elastic nitinol. This property allows the material to undergo large strains, up to 8-10%, without permanent deformation. Conventional elastic materials typically have elastic limits of less than 1%. The superelastic behavior of nitinol is a result of the stress-induced transformation from austenite to martensite, which occurs at temperatures above the austenite finish temperature. This transformation allows the material to accommodate large strains and recover its original shape upon unloading.

Stress-Induced Behavior of Super Elastic Nitinol

Stress-Strain Relationship

The stress-strain behavior of super elastic nitinol foil is markedly different from that of conventional elastic materials. When subjected to stress, the material initially exhibits a linear elastic response in the austenite phase. As the stress increases, it reaches a critical value known as the transformation stress. At this point, the material begins to transform from austenite to martensite, resulting in a plateau region in the stress-strain curve. This plateau corresponds to the large strains that can be accommodated without a significant increase in stress. Upon unloading, the material follows a different path, creating a hysteresis loop. This unique stress-strain relationship is a defining characteristic of super elastic nitinol.

Phase Transformation Mechanics

The stress-induced phase transformation in super elastic nitinol is a complex process involving the nucleation and growth of martensite variants. As stress is applied, martensite begins to form at specific sites within the austenite matrix. These martensite variants are oriented in a way that accommodates the applied stress. As the stress increases, more martensite variants form and grow, leading to the macroscopic strain observed in the material. The reversibility of this transformation is what allows super elastic nitinol to recover its original shape upon unloading.

Temperature Dependence

The behavior of super elastic nitinol under stress is highly temperature-dependent. The critical stress required to induce the phase transformation increases with temperature above the austenite finish temperature. This relationship between stress, strain, and temperature is often represented by a three-dimensional phase diagram. Understanding this temperature dependence is crucial for designing applications that utilize super elastic nitinol, as it affects the material's performance across different operating conditions.

Applications and Considerations for Super Elastic Nitinol Foil

Medical Devices

Super elastic nitinol foil has found extensive use in the medical field, particularly in the development of minimally invasive devices. Its ability to undergo large deformations and return to its original shape makes it ideal for applications such as stents, guidewires, and orthodontic archwires. In these applications, the nitinol foil can be compressed or bent to fit through small incisions or tortuous anatomical pathways, and then expand or straighten to perform its intended function once in place. The biocompatibility of nitinol further enhances its suitability for medical applications.

Aerospace and Automotive Industries

The unique properties of super elastic nitinolhave also attracted attention in the aerospace and automotive sectors. Its high fatigue resistance and ability to dampen vibrations make it an excellent candidate for applications such as actuators, vibration isolators, and energy-absorbing structures. In the automotive industry, nitinol foil has been explored for use in adaptive headlight systems and self-repairing body panels. The material's lightweight nature and excellent mechanical properties contribute to improved fuel efficiency and performance in these applications.

Design Considerations and Limitations

While super elastic nitinoloffers numerous advantages, there are several considerations and limitations to keep in mind when designing with this material. The transformation temperatures of nitinol can be sensitive to small variations in composition and processing conditions, requiring careful control during manufacturing. Additionally, the material's behavior can be affected by factors such as cycling, loading rate, and environmental conditions. Designers must also consider the potential for fatigue and fracture, particularly in applications involving repeated loading cycles. Despite these challenges, the unique properties of super elastic nitinol continue to drive innovation across various industries, pushing the boundaries of what is possible in material science and engineering.

Conclusion

Super elastic nitinol foil's behavior under stress is a testament to the remarkable capabilities of advanced materials. Its unique ability to undergo large deformations and recover its original shape opens up a world of possibilities across various industries. As research continues to unravel the intricacies of this extraordinary alloy, we can expect even more innovative applications to emerge, further solidifying super elastic nitinol's place as a cornerstone of modern materials science. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
