How does superelastic nitinol work?

The Fundamentals of Superelastic Nitinol

Composition and Crystal Structure

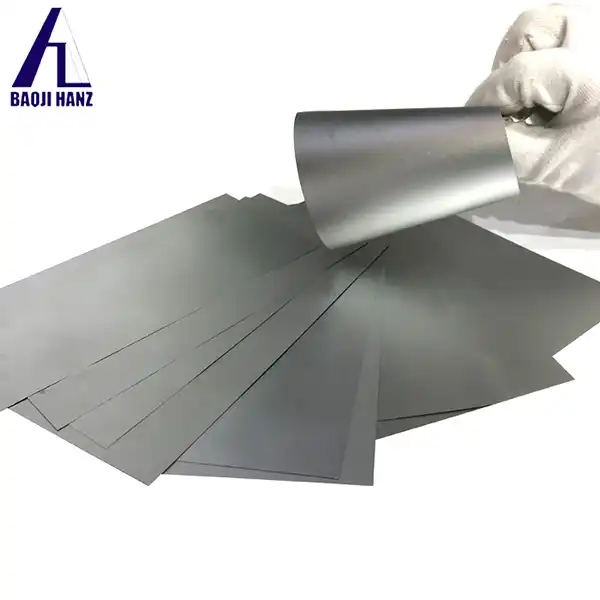

Super elastic nitinol foil, a binary alloy of nickel and titanium, owes its exceptional properties to its unique atomic arrangement. The composition typically consists of approximately 50% nickel and 50% titanium, with slight variations depending on the desired properties. At the microscopic level, nitinol exhibits two distinct crystal structures: austenite and martensite. The austenite phase, stable at higher temperatures, features a cubic crystal structure, while the martensite phase, prevalent at lower temperatures, adopts a more complex monoclinic structure.

Phase Transformation Mechanics

The key to nitinol's superelastic behavior lies in its ability to undergo a reversible phase transformation between austenite and martensite. This transformation occurs without diffusion, meaning atoms shift their positions relative to one another without breaking atomic bonds. When stress is applied to superelastic nitinol in its austenitic state, it triggers a transformation to the martensitic phase. Upon removal of the stress, the material reverts to its original austenitic structure, effectively "remembering" its initial shape.

Stress-Induced Martensite Formation

Unlike traditional shape memory alloys that rely on temperature changes for phase transformation, superelastic nitinol can form stress-induced martensite at constant temperature. This phenomenon occurs when the material is stressed above a critical value, known as the transformation stress. The stress-induced martensite is unstable at temperatures above the austenite finish temperature (Af), causing the material to immediately revert to its austenitic state upon stress removal. This unique property enables nitinol to exhibit large, recoverable strains, typically up to 8%.

Unique Properties of Superelastic Nitinol Foil

Exceptional Elasticity and Recovery

Super elastic nitinol foildemonstrates remarkable elasticity, far surpassing that of conventional metals. While most metals can only recover from strains of less than 1%, superelastic nitinol can withstand strains of up to 8% without permanent deformation. This extraordinary recovery capability stems from the reversible phase transformation between austenite and martensite. When stress is applied to the foil, it undergoes a transformation to the martensitic phase, allowing it to accommodate large deformations. Upon stress removal, the material reverts to its austenitic structure, recovering its original shape with minimal residual strain.

Biocompatibility and Corrosion Resistance

One of the most valuable attributes of superelastic nitinol foil is its excellent biocompatibility. The material forms a stable titanium oxide layer on its surface, which provides remarkable corrosion resistance and prevents the release of potentially harmful nickel ions. This characteristic makes nitinol an ideal candidate for medical applications, including implantable devices and surgical instruments. Furthermore, the alloy's ability to withstand repeated sterilization processes without degradation enhances its suitability for long-term medical use.

Temperature-Dependent Behavior

While superelastic nitinol exhibits its unique properties at constant temperature, its behavior can be influenced by temperature changes. The material's superelastic properties are most pronounced within a specific temperature range, typically between the austenite finish temperature (Af) and the martensite deformation temperature (Md). Within this range, the foil can undergo stress-induced martensitic transformation and exhibit superelastic behavior. Understanding and controlling these temperature-dependent characteristics are crucial for optimizing nitinol foil performance in various applications.

Applications and Implications of Superelastic Nitinol

Medical Devices and Implants

The biocompatibility and unique mechanical properties of super elastic nitinol foilhave revolutionized the field of medical devices. In cardiovascular applications, nitinol stents can be compressed into a small diameter for minimally invasive insertion and then expand to their predetermined shape once deployed in blood vessels. Orthodontic archwires made from nitinol provide constant, gentle force for tooth alignment due to their superelastic nature. Additionally, nitinol's flexibility and kink resistance make it ideal for guidewires and catheters used in various medical procedures.

Aerospace and Automotive Industries

Superelastic nitinol foil finds numerous applications in aerospace and automotive sectors due to its exceptional fatigue resistance and energy absorption capabilities. In aircraft, nitinol-based actuators can be used for noise reduction in engine exhaust systems or for morphing aircraft structures. The automotive industry utilizes nitinol in impact absorption systems, where its superelastic properties help dissipate energy during collisions. Moreover, nitinol-based sensors and actuators are being developed for various vehicle control systems, leveraging the material's unique stress-strain characteristics.

Consumer Electronics and Wearable Technology

The miniaturization trend in consumer electronics has created new opportunities for superelastic nitinol foil. Its flexibility and durability make it an excellent choice for antenna designs in smartphones and other portable devices. In wearable technology, nitinol's superelasticity enables the creation of flexible, conformable electronics that can withstand repeated bending and twisting. From smart textiles to flexible displays, nitinol is pushing the boundaries of what's possible in the realm of wearable devices, offering a perfect balance of functionality and comfort.

Conclusion

Super elastic nitinol foilstands as a testament to the power of materials science in revolutionizing various industries. Its unique ability to undergo reversible deformation, coupled with biocompatibility and temperature-responsive behavior, opens up a world of possibilities across medical, aerospace, automotive, and consumer electronics sectors. As research continues, we can expect even more innovative applications of this remarkable alloy. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
