How does the NiTi-01 memory alloy work?

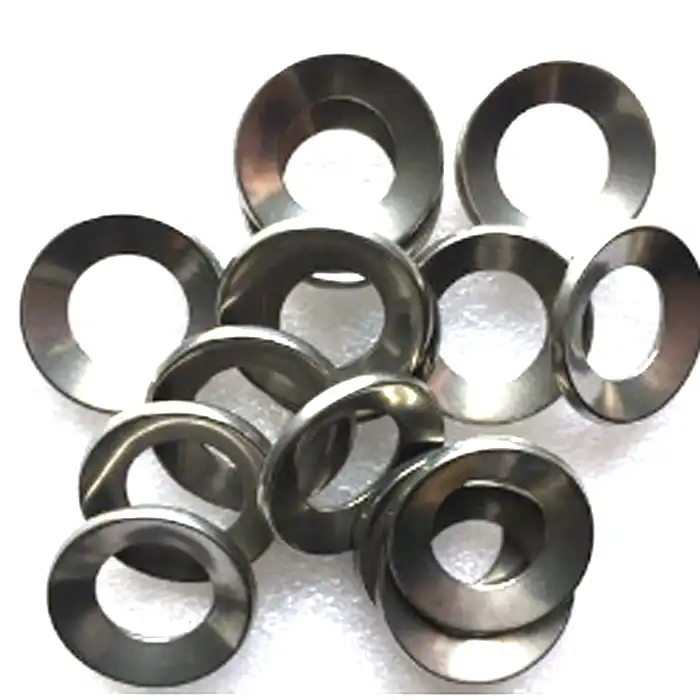

The NiTi-01 Memory Nickel Titanium Gasket represents a remarkable advancement in shape memory alloy technology. This innovative material exhibits an extraordinary ability to "remember" and return to its original shape after deformation when exposed to specific temperature conditions. The functionality of the NiTi-01 memory alloy is based on a unique crystalline phase transformation that occurs at the atomic level. When the gasket is deformed at one temperature and then heated above its transformation temperature, it undergoes a molecular rearrangement that drives it back to its pre-set shape with surprising force. This remarkable property makes NiTi-01 Memory Nickel Titanium Gaskets invaluable across various high-demand industries where conventional materials fail to deliver.

The Science Behind Shape Memory Effect in NiTi-01 Alloys

Crystalline Structure Transformations

The fundamental mechanism that enables the NiTi-01 Memory Nickel Titanium Gasket to exhibit shape memory properties lies in its unique crystalline structure transformations. At a microscopic level, this alloy exists in two distinct phases: austenite (the high-temperature phase) and martensite (the low-temperature phase). When the material is in its austenite phase, it maintains a rigid cubic crystal structure. Upon cooling below its transformation temperature, it transitions to the martensite phase, which has a more flexible monoclinic crystal structure that allows for deformation without breaking atomic bonds. This precise nickel-titanium composition (with approximately 55% nickel content) creates the perfect balance for this phase transformation to occur predictably and repeatedly. The density of 6.45g/cm³ contributes to its ideal mechanical properties, making it neither too rigid nor too malleable. This characteristic is particularly valuable in electrical applications where the gasket must maintain its integrity while providing excellent sealing performance under varying conditions.

Temperature-Induced Transformation Process

The temperature-induced transformation process is what gives the NiTi-01 Memory Nickel Titanium Gasket its remarkable functionality. The material features an austenite finish temperature (Af) ranging from -20°C to 100°C, which can be precisely calibrated during manufacturing to suit specific application requirements. When the gasket is cooled below its transformation temperature, it enters the martensite phase and can be easily deformed. However, upon heating above its Af temperature, the material "remembers" its original austenite structure and reverts to its pre-programmed shape with considerable force. This process can be repeated thousands of times without degradation, thanks to the material's exceptional fatigue resistance. The mechanically polished surface of the NiTi-01 gaskets enhances this property by reducing surface irregularities that might interfere with the transformation process. This temperature-responsive behavior makes these gaskets particularly suitable for applications requiring adaptive sealing in environments with fluctuating temperatures, offering reliable performance even under extreme thermal cycling.

Stress-Induced Martensite Formation

In addition to temperature-induced transformations, the NiTi-01 Memory Nickel Titanium Gasket exhibits stress-induced martensite formation, which underlies its superelastic properties. When mechanical stress is applied to the material in its austenite phase (above Af temperature), it can transform directly to martensite without requiring cooling. Upon removal of the stress, the material immediately reverts to austenite and recovers its original shape. This property allows the gasket to accommodate strains up to 8-10 times greater than conventional elastic materials while still returning to its original form. Available in thicknesses ranging from 0.1 mm to 5 mm, these gaskets can be precisely engineered to meet specific deformation requirements. The TiNi-02 brand number indicates a specific composition optimized for enhanced superelasticity, making it ideal for applications requiring repeated deformation cycles without permanent deformation. This remarkable characteristic is crucial in dynamic sealing applications where the gasket must continuously adapt to changing pressures and mechanical stresses while maintaining an effective seal.

Industrial Applications and Performance Characteristics

Aerospace and Defense Applications

The NiTi-01 Memory Nickel Titanium Gasket has found numerous critical applications in the aerospace and defense sectors, where reliability under extreme conditions is paramount. The material's ability to withstand high-stress environments while maintaining its shape memory properties makes it ideal for aircraft engine sealing systems, where temperatures fluctuate dramatically and mechanical vibrations are constant. The circular shape of these gaskets provides optimal sealing in cylindrical components, while their superelastic properties allow them to accommodate misalignments and thermal expansions without compromising the seal integrity. Certified under ISO9001:2015 standards, these gaskets meet the stringent quality requirements of aerospace applications. Their ability to function across a broad temperature spectrum from cryogenic environments to high-heat conditions makes them particularly valuable in satellite deployment mechanisms and space exploration equipment. The mechanically polished surface ensures minimal friction and maximum sealing efficiency, extending the operational life of critical aerospace components and reducing maintenance requirements. Additionally, these gaskets can be customized to meet specific aerospace design specifications, with a minimum order quantity of just 10 pieces, making them accessible for specialized applications and prototype development.

Medical Device Engineering Solutions

In the medical industry, NiTi-01 Memory Nickel Titanium Gaskets have revolutionized device design due to their biocompatibility and unique functional properties. The material's ISO13485:2016 certification confirms its suitability for medical applications, where patient safety is the utmost priority. These gaskets are extensively used in medical imaging equipment, surgical instruments, and implantable devices where their corrosion resistance and shape memory characteristics provide significant advantages. The NiTi-01 memory alloy's ability to change shape in response to body temperature makes it ideal for minimally invasive surgical tools that can be inserted in a compact form and then expand to their functional shape when reaching the target area inside the body. The tight tolerances achievable with these gaskets (available in precisely calibrated thicknesses from 0.1 mm to 5 mm) ensure consistent performance in medical devices where precision is critical. Furthermore, the EU CE certification validates their compliance with European health, safety, and environmental protection standards. The material's excellent fatigue resistance ensures reliable long-term performance, which is essential for permanent medical implants and devices that undergo frequent sterilization cycles without degradation in performance or structural integrity.

Electrical Industry Implementations

The NiTi-01 Memory Nickel Titanium Gasket has become increasingly important in electrical applications, where its unique properties address several engineering challenges. These gaskets provide exceptional electromagnetic interference (EMI) shielding while simultaneously offering thermal management capabilities due to their conductivity properties. In high-voltage switchgear and transformers, these gaskets maintain consistent contact pressure despite thermal cycling, ensuring constant electrical conductivity and reducing the risk of electrical arcing or connection failures. The material's resistance to oxidation means these gaskets maintain their electrical properties even in humid or corrosive environments. Their shape memory effect can be harnessed to create self-adjusting electrical contacts that compensate for wear over time, extending the operational lifespan of electrical systems. The circular geometry, available in custom dimensions with a minimum order quantity of just 10 pieces, makes them ideal for sealing electrical enclosures where environmental protection is critical. The NiTi-01 memory alloy's unique combination of electrical conductivity and mechanical adaptability makes these gaskets particularly valuable in smart grid components and renewable energy systems where reliability under varying environmental conditions is essential. Their OEM availability means they can be integrated directly into electrical system designs during the manufacturing process, ensuring optimal performance.

Manufacturing Process and Quality Control

Advanced Material Production Techniques

The production of NiTi-01 Memory Nickel Titanium Gaskets involves sophisticated metallurgical processes that ensure precise control over the alloy's composition and microstructure. Baoji Hanz Metal Material Co., Ltd. employs advanced vacuum induction melting (VIM) techniques to achieve the exact 55% nickel content required for optimal shape memory properties. This precise composition control is critical because even slight deviations can significantly alter the transformation temperatures and mechanical characteristics of the final product. After melting, the alloy undergoes multiple remelting processes to ensure homogeneity and remove impurities that could compromise performance. The material is then processed through hot and cold working operations, with intermediate annealing treatments to develop the desired crystallographic texture. This complex manufacturing sequence requires specialized equipment and expertise, reflecting the company's seven years of dedicated experience in nitinol alloy production. The resulting material exhibits consistent density (6.45g/cm³) and transformation properties across batches, ensuring reliable performance in field applications. The mechanical polishing process applied to the finished gaskets removes surface oxides and creates a smooth finish that enhances both aesthetic appearance and functional performance, reducing friction and improving sealing capabilities.

Precision Engineering and Dimensional Control

The manufacturing of NiTi-01 Memory Nickel Titanium Gaskets demands exceptional precision in engineering and dimensional control to ensure consistent performance across applications. Baoji Hanz Metal Material Co., Ltd. utilizes computer numerical control (CNC) machining and electrical discharge machining (EDM) techniques to achieve tight dimensional tolerances that are critical for gasket applications. The thickness range from 0.1 mm to 5 mm requires specialized equipment capable of maintaining accuracy at both extremes, particularly for ultra-thin gaskets where even minor variations could impact functionality. Each gasket undergoes multi-stage inspection using optical and laser measurement systems to verify dimensional compliance with design specifications. The circular shape of these gaskets presents particular challenges in maintaining concentricity and edge quality, which are addressed through specialized tooling and manufacturing protocols. The company's large stock of standard sizes enables fast delivery while still offering customization options for unique requirements. The shape memory programming process, which sets the "remembered" shape, involves precise thermal treatment in controlled atmosphere furnaces to prevent contamination that could alter the material's transformation properties. This attention to dimensional precision is particularly important in applications where the gaskets must interface with components made from different materials with varying thermal expansion coefficients.

Rigorous Testing and Performance Validation

Every batch of NiTi-01 Memory Nickel Titanium Gaskets undergoes comprehensive testing and performance validation to ensure they meet the highest quality standards and perform as expected in customer applications. The testing protocol includes differential scanning calorimetry (DSC) to precisely determine transformation temperatures and verify that the Af temperature falls within the specified range of -20°C to 100°C. Mechanical testing evaluates the material's superelastic properties, shape recovery rates, and fatigue resistance under cyclic loading conditions. Specialized equipment measures the recovery force generated during shape restoration, a critical parameter for applications requiring the gasket to maintain sealing pressure. Corrosion testing in various environmental conditions confirms the material's resistance to degradation, while electrical conductivity tests validate performance for applications in the electrical sector. The company's ISO9001:2015 certification ensures that all testing procedures follow standardized protocols, with results documented for traceability. Before shipment, sample gaskets from each production batch undergo application-specific testing that simulates actual use conditions, providing assurance of field performance. This rigorous testing regimen, combined with the company's direct supply model, delivers cost advantages without compromising quality, ensuring that customers receive products that consistently meet their performance requirements while adhering to international standards like EU CE certification.

Conclusion

The NiTi-01 Memory Nickel Titanium Gasket represents a remarkable advancement in materials science, offering unprecedented shape memory capabilities through its unique crystalline transformation properties. From aerospace to medical and electrical applications, this versatile material continues to enable innovative solutions to complex engineering challenges across industries worldwide.

Are you facing challenges with conventional gaskets failing under extreme conditions? Leverage our 7 years of expertise in Nitinol Shape Memory Alloy technology to transform your sealing applications. Save substantially with our direct supply chain advantages while enjoying rapid delivery from our extensive inventory of standard sizes. For custom requirements or technical consultations, our engineering team is ready to collaborate on your specific project needs. Contact us today at baojihanz-niti@hanztech.cn to discover how our NiTi-01 Memory Nickel Titanium Gaskets can elevate your product performance.
