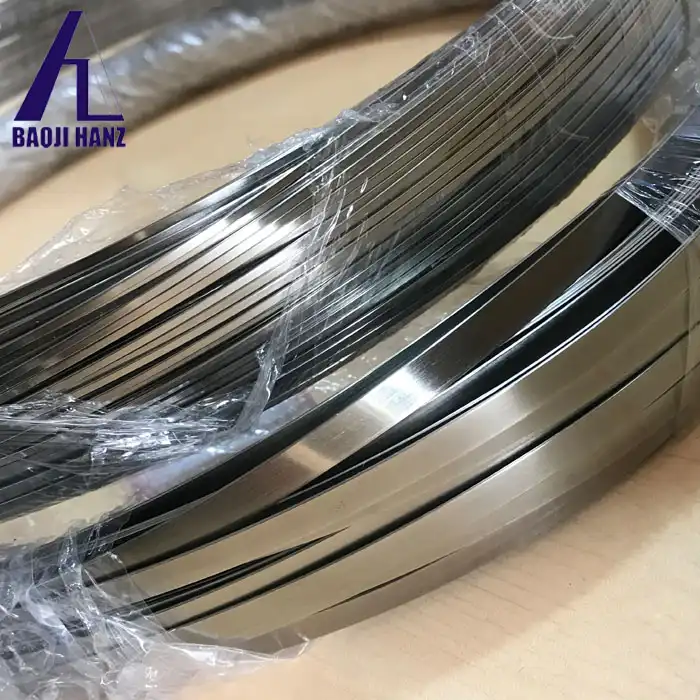

How is Medical Super Elastic Nickel Titanium Flat Wire Manufactured?

Medical super elastic nickel titanium flat wire represents one of the most significant advancements in medical material technology. This remarkable alloy combines exceptional flexibility, strength, and unique shape memory properties that have revolutionized numerous medical applications. In this blog, we'll explore the intricate manufacturing process that transforms raw nickel and titanium into the sophisticated wire that powers modern medical devices.

The Raw Material Processing and Preparation

Selection of High-Purity Raw Materials

The manufacturing of medical super elastic nickel titanium flat wire begins with the careful selection of raw materials. Baoji Hanz Metal Material Co., Ltd. proudly offers Medical Super Elastic Nickel Titanium Flat Wire, a cutting-edge material specifically engineered for medical applications requiring superior flexibility, strength, and shape memory. Our nickel titanium alloy, often referred to as nitinol, is renowned for its superelasticity and biocompatibility, making it an ideal choice for a variety of medical devices and instruments. This material has become indispensable in modern medical technology due to its unique ability to return to its original shape after deformation. With precise composition of 54% nickel and 46% titanium content, our NITi02 brand material achieves the optimal balance for medical applications. The raw materials undergo rigorous testing to ensure an impurity content of just 0.001%, meeting the stringent requirements for medical-grade materials. This exceptional purity is essential for biocompatibility and consistent performance in critical medical applications.

Vacuum Induction Melting Process

After selecting the appropriate raw materials, the manufacturing process moves to vacuum induction melting. This sophisticated technique is crucial for creating homogeneous nitinol ingots with consistent properties. The vacuum environment prevents contamination from atmospheric gases, which could compromise the material's integrity. The induction melting process occurs at precisely controlled temperatures exceeding 1300°C, creating a perfectly blended alloy with the desired superelastic properties. The resulting ingots possess the foundation for the superior flexibility and shape memory effect that characterizes medical super elastic nickel titanium flat wire. Our material features superior flexibility, offering unmatched performance as it can be bent and stretched without losing its shape, making it ideal for intricate medical devices. Additionally, the shape memory effect allows this wire to return to its original shape when heated or deformed, making it perfect for applications like stents, surgical tools, and orthodontic wires.

Initial Hot Working and Conditioning

Once the ingots are formed, they undergo initial hot working processes to transform them into workable forms. This stage typically involves hot forging and extrusion at temperatures above 800°C. These processes break down the cast structure of the ingot and create a more refined, homogeneous microstructure. The material is then gradually reduced in size through multiple hot working steps, each carefully controlled to maintain the alloy's integrity and develop its characteristic properties. After hot working, the material undergoes conditioning treatments to remove surface oxides and prepare it for cold working. This phase is critical for achieving the high surface quality required for medical applications. Our NITi02 medical super elastic nickel titanium flat wire, with its tensile strength of 800Pa and hardness of 30BH, is engineered to maintain performance integrity even in demanding medical applications, with an operating temperature of less than 80°C ensuring stability in the human body.

Cold Working and Heat Treatment Processes

Sequential Cold Drawing Techniques

The cold working phase represents one of the most critical stages in manufacturing medical super elastic nickel titanium flat wire. The material undergoes sequential cold drawing operations, where it is pulled through progressively smaller dies to reduce its diameter and achieve the desired dimensions. This process significantly enhances the mechanical properties of the wire, increasing its strength and creating the necessary work hardening for subsequent heat treatment. For flat wire specifically, the round wire is passed through specialized rolling mills with precision-engineered rollers that gradually shape it into the flat profile. This delicate process requires extremely tight tolerances and sophisticated equipment to maintain consistent dimensions throughout the length of the wire. Baoji Hanz Metal Material Co., Ltd.'s medical-grade nickel titanium flat wire offers unmatched flexibility, ensuring that it can be bent and stretched without losing its shape, ideal for intricate medical devices. The wire's superelastic properties ensure it remains elastic under stress, allowing it to return to its predetermined shape even after significant deformation—a crucial characteristic for applications like endovascular devices, where guidewires and catheters must function effectively in the human body.

Critical Heat Treatment Protocols

Heat treatment represents the transformative phase that imparts the superelastic and shape memory properties to the nickel titanium wire. This process typically occurs in precisely controlled furnaces at temperatures ranging from 400°C to 550°C. The exact temperature profile, duration, and cooling rate are carefully calibrated to achieve the specific transformation temperatures required for medical applications. The heat treatment establishes the crystallographic structure that enables the material's unique phase transformations between austenite and martensite states. These transformations are the foundation of both the superelastic behavior and the shape memory effect that make nickel titanium wire so valuable in medical devices. For medical applications, the heat treatment is often followed by shape-setting processes, where the wire is constrained in the desired configuration during a secondary heat treatment. This programs the "memory" shape that the wire will return to when heated or when stress is removed. The thermal memory function of our wire ensures it performs optimally under varying temperatures, ensuring precision in medical applications, while its biocompatibility makes it non-toxic and safe for use in the human body, ensuring no adverse reactions.

Surface Finishing and Stress Relief

Following heat treatment, the wire undergoes surface finishing operations to achieve the smooth, defect-free surface essential for medical applications. These processes may include electropolishing, chemical etching, or mechanical polishing, depending on the specific requirements. Surface finishing removes microscopic imperfections that could serve as stress concentration points or initiate corrosion, critical factors in the wire's performance and durability. A final stress relief heat treatment may be performed to eliminate residual stresses introduced during manufacturing. This step ensures stable mechanical properties and consistent performance in medical devices. Our medical super elastic nickel titanium flat wire features excellent corrosion resistance, with its biocompatibility and resistance to corrosion making it a safe and durable choice for medical applications. Despite its flexibility, this wire maintains high tensile strength, offering durability in demanding environments, while being manufactured to high purity standards to meet the rigorous requirements for medical and biomedical applications.

Quality Control and Specialized Applications

Comprehensive Testing Protocols

Quality control forms an integral part of the manufacturing process for medical super elastic nickel titanium flat wire. Each batch undergoes extensive testing to verify compliance with stringent medical standards. These tests include dimensional inspection using precision measurement equipment to ensure consistent wire thickness and width throughout its length. The wire is subjected to mechanical testing to verify its tensile strength, elongation characteristics, and fatigue resistance—critical properties for medical applications. Advanced analytical techniques such as Differential Scanning Calorimetry (DSC) are employed to measure transformation temperatures and confirm the wire's superelastic behavior within the required temperature range. Surface inspection, using both optical and electron microscopy, ensures the absence of defects that could compromise performance. Baoji Hanz Metal Material Co., Ltd. maintains rigorous quality standards, with certifications including ISO9001:2015, ISO13485:2016, and EU CE, ensuring that our medical super elastic nickel titanium flat wire meets the exacting requirements of the medical industry. Our material's temperature sensitivity allows it to activate at specific temperatures, ensuring consistency in medical procedures, while our large stock availability and competitive pricing make us an ideal supplier for both standard and custom requirements.

Medical Device Integration

The integration of medical super elastic nickel titanium flat wire into devices requires specialized knowledge and techniques. Device manufacturers work closely with material suppliers to ensure the wire's properties align perfectly with the intended application. The wire often undergoes additional processing steps such as cutting, forming, and joining to create complex components for medical devices. Engineers must consider the unique properties of nitinol during device design, accounting for factors such as the superelastic plateau, thermal expansion characteristics, and radiopacity requirements. The material's biocompatibility is verified through comprehensive testing according to standards such as ISO 10993, ensuring safety for patient contact applications. Medical super elastic nickel titanium flat wire finds diverse applications in orthodontics, where it's used in dental wires, offering excellent flexibility and strength to adjust braces comfortably. Its shape memory and superelasticity make it ideal for medical implants, stents, and other surgical instruments, while its unique properties ensure that endovascular devices function effectively in the human body.

Customization for Specific Medical Requirements

The ability to customize medical super elastic nickel titanium flat wire for specific applications represents one of the material's greatest advantages. Manufacturers can tailor the alloy composition, dimensions, and thermal-mechanical processing to achieve precise transformation temperatures and mechanical properties. For applications requiring specific force profiles, the wire can be processed to deliver graduated stiffness or variable superelastic behavior along its length. Surface modifications, such as coatings or texturing, can enhance biocompatibility, reduce friction, or improve visibility under imaging. Specialized processing techniques enable the creation of complex profiles beyond simple flat wire, including tapered sections, notched regions, or composite structures that combine nitinol with other materials. At Baoji Hanz Metal Material Co., Ltd., we offer OEM services to meet the specific needs of our clients, with customization available to meet unique requirements for applications including medical devices, orthodontics, and implants. Our minimum order quantity of 100 meters ensures accessibility for both large-scale production and specialized projects, while our technical expertise allows us to create products suitable for a range of devices including surgical tools and prosthetics that require both flexibility and durability.

Conclusion

The manufacturing of medical super elastic nickel titanium flat wire represents a sophisticated blend of metallurgical science, precision engineering, and quality control. From raw material selection through final testing, each step contributes to creating a material with extraordinary properties that have revolutionized medical device technology. The unique combination of superelasticity, shape memory, biocompatibility, and durability has established nitinol as an indispensable material in modern medicine.

Looking to enhance your medical devices with top-quality super elastic nickel titanium flat wire? Baoji Hanz Metal Material Co., Ltd. brings 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy to your projects. Save money with our direct supply and cost advantages while benefiting from fast delivery from our large stock of standard sizes. We understand that each medical application has unique requirements, which is why our experienced team is ready to work closely with you to develop customized solutions that perfectly match your specifications. Contact us today at baojihanz-niti@hanztech.cn to discuss how our medical super elastic nickel titanium flat wire can elevate your next project to new heights of performance and reliability.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical Uses of Nitinol. Materials Science Forum, 327-328, 63-70.

2. Otsuka, K., & Ren, X. (2005). Physical metallurgy of Ti–Ni-based shape memory alloys. Progress in Materials Science, 50(5), 511-678.

3. Morgan, N. B. (2004). Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 378(1-2), 16-23.

4. Stoeckel, D., Pelton, A., & Duerig, T. (2004). Self-expanding nitinol stents: material and design considerations. European Radiology, 14(2), 292-301.

5. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273, 149-160.

6. Miyazaki, S., Kim, H. Y., & Hosoda, H. (2006). Development and characterization of Ni-free Ti-base shape memory and superelastic alloys. Materials Science and Engineering: A, 438, 18-24.
