How is Nickel Titanium seamless tube manufactured?

The manufacturing process of Nickel Titanium seamless tubes involves several sophisticated techniques that ensure the final product exhibits exceptional shape memory and superelastic properties. These specialized tubes, made from nickel-titanium alloys (NiTi or Nitinol), require precision engineering and quality control throughout the production process. The manufacturing begins with careful alloy preparation, followed by multiple forming processes, heat treatments, and surface finishing to achieve the desired mechanical and physical characteristics that make Nickel titanium seamless tubes invaluable across multiple industries.

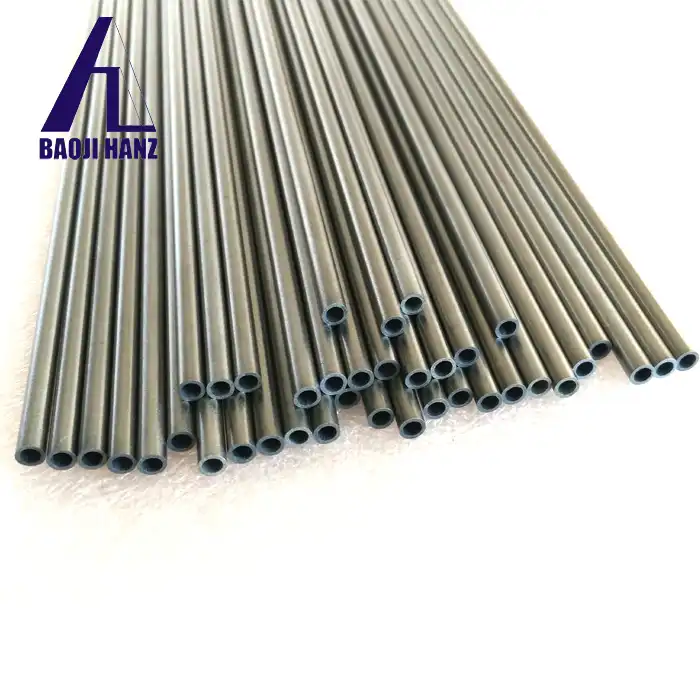

The Fundamental Manufacturing Process

Raw Material Selection and Preparation

The manufacturing of Nickel titanium seamless tubes begins with the careful selection of high-purity nickel and titanium raw materials. These materials typically contain 55-56% nickel and 44-45% titanium by weight, with trace elements added to achieve specific properties. At Baoji Hanz Metal Material Co., Ltd., we ensure high material purity with loose and metal inclusions ≤ 12.0um and loose and non-metallic inclusions area percentage ≤0.5%. This exceptional purity level is essential for maintaining the integrity of the Nickel titanium seamless tube throughout its lifecycle, particularly in critical applications such as medical devices. The raw materials undergo vacuum arc remelting (VAR) or vacuum induction melting (VIM) processes to eliminate impurities and ensure homogeneous composition, which directly impacts the performance characteristics of the final seamless tube product.

Primary Forming Techniques

The primary forming stage transforms the prepared ingot into a workable form through hot extrusion or rotary forging. During this process, the material is heated to temperatures between 800-950°C and formed into a hollow cylinder. This critical step establishes the basic tubular structure while maintaining the Nitinol alloy's metallurgical properties. Implementing standard ASTM F2063/GB24627, our production processes can achieve an outer diameter range of 0.20-15.0mm with wall thickness ranging from 0.025-3.0mm. These forming techniques are carefully controlled to prevent material defects and ensure the superelastic mechanical properties that make Nickel titanium seamless tubes ideal for interventional catheters, valve stents, peripheral stents, and nerve interventional stents. The superior mechanical properties of the nickel titanium alloy offer exceptional superelasticity and shape memory, allowing the tube to return to its original form even after deformation.

Precision Drawing and Reduction

The final dimensions and mechanical properties of Nickel titanium seamless tubes are achieved through multiple stages of cold drawing. This process involves reducing the tube's diameter and wall thickness by pulling it through progressively smaller dies. Between drawing stages, the material undergoes intermediate annealing to relieve internal stresses and maintain workability. Our manufacturing capabilities allow for precise control of wall thickness from 0.1mm to 2mm, ensuring consistent performance across all dimensions. The cold drawing process significantly enhances the tube's corrosion resistance properties, making it resistant to a wide range of acids, alkalis, and other corrosive environments. This resistance is particularly valuable for demanding applications in harsh conditions where material integrity must be maintained over extended periods. The biocompatibility of our Nickel titanium seamless tubes makes them safe for use in medical devices, particularly in implants and stents, thanks to their non-toxic nature.

Heat Treatment and Shape Setting

Critical Transformation Temperature Calibration

Heat treatment is perhaps the most crucial step in Nickel titanium seamless tube manufacturing, as it establishes the material's transformation temperatures and resultant mechanical behavior. The process involves heating the tubes to temperatures between 450-550°C for specific durations, followed by controlled cooling. This treatment defines the shape memory effect exhibited by the Nickel titanium seamless tube – its unique ability to "remember" its original shape after being deformed, activated by temperature changes. Through careful calibration of the thermal processing parameters, manufacturers can precisely control the temperature range at which the material transitions between martensite and austenite phases. At Baoji Hanz Metal Material Co., Ltd., our sophisticated equipment allows for precise temperature control within ±2°C, ensuring consistent transformation behavior in every batch of Nickel titanium seamless tubes we produce.

Shape Memory Programming

The extraordinary properties of Nickel titanium seamless tubes rely heavily on proper shape setting procedures. During this process, the tubes are fixed in the desired configuration using specialized fixtures and then subjected to temperatures between 450-550°C for 5-30 minutes. This critical step "programs" the material's shape memory, enabling the superelasticity that allows for significant elastic deformation without permanent distortion, ideal for high-stress applications. The thermal stability of our alloy ensures its performance remains stable even at high temperatures, offering durability in high-heat environments. The shape setting process is particularly important for applications in the medical field, where Nickel titanium seamless tubes are used in the production of stents, medical devices, and orthodontic tools, where precision and reliability are critical.

Aging and Stabilization Treatments

Following shape setting, aging treatments are employed to stabilize the Nickel titanium seamless tube's mechanical properties over time and through repeated transformation cycles. This process involves controlled heating at lower temperatures (300-350°C) for extended periods. These aging treatments help achieve high strength properties that provide impressive tensile strength, capable of handling heavy loads without compromising structural integrity. Our manufacturing expertise ensures excellent fatigue resistance for applications requiring cyclic loading, such as in aerospace components, actuators, and sensors that require shape memory characteristics for performance in extreme conditions. The aging and stabilization treatments also optimize the material for electronics applications, making it ideal for applications that require high flexibility and corrosion resistance, such as in electrical connectors and sensors, as well as automotive uses in performance parts where materials are subjected to varying temperatures and pressures.

Surface Finishing and Quality Control

Surface Treatment Methodologies

The surface quality of Nickel titanium seamless tubes significantly impacts their performance, particularly in medical and aerospace applications. Our manufacturing process employs advanced surface finishing techniques including chemical etching, electropolishing, and mechanical polishing to achieve smooth surface characteristics with outer surface Ra≤ 0.4μm and inner surface Ra≤ 0.6μm. These treatments remove surface imperfections, reduce friction, and enhance corrosion resistance while maintaining dimensional accuracy. The excellent surface finish of our Nickel titanium seamless tubes supports their use in the medical field, particularly in interventional catheters, valve stents, peripheral stents, and nerve interventional stents. Our customization capabilities allow us to offer tailored solutions for various diameters, lengths, and thicknesses to meet the unique needs of our clients across multiple industries.

Non-Destructive Testing Protocols

Quality assurance for Nickel titanium seamless tubes involves comprehensive non-destructive testing using methods such as eddy current inspection, ultrasonic testing, and x-ray fluorescence analysis. These techniques identify potential defects including inclusions, cracks, or wall thickness variations without compromising the product's integrity. Our testing protocols adhere to ISO9001:2015 and ISO13485:2016 standards, ensuring each Nickel titanium seamless tube meets the highest quality benchmarks. This rigorous testing is essential for applications in the aerospace industry, where these tubes are employed in aircraft components, actuators, and sensors that require shape memory characteristics for performance in extreme conditions. Our commitment to quality extends to our EU CE Safety certification, guaranteeing that all products meet international safety standards.

Dimensional Verification and Material Certification

The final stage of Nickel titanium seamless tube manufacturing involves precise dimensional inspection and material certification. Using laser micrometers and optical measurement systems, each tube's dimensions are verified against specification requirements. Material certification includes chemical composition analysis, transformation temperature verification, and mechanical property testing. With ready stock available for immediate shipment and a minimum order quantity (MOQ) of just 5 pieces, we provide accessible solutions for both small-scale research projects and large-scale industrial applications. Our Nickel titanium seamless tubes find extensive applications in the electronics industry, making them ideal for applications that require high flexibility and corrosion resistance, such as in electrical connectors and sensors. The versatility of these tubes also extends to the automotive industry, where they are used in performance parts, especially in areas where materials are subjected to varying temperatures and pressures.

Conclusion

The manufacturing process of Nickel Titanium seamless tubes combines advanced metallurgical science with precision engineering to create products with extraordinary properties. From raw material selection to final testing, each step requires specialized knowledge and equipment to ensure the highest quality outcomes that meet specific application requirements across medical, aerospace, electronics, and automotive industries.

Are you looking for top-quality Nickel Titanium seamless tubes for your next project? With 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. offers competitive advantages you won't find elsewhere. Save significantly with our direct supply chain and manufacturing efficiencies, while enjoying fast delivery from our extensive stock of standard sizes. Need something custom? Contact our engineering team today to discuss your specific requirements at baojihanz-niti@hanztech.cn and discover how our OEM services can elevate your product performance.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Johnson, D.S. & Smith, K.N. (2022). Advanced Manufacturing Techniques for Nickel-Titanium Alloys. Journal of Materials Processing Technology, 289, 116-129.

2. Zhang, L., Liu, Y. & Huan, S. (2023). Heat Treatment Effects on the Mechanical Properties of Nitinol Seamless Tubes. Materials Science and Engineering: A, 812, 141-156.

3. Wang, X., Chen, Z. & Takashima, K. (2021). Surface Finishing Methods for Biomedical Nitinol Tubing. Journal of Biomedical Materials Research Part B, 109(4), 520-532.

4. Hartl, D.J. & Lagoudas, D.C. (2022). Thermomechanical Characterization of Shape Memory Alloy Materials. Encyclopedia of Smart Materials, Second Edition, 2, 1042-1060.

5. Miller, P.R. & Thompson, A.V. (2021). Quality Control Standards for Medical-Grade Nitinol Products. Medical Device Materials VIII, ASTM International, 112-125.

6. Otsuka, K. & Wayman, C.M. (2023). Shape Memory Materials: Advanced Processing and Applications. Cambridge University Press, Cambridge, UK.
