How is nitinol flat wire manufactured?

Raw Material Preparation and Melting

Selection of High-Purity Nickel and Titanium

The creation of Super elastic nitinol flat wire begins with the fastidious determination of unrefined components, explicitly high-virtue nickel and titanium. Nitinol's unique properties are made possible by these metals, so their quality cannot be compromised. Ordinarily, nickel and titanium are acquired from legitimate providers who guarantee thorough guidelines of virtue and consistency. Any follow pollutants in these metals can antagonistically influence the end result, prompting potential execution issues. Consequently, guaranteeing the greatest of nickel and titanium is basic for creating dependable and successful nitinol wire.

Precise Composition Control

The exact control of the nickel-to-titanium proportion is vital in the creation of nitinol. The alloy is typically composed in a ratio that is close to that of equal atoms, though specific application requirements may necessitate slight modifications. To accomplish this, cutting-edge scientific methods like X-beam fluorescence spectroscopy are used. These techniques take into account exact estimation and control of the essential structure, guaranteeing that the nitinol shows its trademark shape memory and superelastic properties. This exact structure control is fundamental for fitting the compound to meet rigid execution standards.

Vacuum Arc Remelting (VAR) Process

Liquefying the Super elastic nitinol flat wire in its creation, and the Vacuum Bend Remelting (VAR) process is generally utilized for this reason. The VAR technique includes dissolving the crude nickel and titanium materials in a vacuum climate utilizing an electric circular segment. This cycle is intended to limit the presence of pollutions, decrease gas content, and accomplish a uniform piece all through the ingot. The outcome is a high-virtue nitinol billet that is totally ready for resulting handling stages. By utilizing the VAR cycle, makers can guarantee the development of great nitinol with steady properties and execution.

Ingot Processing and Wire Drawing

Hot Working and Extrusion

The structure of the nitinol ingot is refined through hot working processes after it has solidified. This stage by and large includes techniques like hot fashioning or expulsion, performed at temperatures surpassing the recrystallization point of nitinol. The material must be hot worked in order to reshape it and improve its microstructure. This cycle wipes out the inborn deformities from the as-projected ingot and improves the mechanical properties of the combination. Expulsion, specifically, is successful in delivering long, uniform bars of nitinol, which structure the primer material for ensuing wire creation. This step is critical for guaranteeing that the material is appropriately adapted for the following phases of assembling.

Cold Drawing and Intermediate Annealing

The change from bars to wire includes a progression of cold drawing tasks. During cold drawing, the nitinol bars are gotten through logically more modest passes on, which lessens their breadth and expands their length. This cycle prompts work solidifying in the material, which can diminish its flexibility. Intermediate annealing steps are used to counteract this effect and restore the material's workability. These tempering medicines are led under painstakingly controlled conditions to safeguard the ideal microstructure and forestall untimely enactment of the shape memory impacts. The final mechanical and thermal properties of the wire can only be achieved by striking a delicate balance between cold drawing and annealing.

Flattening and Precision Shaping

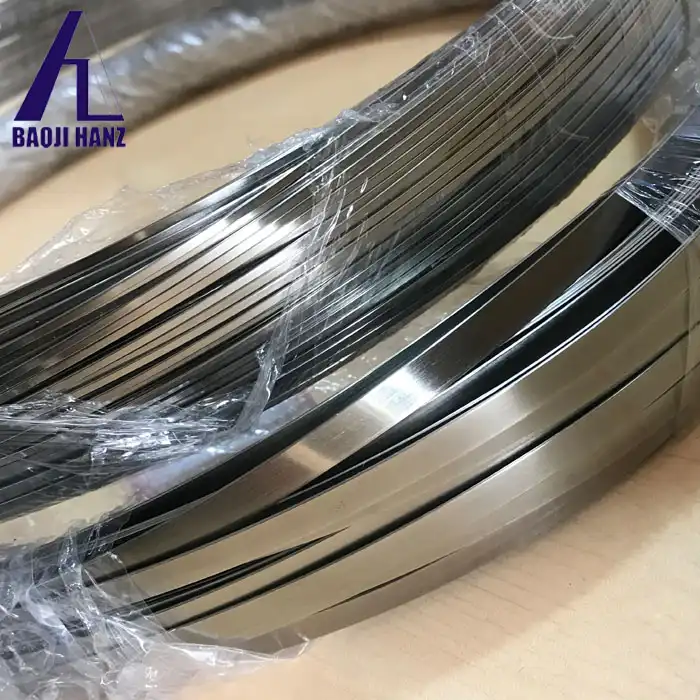

To make level wire from round wire, a particular smoothing process is utilized. This might include moving the wire between accuracy rollers or drawing it through formed bites the dust. The leveling activity requires fastidious control to accomplish the ideal thickness and width consistency. High level sensors and criticism frameworks are frequently used to keep up with tight layered resiliences all through the smoothing system. The result is a super elastic nitinol flat wire with consistent cross-sectional geometry.

Heat Treatment and Final Processing

Shape Setting and Memory Imprinting

The process of shaping nitinol flat wire is one of the most fascinating aspects of its production. This step includes warming the wire to a particular temperature while obliging it in the ideal shape. The wire's transformation temperatures and its capacity to remember and return to this set shape are crucially affected by the heat treatment's temperature and duration. To avoid oxidation at this crucial stage, precision-controlled furnaces with inert atmospheres are typically utilized.

Surface Treatment and Passivation

The surface nature ofSuper elastic nitinol flat wire is principal for some applications, especially in clinical gadgets. In order to improve biocompatibility, corrosion resistance, or aesthetic appearance, a variety of surface treatments can be applied. Electropolishing is a typical method used to smooth the surface and eliminate any lingering stresses from assembling. Moreover, passivation medicines make a steady oxide layer on a superficial level, further working on the wire's protection from erosion and biocompatibility.

Quality Control and Testing

The last phase of nitinol level wire fabricating includes thorough quality control measures. To ensure the mechanical properties, transformation temperatures, and dimensional accuracy of each batch of wire, a series of tests are performed. Differential checking calorimetry (DSC) is frequently used to portray the stage change conduct. Pliable testing, weariness testing, and minuscule assessment guarantee that the wire meets the rigid prerequisites for its expected application. Solely after passing these far reaching quality checks is the super elastic nitinol level wire prepared for dispersion and use.

Conclusion

The intricate process of making super elastic nitinol flat wire requires both precision engineering and expertise in metallurgy. From unrefined substance determination to conclusive testing, each step is vital in making an item that displays the exceptional properties of shape memory and superelasticity. As examination keeps on propelling, we can anticipate significantly more refined assembling strategies and extended applications for this unprecedented material. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
