How is nitinol foil manufactured?

Raw Material Selection and Preparation

Choosing High-Quality Nickel and Titanium

The journey of nitinol foil begins with the careful selection of raw materials. High-purity nickel and titanium are essential for producing shape memory nitinol foil with optimal properties. These elements are typically sourced from reputable suppliers who can guarantee consistent quality. The purity of the raw materials directly impacts the final product's performance, so manufacturers like Baoji Hanz Metal Material Co., Ltd. place great emphasis on this initial step.

Precise Composition Control

Achieving the desired shape memory properties in nitinol foil requires exact control over the alloy's composition. The ideal ratio of nickel to titanium is typically around 55% nickel and 45% titanium by weight, although slight variations can be made to fine-tune specific properties. Advanced analytical techniques, such as X-ray fluorescence spectroscopy, are employed to verify the composition of the raw materials before proceeding to the melting stage.

Pre-Alloying Treatments

Before melting, the raw materials may undergo pre-alloying treatments to enhance their compatibility and reduce the risk of impurities. These treatments can include cleaning processes to remove surface oxides, as well as cutting and sizing operations to ensure uniform melting. Some manufacturers also utilize vacuum degassing techniques to eliminate volatile impurities that could compromise the integrity of the final nitinol foil.

Melting and Ingot Formation

Vacuum Induction Melting

The melting process is a critical step in nitinol foil production. Vacuum induction melting (VIM) is the preferred method for creating high-quality nitinol ingots. This technique involves heating the raw materials in a vacuum or inert gas environment using electromagnetic induction. The vacuum environment prevents oxidation and minimizes the introduction of impurities, resulting in a cleaner, more homogeneous alloy. The molten metal is carefully stirred to ensure thorough mixing and uniform composition throughout the melt.

Precise Temperature Control

Maintaining precise temperature control during the melting process is crucial for achieving the desired microstructure in shape memory nitinol foil. Advanced pyrometry systems are used to monitor and adjust the melt temperature in real-time. The specific temperature profile can vary depending on the intended properties of the final product, but typically ranges between 1300°C and 1450°C. This careful temperature management helps to optimize the formation of the intermetallic compounds responsible for nitinol's unique behavior.

Ingot Casting and Solidification

Once the melt reaches the optimal composition and temperature, it is cast into ingot molds. The solidification process is carefully controlled to minimize segregation and ensure a uniform microstructure throughout the ingot. Some manufacturers employ techniques such as electromagnetic stirring or directional solidification to further enhance the ingot's quality. After solidification, the ingots undergo a series of heat treatments to homogenize the microstructure and relieve internal stresses, setting the stage for subsequent processing steps.

Foil Production and Processing

Hot Working and Cold Rolling

The transformation of nitinol ingots into thin foils involves a series of hot working and cold rolling operations. Initially, the ingots are hot-forged or extruded to break down the as-cast structure and improve workability. This process typically occurs at temperatures above 800°C to take advantage of nitinol's increased ductility in its austenitic phase. Following hot working, the material undergoes multiple passes of cold rolling to progressively reduce its thickness. Intermediate annealing steps are often employed between rolling passes to restore workability and prevent excessive work hardening.

Precision Thickness Control

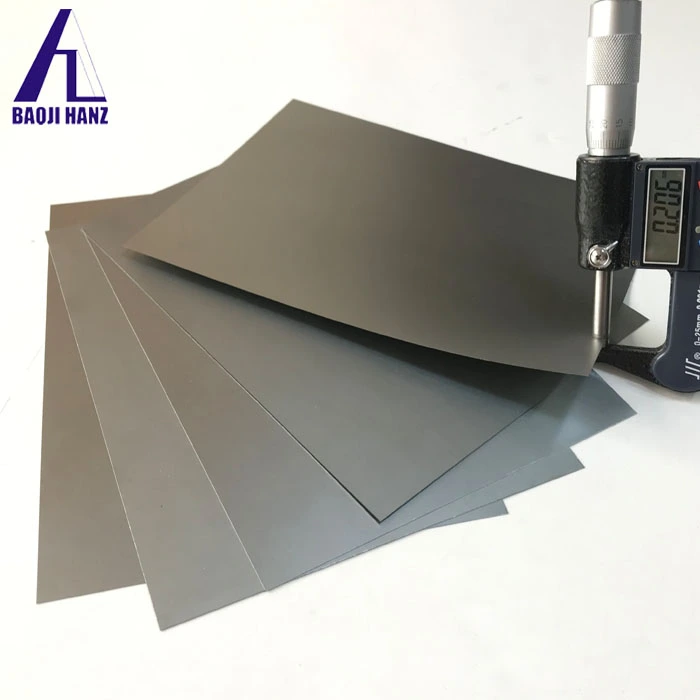

Achieving the desired thickness in shape memory nitinol foil requires exceptional precision and control. Advanced rolling mills equipped with high-precision sensors and actuators are used to maintain tight tolerances throughout the rolling process. The thickness of nitinol foils can range from a few hundred micrometers down to as thin as 20 micrometers for specialized applications. Continuous monitoring and adjustment of rolling parameters ensure consistency across the entire length of the foil.

Surface Finishing and Quality Control

The final stages of nitinol foil production involve surface finishing and rigorous quality control measures. Various techniques such as chemical etching, electropolishing, or mechanical polishing may be employed to achieve the desired surface characteristics. These processes not only enhance the foil's appearance but also improve its corrosion resistance and biocompatibility – crucial factors for medical applications. Quality control inspections, including visual examination, thickness measurements, and non-destructive testing methods like eddy current testing, are conducted to ensure the foil meets stringent specifications.

Conclusion

The manufacture of shape memory nitinol foil is a sophisticated process that combines metallurgical expertise with cutting-edge technology. From raw material selection to final quality control, each step is crucial in producing this extraordinary material. As research continues, we can expect even more innovative applications for nitinol foil across various industries. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
