How is nitinol guide wire manufactured?

Nitinol guide wires are a crucial component in the field of medical device technology, particularly in minimally invasive procedures. These wires are renowned for their unique properties, including superelasticity and shape memory, which are derived from their composition of nickel and titanium. Understanding the manufacturing process of Nitinol guide wires involves exploring various facets of their production, from material preparation to the final product. In this blog, we’ll delve into the specifics of how Nitinol guide wires are manufactured and address three high-interest questions related to their production.

What Is Nitinol and How Is It Prepared for Guide Wire Manufacturing?

Nitinol, an alloy composed of nickel and titanium, is the backbone of guide wire technology. Its unique properties make it ideal for medical applications, especially in guiding catheters and other instruments through complex anatomical pathways.

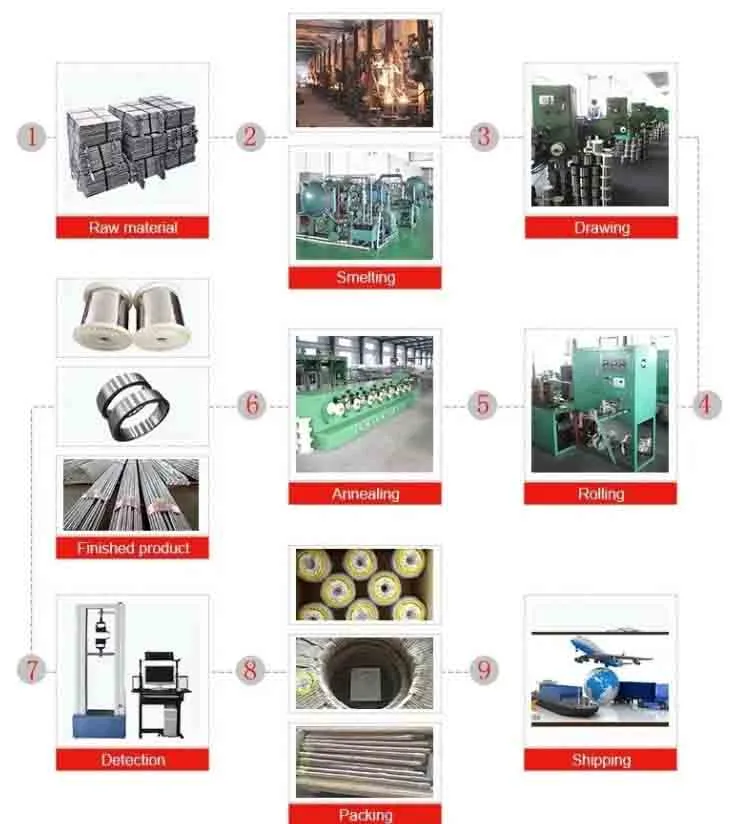

Preparation Process:

Material Synthesis: Nitinol is synthesized through a process called alloying, where nickel and titanium are melted together. This can be done using various methods, including vacuum arc remelting (VAR) or induction melting. The precise composition of nickel (typically around 55%) and titanium (around 45%) is crucial for achieving the desired superelastic and shape memory properties.
Heat Treatment: Once the alloy is synthesized, it undergoes heat treatment to achieve the correct phase transformation temperatures. Nitinol exists in two primary phases: martensite and austenite. The alloy is heated and cooled to induce phase changes that provide the wire with its unique properties.
Wire Drawing: The heat-treated Nitinol is then drawn into wire form. This process involves pulling the alloy through a series of dies to reduce its diameter and increase its length. The wire drawing process requires precise control of temperature and mechanical forces to ensure uniformity and maintain the alloy’s properties.

How Are Nitinol Guide Wires Tested and Quality Controlled?

The production of Nitinol guide wires demands rigorous testing and quality control to ensure they meet the stringent standards required for medical use.

Testing Methods:

Mechanical Testing: Guide wires are subjected to various mechanical tests to assess their flexibility, strength, and durability. This includes tensile tests to measure the wire’s strength and flexibility tests to ensure it can navigate through tight spaces without kinking.
Biocompatibility Testing: Given that Nitinol guide wires are used within the human body, they must pass biocompatibility tests to ensure they do not induce adverse reactions. This involves testing for cytotoxicity, sensitization, and irritation.
Dimensional Inspection: Precision is critical in guide wire manufacturing. Each wire is inspected for dimensional accuracy, including diameter, length, and surface finish, using advanced measuring equipment.
Performance Testing: The wires are also tested in simulated clinical environments to ensure they perform as expected during procedures. This may include assessing their ability to navigate through anatomical models or conducting trials with actual medical devices.

What Innovations Are Shaping the Future of Nitinol Guide Wires?

As technology advances, so too does the field of Nitinol guide wires. Innovations are continually emerging to enhance their performance and expand their applications.

Emerging Trends:

Enhanced Coatings: New coatings are being developed to improve the biocompatibility and performance of Nitinol guide wires. These coatings can enhance lubricity, reduce friction, and minimize the risk of infection.
Advanced Manufacturing Techniques: Techniques such as additive manufacturing (3D printing) are being explored to create more complex and precise guide wire designs. These methods allow for customization and potentially lower production costs.
Integration with Imaging Technologies: Guide wires are increasingly being integrated with imaging technologies to provide real-time feedback during procedures. This integration can improve navigation accuracy and patient outcomes.
Smart Guide Wires: Research is ongoing into smart guide wires that can provide data on their position, orientation, and force applied. These advanced wires could significantly enhance the precision and safety of medical procedures.
