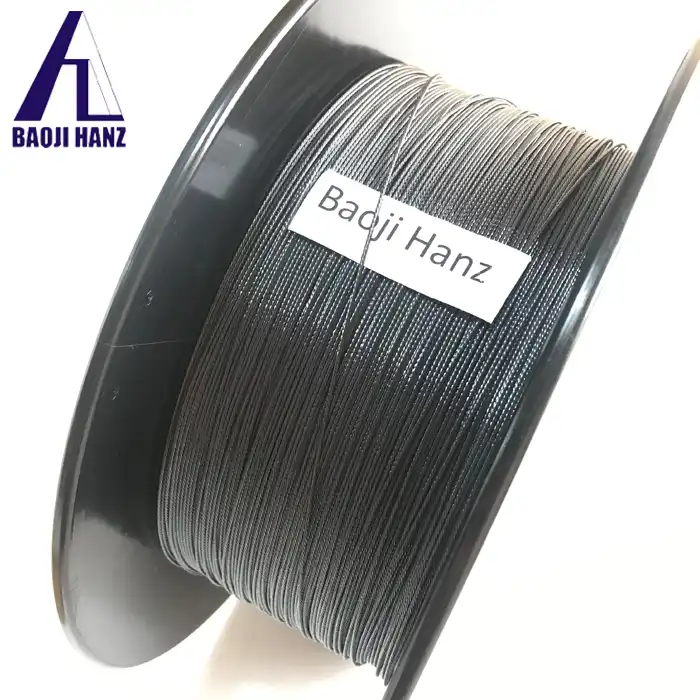

How is Nitinol wire rope manufactured?

The manufacturing of nitinol wire rope represents one of the most sophisticated processes in advanced materials engineering, combining precise metallurgical techniques with cutting-edge technology to create products that exhibit extraordinary properties. Nitinol Wire Rope manufacturing involves multiple complex stages, from initial alloy preparation through final quality control, each requiring specialized equipment and expertise to ensure the resulting product maintains its unique shape memory and superelastic characteristics. The process demands careful control of temperature, composition, and mechanical processing parameters to achieve the desired properties that make nitinol wire rope invaluable across medical, aerospace, and industrial applications.

Raw Material Preparation and Alloy Formation

Initial Nickel-Titanium Alloy Composition

The foundation of superior Nitinol Wire Rope begins with the precise preparation of nickel-titanium alloy compositions, where achieving the exact atomic ratio between nickel and titanium is crucial for optimal performance characteristics. At Baoji Hanz Metal Material Co., Ltd., our advanced R&D facilities utilize high-purity raw materials that undergo rigorous testing and verification before entering the production process. The composition typically requires a near-equiatomic ratio of nickel to titanium, with even minor variations of 0.1-0.2% significantly affecting the transformation temperatures and mechanical properties of the final Nitinol Wire Rope product. Our manufacturing process employs vacuum induction melting techniques to ensure homogeneous alloy formation while preventing contamination from atmospheric gases that could compromise the material's integrity. The molten alloy is carefully controlled at temperatures exceeding 1400°C, with precise monitoring of cooling rates to establish the proper microstructure necessary for shape memory and superelastic behaviors in the finished wire rope.

Ingot Formation and Primary Processing

Following successful alloy formation, the molten nitinol undergoes ingot casting in specialized molds designed to minimize segregation and ensure uniform composition throughout the material that will eventually become Nitinol Wire Rope. Our state-of-the-art casting equipment at Baoji Hanz Metal Material Co., Ltd. incorporates advanced cooling systems that control solidification rates, preventing the formation of undesirable phases that could negatively impact the final product's performance. The resulting ingots undergo comprehensive quality inspection using advanced metallographic analysis and chemical composition verification to ensure they meet our stringent standards for Nitinol Wire Rope production. Primary processing involves hot forging operations performed at carefully controlled temperatures between 800-900°C, where the ingot is gradually shaped into billets suitable for subsequent wire drawing operations. This critical stage requires precise temperature control and deformation rates to maintain the material's microstructural integrity while achieving the desired mechanical properties that make our Nitinol Wire Rope products exceptional in their performance across various demanding applications.

Thermomechanical Processing Optimization

The optimization of thermomechanical processing parameters represents a crucial phase in Nitinol Wire Rope manufacturing, where the interplay between temperature, deformation, and time must be precisely controlled to achieve desired material properties. Our experienced engineering team at Baoji Hanz Metal Material Co., Ltd. has developed proprietary processing schedules that maximize the shape memory effect and superelastic properties of our Nitinol Wire Rope products through carefully designed hot working operations. The process involves multiple stages of controlled deformation at specific temperatures, followed by intermediate annealing treatments that restore the material's ductility while maintaining its unique characteristics. Each thermomechanical processing step is monitored using advanced instrumentation to ensure consistency and repeatability, with real-time data collection enabling immediate adjustments when necessary. The resulting material exhibits enhanced mechanical properties, including improved fatigue resistance and greater flexibility, making our Nitinol Wire Rope suitable for the most demanding applications where reliability and performance are paramount. Our commitment to process optimization ensures that every batch of Nitinol Wire Rope meets the highest quality standards while maintaining cost-effectiveness for our customers.

Wire Drawing and Intermediate Processing

Multi-Stage Wire Drawing Operations

The transformation of processed nitinol billets into fine wire suitable for Nitinol Wire Rope production requires sophisticated multi-stage wire drawing operations that gradually reduce the material's cross-sectional area while maintaining its unique properties. At Baoji Hanz Metal Material Co., Ltd., our wire drawing equipment incorporates precision dies made from ultra-hard materials, designed specifically for processing shape memory alloys without inducing detrimental stress concentrations or surface defects. The wire drawing process begins with intermediate diameters and progresses through multiple reduction stages, with each pass carefully calculated to achieve optimal deformation ratios that preserve the material's microstructure. Between drawing stages, our Nitinol Wire Rope material undergoes controlled annealing treatments in protective atmospheres to restore ductility and prevent work hardening that could compromise the final product's performance. Temperature control during these intermediate annealing cycles is critical, as improper heat treatment can alter the transformation temperatures and eliminate the shape memory characteristics that make Nitinol Wire Rope so valuable. Our process monitoring systems continuously track drawing forces, temperatures, and dimensional accuracy to ensure consistent quality throughout production, resulting in wire that meets precise specifications for subsequent rope formation operations.

Surface Treatment and Quality Enhancement

Surface treatment of nitinol wire destined for Nitinol Wire Rope applications involves specialized techniques designed to enhance corrosion resistance, improve surface finish, and optimize mechanical properties for demanding service conditions. Our advanced surface treatment facilities at Baoji Hanz Metal Material Co., Ltd. employ multiple processes including electropolishing, passivation, and protective coating applications that enhance the biocompatibility and environmental resistance of our Nitinol Wire Rope products. The electropolishing process removes surface irregularities and work-hardened layers that could serve as stress concentration points, while simultaneously creating a smooth, uniform surface that exhibits superior corrosion resistance in aggressive environments. Following electropolishing, controlled passivation treatments form a stable oxide layer that provides long-term protection against environmental degradation while maintaining the material's flexibility and strength characteristics. Quality enhancement procedures include comprehensive surface inspection using advanced microscopy techniques to verify surface integrity and measure surface roughness parameters that affect the final Nitinol Wire Rope performance. These surface treatments are particularly important for medical and aerospace applications where biocompatibility, cleanliness, and long-term reliability are essential requirements that our Nitinol Wire Rope products consistently meet through our rigorous processing standards.

Dimensional Control and Precision Manufacturing

Achieving precise dimensional control throughout the wire manufacturing process is essential for producing Nitinol Wire Rope that meets exact customer specifications and performs reliably in critical applications. Our manufacturing facility at Baoji Hanz Metal Material Co., Ltd. incorporates advanced measurement and control systems that monitor wire diameter, ovality, and surface characteristics in real-time during production, ensuring that every meter of Nitinol Wire Rope meets stringent dimensional tolerances. The precision manufacturing process utilizes laser measurement systems that provide continuous feedback to the drawing equipment, enabling automatic adjustments to maintain consistent dimensions throughout production runs. Specialized tooling designed specifically for nitinol processing ensures that the unique properties of the material are preserved while achieving the precise dimensions required for effective Nitinol Wire Rope performance. Our quality control procedures include statistical process control techniques that track dimensional variations and identify trends before they can affect product quality, maintaining the exceptional consistency that our customers depend upon. The combination of advanced manufacturing equipment, skilled operators, and comprehensive quality systems ensures that our Nitinol Wire Rope products deliver reliable performance in the most demanding applications, from medical devices to aerospace components where precision and reliability are absolutely critical.

Rope Formation and Final Processing

Stranding and Rope Construction Techniques

The formation of Nitinol Wire Rope from individual nitinol wires requires specialized stranding techniques that preserve the unique properties of the shape memory alloy while creating a flexible, strong rope structure capable of withstanding complex loading conditions. At Baoji Hanz Metal Material Co., Ltd., our rope construction process utilizes advanced stranding equipment specifically designed for processing superelastic materials, ensuring that the individual wires maintain their shape memory characteristics throughout the stranding operation. The rope construction process begins with careful selection of wire diameters and strand configurations optimized for the intended application, with our engineering team providing technical support to determine the most suitable construction for each customer's specific requirements. Multiple stranding patterns are available, including traditional lay constructions and specialized arrangements that maximize flexibility while maintaining high strength characteristics essential for demanding Nitinol Wire Rope applications. Temperature control during the stranding process is critical, as excessive heat generation from friction could alter the transformation temperatures and compromise the shape memory effect that makes Nitinol Wire Rope unique. Our specialized stranding equipment incorporates cooling systems and controlled tension mechanisms that prevent overheating while ensuring uniform rope construction throughout the entire length of the finished product.

Heat Treatment and Shape Setting

Following rope construction, Nitinol Wire Rope undergoes carefully controlled heat treatment processes designed to optimize the shape memory effect and establish the desired transformation temperatures for specific applications. Our heat treatment facilities at Baoji Hanz Metal Material Co., Ltd. feature precision furnaces with accurate temperature control and protective atmosphere capabilities that prevent oxidation while achieving the required metallurgical changes. The heat treatment process involves heating the Nitinol Wire Rope to specific temperatures between 400-500°C for predetermined time periods, followed by controlled cooling that establishes the austenite finish temperature and optimizes the material's superelastic behavior. Shape setting operations can be performed during heat treatment to establish permanent shapes that the Nitinol Wire Rope will remember and return to when heated above its transformation temperature. Our technical team works closely with customers to determine optimal heat treatment parameters based on the intended application requirements, ensuring that the finished Nitinol Wire Rope exhibits the desired combination of strength, flexibility, and shape memory characteristics. Advanced process control systems monitor temperature uniformity throughout the heat treatment cycle, with data logging capabilities that provide complete traceability for each batch of Nitinol Wire Rope produced in our facility.

Final Inspection and Quality Assurance

The final inspection and quality assurance process for Nitinol Wire Rope represents the culmination of our comprehensive quality management system, incorporating multiple testing methods to verify that every product meets or exceeds customer specifications and industry standards. At Baoji Hanz Metal Material Co., Ltd., our quality assurance laboratory is equipped with advanced testing equipment including tensile testing machines, differential scanning calorimeters, and metallographic analysis systems that comprehensively evaluate the mechanical and metallurgical properties of our Nitinol Wire Rope products. Mechanical testing includes tensile strength verification, fatigue testing, and flexibility assessments that ensure the rope can withstand the demanding service conditions encountered in medical, aerospace, and industrial applications. Transformation temperature testing using differential scanning calorimetry verifies that the shape memory characteristics are within specified ranges, while metallographic examination confirms proper microstructure and absence of detrimental phases. Our ISO9001:2015 and ISO13485:2016 certified quality system ensures complete documentation and traceability throughout the manufacturing process, with comprehensive test certificates provided for each batch of Nitinol Wire Rope. Large amounts of ready stock are maintained in our warehouse facilities, enabling fast delivery to customers while ensuring that all products undergo complete quality verification before shipment, supporting our commitment to delivering exceptional Nitinol Wire Rope products that exceed customer expectations.

Conclusion

The manufacturing of Nitinol Wire Rope represents a sophisticated integration of advanced metallurgy, precision engineering, and quality control systems that deliver products with exceptional performance characteristics. Through careful control of raw material preparation, optimized thermomechanical processing, precision wire drawing, and specialized rope construction techniques, manufacturers can produce Nitinol Wire Rope that exhibits the unique combination of strength, flexibility, and shape memory properties essential for demanding applications across multiple industries.

Ready to experience the superior quality and performance of our Nitinol Wire Rope products? At Baoji Hanz Metal Material Co., Ltd., we combine 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy with direct supply advantages that save you money and fast delivery from our large stock of standard sizes. Our comprehensive OEM services ensure that whether you need custom sizes, specific alloy compositions, or specialized packaging options, we're equipped to provide solutions perfectly tailored to your requirements. Our dedicated team works closely with you to ensure seamless integration of our products into your projects, delivering the innovation and reliability your applications demand. Contact us today at baojihanz-niti@hanztech.cn to discover how our advanced Nitinol Wire Rope solutions can enhance your next project and drive your success forward.

References

1. Otsuka, K., & Wayman, C.M. (1999). Shape Memory Materials. Cambridge University Press, Cambridge, UK.

2. Duerig, T., Pelton, A., & Stöckel, D. (2008). An Overview of Nitinol Medical Applications. Materials Science and Engineering A, 273-275, 149-160.

3. Lagoudas, D.C. (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science & Business Media, New York.

4. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M.A. (2014). A Review of Shape Memory Alloy Research, Applications and Opportunities. Materials & Design, 56, 1078-1113.

5. Sun, L., Huang, W.M., Ding, Z., Zhao, Y., Wang, C.C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive Shape Memory Materials: A Review. Materials & Design, 33, 577-640.

6. Elahinia, M.H., Hashemi, M., Tabesh, M., & Bhaduri, S.B. (2012). Manufacturing and Processing of NiTi Implants: A Review. Progress in Materials Science, 57, 911-946.
