How is superelastic titanium nickel alloy wire made?

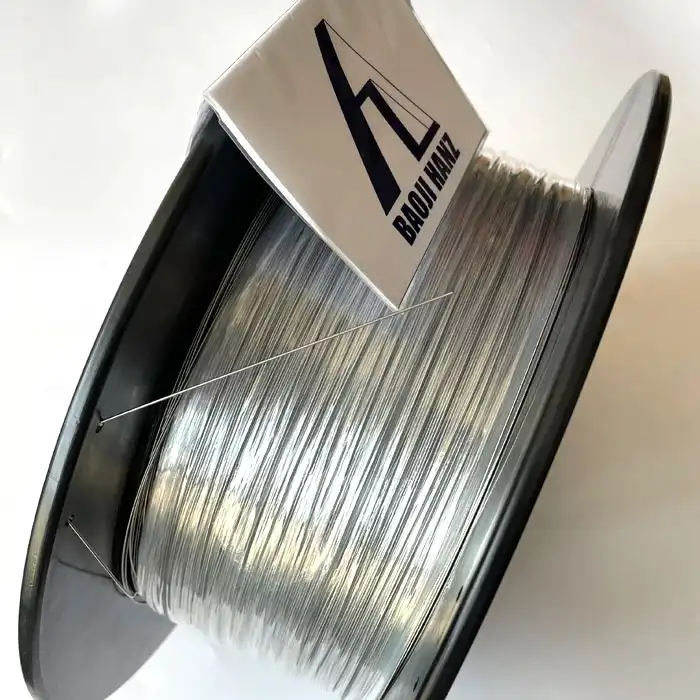

Superelastic titanium nickel alloy wire, a remarkable material known for its exceptional elasticity and shape memory properties, has revolutionized numerous industries, particularly in medical applications. This blog explores the intricate manufacturing process of Medical superelastic titanium nickel alloy wire, a specialized material that combines unique mechanical properties with biocompatibility. Produced by industry leaders like Baoji Hanz Metal Material Co., Ltd., this wire undergoes a sophisticated series of metallurgical processes to achieve its desired characteristics. From raw material selection to final quality testing, each step requires precision and expertise to ensure the wire meets stringent international standards for medical device applications.

Raw Material Preparation and Initial Processing

The foundation of high-quality superelastic wire production lies in careful raw material selection and preliminary processing techniques.

Selection of High-Purity Nickel and Titanium

The journey of Medical superelastic titanium nickel alloy wire begins with the selection of exceptionally pure nickel and titanium. These raw materials must meet precise specifications for purity—typically 99.9% or higher—to ensure the final wire exhibits consistent superelastic properties. The ratio of nickel to titanium is meticulously controlled, usually falling within the range of 54-57% nickel by weight, as this composition directly impacts the transformation temperatures and mechanical behavior of the alloy. Baoji Hanz Metal Material Co., Ltd. sources premium-grade materials that conform to medical-grade quality standards, ensuring biocompatibility and reliability essential for medical applications. The company's ISO13485:2016 certification attests to their commitment to medical device manufacturing excellence, providing customers with Material Composition: Titanium-Nickel Alloy (NiTi) that consistently meets international standards.

Vacuum Arc Melting Process

Once the raw materials are selected, they undergo vacuum arc melting—a critical step in producing Medical superelastic titanium nickel alloy wire with homogeneous composition. This process takes place in vacuum chambers to prevent oxidation and contamination that could compromise the alloy's performance. Multiple remelting cycles are typically employed to ensure complete homogenization of the nickel and titanium. The melt is carefully controlled to maintain the precise stoichiometric ratio required for optimal superelasticity. This step lays the groundwork for the wire's High Superelasticity, one of its key Product Advantages that ensures flexibility and resilience critical for medical applications. The vacuum melting process contributes significantly to the alloy's Biocompatibility, as it minimizes impurities that could potentially cause adverse reactions in patients.

Hot Working and Primary Forming

After solidification, the ingot undergoes hot working processes, including forging, rolling, or extrusion at temperatures typically between 800-1000°C. This step breaks down the as-cast structure and improves the material's ductility for subsequent processing. The primary forming establishes the initial geometry that will eventually be drawn into Medical superelastic titanium nickel alloy wire with diameters ranging from 0.1mm to 5mm, as offered by Baoji Hanz Metal Material Co., Ltd. The hot working parameters must be carefully controlled to avoid compositional segregation and maintain the Precision Manufacturing that ensures tight dimensional tolerances for consistent performance in medical devices. This stage begins to develop the material's Fatigue Resistance, making it suitable for applications that will experience repeated mechanical stress such as orthodontic archwires and cardiovascular stents.

Wire Drawing and Heat Treatment

The transformation from bulk material to fine wire requires specialized drawing techniques combined with precise thermal processing.

Multi-Stage Cold Drawing Technology

The transformation of hot-worked material into fine Medical superelastic titanium nickel alloy wire involves sophisticated multi-stage cold drawing technology. This process progressively reduces the wire diameter through a series of dies with incrementally smaller apertures. Between drawing stages, the wire undergoes intermediate annealing to restore workability and prevent fracture. Baoji Hanz Metal Material Co., Ltd. employs state-of-the-art drawing equipment capable of producing wires with Diameter Range: 0.1mm to 5mm, with exceptional dimensional accuracy maintained through computerized process control. The drawing process contributes significantly to the wire's High Strength-to-Weight Ratio, ensuring lightweight yet robust performance in medical devices. This technology requires extensive expertise and precision, which is why manufacturers with specialized experience, like Baoji Hanz with its 7 years of expertise in Nitinol Shape Memory Alloy production, can consistently achieve the superelastic properties required for medical applications.

Critical Heat Treatment Protocols

Perhaps the most crucial stage in manufacturing Medical superelastic titanium nickel alloy wire is the heat treatment process, which ultimately determines the superelastic properties. The wire undergoes carefully controlled thermal cycles at temperatures typically between 400-550°C, with precise timing that can vary from minutes to hours depending on the desired characteristics. This treatment establishes the Shape Memory Effect that allows the wire to recover its original shape after deformation, making it ideal for applications in Orthodontics: Archwires and brackets, as well as Cardiology: Stents and guidewires. The heat treatment protocols developed by Baoji Hanz Metal Material Co., Ltd. are designed to optimize the alloy's Corrosion Resistance, enabling it to withstand body fluids and sterilization processes required for medical devices. The company's advanced industrial furnaces provide the temperature uniformity and control necessary to achieve consistent properties throughout the entire wire length.

Surface Treatment and Passivation

The final steps in wire processing involve surface treatments to enhance Medical superelastic titanium nickel alloy wire performance and biocompatibility. Chemical etching removes surface imperfections and drawing residues, while passivation creates a stable oxide layer that improves Corrosion Resistance. Electropolishing may be employed to achieve an ultra-smooth surface finish, which is critical for applications in Neurology: Micro-guidewires for minimally invasive procedures. Baoji Hanz Metal Material Co., Ltd. offers various surface finishes to meet specific application requirements, ensuring that each wire meets the Customization Options available through their OEM services. The final product undergoes Secure and sterile packaging to maintain cleanliness and integrity until use. This careful attention to surface quality contributes to the product's Durability, making it resistant to corrosion and fatigue, even in challenging environments like those encountered in Orthopedics: Intramedullary fixation devices.

Quality Control and Advanced Testing

Ensuring the reliability and consistency of superelastic wire requires comprehensive quality assurance protocols and sophisticated testing methodologies.

Mechanical Property Verification

Rigorous testing of Medical superelastic titanium nickel alloy wire's mechanical properties is essential to confirm it meets performance specifications. Tensile testing evaluates ultimate strength, elastic modulus, and elongation characteristics, while cyclic loading tests assess fatigue resistance and superelastic behavior. Baoji Hanz Metal Material Co., Ltd. employs advanced testing equipment to verify that each batch of wire exhibits the expected stress-strain response and recovery capabilities. The superelastic plateau—a distinctive feature of these alloys—is carefully measured to ensure it falls within the appropriate stress range for specific applications. This testing confirms the wire's Superelasticity: Yes classification and validates its suitability for uses in Surgery: Sutures and needles, where consistent mechanical performance is critical. The company's ISO9001:2015 certification ensures that quality control processes are standardized and reliably implemented across all production batches.

Transformation Temperature Analysis

The superelastic behavior of Medical superelastic titanium nickel alloy wire is intimately linked to its phase transformation temperatures, making their precise measurement crucial for quality control. Differential Scanning Calorimetry (DSC) and other specialized techniques determine the austenite finish temperature (Af), which must be below body temperature for medical applications to ensure proper superelastic functioning in vivo. Baoji Hanz Metal Material Co., Ltd. maintains sophisticated thermal analysis equipment to verify transformation temperatures for each production lot, ensuring consistent performance across varying patient conditions and procedural requirements. This analysis confirms the material's Technical Features, particularly its Shape Memory Effect, which is essential for applications like cardiovascular stents that must deploy at body temperature. The company's commitment to precision in this aspect ensures that medical devices manufactured using their wire will perform reliably in clinical settings.

Biocompatibility and Compliance Testing

For Medical superelastic titanium nickel alloy wire, biocompatibility testing represents a critical final verification step. In accordance with ISO 10993 standards, the material undergoes cytotoxicity, sensitization, and irritation testing to ensure safety for patient contact. Chemical composition analysis using techniques such as ICP-MS (Inductively Coupled Plasma Mass Spectrometry) verifies the absence of harmful elements and confirms nickel release rates fall within acceptable limits. Baoji Hanz Metal Material Co., Ltd. ensures all their products meet Certifications: ISO9001:2015, ISO13485:2016, CE requirements, demonstrating compliance with international medical device regulations. This comprehensive testing regime validates the wire's Biocompatibility as part of its Product Advantages, minimizing the risk of adverse reactions when used in applications across medical specialties. The company's commitment to Application Standards: Medical-grade quality means that their wire can be confidently incorporated into devices used for the most sensitive patient populations.

Conclusion

The manufacturing of superelastic titanium nickel alloy wire involves a sophisticated sequence of metallurgical processes, from raw material selection through multiple drawing stages and critical heat treatments. Each step requires precision control to achieve the unique properties that make this material invaluable for medical applications, ensuring reliable performance in life-saving and life-improving devices.

With 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy manufacturing, Baoji Hanz Metal Material Co., Ltd. offers unparalleled quality combined with cost advantages through direct supply. Need superelastic wire for your next medical device project? Contact our team today at baojihanz-niti@hanztech.cn to discuss how our large stock of standard sizes or customized OEM solutions can meet your specific requirements. Let us help you transform innovative designs into reality with the perfect superelastic wire for your application!

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge University Press.

2. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical uses of nitinol. Materials Science Forum, 327, 63-70.

3. Morgan, N. B. (2004). Medical shape memory alloy applications—the market and its products. Materials Science and Engineering: A, 378(1-2), 16-23.

4. Yoneyama, T., & Miyazaki, S. (Eds.). (2008). Shape memory alloys for biomedical applications. Woodhead Publishing.

5. Yahia, L. (Ed.). (2019). Shape memory polymers for biomedical applications. Woodhead Publishing.

6. Robertson, S. W., Ritchie, R. O., & Mehta, A. (2015). Advances in the processing and properties of medical-grade Nitinol. Journal of Materials Engineering and Performance, 24(1), 30-41.
