How Is Superelastic Titanium Nickel Rope Made? Key Composition

When critical medical procedures demand materials that can navigate through tortuous anatomical pathways without permanent deformation, or when aerospace components require lightweight yet resilient solutions that withstand extreme conditions, conventional materials simply fail. Superelastic titanium nickel rope emerges as the answer to these demanding challenges, manufactured through sophisticated processes that precisely control its near-equiatomic nickel-titanium composition—typically maintaining 54-57% nickel content—combined with advanced vacuum melting, multi-stage drawing, and carefully calibrated heat treatments that unlock its remarkable ability to recover from up to 8% strain while maintaining tensile strengths exceeding 1500 MPa across applications from surgical instruments to robotic actuators.

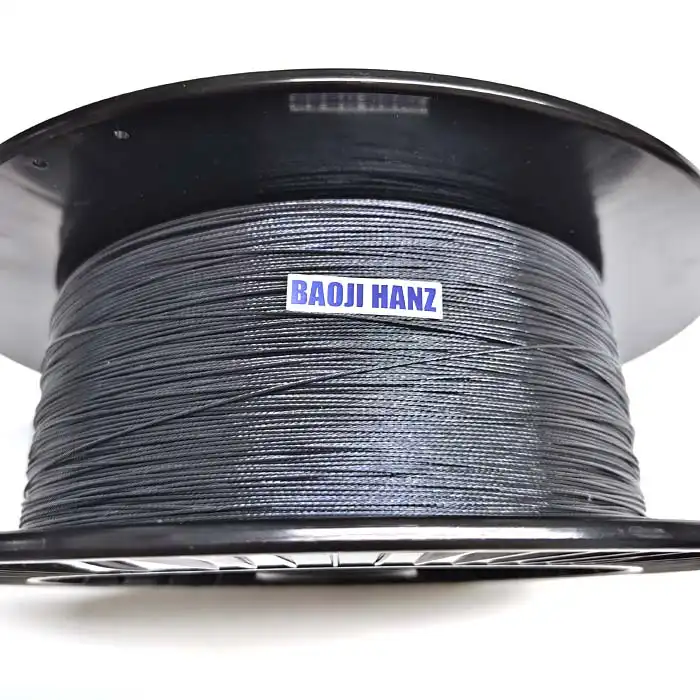

Understanding the Fundamental Composition of Superelastic Titanium Nickel Rope

The exceptional properties of superelastic titanium nickel rope originate from its precisely controlled alloy composition, which represents one of the most critical factors determining its performance characteristics. At its core, this advanced material consists of nickel and titanium combined in near-equiatomic proportions, typically containing between 54-57% nickel by weight with the remaining balance being titanium. This specific compositional range is not arbitrary—even variations as small as 0.1% in the nickel-to-titanium ratio can shift the material's transformation temperature by approximately 10 degrees Celsius, fundamentally altering its superelastic behavior. The stringent purity requirements demand that both constituent elements achieve purity levels of 99.9% or higher, as trace impurities of oxygen, carbon, and nitrogen can dramatically compromise the rope's mechanical properties and phase transformation characteristics. Manufacturers like Baoji Hanz Metal Material Co., Ltd. maintain impurity content below 0.001%, ensuring optimal performance. The composition directly influences the material's austenite finish temperature, which determines the temperature range where the rope exhibits its characteristic superelastic behavior—the ability to undergo significant deformations and immediately recover its original shape upon stress removal.

Beyond the primary nickel-titanium matrix, the presence and control of trace elements play a surprisingly influential role in determining the final properties of superelastic titanium nickel rope. While the bulk composition focuses on the nickel-titanium balance, elements such as oxygen, carbon, and nitrogen must be meticulously controlled during manufacturing, as their presence—even in parts per million—can bind with titanium atoms, effectively removing them from the nickel-titanium lattice and shifting the alloy's transformation temperatures downward. Some advanced formulations intentionally incorporate small quantities of tertiary elements like copper or chromium to modify specific characteristics, such as reducing the hysteresis between loading and unloading cycles or adjusting transformation temperatures for particular applications. However, these additions require extreme precision, as they can significantly impact biocompatibility for medical applications and mechanical behavior under cyclic loading. The challenge of maintaining such tight compositional control throughout the manufacturing process necessitates sophisticated analytical techniques including inductively coupled plasma mass spectrometry and X-ray fluorescence to verify that every batch of superelastic titanium nickel rope meets the exact specifications required for its intended application, whether in medical stents, aerospace components, or robotic actuators.

The Critical Vacuum Melting Process for Homogeneous Alloy Formation

The manufacturing journey of superelastic titanium nickel rope begins with one of the most technically demanding steps in materials processing—vacuum melting of the constituent elements. This process is absolutely essential because titanium's combustion temperature is lower than its melting point, meaning that conventional atmospheric melting would result in immediate oxidation and contamination that would render the material useless. Two primary vacuum melting techniques dominate the industry: vacuum induction melting and vacuum arc remelting. Vacuum induction melting employs alternating magnetic fields to heat the raw materials within a crucible under high vacuum conditions, offering excellent compositional control as the induction frequencies can stir the molten metal to ensure consistency throughout the melt. This method proves particularly effective for achieving uniform composition on the first melt, though it typically handles smaller batch sizes. Vacuum arc remelting, alternatively, creates an electrical arc between the raw materials and a water-cooled copper strike plate within a high vacuum environment, with the mold itself being water-cooled copper. This technique achieves uniform composition through multiple cycles of melting and remelting, making it suitable for larger production volumes. Research has demonstrated that vacuum induction melted materials often exhibit smaller inclusion sizes compared to vacuum arc remelted counterparts, contributing to superior fatigue resistance—a critical property for applications where the superelastic titanium nickel rope will experience repeated stress cycles, such as in cardiovascular stents or orthodontic devices.

The selection of crucible materials for vacuum melting represents another significant technical challenge that directly impacts the quality of superelastic titanium nickel rope. Molten titanium exhibits extraordinary chemical reactivity, capable of corroding most conventional crucible materials at the extreme temperatures required for melting—often exceeding 1300 degrees Celsius. Graphite and certain ceramic compositions are commonly employed, but each presents unique challenges. When graphite crucibles are used, manufacturers must carefully prevent carbon diffusion into the melt, as carbon atoms that bind with titanium shift the alloy composition and degrade the rope's superelastic properties. The crucible's porosity must be meticulously balanced—sufficient to provide adequate thermal shock resistance yet minimal enough to prevent excessive erosion from the flowing molten metal. The time the molten alloy contacts the crucible walls, the fluidity of the melt, and the thermal gradients within the system all contribute to potential contamination risks. Advanced melting facilities may employ skull melting techniques, where the molten metal itself forms a protective barrier against the crucible walls, or utilize cold crucible induction melting where the crucible is actively cooled and the metal is held in place by electromagnetic forces. Following the initial melt, many manufacturers implement double-melting protocols, first using vacuum induction melting to achieve target composition, then performing vacuum arc remelting to combine batches and further homogenize the alloy. This multi-stage approach, though energy-intensive and time-consuming, proves essential for producing superelastic titanium nickel rope with the consistent, predictable properties demanded by high-stakes applications in medical devices and aerospace systems where material failure could have catastrophic consequences.

Hot Working and Initial Forming Processes

Once the vacuum melting process yields a solidified ingot—which can weigh between 2,000 to 5,000 pounds in industrial production—the superelastic titanium nickel rope manufacturing enters its hot working phase, where the as-cast structure undergoes fundamental transformation to improve workability and mechanical properties. The solidified nitinol ingot possesses a coarse, as-cast microstructure that is unsuitable for direct wire or rope production, necessitating substantial deformation at elevated temperatures to refine the grain structure and enhance material uniformity. Hot working operations typically commence at temperatures ranging from 800 to 1000 degrees Celsius, where the alloy exhibits sufficient plasticity to accommodate large-scale deformation without cracking. During this temperature range, the material exists predominantly in its austenitic phase, characterized by a body-centered cubic crystal structure that facilitates atomic rearrangement during mechanical deformation. The hot working process commonly employs rotary forging, hot rolling, or extrusion techniques, each selected based on the desired intermediate product form and production volume requirements. Rotary forging applies incremental deformation through rotating dies, progressively reducing the ingot's cross-section while extending its length, proving particularly effective for producing round bars that serve as precursors for rope manufacturing. Hot rolling passes the heated ingot through successive sets of rolls with decreasing gaps, systematically reducing thickness while improving surface quality and dimensional consistency. Extrusion forces the heated material through a shaped die, enabling production of more complex cross-sectional profiles when required for specialized rope configurations.

The hot working operations serve multiple critical functions beyond simple geometric transformation of the ingot into more manageable forms for subsequent processing of superelastic titanium nickel rope. The severe plastic deformation imposed during hot working breaks down the coarse dendritic structure characteristic of cast ingots, replacing it with a refined, more uniform microstructure featuring smaller grain sizes and reduced compositional segregation. This microstructural refinement proves essential for achieving consistent mechanical properties and predictable transformation behavior throughout the final rope product. The deformation also works existing inclusions and second-phase particles into smaller, more dispersed distributions, reducing their potential to serve as stress concentrators and crack initiation sites during subsequent use. However, hot working parameters must be meticulously controlled—excessive deformation at insufficient temperatures can introduce unwanted texture or cause surface cracking, while inadequate deformation fails to achieve the necessary structural refinement. Temperature must be maintained within a relatively narrow window; too high and grain growth occurs, negating the refinement benefits, while too low approaches the material's ductile-to-brittle transition, risking fracture during deformation. Multiple hot working passes with intermediate reheating cycles are often employed, with each pass contributing incrementally to the overall reduction ratio while managing the material's temperature and strain state. Upon completion of hot working, the material typically exists as bars or rods with diameters ranging from 10 to 50 millimeters, ready for the subsequent cold working operations that will transform them into the fine diameters required for superelastic titanium nickel rope production, which can be as small as 0.2 millimeters for specialized medical applications.

Cold Drawing and Progressive Diameter Reduction

Following the hot working operations that establish the basic form and refined microstructure, superelastic titanium nickel rope manufacturing enters the cold drawing phase—a room-temperature process that progressively reduces the material's diameter while simultaneously enhancing its mechanical strength and dimensional precision. Cold drawing involves pulling the material through a series of tungsten carbide dies with progressively smaller apertures, with each pass achieving a reduction in cross-sectional area typically between 10-30%. This mechanical working at temperatures well below the recrystallization point introduces substantial plastic deformation into the crystal structure, creating networks of dislocations that interact and accumulate, thereby increasing the material's yield strength and hardness through a mechanism known as work hardening or strain hardening. For superelastic titanium nickel rope production, the cold drawing sequence may involve dozens of individual passes to achieve the final target diameter, which ranges from as large as 5 millimeters for robust structural applications down to 0.2 millimeters or even finer for delicate medical instruments like guidewires and minimally invasive surgical tools. Each drawing pass must be carefully engineered to prevent surface defects, internal voids, or excessive residual stresses that could compromise the rope's performance. The drawing speed, die angle, lubrication conditions, and reduction ratio per pass all influence the final product quality and must be optimized based on the current diameter and the material's work-hardened state.

The progressive work hardening that occurs during cold drawing of superelastic titanium nickel rope presents both opportunities and challenges for manufacturers. While the introduction of dislocations strengthens the material, excessive accumulation of strain eventually reduces ductility to the point where the material becomes too brittle for further drawing, risking breakage during subsequent passes. To address this limitation, manufacturers implement intermediate annealing treatments between drawing passes—heat treatments at temperatures typically ranging from 600 to 800 degrees Celsius that partially relieve internal stresses and restore some ductility without completely eliminating the beneficial effects of prior cold work. These intermediate anneals represent a delicate balance; insufficient annealing leaves the material too work-hardened for continued processing, while excessive annealing completely recrystallizes the structure, eliminating accumulated strain and forcing subsequent drawing to essentially start over. The annealing time and temperature are carefully calibrated based on the current diameter, the degree of prior cold work, and the desired mechanical properties in the final product. Some advanced manufacturing protocols employ multiple cycles of drawing and annealing, with each cycle progressively approaching the target diameter while managing the material's microstructural evolution. Surface preparation between passes is also critical—any surface oxide that forms during annealing must be removed through chemical pickling or mechanical cleaning before the next drawing pass, as oxide inclusions could be driven into the surface during drawing, creating stress concentrations and potential failure sites. The cumulative effect of these cold drawing and annealing cycles transforms the hot-worked rod into precisely dimensioned wire ready for the final stage—shape setting and heat treatment that will impart the superelastic properties that define the rope's functional performance.

Shape Setting and Transformation Heat Treatment

The penultimate stage in manufacturing superelastic titanium nickel rope involves the crucial shape-setting process, where the cold-drawn wire is configured into its final rope geometry and subjected to precise heat treatment that simultaneously establishes its "memorized" shape and imparts the superelastic properties essential to its function. For rope configurations, multiple strands of processed wire are wound together following specific patterns—such as simple twisted constructions, braided architectures, or more complex helical arrangements—with the exact geometry determined by the intended application's requirements for strength, flexibility, and fatigue resistance. These wound assemblies are then constrained in fixtures or wound around mandrels that maintain the desired configuration during subsequent heat treatment. The heat treatment itself typically occurs at temperatures between 450 and 550 degrees Celsius for superelastic grades, with the exact temperature and duration carefully selected based on the alloy's composition and the desired transformation temperatures. This thermal processing serves multiple simultaneous functions: it sets the rope's permanent shape, which the material will "remember" and return to after deformation; it relieves residual stresses accumulated during cold drawing; and most critically, it precipitates nickel-rich phases that alter the matrix composition and thereby control the temperatures at which the material transforms between its austenitic and martensitic phases. The precipitation of these secondary phases effectively depletes nickel from the primary nickel-titanium matrix, raising the transformation temperatures in a controlled, predictable manner. By adjusting the heat treatment time and temperature, manufacturers can tune the rope's austenite finish temperature to specific target values, ensuring that at the intended operating temperature—typically body temperature for medical applications or ambient temperature for industrial uses—the material exhibits robust superelastic behavior.

The transformation heat treatment represents perhaps the most sensitive step in the entire manufacturing sequence of superelastic titanium nickel rope, as it directly determines whether the final product exhibits the desired superelastic plateau stresses, maximum recoverable strain, and transformation temperature hysteresis. The heat treatment must be conducted in controlled atmospheres—typically vacuum or inert gas environments—to prevent surface oxidation that would degrade the rope's corrosion resistance and biocompatibility. Temperature uniformity throughout the treatment furnace is absolutely critical; variations of even 10-20 degrees Celsius across different regions of the rope can create spatial variations in transformation temperatures, resulting in non-uniform mechanical response during use. Time at temperature is equally important—insufficient treatment fails to develop the desired precipitate distribution and leaves transformation temperatures inappropriately low, while excessive treatment causes over-aging with coarsening of precipitates and potential degradation of mechanical properties. Following the primary heat treatment, some manufacturers implement rapid quenching in water or oil to freeze in the high-temperature structure and prevent uncontrolled precipitation during cooling. Others employ slow, controlled cooling profiles that allow for additional precipitation in a manner that further refines the transformation behavior. Advanced production facilities may use differential scanning calorimetry to characterize each production batch, measuring the precise transformation temperatures and ensuring they fall within the narrow specification windows required for consistent performance. Mechanical testing evaluates the load-deflection behavior, verifying that the rope exhibits the characteristic superelastic plateau—the region of the stress-strain curve where the material undergoes substantial strain at nearly constant stress as stress-induced transformation from austenite to martensite occurs. Only when the transformation heat treatment successfully produces these targeted characteristics can the superelastic titanium nickel rope proceed to final surface finishing and quality verification before deployment in its demanding applications.

Surface Treatment and Final Quality Control

As superelastic titanium nickel rope approaches completion, surface treatment processes become critical for optimizing its performance, particularly for medical applications where biocompatibility and corrosion resistance are paramount. The rope's surface typically exhibits oxide layers and potential contaminants accumulated during prior processing steps, necessitating rigorous cleaning and finishing operations. Chemical pickling using combinations of hydrofluoric and nitric acids removes surface oxides and embedded contaminants, revealing a clean metallic surface with improved uniformity. For applications demanding the highest surface quality, electropolishing provides superior results—this electrochemical process selectively removes surface material, smoothing microscopic peaks and valleys while creating an extremely clean, passive oxide layer that enhances both corrosion resistance and biocompatibility. The electropolishing process reduces surface roughness to near-mirror finishes, eliminating potential sites for bacterial adhesion in medical applications and reducing fatigue crack initiation points in structural applications. Some specialty applications require additional surface modifications such as coating with biocompatible polymers, deposition of radiopaque markers for visualization during medical procedures, or application of antimicrobial treatments. Each surface treatment must be validated to ensure it does not compromise the underlying material's superelastic properties or introduce stress concentrations that could promote premature failure. Baoji Hanz Metal Material Co., Ltd. employs advanced surface analysis techniques including scanning electron microscopy and energy-dispersive X-ray spectroscopy to characterize surface composition and morphology, ensuring every product meets stringent quality standards.

The final quality control phase subjects each batch of superelastic titanium nickel rope to comprehensive testing protocols that verify conformance to specifications and fitness for purpose. Dimensional inspection using precision micrometers and optical measurement systems confirms that rope diameters, strand configurations, and overall geometries meet design tolerances, with acceptable variations typically measured in micrometers for critical medical applications. Mechanical testing employs universal testing machines to generate complete stress-strain curves, verifying tensile strength values typically exceeding 1500 MPa, validating that superelastic plateau stresses fall within specified ranges, and confirming maximum recoverable strains of 8% or more. Fatigue testing subjects samples to millions of loading cycles at strains representative of intended use conditions, ensuring the rope can withstand the repetitive stresses encountered in applications like cardiovascular stents that must function reliably for years within the dynamic environment of the human cardiovascular system. Differential scanning calorimetry precisely measures transformation temperatures, confirming that the austenite finish temperature falls within the narrow specification window required for consistent superelastic performance at operating temperatures. For medical-grade products, additional biocompatibility testing according to ISO 10993 standards evaluates cytotoxicity, sensitization, and irritation potential, while corrosion testing in simulated body fluids verifies long-term stability in physiological environments. Metallographic examination of cross-sections reveals internal structure, detecting any unacceptable inclusions, voids, or microstructural anomalies that could compromise performance. Only after successfully passing this rigorous quality control gauntlet does superelastic titanium nickel rope receive certification for shipment to customers, complete with comprehensive documentation tracing its composition, processing history, and measured properties—a level of traceability essential for medical device manufacturing under ISO 13485:2016 standards that Baoji Hanz Metal Material Co., Ltd. maintains in all production operations.

Conclusion

Superelastic titanium nickel rope manufacturing represents a sophisticated integration of precise compositional control, advanced vacuum melting, multi-stage thermomechanical processing, and careful heat treatment protocols that collectively transform raw elements into a material exhibiting remarkable superelastic properties with tensile strengths exceeding 1500 MPa and strain recovery capabilities up to 8%.

Cooperate with Baoji Hanz Metal Material Co., Ltd.

Partner with Baoji Hanz Metal Material Co., Ltd., your premier China Superelastic titanium nickel rope manufacturer, China Superelastic titanium nickel rope supplier, and China Superelastic titanium nickel rope factory offering Superelastic titanium nickel rope for sale at competitive Superelastic titanium nickel rope price points. With 7 years of expertise in nitinol shape memory alloys and superelastic materials, we deliver High Quality Superelastic titanium nickel rope backed by ISO9001, ISO13485, and EU CE certifications. Our China Superelastic titanium nickel rope wholesale solutions provide direct cost advantages with fast delivery from extensive standard size inventory. As a specialized China Superelastic titanium nickel rope manufacturer, we offer comprehensive OEM services for custom specifications, dimensions, and alloy compositions tailored to your medical device, aerospace, or industrial applications. Our professional customer service team provides pre-sale technical consultation, real-time order tracking with 5-year production documentation retention, and dedicated after-sales support with comprehensive industry solutions. Contact us today at baojihanz-niti@hanztech.cn to discuss your Superelastic titanium nickel rope requirements and experience the quality and reliability that distinguished manufacturers worldwide trust for their most demanding applications.

References

1. Duerig, T., Pelton, A., and Stöckel, D. "An Overview of Nitinol Medical Applications." Materials Science and Engineering: A, Volume 273-275, December 1999.

2. Otsuka, K. and Ren, X. "Physical Metallurgy of Ti-Ni-based Shape Memory Alloys." Progress in Materials Science, Volume 50, Issue 5, July 2005.

3. Morgan, N.B. "Medical Shape Memory Alloy Applications—The Market and Its Products." Materials Science and Engineering: A, Volume 378, Issues 1-2, July 2004.

4. Elahinia, M.H., Hashemi, M., Tabesh, M., and Bhaduri, S.B. "Manufacturing and Processing of NiTi Implants: A Review." Progress in Materials Science, Volume 57, Issue 5, June 2012.

5. Michiardi, A., Aparicio, C., Planell, J.A., and Gil, F.J. "Electrochemical Behaviour of Oxidized NiTi Shape Memory Alloys for Biomedical Applications." Journal of Biomedical Materials Research Part B: Applied Biomaterials, Volume 77B, Issue        2,  May 2006.
