How to Demonstrate Shape Memory Effect with Nitinol Paperclips?

Are you struggling to find an engaging way to demonstrate the fascinating world of shape memory alloys to students or colleagues? The frustration of trying to explain complex metallurgical concepts without proper visual aids can make even the most knowledgeable instructor feel helpless. The nitinol paperclip offers a perfect solution to this challenge, providing an accessible and captivating demonstration that brings the remarkable shape memory effect to life before your eyes. This comprehensive guide will show you exactly how to use nitinol paperclips to create memorable demonstrations that truly showcase the extraordinary properties of nickel-titanium alloys.

Understanding the Science Behind Nitinol Paperclip Shape Memory

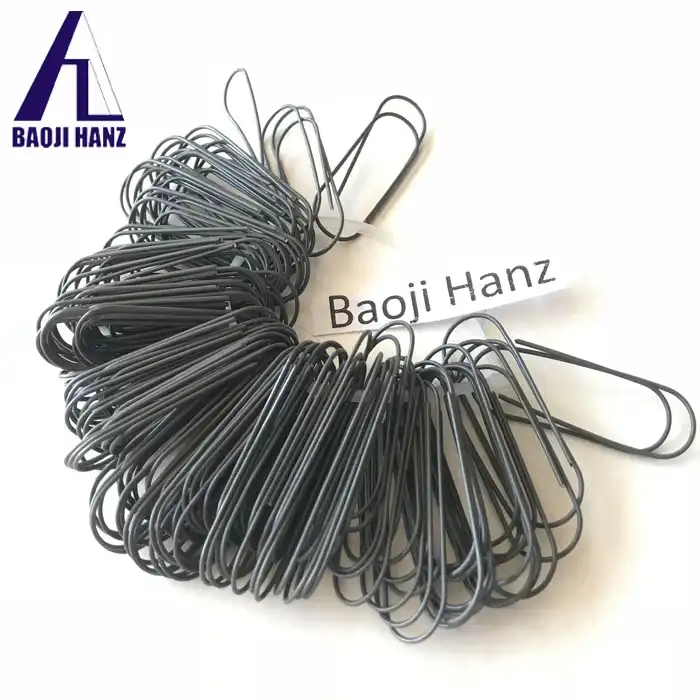

The nitinol paperclip represents one of the most accessible examples of shape memory alloy technology available today. Composed of approximately equal parts nickel and titanium, this revolutionary material exhibits a unique crystalline structure that enables it to remember and return to a predetermined shape when subjected to specific temperature changes. The transformation occurs at the molecular level, where the alloy transitions between two distinct crystalline phases: martensite at lower temperatures and austenite at higher temperatures. When a nitinol paperclip is manufactured, it undergoes a specialized programming process where the desired shape is set at elevated temperatures between 750 to 900 degrees Fahrenheit. This annealing process creates a permanent memory within the material's crystal structure, establishing what engineers refer to as the parent shape. At room temperature, the nitinol paperclip exists in its martensite phase, making it relatively soft and easily deformable without permanent damage to its memory capabilities. The remarkable properties of nitinol paperclips extend beyond simple shape recovery. These materials demonstrate exceptional corrosion resistance, biocompatibility, and fatigue resistance, making them suitable for applications ranging from educational demonstrations to advanced medical devices. The transformation temperature can be precisely controlled during manufacturing, allowing Baoji Hanz Metal Material Co., Ltd. to produce nitinol paperclips with activation temperatures optimized for specific demonstration requirements.

• Preparation Requirements for Effective Demonstrations

Before conducting any demonstration with nitinol paperclips, proper preparation ensures both safety and maximum educational impact. The demonstration area should be well-ventilated, especially when using open flames or hot water for activation. Safety equipment including heat-resistant gloves, safety goggles, and appropriate lighting should be readily available. Participants should be briefed on the demonstration objectives and safety protocols to maintain focus on the learning outcomes. The nitinol paperclip should be inspected before each demonstration to ensure it maintains its original programmed shape and shows no signs of damage or excessive deformation from previous uses. Quality nitinol paperclips from reputable manufacturers like Baoji Hanz Metal Material Co., Ltd. can withstand hundreds of deformation cycles while maintaining their shape memory properties, but proper handling extends their demonstration lifespan significantly. Temperature monitoring equipment, such as infrared thermometers or simple thermocouples, can enhance the educational value by showing participants the exact temperatures at which transformation occurs. Digital cameras or smartphone recording capabilities allow for slow-motion capture of the transformation process, enabling detailed analysis of the shape recovery mechanism for advanced educational applications.

Step-by-Step Demonstration Methods for Nitinol Paperclips

The most fundamental demonstration technique involves manual deformation followed by thermal activation. Begin by showing participants the original shape of the nitinol paperclip, emphasizing its standard paperclip configuration. Carefully bend the paperclip into an alternative shape, ensuring that deformation angles do not exceed 110 degrees to prevent damage to the crystal structure. This limitation preserves the integrity of the shape memory effect while providing sufficient visual change for demonstration purposes. For thermal activation using hot water, prepare a container with water heated to approximately 60-80 degrees Celsius. Submerge the deformed nitinol paperclip completely in the hot water while participants observe. The transformation typically occurs within seconds, as the nitinol begins to exhibit elastic properties and recovers into its pre-deformed shape. The recovery process demonstrates the transition from martensite to austenite phase as thermal energy drives the crystalline rearrangement. Alternative activation methods include using a hair dryer, heat gun, or carefully controlled open flame. When using flame activation, maintain the flame at a safe distance to prevent overheating, which could damage the material or create unsafe conditions. The metal magically re-forms itself into a paperclip when heated with hot water or open flame, creating a visually striking demonstration that effectively illustrates the shape memory principle.

• Advanced Demonstration Techniques and Variations

More sophisticated demonstrations can incorporate multiple nitinol paperclips with different transformation temperatures, showing how alloy composition affects activation characteristics. This comparative approach helps participants understand the engineering precision involved in shape memory alloy design. Create a series of deformed paperclips and activate them sequentially using gradually increasing temperatures, demonstrating the tunability of the transformation temperature. Time-lapse photography provides an excellent tool for capturing and analyzing the transformation process in detail. Set up cameras to record the demonstration from multiple angles, then review the footage at various speeds to highlight different aspects of the shape recovery mechanism. This technique proves particularly valuable in educational settings where students can analyze the footage for detailed study of the transformation kinetics. Quantitative measurements enhance the scientific rigor of demonstrations. Use precision instruments to measure the exact deformation angles before and after transformation, documenting the recovery precision of high-quality nitinol paperclips. Temperature logging during the activation process provides data for understanding the thermal requirements and transformation characteristics specific to each nitinol paperclip sample.

Safety Considerations and Best Practices

Safety remains paramount in all nitinol paperclip demonstrations, particularly when using thermal activation methods. Establish clear safety protocols including proper ventilation when using open flames, appropriate fire extinguishing equipment nearby, and first aid supplies readily accessible. Participants should maintain safe distances from heat sources and understand emergency procedures before demonstrations begin. Personal protective equipment requirements vary depending on the activation method chosen. Heat-resistant gloves protect against burns when handling hot water or heated nitinol paperclips, while safety goggles prevent eye injuries from potential splashing or unexpected material behavior. Appropriate clothing without loose or flammable materials reduces fire hazards when using flame activation techniques. Environmental considerations include proper disposal of damaged nitinol paperclips and responsible use of heating equipment. While nitinol demonstrates excellent biocompatibility and corrosion resistance, damaged samples should be disposed of according to local regulations for metal alloys. Energy-efficient heating methods reduce environmental impact while maintaining demonstration effectiveness.

• Long-term Storage and Maintenance Guidelines

Proper storage extends the useful life of nitinol paperclips for repeated demonstrations. Store samples in dry, room-temperature environments away from corrosive chemicals or extreme temperatures that might affect their transformation characteristics. Avoid prolonged compression or tension that could influence the programmed shape memory, and regularly inspect stored samples for any signs of degradation or damage. Documentation of demonstration history helps track the performance and longevity of individual nitinol paperclips. Record the number of deformation cycles, maximum deformation angles applied, and any changes in transformation behavior over time. This data proves valuable for understanding the fatigue characteristics and replacement schedules for educational demonstration materials. Quality nitinol paperclips from established manufacturers like Baoji Hanz Metal Material Co., Ltd. typically maintain their shape memory properties through hundreds of demonstration cycles when handled according to recommended guidelines. Regular performance testing ensures consistent demonstration results and identifies samples requiring replacement before they fail during critical educational presentations.

Educational Applications and Learning Outcomes

Nitinol paperclip demonstrations serve multiple educational objectives across various academic disciplines. In materials science curricula, these demonstrations provide tangible examples of advanced metallurgy concepts including phase transformations, crystal structure relationships, and thermal activation mechanisms. Students gain hands-on experience with cutting-edge materials technology that bridges theoretical knowledge with practical applications. Physics education benefits from nitinol paperclip demonstrations through exploration of thermodynamics, mechanical properties, and energy conversion principles. The transformation process illustrates concepts such as latent heat, thermal expansion, and mechanical work in ways that traditional textbook examples cannot match. Interactive demonstrations encourage student engagement and improve retention of complex scientific principles. Engineering programs utilize nitinol paperclip demonstrations to introduce smart materials concepts and their applications in modern technology. Students learn about material selection criteria, design considerations for temperature-sensitive applications, and the integration of advanced materials into engineering solutions. These demonstrations provide foundation knowledge for advanced courses in biomaterials, aerospace materials, and mechatronic systems.

• Industrial and Research Applications Context

Professional development applications extend nitinol paperclip demonstrations into industrial training programs and research presentations. Engineers working with advanced materials gain practical experience with shape memory alloys before working with more expensive or complex systems. Research presentations benefit from the visual impact and accessibility of nitinol paperclip demonstrations when explaining sophisticated material behavior to diverse audiences. Quality control professionals can use nitinol paperclip demonstrations to understand material testing principles and performance evaluation criteria. The consistent and repeatable nature of the transformation process provides excellent examples of material characterization and specification compliance verification. These demonstrations help quality control personnel understand the importance of precise manufacturing controls in advanced material production. Manufacturing professionals benefit from understanding how shape memory effects can be incorporated into product designs and manufacturing processes. Nitinol paperclip demonstrations provide practical examples of how advanced materials can solve engineering challenges while maintaining cost-effectiveness and reliability in production environments.

Troubleshooting Common Demonstration Issues

Despite the reliability of quality nitinol paperclips, occasional demonstration issues may arise requiring systematic troubleshooting approaches. Incomplete shape recovery often indicates insufficient activation temperature or heating duration. Verify that the activation temperature exceeds the transformation temperature specific to your nitinol paperclip samples, and ensure adequate heat exposure time for complete crystal structure transition. Inconsistent transformation behavior may result from previous overdeformation or thermal damage. Examine the nitinol paperclip for signs of permanent deformation, surface damage, or discoloration indicating overheating during previous demonstrations. Replace damaged samples with fresh nitinol paperclips to maintain demonstration reliability and educational effectiveness. Poor visibility during demonstrations can be addressed through improved lighting, closer observation positions, or video projection systems for larger audiences. Consider using multiple nitinol paperclips simultaneously to create more dramatic visual effects while ensuring all participants can observe the transformation process clearly. Proper staging and presentation setup significantly impacts demonstration success and audience engagement.

• Performance Optimization Strategies

Maximizing demonstration impact requires attention to timing, presentation techniques, and audience preparation. Build anticipation by explaining the expected results before beginning the demonstration, then allow sufficient time for complete observation of the transformation process. Rushing demonstrations reduces educational value and may result in missed learning opportunities for participants. Environmental control enhances demonstration consistency and reliability. Maintain stable ambient temperatures and humidity levels to ensure predictable nitinol paperclip behavior. Extreme environmental conditions can affect transformation temperatures and recovery rates, potentially compromising demonstration effectiveness or creating safety concerns during activation procedures. Pre-demonstration testing verifies equipment functionality and material performance before critical presentations. Test heating equipment, temperature monitoring devices, and sample nitinol paperclips to identify potential issues that could disrupt demonstrations. Backup equipment and additional samples ensure successful demonstrations even when unexpected problems arise during presentations.

Conclusion

Demonstrating shape memory effects with nitinol paperclips provides an accessible, engaging method for showcasing advanced materials technology across educational and professional applications.

Cooperate with Baoji Hanz Metal Material Co., Ltd.

Baoji Hanz Metal Material Co., Ltd. stands as your premier China nitinol paperclip manufacturer and China nitinol paperclip supplier, bringing seven years of specialized expertise in nitinol shape memory alloys. Our comprehensive production capabilities include sophisticated equipment and advanced R&D facilities dedicated to high-quality nitinol paperclip production. As a trusted China nitinol paperclip factory, we offer cost advantages through direct supply and maintain large stock inventories for fast delivery of standard sizes. Whether you need China nitinol paperclip wholesale quantities or custom OEM solutions, our team provides professional consultation and technical support throughout your project. We offer High Quality nitinol paperclip for sale at competitive nitinol paperclip price points, backed by ISO9001, SGS, and TUV certifications. For inquiries about our nitinol paperclip products, contact us at baojihanz-niti@hanztech.cn.

FAQ

Q: What temperature is needed to activate the shape memory effect in nitinol paperclips?

A: Most nitinol paperclips activate between 60-80°C (140-176°F) when heated with hot water or controlled flame.

Q: How many times can a nitinol paperclip be deformed and recovered?

A: Quality nitinol paperclips can withstand hundreds of deformation cycles while maintaining their shape memory properties.

Q: What is the maximum safe deformation angle for nitinol paperclips?

A: To prevent damage to the crystal structure, limit deformation angles to no more than 110 degrees from the original shape.

Q: Can nitinol paperclips be damaged by overheating during demonstrations?

A: Yes, excessive heat can damage the programmed memory or alter transformation temperatures, so controlled heating is essential.
