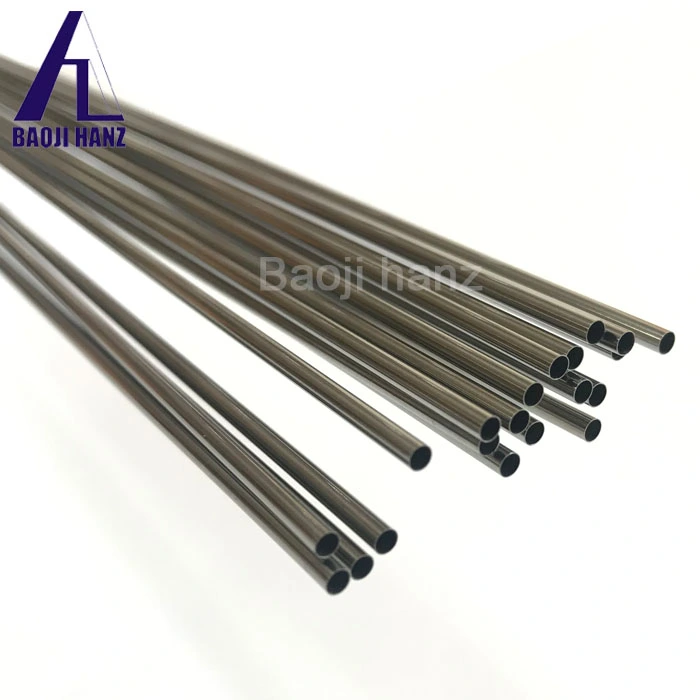

Medical-Grade Nickel-Titanium (Nitinol) Tubes

Product Knowledge: Medical-Grade Nickel-Titanium (Nitinol) Tubes

1. Overview

Medical-grade Nickel-Titanium tubes, more commonly known as Nitinol tubes, are a class of advanced shape memory alloy (SMA) products renowned for their unique properties of Superelasticity and Shape Memory Effect. These characteristics make them indispensable in the design and manufacture of minimally invasive medical devices, where flexibility, kink-resistance, and precise deployment are critical.

2. Key Characteristics and Advantages

a) Superelasticity

Definition: The ability to undergo significant strain (up to 8%) and fully recover its original shape upon unloading, without permanent deformation. This far exceeds the elastic limit of conventional metals like stainless steel.

Medical Advantage: Provides exceptional flexibility and kink-resistance. Devices can navigate complex and tortuous anatomy (e.g., blood vessels, biliary ducts) without becoming permanently bent or blocked.

b) Shape Memory Effect (SME)

Definition: The ability to "remember" a pre-defined shape. A device can be deformed into a temporary, compact shape at a low temperature, and then, when exposed to body temperature (≈37°C), it will automatically return to its original, permanent shape.

Medical Advantage: Enables the development of self-expanding stents, occlusion devices, and other implants that can be delivered through a small catheter and then deploy themselves precisely at the target site.

c) Excellent Biomechanical Compatibility

Nitinol's mechanical behavior, specifically its low and constant stress during deformation (stress plateau), is similar to that of human tissue, reducing the risk of trauma to vessel walls.

d) Good Biocompatibility

High-quality medical-grade Nitinol exhibits excellent corrosion resistance and biocompatibility, meeting international standards (such as ASTM F2063, ISO 10993). A stable titanium oxide (TiO₂) layer on the surface provides inherent corrosion resistance.

e) MR Compatibility and Radiolucency

Nitinol is non-ferromagnetic, making it safe for Magnetic Resonance Imaging (MRI). Its relatively low radiopacity allows for clear visualization of anatomical structures around the device, though markers are often added for precise device tracking under X-ray.



3. Primary Applications in Medical Devices

Nitinol tubes are the foundational material for a wide range of life-saving and life-improving medical devices:

Vascular Stents: Self-expanding stents for peripheral artery disease (PAD), carotid artery disease, and aortic aneurysms (AAA).

Neurovascular Devices: Coils, flow diverters, and retrieval devices for treating intracranial aneurysms and strokes.

Guidewires: Highly flexible and kink-resistant guidewires for navigating coronary, neurological, and peripheral vasculature.

Catheters: Components for steerable catheters and delivery systems that require precise control.

Orthodontic Archwires: Applying a constant, gentle force to move teeth, thanks to superelasticity.

Other Applications: Biopsy needles, stone retrieval baskets, heart valve tools, and various endoscopic devices.



4. Manufacturing and Processing Considerations

The performance of Nitinol tubes is highly dependent on precise manufacturing and post-processing:

Tube Drawing: A carefully controlled process to achieve the final dimensions (outer diameter, inner diameter, wall thickness) and surface finish.

Heat Treatment: A critical step to set the final shape and define the material's transformation temperatures (Austenite Finish, Af), which determine when the shape memory or superelastic effect is activated.

Surface Treatment: A high-quality, consistent surface is vital for performance and biocompatibility. Processes include:

Electropolishing: The standard finish, which removes surface imperfections and creates a smooth, clean, corrosion-resistant surface.

Passivation: Enhances the protective oxide layer.

Special Coatings: Hydrophilic or drug-eluting coatings can be applied for specific applications.



5. Key Quality Control Parameters

When specifying or purchasing medical Nitinol tubes, the following parameters are crucial:

Dimensions & Tolerances: OD, ID, wall thickness, and concentricity.

Transformation Temperatures (Af): Must be precisely controlled, typically below 37°C for superelastic applications.

Mechanical Properties: Tensile strength, elongation, and superelastic plateau stresses.

Surface Quality: Freedom from scratches, pits, and inclusions.

Microstructure: A fine, uniform grain structure is essential for fatigue performance.

Fatigue Life: Critical for implants that undergo cyclic loading (e.g., stents in peripheral arteries).

6. Conclusion

Medical-grade Nitinol tubes are a cornerstone of modern minimally invasive medicine. Their unparalleled combination of superelasticity, shape memory, and biocompatibility enables the development of smaller, smarter, and more effective medical devices. Understanding these core properties and the stringent manufacturing requirements is essential for engineers, product managers, and medical professionals working at the forefront of medical technology.
