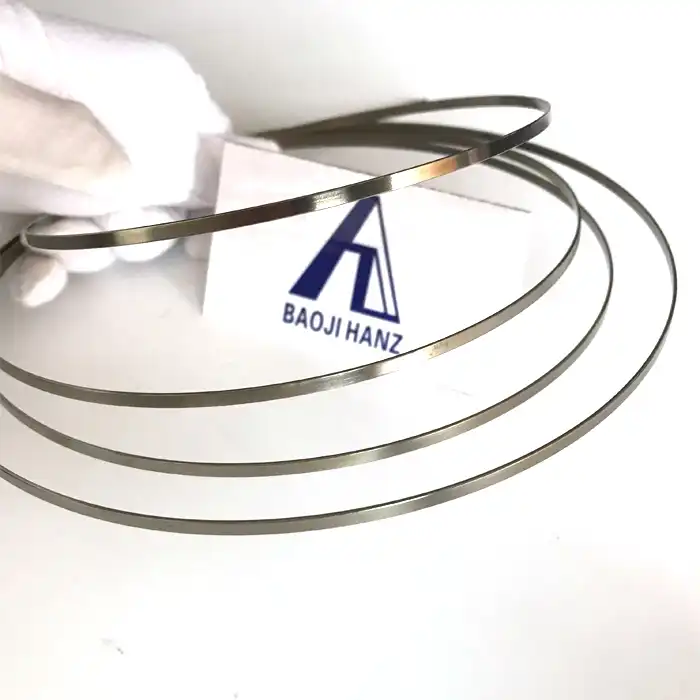

Nitinol Flat Wire: The ‘Unbreakable Spring’ for Medical Tools

In the rapidly evolving landscape of medical technology, nitinol flat wire stands as a revolutionary material that has transformed the way we approach medical device manufacturing and surgical procedures. This extraordinary nickel-titanium alloy represents a breakthrough in materials science, offering unprecedented flexibility, durability, and biocompatibility that makes it truly deserving of the title "unbreakable spring." The unique properties of nitinol flat wire, including its shape memory effect and superelastic characteristics, have made it an indispensable component in modern medical applications ranging from minimally invasive surgical instruments to advanced orthodontic treatments, fundamentally changing how medical professionals approach patient care and treatment outcomes.

The Science Behind Nitinol Flat Wire's Exceptional Properties

Understanding Shape Memory Effect in Medical Applications

The shape memory effect exhibited by nitinol flat wire represents one of the most fascinating phenomena in materials science, with profound implications for medical device design and functionality. This remarkable property allows the material to return to its predetermined shape when heated above its transformation temperature, typically ranging from 0-20 degrees Celsius depending on the specific alloy composition. In medical applications, this characteristic enables nitinol flat wire to be deformed during insertion or deployment, then recover its original configuration once it reaches body temperature. The mechanism operates through a reversible phase transformation between austenite and martensite crystal structures, where the high-temperature austenite phase exhibits the memorized shape while the low-temperature martensite phase allows for easy deformation. This unique behavior has revolutionized the design of medical devices such as stents, guidewires, and orthodontic archwires, where the ability to change shape in response to temperature provides unprecedented control over device deployment and function. The transformation temperature can be precisely controlled during manufacturing through careful heat treatment processes, allowing engineers to tailor the nitinol flat wire's response to specific clinical requirements and ensuring optimal performance in various medical applications.

Superelastic Behavior and Its Medical Significance

The superelastic properties of nitinol flat wire provide medical devices with extraordinary flexibility and resilience that far exceeds conventional materials used in healthcare applications. Unlike traditional metals that undergo plastic deformation when stressed beyond their elastic limit, nitinol flat wire can undergo significant deformation and return to its original shape upon stress removal, exhibiting strain recovery of up to 8-10% without permanent damage. This exceptional characteristic is particularly valuable in medical applications where devices must navigate tortuous anatomical pathways or withstand repeated mechanical stress during normal physiological function. The superelastic behavior stems from the stress-induced transformation between austenite and martensite phases, creating a plateau in the stress-strain curve that allows for large deformations at relatively constant stress levels. This property makes nitinol flat wire ideal for applications such as catheter components, surgical instruments, and implantable devices that must maintain their structural integrity while adapting to dynamic biological environments. The consistent mechanical properties across multiple loading cycles ensure reliable performance over extended periods, making nitinol flat wire an invaluable material for long-term medical implants and devices that require sustained functionality throughout their operational lifespan.

Biocompatibility and Corrosion Resistance Excellence

The exceptional biocompatibility of nitinol flat wire has made it a preferred material for medical applications requiring direct contact with human tissue and bodily fluids. Extensive research and clinical experience have demonstrated that properly manufactured nitinol flat wire exhibits excellent tissue compatibility, with minimal inflammatory response and exceptional integration with biological systems. The material's corrosion resistance properties are particularly crucial in medical applications, where devices may be exposed to aggressive biological environments for extended periods. The formation of a stable titanium oxide layer on the surface of nitinol flat wire provides outstanding protection against corrosion, ensuring long-term stability and preventing the release of potentially harmful metal ions into the surrounding tissue. This protective oxide layer also contributes to the material's excellent thromboresistance properties, making it suitable for cardiovascular applications where blood contact is inevitable. The biocompatibility of nitinol flat wire has been validated through extensive testing according to ISO 10993 standards, demonstrating its safety for use in various medical applications including implantable devices, surgical instruments, and dental appliances. The material's ability to maintain its mechanical properties while exhibiting excellent biological tolerance has made it an indispensable component in modern medical device manufacturing, enabling the development of innovative treatment solutions that were previously impossible with conventional materials.

Revolutionary Applications in Modern Medical Technology

Cardiovascular Interventions and Stent Technology

The application of nitinol flat wire in cardiovascular medicine has revolutionized the treatment of vascular diseases and transformed interventional cardiology procedures. Self-expanding stents manufactured from nitinol flat wire offer superior flexibility and conformability compared to traditional stainless steel devices, allowing for better vessel wall apposition and reduced risk of complications. The unique properties of nitinol flat wire enable these stents to be compressed into small delivery catheters for minimally invasive deployment, then expand to their predetermined diameter upon release at the target site. This characteristic has made nitinol flat wire stents particularly valuable in treating complex vascular anatomy, including tortuous vessels and areas with significant calcification where traditional balloon-expandable stents may be unsuitable. The superelastic properties of nitinol flat wire ensure that cardiovascular devices maintain their structural integrity while adapting to the natural movement and pulsation of blood vessels, reducing the risk of device migration or fracture. Additionally, the excellent fatigue resistance of nitinol flat wire allows these devices to withstand millions of cardiac cycles without degradation, ensuring long-term performance in the demanding cardiovascular environment. The development of nitinol flat wire-based cardiovascular devices has enabled the treatment of previously inoperable conditions and has significantly improved patient outcomes in complex interventional procedures.

Orthopedic and Dental Applications

The orthopedic and dental fields have embraced nitinol flat wire technology for its ability to provide gentle, continuous force application over extended periods, making it ideal for bone and tooth movement applications. In orthodontics, nitinol flat wire archwires have become the gold standard for tooth alignment due to their ability to maintain consistent force levels throughout the treatment process. The shape memory properties of nitinol flat wire allow orthodontists to pre-program the desired tooth positions into the wire, which then works continuously to move teeth toward their ideal positions with optimal force levels that promote efficient tooth movement while minimizing patient discomfort. The superelastic behavior of nitinol flat wire ensures that the applied forces remain within the optimal range for biological tooth movement, even as teeth begin to align and the wire undergoes deformation. In orthopedic applications, nitinol flat wire is used in various fixation devices, including bone plates, screws, and compression devices that take advantage of the material's unique properties to provide dynamic compression and support during the healing process. The biocompatibility of nitinol flat wire makes it suitable for permanent implantation, while its corrosion resistance ensures long-term stability in the challenging biological environment of the human body. These applications have significantly improved treatment outcomes and reduced the need for multiple interventions, making nitinol flat wire an invaluable material in modern orthopedic and dental practice.

Minimally Invasive Surgical Instruments

The development of minimally invasive surgical instruments has been greatly enhanced by the unique properties of nitinol flat wire, enabling the creation of sophisticated devices that can navigate complex anatomical pathways while maintaining precise control and functionality. Surgical guidewires manufactured from nitinol flat wire offer exceptional pushability and torque transmission, allowing surgeons to navigate through tortuous vascular anatomy with confidence and precision. The superelastic properties of nitinol flat wire ensure that these instruments can withstand the significant deformation required for minimally invasive procedures while maintaining their structural integrity and functionality. The shape memory effect of nitinol flat wire has been utilized in the development of self-expanding surgical tools that can be delivered through small incisions or natural body openings, then expand to their functional configuration once deployed at the target site. This capability has enabled the development of innovative surgical techniques that reduce patient trauma, minimize recovery time, and improve overall treatment outcomes. The excellent fatigue resistance of nitinol flat wire ensures that surgical instruments maintain their performance characteristics throughout demanding procedures, while the material's biocompatibility makes it suitable for instruments that come into direct contact with patient tissues. The flat cross-section of nitinol flat wire provides enhanced flexibility in multiple directions while maintaining strength and torque transmission, making it ideal for complex surgical applications that require precise control and maneuverability.

Manufacturing Excellence and Quality Standards

Advanced Production Processes and Quality Control

The manufacturing of high-quality nitinol flat wire requires sophisticated production processes and stringent quality control measures to ensure consistent performance and reliability in medical applications. The production begins with vacuum induction melting (VIM) of high-purity nickel and titanium raw materials, ensuring precise alloy composition and eliminating impurities that could affect the material's properties. The melting process is followed by hot rolling and cold rolling operations that transform the round ingot into the desired flat wire geometry, with careful control of dimensional tolerances to meet specific application requirements. The rolling process requires precise temperature control and multiple passes to achieve the desired thickness and width while maintaining the material's microstructural integrity. Heat treatment processes, including solution annealing and aging treatments, are carefully controlled to achieve the desired transformation temperatures and mechanical properties of the nitinol flat wire. Surface finishing operations, including electrolytic polishing and mechanical polishing, are performed to achieve the mirror-like surface finish that reduces friction and enhances corrosion resistance. Quality control measures throughout the production process include chemical composition analysis, mechanical property testing, transformation temperature verification, and dimensional inspection to ensure compliance with international standards such as ASTM F2063. The implementation of ISO 9001:2015 and ISO 13485:2016 quality management systems ensures consistent product quality and traceability throughout the manufacturing process, meeting the stringent requirements of medical device manufacturers worldwide.

Certification Standards and Regulatory Compliance

The medical device industry requires strict adherence to international standards and regulatory requirements, and nitinol flat wire manufacturers must demonstrate compliance with these demanding criteria to ensure patient safety and product reliability. ASTM F2063 represents the primary standard for nitinol flat wire used in medical applications, specifying requirements for chemical composition, mechanical properties, and surface finish characteristics. Compliance with this standard ensures that nitinol flat wire meets the stringent requirements for biocompatibility, corrosion resistance, and mechanical performance necessary for medical device applications. ISO 13485:2016 certification demonstrates the manufacturer's commitment to quality management systems specifically designed for medical device manufacturing, ensuring consistent product quality and regulatory compliance. The CE marking required for medical devices in the European Union validates that nitinol flat wire meets the essential health and safety requirements specified in relevant European directives. Biocompatibility testing according to ISO 10993 standards provides comprehensive evaluation of the material's biological response, including cytotoxicity, sensitization, and irritation testing to ensure patient safety. The implementation of comprehensive quality management systems includes detailed documentation of all manufacturing processes, material traceability, and statistical process control to maintain consistent product quality. Regular audits by regulatory authorities and certification bodies ensure ongoing compliance with applicable standards and regulations, providing assurance to medical device manufacturers and healthcare providers regarding the safety and efficacy of nitinol flat wire products.

Customization and OEM Services

The diverse requirements of medical device applications necessitate extensive customization capabilities and comprehensive OEM services to meet specific client needs and application requirements. Nitinol flat wire manufacturers offer extensive customization options including precise control of transformation temperatures, custom dimensions ranging from minimum 0.05mm thickness to 5mm width, and specialized surface treatments to optimize performance for specific applications. The ability to tailor the austenite finish (Af) temperature between 0-20 degrees Celsius allows for precise control of the material's behavior in different clinical environments, ensuring optimal performance for each specific application. Custom packaging solutions are available to meet the unique requirements of medical device manufacturers, including sterile packaging for single-use applications and specialized containers for bulk materials. The minimum order quantity of 2 kilograms provides flexibility for both prototype development and large-scale production requirements, while competitive pricing ranging from 250-500 USD per kilogram based on specifications ensures cost-effective solutions for medical device manufacturers. Comprehensive technical support is provided throughout the development process, including material selection guidance, design optimization recommendations, and performance validation testing to ensure successful integration of nitinol flat wire into medical devices. The close collaboration between manufacturers and clients enables the development of innovative solutions that leverage the unique properties of nitinol flat wire to address complex medical challenges and improve patient outcomes.

Conclusion

Nitinol flat wire has truly earned its reputation as the "unbreakable spring" for medical tools, representing a paradigm shift in medical device manufacturing through its extraordinary combination of shape memory effect, superelastic properties, and exceptional biocompatibility. The material's ability to provide consistent, gentle forces while withstanding millions of loading cycles has revolutionized applications ranging from cardiovascular stents to orthodontic treatments, enabling minimally invasive procedures that improve patient outcomes and reduce recovery times. The stringent quality control measures and regulatory compliance demonstrated by leading manufacturers ensure that nitinol flat wire continues to meet the demanding requirements of modern medical applications while maintaining the highest standards of safety and reliability.

As a leading China nitinol flat wire factory and China nitinol flat wire supplier, Baoji Hanz Metal Material Co., Ltd. stands at the forefront of this revolutionary technology with 7 years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy manufacturing. Our position as a trusted China nitinol flat wire manufacturer enables us to save you money with direct supply and cost advantages while ensuring fast delivery from our large stock of standard sizes. As your preferred China nitinol flat wire wholesale partner, we offer comprehensive OEM services to meet your specific needs, whether it's custom sizes, specific alloy compositions, or packaging options. Our experienced team works closely with you to ensure that our products fit seamlessly into your projects, providing innovative solutions that leverage the unique properties of nitinol flat wire to address complex medical challenges. Contact us today at baojihanz-niti@hanztech.cn to discover how our expertise can enhance your medical device applications.

References

1. Duerig, T.W., Pelton, A.R., and Stöckel, D. "An Overview of Nitinol Medical Applications." Materials Science and Engineering: A, 1999, vol. 273-275, pp. 149-160.

2. Morgan, N.B. "Medical Shape Memory Alloy Applications - The Market and Its Products." Materials Science and Engineering: A, 2004, vol. 378, no. 1-2, pp. 16-23.

3. Pelton, A.R., Dicello, J., and Miyazaki, S. "Optimization of Processing and Properties of Medical Grade Nitinol Wire." Journal of Materials Engineering and Performance, 2000, vol. 9, no. 1, pp. 107-118.

4. Ryhänen, J., Niemi, E., Serlo, W., Niemelä, E., Sandvik, P., Pernu, H., and Salo, T. "Biocompatibility of Nickel-Titanium Shape Memory Metal and Its Corrosion Behavior in Human Cell Cultures." Journal of Biomedical Materials Research, 1997, vol. 35, no. 4, pp. 451-457.
