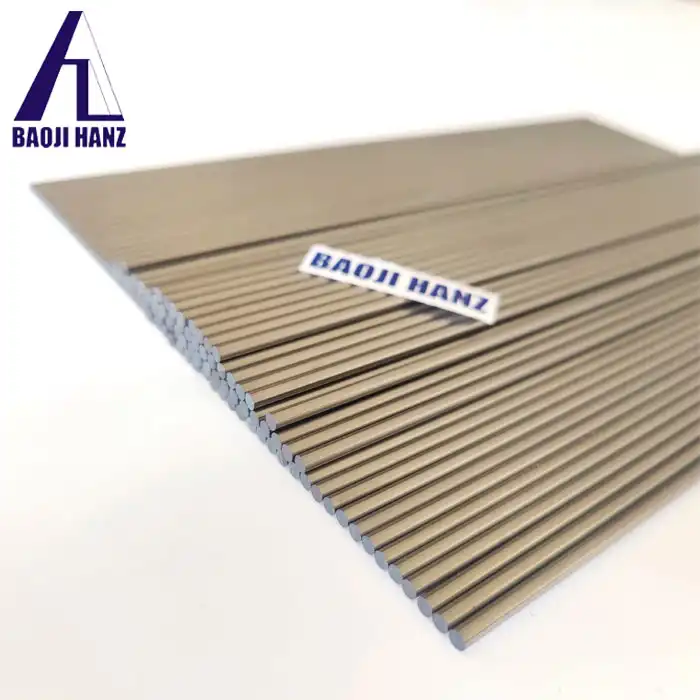

Nitinol Rod Properties and Applications

In today's rapidly evolving industrial and medical landscape, finding materials that can withstand extreme conditions while maintaining exceptional performance remains a critical challenge. Nitinol acts as a super spring through the superelastic effect, offering engineers and designers unprecedented flexibility in their applications. Understanding the unique properties and diverse applications of nitinol rod technology can revolutionize how you approach complex engineering challenges, from life-saving medical devices to precision industrial equipment.

Understanding Nitinol Rod Composition and Structure

Nitinol rod represents a revolutionary advancement in smart materials technology, belonging to the unique class of shape memory alloys. The fundamental composition of nitinol rod consists of approximately 55-56% nickel and 44-45% titanium, creating a precise atomic ratio that enables its extraordinary properties. This carefully balanced composition is critical because even small variations can significantly impact the material's performance characteristics. The thermoelastic martensitic phase transformation serves as the foundation for nitinol rod's remarkable abilities. During this transformation, the crystal structure changes between austenite and martensite phases, depending on temperature and stress conditions. This phase transformation is what gives nitinol rod its shape memory effect and superelastic properties, making it invaluable across numerous industries.

• Crystallographic Properties of Nitinol Rod

The crystallographic structure of nitinol rod plays a crucial role in its exceptional performance. This Nitinol rod have been cold rolled in such a way that the crystallographic orientation is along the length of the rod, which amplifies the shape memory effect by 20% over amorphous nitinol. This oriented structure ensures optimal performance in applications requiring consistent and reliable shape recovery. The atomic arrangement within nitinol rod creates a unique lattice structure that can accommodate significant deformation while maintaining the ability to return to its original shape. This characteristic makes nitinol rod particularly suitable for applications where repeated cycling between deformed and recovered states is required, such as in medical stents and automotive actuators.

Exceptional Mechanical Properties of Nitinol Rod

Nitinol rod exhibits extraordinary mechanical properties that distinguish it from conventional materials. The superelastic behavior allows nitinol rod to undergo substantial deformation and return to its original shape upon stress removal. This property is particularly valuable in applications where traditional materials would fail due to fatigue or permanent deformation. The ultimate tensile strength of nitinol rod varies depending on the specific grade and processing conditions. Superelastic nitinol rod typically demonstrates tensile strengths ranging from 1103 to 1378 MPa, with elongation percentages exceeding 10%. This combination of high strength and exceptional flexibility makes nitinol rod ideal for demanding applications in aerospace, medical, and industrial sectors.

• Temperature-Dependent Behavior

The transformation temperature (Af) of nitinol rod determines its behavior at different operating conditions. Standard nitinol rod grades exhibit Af temperatures ranging from -20°C to 100°C, allowing for precise tuning of performance characteristics based on specific application requirements. Superelastic NiTi alloys have lower transition temperatures, typically between -20°C and 22°C, making them ideal for medical devices requiring flexibility at body temperature. Low-temperature superelastic nitinol rod variants maintain their superelastic properties even in extreme cold conditions, expanding their applicability to arctic environments and specialized industrial processes. This temperature stability ensures consistent performance across diverse operating conditions, making nitinol rod a reliable choice for critical applications.

Medical Applications of Nitinol Rod

The medical industry has embraced nitinol rod technology for its exceptional biocompatibility and unique mechanical properties. XOT metals manufactures nitinol rod from various grades of nickel titanium alloy commonly used in medical applications, demonstrating the widespread adoption of this material in healthcare applications. Cardiovascular applications represent one of the most significant uses of nitinol rod in medicine. Self-expanding stents manufactured from nitinol rod provide life-saving treatment for blocked arteries. The superelastic properties allow these devices to be compressed for insertion through small catheter systems and then expand to their predetermined shape once positioned, providing optimal support for blood vessel walls.

• Orthopedic and Dental Applications

Because nitinol memory metal can be chilled, contoured, and then heated to return to its precontoured shape, it has many potential applications for reducing fractures and correcting deformities. Orthopedic surgeons utilize nitinol rod in spinal fusion systems, bone plates, and corrective devices where the shape memory effect provides continuous corrective forces. Orthodontic applications benefit significantly from nitinol rod's unique properties. Dental braces incorporating nitinol rod components apply consistent, gentle forces for tooth movement while accommodating patient comfort. The superelastic behavior ensures that optimal forces are maintained throughout the treatment period, reducing the need for frequent adjustments.

Industrial and Aerospace Applications

Beyond medical applications, nitinol rod has found extensive use in industrial and aerospace sectors. Key applications include surgical instruments, deployable aerospace structures, and high-performance couplings, showcasing the material's versatility across diverse industries. Aerospace applications leverage nitinol rod's ability to function reliably in extreme temperature environments. Deployable antenna systems, landing gear components, and thermal management systems benefit from the predictable shape memory behavior and exceptional fatigue resistance of nitinol rod. These applications often require materials that can withstand thousands of actuation cycles while maintaining precise dimensional stability.

• Automotive and Consumer Applications

The automotive industry has integrated nitinol rod technology into various systems requiring reliable actuation and control. Climate control systems, safety mechanisms, and engine components utilize nitinol rod's temperature-responsive behavior for automatic operation without external power sources. This self-actuating capability reduces system complexity while improving reliability. Consumer applications of nitinol rod continue to expand as manufacturing costs decrease and processing techniques improve. Nitinol rods can be used in cell phone antennas, children's toys, experimental materials, eyeglasses components, demonstrating the material's versatility in everyday products. These applications benefit from nitinol rod's durability, corrosion resistance, and unique mechanical properties.

Processing and Manufacturing Considerations

Manufacturing high-quality nitinol rod requires sophisticated processing techniques and precise control of composition and thermal treatment. The melting and casting processes must maintain strict atmospheric control to prevent contamination that could adversely affect the material's properties. Vacuum induction melting followed by controlled cooling ensures optimal microstructure development. Cold working processes, including rolling and drawing, can significantly influence the final properties of nitinol rod. These mechanical processing steps must be carefully controlled to achieve the desired crystallographic texture and mechanical properties. Subsequent heat treatment operations fine-tune the transformation temperatures and optimize the shape memory characteristics.

• Quality Control and Testing

Rigorous quality control measures ensure that nitinol rod meets stringent performance requirements. Differential scanning calorimetry (DSC) testing determines precise transformation temperatures, while mechanical testing validates tensile strength, elongation, and superelastic behavior. These testing protocols ensure consistent performance across production batches. Surface treatment options for nitinol rod include polishing, pickling, and specialized coatings depending on the intended application. Medical-grade nitinol rod often requires electropolishing to achieve optimal surface finish and biocompatibility, while industrial applications may utilize different surface treatments to enhance corrosion resistance or improve bonding characteristics.

Future Developments and Innovations

Research and development efforts continue to expand the capabilities and applications of nitinol rod technology. Advanced processing techniques are being developed to create gradient properties within individual rods, enabling optimized performance for specific applications. These innovations allow for tailored mechanical properties along the length of nitinol rod components. Additive manufacturing technologies are opening new possibilities for nitinol rod applications. Three-dimensional printing of nitinol components enables complex geometries and integrated functionality that would be impossible with traditional manufacturing methods. These advances are particularly promising for customized medical implants and specialized industrial components.

Conclusion

Nitinol rod technology represents a paradigm shift in materials science, offering unique properties that enable innovative solutions across multiple industries. The combination of shape memory effect, superelasticity, and biocompatibility makes nitinol rod an invaluable material for applications ranging from life-saving medical devices to precision industrial equipment.

Cooperate with Baoji Hanz Metal Material Co., Ltd.

As a leading China nitinol rod manufacturer with 7 years of expertise in Nitinol Shape Memory Alloy and Superelastic Nitinol Alloy, Baoji Hanz Metal Material Co., Ltd. offers comprehensive solutions for your nitinol rod requirements. Our sophisticated production and processing equipment, combined with excellent technology and professional sales support, ensures highest quality products meeting ISO9001, SGS, and TUV standards.

Our company specializes in high-quality nitinol rod manufacturing with competitive advantages including direct supply cost savings and fast delivery from extensive standard size inventory. As a trusted China nitinol rod supplier and China nitinol rod wholesale provider, we offer nitinol rod for sale at competitive nitinol rod prices. Our high quality nitinol rod products serve global markets in medical, industrial, fishing, and construction applications. Contact our China nitinol rod factory today at baojihanz-niti@hanztech.cn for immediate quotations and technical consultations.

FAQ

Q: What is the typical composition ratio of nitinol rod?

A: Standard nitinol rod contains approximately 55-56% nickel and 44-45% titanium, with precise composition critical for optimal properties.

Q: What temperature range can nitinol rod operate effectively?

A: Nitinol rod can function across temperatures from -20°C to 100°C, with specific grades optimized for different temperature ranges.

Q: What are the main applications of nitinol rod in medical devices?

A: Primary medical applications include cardiovascular stents, orthodontic wires, surgical instruments, and spinal correction systems.

Q: How does nitinol rod compare to traditional materials in terms of fatigue resistance?

A: Nitinol rod demonstrates exceptional fatigue resistance, often exceeding millions of cycles while maintaining shape memory and superelastic properties.

References

1. Duerig, T.W., Melton, K.N., Stöckel, D., and Wayman, C.M. "Engineering Aspects of Shape Memory Alloys" - Butterworth-Heinemann Publishers

2. Otsuka, K. and Wayman, C.M. "Shape Memory Materials" - Cambridge University Press

3. Lagoudas, D.C. "Shape Memory Alloys: Modeling and Engineering Applications" - Springer Science & Business Media

4. Miyazaki, S. and Otsuka, K. "Medical and Dental Applications of Shape Memory Alloys" - Materials Science Foundation
