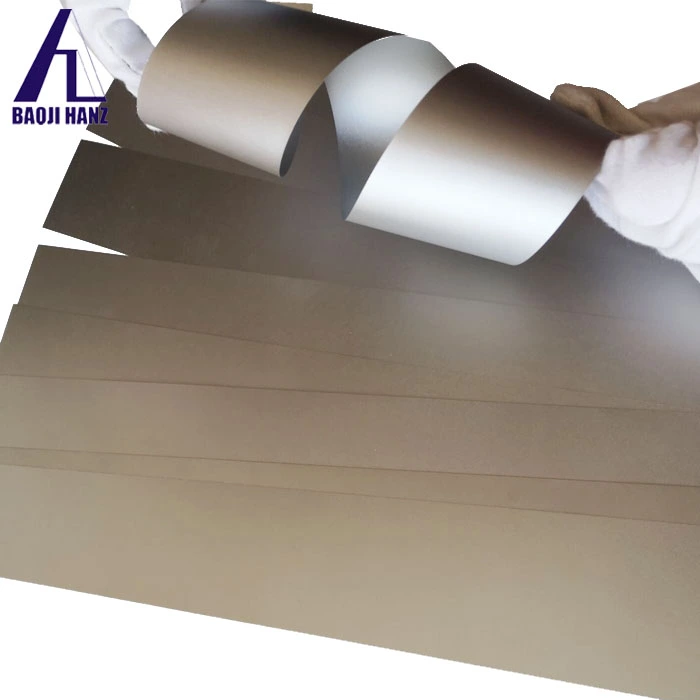

Nitinol Sheets for Shape Setting Medical

Medical device manufacturers face a critical challenge when developing implants and surgical instruments that must maintain precise geometries under extreme physiological conditions. Traditional materials often fail when subjected to body temperature variations, mechanical stress, and the need for complex three-dimensional shapes. This is where nitinol sheet technology emerges as the revolutionary solution, offering unprecedented shape memory capabilities and superelastic properties specifically engineered for medical applications. Understanding how to properly utilize nitinol sheet for shape setting medical devices can transform your product development process, ensuring superior patient outcomes and regulatory compliance while reducing manufacturing complexities.

Understanding Nitinol Sheet Properties for Medical Applications

• Shape Memory and Superelastic Characteristics

Shape setting (or training) is accomplished by constraining the nitinol element on a mandrel or fixture of the desired shape and applying an appropriate heat treatment, making nitinol sheet an ideal substrate for complex medical device manufacturing. The fundamental properties of nitinol sheet stem from its unique crystalline structure, which allows the material to exist in two distinct phases: martensite at lower temperatures and austenite at higher temperatures. This phase transformation is what gives nitinol sheet its remarkable ability to remember predetermined shapes and return to them when heated above the transformation temperature. Medical-grade nitinol sheet manufactured according to ASTM F2063 standards typically contains 54.7-57% nickel with the balance being titanium. This precise composition ensures optimal biocompatibility while maintaining the essential shape memory and superelastic properties required for medical applications. The Af (austenite finish) temperature range of -10°C to 100°C allows manufacturers to customize the activation temperature based on specific medical device requirements, whether for room temperature superelasticity or body temperature shape recovery.

• Mechanical Properties and Performance Standards

The mechanical properties of nitinol sheet make it exceptionally suitable for medical applications requiring high durability and flexibility. With an ultimate tensile strength exceeding 500 MPa and elongation capabilities reaching 10% or more, nitinol sheet can withstand the demanding mechanical requirements of implantable devices and surgical instruments. The material's elastic modulus is significantly lower than stainless steel, approximately 28-83 GPa compared to steel's 200 GPa, providing enhanced flexibility and reduced stress concentration in biological tissues. When the Af temperature is set between -10°C and 20°C, the nitinol sheet exhibits superelastic behavior at room temperature, allowing it to undergo significant deformation and fully recover its original shape upon stress removal. This characteristic is particularly valuable for medical devices that must navigate tortuous anatomical pathways during insertion procedures. Conversely, when the Af temperature is set above 45°C, the nitinol sheet demonstrates shape memory behavior, remaining soft and deformable at room temperature but recovering its programmed shape when exposed to body temperature.

Shape Setting Processes and Technical Specifications

• Heat Treatment and Constraint Methods

The shape setting process for nitinol sheet requires precise control of temperature, time, and constraint conditions to achieve the desired medical device geometry. The material is first formed into the required shape using appropriate tooling or mandrels, then subjected to controlled heat treatment typically ranging from 400°C to 550°C depending on the desired transformation temperature and mechanical properties. The duration of heat treatment varies from several minutes to hours, with shorter times generally producing higher transformation temperatures and different mechanical characteristics. During the shape setting process, the nitinol sheet must remain completely constrained in the desired configuration to prevent any unwanted deformation. This is typically achieved using specialized fixtures made from materials that can withstand the heat treatment temperatures without contaminating the nitinol sheet surface. The cooling rate after heat treatment also influences the final properties, with controlled cooling often preferred to achieve consistent transformation temperatures and minimize internal stresses.

• Quality Control and Testing Procedures

Medical device manufacturers utilizing nitinol sheet must implement comprehensive quality control procedures to ensure consistent performance and regulatory compliance. Differential Scanning Calorimetry (DSC) testing is essential for determining the precise transformation temperatures, while tensile testing validates the mechanical properties including ultimate tensile strength, elongation, and elastic modulus. Fatigue testing is particularly important for medical devices that will experience cyclic loading conditions in the human body. Surface quality of nitinol sheet is critical for medical applications, requiring careful control of oxide layers and surface contamination. Electrochemical testing evaluates corrosion resistance in simulated body fluids, while biocompatibility testing ensures the material meets ISO 10993 standards for biological evaluation of medical devices. Regular verification of these properties throughout the manufacturing process ensures that the final medical devices will perform reliably throughout their intended service life.

Medical Device Applications and Design Considerations

• Cardiovascular and Endovascular Devices

Many complex medical device components are first cut from a flat pattern on a nitinol sheet and then formed into a unique, 3-dimensional shape, making this approach particularly valuable for cardiovascular applications. Nitinol sheet serves as the foundation for manufacturing stents, stent grafts, and other endovascular devices that must expand to precise diameters when deployed in blood vessels. The two-dimensional nature of nitinol sheet allows manufacturers to create intricate cutting patterns that, when formed and shape-set, result in complex three-dimensional structures optimized for specific anatomical locations. The superelastic properties of nitinol sheet enable cardiovascular devices to maintain consistent radial force while accommodating the natural movement and pulsation of blood vessels. This characteristic reduces the risk of device migration and ensures long-term patency of treated vessels. The biocompatibility of nitinol sheet, combined with its excellent fatigue resistance, makes it ideal for devices that must withstand millions of cardiac cycles without failure. Shape setting allows these devices to be manufactured in a compact delivery configuration and expand to their functional geometry upon deployment at body temperature.

• Orthopedic and Surgical Instruments

In orthopedic applications, nitinol sheet provides unique advantages for manufacturing implants and surgical instruments that must adapt to complex anatomical geometries. Shape memory characteristics enable the creation of self-expanding implants that can be inserted in a compact configuration and assume their functional shape when exposed to body temperature. This approach minimizes surgical trauma while ensuring optimal fit and function of the implanted device. Surgical instruments manufactured from nitinol sheet benefit from the material's superelastic properties, which provide enhanced tactile feedback and reduced risk of permanent deformation during use. The ability to shape-set complex curves and angles allows manufacturers to create specialized instruments optimized for minimally invasive procedures. The corrosion resistance and biocompatibility of nitinol sheet ensure that these instruments maintain their performance characteristics through repeated sterilization cycles while meeting stringent regulatory requirements for medical device materials.

Manufacturing Excellence and Quality Assurance

• Production Capabilities and Standards Compliance

Professional nitinol sheet manufacturing requires sophisticated production equipment and rigorous quality control systems to meet the demanding requirements of medical device applications. Modern manufacturing facilities utilize advanced melting techniques, including vacuum induction melting and vacuum arc remelting, to ensure consistent composition and purity of the nitinol alloy. Hot and cold rolling processes are carefully controlled to achieve the required thickness uniformity and mechanical properties across the entire nitinol sheet. Quality assurance begins with incoming raw material inspection and continues through every stage of production. Chemical analysis verifies the precise nickel and titanium content, while mechanical testing ensures that strength, elongation, and transformation temperatures meet specification requirements. Surface quality inspection identifies any defects that could compromise the performance of medical devices manufactured from the nitinol sheet. ISO 9001:2008 certification provides the framework for comprehensive quality management systems that ensure consistent product quality and traceability.

• Customization and Technical Support

The diverse requirements of medical device manufacturers necessitate extensive customization capabilities for nitinol sheet products. Standard dimensions may include thicknesses from 0.1mm minimum with width and length options ranging from 100mm x 100mm minimum to 300mm x 800mm maximum, though custom dimensions are readily available to meet specific application requirements. The Af temperature range can be precisely controlled from -10°C to 100°C, allowing manufacturers to optimize the transformation behavior for their particular medical device application. Technical support throughout the design and manufacturing process is essential for successful implementation of nitinol sheet in medical devices. This includes assistance with shape setting parameter development, mechanical property optimization, and regulatory compliance documentation. Experienced engineers can provide guidance on tooling design, heat treatment procedures, and quality testing protocols to ensure optimal performance of the final medical device. Material certifications and traceability documentation support regulatory submissions and quality audits required for medical device manufacturing.

Advanced Applications and Future Developments

• Emerging Medical Technologies

The unique properties of nitinol sheet continue to enable breakthrough innovations in medical device technology. Advanced applications include smart implants that can adjust their configuration based on physiological conditions, drug delivery systems that utilize shape memory activation, and minimally invasive surgical tools with enhanced functionality. These applications leverage the programmable nature of nitinol sheet to create devices that respond intelligently to their biological environment. Research and development efforts focus on expanding the capabilities of nitinol sheet through advanced processing techniques and alloy modifications. Surface treatments and coatings can enhance biocompatibility and drug delivery capabilities, while precision manufacturing techniques enable increasingly complex geometries and tighter dimensional tolerances. The integration of nitinol sheet with other advanced materials creates hybrid devices that combine multiple functional properties for enhanced medical performance.

• Regulatory Considerations and Validation

Medical device manufacturers utilizing nitinol sheet must navigate complex regulatory requirements to ensure patient safety and product efficacy. This includes comprehensive biocompatibility testing according to ISO 10993 standards, mechanical testing validation, and clinical evaluation protocols. The unique properties of nitinol sheet require specialized testing methods that may not be applicable to traditional medical device materials, necessitating close collaboration with regulatory experts and testing laboratories. Documentation requirements for nitinol sheet medical devices include detailed material specifications, manufacturing process validation, and performance characterization data. Traceability systems must track the nitinol sheet from raw material through final device manufacturing, ensuring that any quality issues can be quickly identified and addressed. Post-market surveillance programs monitor device performance and identify opportunities for continuous improvement in nitinol sheet applications.

Conclusion

Nitinol sheet technology represents a transformative solution for medical device manufacturers seeking advanced materials with unique shape memory and superelastic properties. The combination of precise shape setting capabilities, exceptional mechanical performance, and proven biocompatibility makes nitinol sheet an essential component for next-generation medical devices across cardiovascular, orthopedic, and surgical instrument applications.
