Nitinol Wire: Properties, Applications & Processing

Industrial nitinol wire is a big step forward in advanced functional alloys. It is made up of about 55% nickel and 45% titanium, which gives it two amazing thermomechanical properties: the ability to remember its shape and be very flexible. This nickel-titanium alloy is different from regular metal lines because it can change shape significantly (up to 8% strain) and then return to its original shape by either being unloaded or heated. This material provides a solution to ongoing challenges in demanding settings where conventional stainless steel or titanium options fall short for technical procurement experts looking for high-performance materials. The alloy can "remember" a set shape and recover from extreme bending without permanently changing shape. This makes it an essential material for aerospace actuators, robotics parts, and precision automation systems, where dependability and longevity have a direct effect on costs and product performance.



Understanding Industrial Nitinol Wire: Composition and Key Properties The Science Behind Nickel-Titanium Alloy Behavior

Nickel-titanium shape memory alloy has a unique property that comes from being able to change between two solid-state phases: martensite (low temperature, soft phase) and austenite (high temperature, stiff phase). When we bend the wire while it is in its martensitic state, the metal changes its internal structure instead of becoming forever deformed like most metals do. When heated past its transformation temperature, which is called the austenite finish (Af) point, the wire changes to its austenitic phase and returns to its trained shape while producing measured force.

ASTM F2063 industrial nitinol wire usually has a density of 6.45 g/cm³ and can be transformed at temperatures range from 0°C to 100°C. Because of this, engineers can change how wires respond to different working conditions. Whether the wire is superelastic at room temperature or needs to be heated up to restore its shape is directly related to the transformation temperature.

Mechanical Performance Characteristics

The compressive strength of superelastic nickel-titanium alloy is between 800 and 1500 MPa, and its elastic strain capacity is over 8%, which is about ten times that of stainless steel 316L. This one-of-a-kind mix solves a basic problem with materials: it makes them very flexible without lowering their mechanical strength.

Another important benefit is that it doesn't rust or corrode. The surface is high in titanium, so it naturally makes a solid layer of titanium oxide. This layer is very resistant to chloride environments, salt spray, and chemical exposure that is common in industrial settings. This passive layer heals itself naturally after surface damage, which increases the life of components and lowers the number of times they need to be serviced in tough working conditions.

Phase Transformation and Heat Treatment Fundamentals

The process of heat treatment is what sets the wire's "memory." During production, the wire is heated under pressure at temperatures usually between 400°C and 550°C while being held in the end shape that is wanted. This heating process sets the austenitic crystal structure, which tells the material what shape it will return to when it is heated again.

The functional behavior is set by the transformation temperature range, which is made up of four key points: Ms, Mf, As, and Af. Materials engineers choose Af temperatures based on the needs of the application. Lower Af values (below working temperature) make the material behave like a superelastic spring, while higher Af values (above operating temperature) make the material change shape when heated. Suppliers can supply wire with transformation temperatures that are exact to within ±5°C because they have precise control over the composition and heat treatment settings. This makes sure that all production batches perform the same.

Industrial Nitinol Wire Applications Across Key Industries

Aerospace and Defense Components

Shape memory wire's high power-to-weight ratio makes industrial nitinol wire useful in aerospace uses for actuation systems where standard servo motors are too heavy. The alloy's ability to produce a large recovery force (up to 700 MPa) and a failure life reaching 10 million cycles under controlled strain conditions makes it useful for wing flap actuators, variable shape nozzles, and deployment mechanisms.

Temperature adjustment devices are another important use case in flight. The alloy's predictable phase change makes it possible for passive thermal management systems to adjust the shape of parts automatically in reaction to changes in temperature. This gets rid of the need for complicated electronic control systems in places with limited room.

Robotics and Automation Systems

Nickel-titanium wire actuators are becoming more and more important in soft robots because they allow biomimetic motion patterns that can't be achieved with regular gas or electric drives. The wire can be moved smoothly and quietly, and it is naturally flexible, which lets it be used for delicate gripping jobs and adjustable force control without the need for complex sensor feedback loops.

Precision placement stages use the uniform load-deflection properties of superelastic wire to keep things lined up even when they are vibrating or changing temperatures. Nitinol parts that are properly designed don't show hysteresis or creep like steel springs do. Instead, they maintain repeatable positional accuracy over long periods of operation, which cuts down on the need for calibration and downtime.

Oil and Gas Industry Applications

Shape memory parts are used in downhole tools that work at high temperatures and pressures to make sure that valves work properly and that trash doesn't get stuck. The material is more resistant to corrosion than most metals in sour gas settings with H2S and CO2. This means that it doesn't need to be serviced as often and costs less to fix.

Vibration damping systems with superelastic wire strands protect delicate instruments during drilling by absorbing shock loads. The material's stress-strain hysteresis loop tells us that it can absorb energy. This energy is then released as heat, acting as an inactive filter that doesn't need to be maintained or fluid replaced.

Processing and Heat Treatment of Industrial Nitinol Wire

Manufacturing and Surface Finishing Techniques

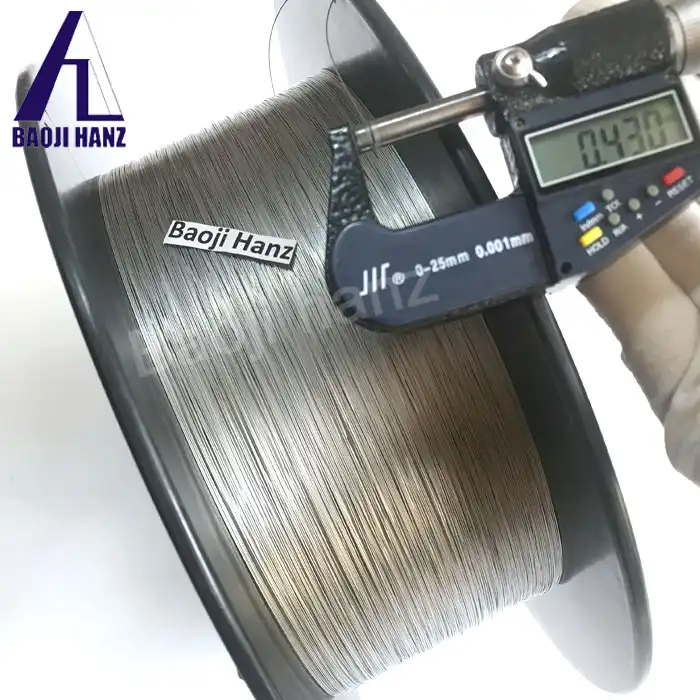

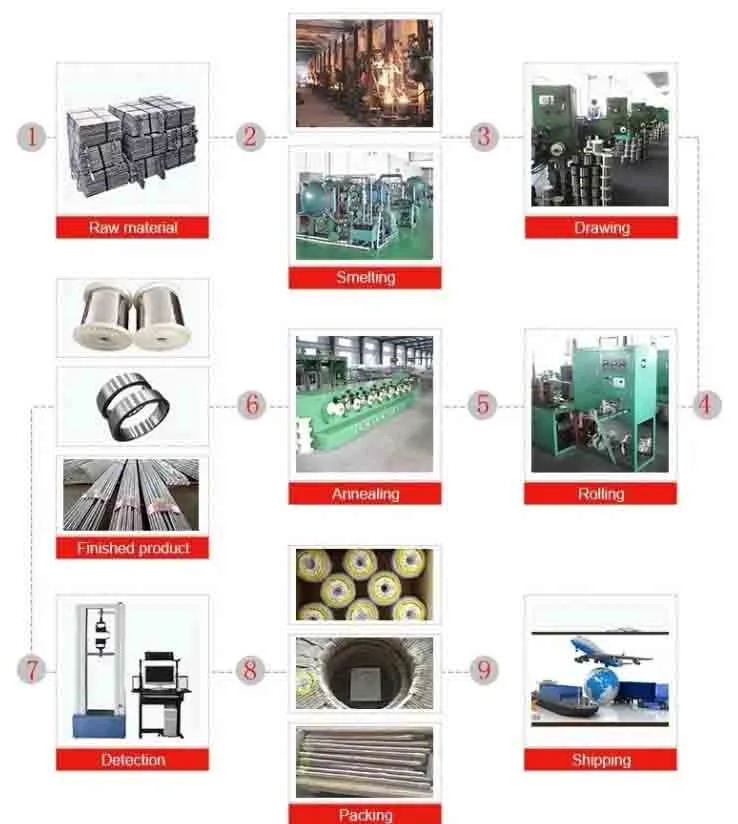

The first step in production is vacuum arc remelting of high-purity nickel and titanium feedstock. This makes sure that the makeup is uniform and that there aren't many inclusions that could act as places where wear cracks start. First, the ingot is heated and then slowly pushed through tungsten carbide dies to get it to the right diameter, which can be anywhere from 0.05 mm to 4.0 mm with ±0.01 mm or ±0.02 mm of error.

The surface finish has a big effect on how well it works and how long it lasts. There are three basic surface states that are used for different purposes:

Bright finish the drawing process gives a bright finish with a smooth metal surface that can be used in places where the surface roughness is more than 0.4 μm Ra. In this case, buying in bulk is the most cost-effective choice.

Pickled finish chemical etching in mixed acid solutions (usually HF-HNO3) removes the work-hardened surface layer and draw scale, giving the metal a pickled finish. This process gets rid of small cracks on the surface and reveals new material, which makes the wear performance 20–30% better than with as-drawn wire.

Oxide finish uses controlled heat treatment in normal air conditions to make a thin layer of titanium oxide that can be gold to dark gray, based on the temperature and time used. This layer is mostly for looks, but it also protects against rust and can show if the heat treatment was done the same way on all production lots.

Shape Setting and Memory Programming

To set the shape of industrial nitinol wire, you need to carefully control the temperature and set up the wire's taught setup. Fixtures made of ceramic or graphite that can handle high processing temperatures and not damage the metal surface hold the wire in the end shape that is wanted. Heating to 450–500°C for 5–30 minutes is a common way to set the shape of something. The exact steps are changed depending on the thickness of the wire and the temperature change that is wanted.

The end transformation temperatures and mechanical features are affected by the rate at which the material cools down after being heated. When quenched quickly in water, the transformation temperatures are lower and the transition range is wider. On the other hand, when the furnace cools more slowly, the transformation temperatures rise and the transition range becomes wider. Manufacturers can fine-tune how this parameter affects the material's reaction to certain working situations.

Quality Assurance and Testing Standards

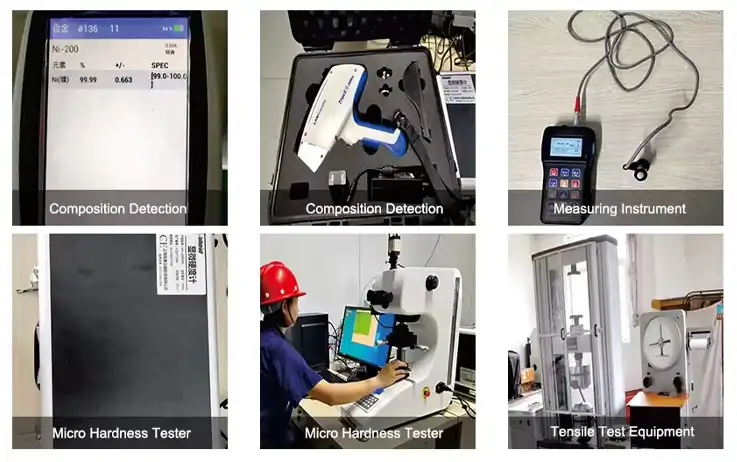

Tough quality control makes sure that each batch is the same, which is important for planning production. Differential Scanning Calorimetry (DSC) according to ASTM F2004 checks the transformation temperatures on sample sets from each production lot to make sure that the Af values are within the ranges that were set. This thermal study gives the exact reading for whether incoming material should be accepted or rejected.

Tensile testing according to ASTM F2516 is part of mechanical testing procedures. This is done to confirm the ultimate tensile strength, elongation, and higher plateau stress values. Bend and free recovery tests according to ASTM F2082 shows that the wire recovers its shape completely after being bent. This proves that the heat treatment methods worked.

According to ASTM E45 standards, the inclusion grade counts non-metallic particles (mostly titanium carbides and oxides) that hurt the wear performance. High-quality industrial nitinol wire has inclusion grades of Series A and B Thin, which means it has the best fatigue resistance for uses that load it over and over again.

Comparing Industrial Nitinol Wire with Other Common Wires

Nitinol versus Stainless Steel Wire

In industrial wire uses, stainless steel 316L is the most popular alternative. While steel is cheaper and easier to work with, its elastic strain limit of about 0.8% means that it can only be permanently deformed under loads that superelastic industrial nitinol wire can easily rebound from. Steel wire kinks and breaks down over time in situations that need tight bending arcs or repeated stretching cycles, but nitinol stays structurally sound.

When comparing corrosion protection, nitinol does better in chloride and marine settings, while stainless steel does fine in most other circumstances. Because nitinol is usually 8–15 times more expensive, the total cost of ownership, which includes how often it needs to be replaced and how much upkeep it needs, needs to be carefully looked at. Even though it costs more at first, nitinol is often more cost-effective for projects that need to last a long time.

Nitinol versus Titanium and Copper Alloys

Pure titanium wire is very resistant to rust and is biocompatible, but it doesn't remember its shape like industrial nitinol wire. Its 110 GPa elastic stiffness limits the range of bending, and work hardening during making leaves behind stresses that make the part less reliable. Titanium is good for building structures that don't move, but it can't match the dynamic performance of nitinol when it comes to moving parts or dampening.

Copper-beryllium and phosphor bronze metals are better at conducting electricity than nitinol (40–50% IACS vs. <4% for nitinol), which makes them better for uses that need to send current. However, these materials break down quickly when loaded and unloaded many times, and they can't fight corrosion in harsh settings. Which material to use depends on whether the needs are for electrical conductivity or mechanical performance.

Industrial versus Medical-Grade Specifications

Medical-grade nitinol that meets ASTM F2063 Type 1 needs extra approval, such as biocompatibility testing according to ISO 10993 series and tighter inclusion limits. The base makeup of industrial-grade material is the same, but biological testing is not done on it. This cuts costs by 20–30% for uses that are not implantable.

Different types of surfaces need different finishes. For example, medical devices need electropolished surfaces with Ra values below 0.1 μm to keep thrombogenicity to a minimum, while rougher finishes are fine for industrial uses. Knowing these differences helps you avoid over-specification and cost increases that aren't necessary when planning a purchase.

Procuring Industrial Nitinol Wire: Market Overview and Buyer Guidance

Evaluating Supplier Capabilities and Reliability

To find a high-performance industrial nitinol wire provider, you need to do more than just compare prices. Some signs of production capacity are the number of wire drawing machines, the ability to melt metal in-house, and the facilities for heat treatment. When suppliers only use third-party processing, they add more doubt and variation to the supply chain in terms of wait times.

Traders of commodities are different from partners who add value because they don't offer technical help. Look for providers who can help with application engineering, change the transformation temperature, and provide material approval paperwork that includes DSC curves, tensile test data, and chemical composition analysis. During the design improvement and troubleshooting steps, these services are very helpful.

Quality management system standards, at least ISO 9001, give you a basic guarantee that you can control and track the process. Suppliers who work with controlled industries usually have stricter systems in place, such as statistical process control (SPC) and first article inspection (FAI) procedures, which are good for all customers because they make things more consistent.

Understanding Pricing Factors and Order Parameters

The price of industrial nitinol wire materials changes depending on the nickel market, the thickness of the wire, the surface finish needed, and the number of orders. Smaller diameters (less than 0.5 mm) are more expensive because they are harder to handle and have higher failure rates. Custom transformation temperatures usually add 10 to 15 percent to the price of normal stock materials because they require more setup and testing for the heat process.

Minimum order amounts keep the costs of production fair for both the buyer and the seller. The minimum order quantity (MOQ) is usually set at 1 kg for stock items or 500 meters for special sizes and AF temperatures. Prices usually go down at 5 kg, 25 kg, and 100 kg amounts, with discounts running from 8 to 20% based on how complicated the specifications are.

Delivery formats include spooled coils for automatic feeding and cut-to-length straight wire pieces for human assembly. Putting things in vacuum-sealed bags with desiccant stops the surface from oxidizing while they are being stored or shipped. This is especially important for pickled-finish materials that can change color when they come into contact with water.

Logistics and Import Considerations

Lead times change a lot depending on the needs of the design and the supplier's stock levels. Standard Af ranges and stock widths that are superelastic ship within 1-2 weeks. Custom transformation temperatures or special surface finishes add 4–8 weeks to the shipping time to allow for scheduling of the heat treatment and testing confirmation.

When you buy something from another country, you have to think about things like customs classification, import taxes, and the paperwork that you need to send. In most places, nickel-titanium alloy is classified under HTS code 7508.90.00. The tax rates depend on the country of origin and the country of arrival. Suppliers who know how to ship goods give business invoices, packing lists, and material certifications that are set up in a way that makes clearing customs and getting inspections easier.

Shipping method choice matches the time it takes to deliver items with the cost of freight. Even though it costs an extra $8 to $15 per kilogram, air express is good for prototypes and pressing production needs. For bulk sales over 50 kg, sea freight is the most cost-effective option. Transit times vary from 3 to 6 weeks, based on the starting and target ports. For big projects, experienced sellers say that split packages are best. For example, air freight for the first production run and sea freight for restocking are the best ways to keep cash flow and inventory levels in check.

Conclusion

When choosing industrial nitinol wire, you have to weigh the technical performance needs against business factors like material cost, source trustworthiness, and the logistics of the supply chain. The alloy's unique mix of shape memory effect, superelasticity, and corrosion resistance makes it useful in situations where regular materials can't meet performance, upkeep, or lifetime goals. By taking the time to learn about transformation temperature choices, surface finish effects, and the basics of heat treatment, procurement professionals can help their companies get the most out of this advanced functional alloy's capabilities while avoiding common specification mistakes that drive up costs or damage reliability.

FAQ

Which industries benefit most from nickel-titanium shape memory alloy wire?

Nickel-titanium shape memory metal wire is most useful in what fields? The aerospace, robots, oil and gas, and automation industries all get a lot of value from this material's ability to fight fatigue and generate force. When compared to regular wire materials, these ones offer better performance and lower total cost of ownership in situations where they are bent over and over again, when temperature triggers action, or in tough chemical environments.

How does heat treatment affect transformation temperature and mechanical properties?

The temperature and length of the heat treatment directly affect the austenite finish (Af) temperature of the material. This temperature decides whether the wire is superelastic or needs to be heated up to recover its shape. Higher working temperatures usually lead to higher transformation temperatures, which can lower the final tensile strength by 5 to 10%. When these factors are precisely controlled, providers can send wire that works best in certain situations.

What factors most significantly influence industrial nitinol wire pricing?

The main things that affect the price of industrial nitinol wire are the amount of nickel in the raw material, the thickness of the wire, the customized transformation temperature, the surface finish needs, and the order number. Prices are higher for smaller diameters and special Af specifications, but savings are common when you agree to buying more than 25 kg. Lead time flexibility also affects prices, with 15-20% extra charges for faster orders because they cause plan problems.

Partner with HANZ for Your Industrial Nitinol Wire Needs

We at Baoji Hanz Metal Material Co., Ltd. have spent seven years perfecting the art of making industrial nitinol wire that fits your exact needs. Our whole production process, from vacuum arc melting to the final heat treatment, makes sure that each batch is of the same high quality and that there are no third-party processing factors that could affect how well the material works. We offer nickel-titanium alloy wire that meets ASTM F2063 standards. The widths range from 0.05 mm to 4.0 mm, and the transformation temperatures can be set anywhere from 0°C to 100°C. We also offer tolerances of ±0.01 mm. If you need superelastic wire for robotics actuators or shape memory versions of wire for aircraft parts, our expert team can help you choose the best material for your needs through application engineering. We are a direct producer of industrial nitinol wire and have ISO 9001, SGS, and TUV certifications. We offer reasonable prices, adjustable MOQs starting at 1 kg, and shipping around the world by air or sea. Get in touch with our team at baojihanz-niti@hanztech.cn for full details, personalized prices, and sample requests. Let's talk about how our nickel-titanium alloy options can improve the performance of your product and lower its long-term costs.
