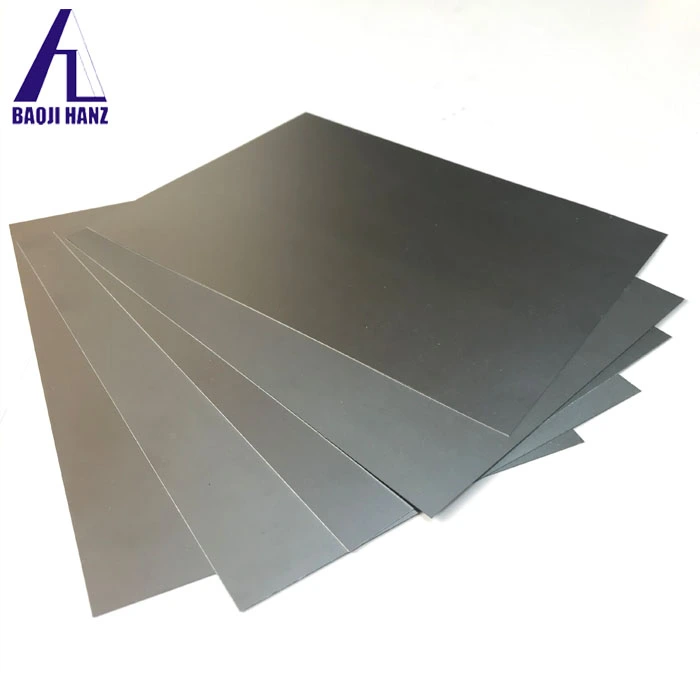

OEM Guide: Custom 0.1mm nitinol memory sheet Solutions

When designing precision medical devices or micro-actuators, engineers frequently encounter a critical challenge: sourcing ultra-thin shape memory alloys that can withstand repeated deformation cycles while maintaining dimensional accuracy. The 0.1mm nitinol memory sheet represents a breakthrough solution for applications requiring minimal thickness combined with exceptional shape recovery properties. This comprehensive OEM guide addresses the technical specifications, customization processes, and supplier selection criteria essential for integrating custom 0.1mm nitinol memory sheet solutions into your production workflow, ensuring optimal performance across medical, electronics, and industrial applications.

Understanding 0.1mm Nitinol Memory Sheet Material Properties

The 0.1mm nitinol memory sheet is manufactured from nickel-titanium alloy, an isoelectronic binary alloy composed of approximately 55% nickel content and titanium, creating a material with extraordinary functional characteristics. This specific thickness represents one of the thinnest commercially viable formats for nitinol shape memory applications, offering a density of 6.45g/cm³ that provides an optimal strength-to-weight ratio for precision engineering. The material exhibits two fundamental properties that distinguish it from conventional metal alloys: the shape memory effect, which enables the sheet to return to its predetermined shape when heated above its austenite finish temperature, and superelasticity, allowing the material to undergo significant reversible deformation of up to 8% strain without permanent deformation. The austenite finish temperature range for custom 0.1mm nitinol memory sheet typically spans from -20℃ to 100℃, with many standard applications utilizing room temperature transformation ranges between 0℃ and 15℃. This temperature versatility allows engineers to select the appropriate AF temperature based on their specific application environment. The mechanical polishing surface treatment applied to the 0.1mm nitinol memory sheet ensures consistent surface quality, eliminating micro-defects that could compromise fatigue life in cyclic loading applications. The biocompatible and corrosion-resistant nature of this nitinol alloy makes it particularly valuable for medical device manufacturers who require materials that can withstand sterilization procedures and maintain performance in physiological environments.

Critical Performance Characteristics

When evaluating 0.1mm nitinol memory sheet for OEM applications, understanding the material's performance envelope proves essential for design optimization. The sheet demonstrates high fatigue strength despite its minimal thickness, withstanding millions of transformation cycles when properly annealed and heat-treated to the application-specific requirements. The superelastic behavior manifests within a specific stress-strain window, typically between 400-600 MPa for the superelastic plateau, allowing designers to predict force-displacement characteristics with remarkable accuracy. The 0.1mm nitinol memory sheet can be machined into precision components through laser cutting, photochemical etching, or wire EDM processes, maintaining dimensional tolerances within ±0.01mm when proper manufacturing protocols are followed. The shape memory effect activation requires careful consideration of the thermal environment, as the material must be heated above its austenite finish temperature to complete the transformation from the deformed martensitic phase to the memorized austenitic shape. For shape memory nickel-titanium alloys used in actuators and industrial applications, annealing temperatures range between 20℃ and 100℃, while elastomeric nickel-titanium alloys designed for medical devices operate with critical recrystallization temperatures from -5℃ to 20℃. This distinction proves crucial when specifying custom 0.1mm nitinol memory sheet solutions, as the thermal processing determines the final functional properties and application suitability.

Custom Manufacturing and OEM Specification Process

Sourcing custom 0.1mm nitinol memory sheet solutions requires a structured approach to ensure the final product meets your exact design parameters. The customization process begins with defining the austenite finish temperature based on your application's operating environment, as this fundamental specification determines the thermal processing schedule and subsequent shape memory behavior. Manufacturers like Baoji Hanz Metal Material Co., Ltd. offer flexible customization with a minimum order quantity of just 5 pieces, making prototyping and small-batch production economically viable for development projects. The size specification for 0.1mm nitinol memory sheet can be tailored according to specific dimensional requirements, with manufacturers capable of producing sheets in various widths and lengths to minimize material waste and optimize your production processes. The OEM specification process should include detailed documentation of the required mechanical properties, including the transformation temperatures, stress-strain characteristics, and surface finish requirements. For medical applications utilizing 0.1mm nitinol memory sheet in stents, dental aligners, or surgical instruments, additional certifications regarding biocompatibility testing and compliance with international medical device standards may be necessary. Electronic applications such as temperature sensors and micro-actuators demand precise control over the transformation temperature hysteresis to ensure repeatable actuation cycles. Consumer goods applications including eyewear frames and smart wearable components benefit from the lightweight nature of the 0.1mm nitinol memory sheet while requiring aesthetic surface finishes that may necessitate additional polishing or coating processes.

Quality Control and Testing Protocols

Implementing rigorous quality control measures throughout the custom manufacturing process ensures that your 0.1mm nitinol memory sheet consistently meets specification. Differential scanning calorimetry testing verifies the transformation temperatures match the specified AF range, while tensile testing confirms the superelastic plateau characteristics and ultimate tensile strength values. Microstructural analysis through optical or electron microscopy validates the grain structure and phase composition, ensuring the material has been properly heat-treated to achieve the desired functional properties. Surface quality inspection using profilometry or visual examination confirms the mechanical polishing process has achieved the required surface finish without introducing defects that could serve as crack initiation sites during cyclic loading. Dimensional verification of custom 0.1mm nitinol memory sheet requires specialized measurement equipment capable of accurately assessing the thickness uniformity across the entire sheet area, as variations exceeding ±10% can significantly impact performance in precision applications. The shape memory recovery testing protocol should evaluate the material's ability to return to its programmed shape after deformation, measuring recovery percentages and residual strain to ensure compliance with application requirements. For high-reliability applications, fatigue testing of representative samples confirms the 0.1mm nitinol memory sheet can withstand the anticipated number of transformation or deformation cycles without functional degradation or mechanical failure.

Selecting the Right Supplier for 0.1mm Nitinol Memory Sheet

Choosing an appropriate China 0.1mm nitinol memory sheet manufacturer requires evaluation of several critical factors beyond simple price comparison. The supplier's experience with nitinol shape memory alloy production directly correlates with their ability to deliver consistent quality, as the thermal processing knowledge required to produce reliable functional properties develops through years of specialized manufacturing. A China 0.1mm nitinol memory sheet factory with comprehensive R&D capabilities can provide technical consultation during the design phase, helping optimize the material specification to achieve your performance objectives while minimizing production costs. The availability of advanced production and testing equipment indicates the supplier's commitment to quality control and their capacity to produce complex custom specifications. Certification compliance represents another essential selection criterion, as reputable suppliers maintain quality management systems aligned with ISO9001 standards and obtain third-party verification through SGS or TUV audits. These certifications provide assurance that the China 0.1mm nitinol memory sheet supplier follows documented procedures for material traceability, process control, and final inspection. For medical device applications, additional certifications demonstrating compliance with biocompatibility standards such as ISO 10993 or USP Class VI become mandatory requirements. The supplier's willingness to provide material test reports, including composition analysis, transformation temperature data, and mechanical property measurements, demonstrates transparency and technical competence.

Evaluating Technical Support and Service Capabilities

The value proposition of a China 0.1mm nitinol memory sheet wholesale supplier extends beyond the physical product to encompass the technical support services that facilitate successful integration into your manufacturing processes. Pre-sale support should include professional consultation on material selection, helping you determine whether elastomeric or shape memory variants of nitinol best suit your application requirements. Experienced technical staff can recommend appropriate AF temperature ranges based on your operating environment and provide guidance on secondary processing methods such as laser cutting, forming, or heat treatment to create finished components from the 0.1mm nitinol memory sheet stock material. Order tracking services ensure transparency throughout the manufacturing cycle, with proactive communication regarding production progress and anticipated delivery schedules. High-quality suppliers maintain production process monitoring documents for extended periods, typically five years or longer, enabling traceability for regulated industries and facilitating root cause analysis should any quality issues emerge during field deployment. After-sales support distinguishes exceptional suppliers, as they track product performance in your application, provide comprehensive industry solutions when challenges arise, and maintain responsiveness to technical questions throughout the product lifecycle. This ongoing relationship proves particularly valuable when scaling from prototype to production volumes, as the supplier's intimate knowledge of your specific 0.1mm nitinol memory sheet application enables proactive optimization recommendations.

Application Integration and Design Considerations

Successfully integrating 0.1mm nitinol memory sheet into product designs requires careful consideration of the material's unique characteristics and their interaction with application-specific requirements. In medical device applications, the biocompatible nature of nitinol enables direct tissue contact, while the superelasticity of the 0.1mm thickness allows stents to be compressed for catheter delivery and self-expand to their programmed diameter upon deployment. Dental aligner applications exploit the constant force delivery characteristics inherent to superelastic nitinol, with the 0.1mm nitinol memory sheet providing gentle, continuous tooth movement forces over extended treatment periods. Surgical instrument designs benefit from the material's ability to return to complex three-dimensional shapes after being deformed for minimally invasive insertion through small incisions. Electronics applications leverage the temperature-dependent transformation behavior of shape memory 0.1mm nitinol memory sheet to create thermally activated switches and actuators that operate without electrical power consumption. The precise transformation temperature control available through custom specification enables micro-actuators to respond to narrowly defined thermal triggers, opening applications in temperature compensation mechanisms and thermal management systems. Consumer goods designers appreciate the aesthetic possibilities enabled by the 0.1mm nitinol memory sheet, creating eyewear frames that resist permanent deformation during normal use while maintaining lightweight comfort. Smart wearable components incorporating nitinol shape memory functionality can adapt their configuration in response to body temperature or environmental conditions, enabling novel user interface designs.

Processing and Fabrication Techniques

Transforming 0.1mm nitinol memory sheet stock material into finished components requires specialized fabrication techniques adapted to the alloy's unique properties. Laser cutting provides high precision for complex geometries while minimizing heat-affected zone width, though proper parameter optimization proves essential to avoid excessive oxidation or microstructural changes near the cut edge. Photochemical etching offers an alternative approach for producing intricate patterns in the 0.1mm nitinol memory sheet, maintaining material properties throughout the processed area and enabling feature sizes below 100 microns when properly executed. Mechanical punching or stamping can be employed for higher-volume production, though tooling design must account for the work-hardening characteristics and potential spring-back behavior of nitinol alloys. Shape setting represents a critical processing step for many 0.1mm nitinol memory sheet applications, involving constraint of the material in the desired final geometry while subjecting it to elevated temperature annealing. The annealing temperature and duration determine the transformation temperature characteristics and the degree of shape memory effect, with typical shape-setting processes occurring between 450℃ and 550℃ for durations ranging from minutes to hours depending on the desired properties. Surface finishing operations may include electropolishing to enhance corrosion resistance and biocompatibility for medical applications, or specialized coatings to modify tribological properties or enable specific functional characteristics such as radiopacity for medical imaging visibility.

Conclusion

Sourcing custom 0.1mm nitinol memory sheet solutions demands careful specification of material properties, selection of experienced manufacturers, and thorough understanding of application requirements. The unique combination of shape memory effect, superelasticity, biocompatibility, and corrosion resistance positions nitinol as an enabling material for innovative product designs across medical, electronics, and consumer sectors.

Cooperate with Baoji Hanz Metal Material Co., Ltd.

As a leading China 0.1mm nitinol memory sheet factory, China 0.1mm nitinol memory sheet supplier, and China 0.1mm nitinol memory sheet manufacturer offering China 0.1mm nitinol memory sheet wholesale, Baoji Hanz Metal Material Co., Ltd. brings seven years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy development. Our direct supply model provides significant cost advantages while maintaining the highest quality 0.1mm nitinol memory sheet standards certified under ISO9001, SGS, and TUV guidelines. We maintain substantial inventory for fast delivery of standard sizes and offer comprehensive OEM customization services for specific alloy compositions, dimensions, and packaging requirements. Our professional customer service team provides expert pre-sale consultation, efficient order tracking with documented production monitoring retained for five years, and dedicated after-sales support tracking product performance in your applications. Whether you need High Quality 0.1mm nitinol memory sheet for prototyping or production volumes, our competitive 0.1mm nitinol memory sheet price and 0.1mm nitinol memory sheet for sale options support projects from concept through commercialization. Contact us at baojihanz-niti@hanztech.cn to discuss your custom nitinol requirements and discover how our advanced R&D capabilities and sophisticated processing equipment can deliver tailored solutions for your specific application challenges.

References

1. "Shape Memory Alloys: Fundamentals and Applications" - Otsuka, K. and Wayman, C.M., Cambridge University Press

2. "Engineering Aspects of Shape Memory Alloys" - Duerig, T.W., Melton, K.N., Stockel, D., and Wayman, C.M., Butterworth-Heinemann

3. "Nitinol Shape Memory Alloys: Properties, Processing, and Medical Device Applications" - Pelton, A.R., Stöckel, D., and Duerig, T.W., Materials Science Forum

4. "Biomedical Applications of Shape Memory Alloys" - Machado, L.G. and Savi, M.A., Brazilian Journal of Medical and Biological Research

5. "Transformation Temperatures and Thermomechanical Properties of NiTi Alloys" - Tang, W., Sundman, B., Sandstrom, R., and Qiu, C., Metallurgical and Materials Transactions A
