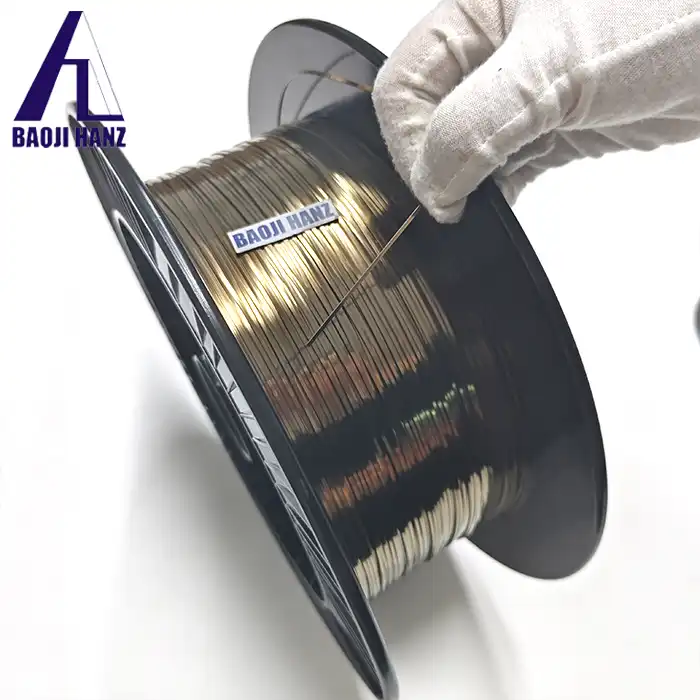

Shape memory nitinol square shape wire vs flat nitinol: which wins?

When comparing shape memory nitinol square shape wire to flat nitinol configurations, the answer depends on your specific application requirements. Shape memory nitinol square shape wire offers superior structural integrity and uniform stress distribution across all four edges, making it ideal for mechanical actuators and precision components. Flat nitinol, conversely, provides greater flexibility and surface contact area, which benefits medical devices and eyeglass frames. Both formats exhibit exceptional superelastic properties and shape memory characteristics, but square wire delivers more consistent dimensional stability under load while flat wire excels in applications requiring bendability and broader contact surfaces.

Understanding the Structural Differences Between Square and Flat Nitinol Profiles

Geometric Properties and Cross-Sectional Advantages

The fundamental difference between shape memory nitinol square shape wire and flat nitinol lies in their cross-sectional geometry, which significantly impacts mechanical performance. Square wire features equal dimensions on all sides, creating a symmetrical profile that distributes stress uniformly during loading and unloading cycles. This geometric consistency means that regardless of the direction of applied force, the material responds predictably. For instance, a square wire with 0.5mm × 0.5mm dimensions maintains identical bending characteristics in all planes, whereas flat wire with dimensions like 0.25mm thickness and 2.6mm width exhibits drastically different properties depending on whether force is applied to the wide or narrow face. The square configuration particularly excels in torsional applications where rotational forces demand equal resistance in multiple directions. In contrast, flat nitinol wire demonstrates superior flexibility when bent along its width, making it advantageous for applications requiring repeated folding or wrapping motions. The shape memory nitinol square shape wire manufactured at our facility undergoes precision drawing processes that maintain strict tolerances across all four surfaces, ensuring consistent superelastic behavior that meets ASTM F2063 standards throughout the entire wire length.

Surface Area and Contact Dynamics

Surface characteristics between shape memory nitinol square shape wire and flat configurations directly influence how these materials interact with surrounding components and biological tissues. Flat nitinol wire, particularly in dimensions such as 0.25mm thickness by 2.6mm width, offers substantially greater surface contact area compared to equivalent-volume square wire. This expanded surface area proves critical in medical device applications where tissue integration or friction management matters. For example, flat wire used in orthodontic archwires or vascular stents provides broader distribution of forces against tooth surfaces or vessel walls, reducing pressure concentration and improving patient comfort. However, shape memory nitinol square shape wire presents four distinct edges that can be advantageous in gripping or interlocking mechanisms where defined contact points are necessary. The bright surface finish available on both configurations enhances corrosion resistance and biocompatibility, though the finishing process differs between geometries due to their distinct surface-to-volume ratios. Square wire typically requires less material removal during surface treatment to achieve comparable smoothness, potentially preserving more of the superelastic properties inherent to the nitinol alloy composition.

Manufacturing Precision and Dimensional Tolerances

Production of shape memory nitinol square shape wire demands specialized manufacturing capabilities that differ significantly from flat wire fabrication. Square wire manufacturing involves precise die drawing that maintains equal dimensions across perpendicular axes while preserving the material's superelastic characteristics. This process becomes increasingly challenging as wire dimensions decrease, requiring sophisticated equipment and quality control measures. Our facility employs advanced drawing technologies that achieve tolerances within micrometers, ensuring that square wire maintains its geometric integrity even after multiple reduction passes. Flat nitinol wire production, alternatively, utilizes rolling or specialized flat-drawing processes that create the characteristic width-to-thickness ratio. For the specifications mentioned—thickness 0.25mm and width 2.6mm—manufacturers must carefully control rolling pressure and temperature to prevent edge cracking while maintaining the superelastic transformation temperatures between -10°C and 10°C. The shape memory nitinol square shape wire we produce adheres to both industrial standards and ASTM F2063 requirements, with documentation retained for minimum five years to ensure traceability. Quality verification includes dimensional measurement, transformation temperature testing, and superelastic plateau evaluation, all of which differ in methodology between square and flat profiles due to their distinct geometries.

Performance Comparison in Real-World Applications

Mechanical Strength and Load-Bearing Capacity

The load-bearing capabilities of shape memory nitinol square shape wire versus flat nitinol differ substantially due to their distinct moment of inertia values and resistance to deformation. Square wire demonstrates superior performance in compression applications because its symmetrical cross-section resists buckling more effectively than flat configurations. When subjected to axial loads, square wire maintains structural stability across a broader range of forces before experiencing elastic deformation. This characteristic makes shape memory nitinol square shape wire particularly suitable for actuator mechanisms, robotic components, and industrial automation systems where consistent force delivery is paramount. The superelastic properties inherent to nitinol alloys amplify these advantages—square wire can undergo repeated loading cycles at room temperature (above 5-10°C) while maintaining dimensional accuracy and returning to its original shape. Conversely, flat nitinol wire excels in applications involving lateral loads or bending stresses applied perpendicular to its width. Medical devices such as guidewires and endoscopic instruments benefit from flat wire's ability to navigate tortuous pathways while maintaining adequate column strength. The 2kg minimum order quantity we maintain for shape memory nitinol square shape wire allows researchers and manufacturers to conduct thorough performance testing before committing to larger production volumes, ensuring the selected geometry matches application requirements.

Flexibility and Fatigue Resistance Characteristics

Fatigue life represents a critical consideration when selecting between shape memory nitinol square shape wire and flat nitinol for applications involving cyclic loading. Flat wire configurations typically exhibit greater flexibility in one direction, allowing tighter bending radii when flexed along the width dimension. This attribute proves invaluable in medical devices that must navigate anatomical structures or in eyeglass frames that require spring-like properties for comfortable fit. However, this directional flexibility comes with a tradeoff—flat wire may experience stress concentration at edges during bending, potentially reducing fatigue life under severe cycling conditions. Shape memory nitinol square shape wire distributes bending stresses more uniformly across its cross-section, potentially extending service life in applications with multidirectional loading patterns. The superelastic plateau characteristic of nitinol alloys allows both geometries to accommodate strains up to 8-10% before permanent deformation occurs, but the recovery behavior differs based on cross-sectional shape. Our shape memory nitinol square shape wire maintains consistent superelastic response through temperature ranges customizable from -10°C to 10°C transition points, enabling application-specific optimization. Samples are available for fatigue testing, allowing engineers to empirically determine which geometry provides optimal longevity for their specific duty cycle and environmental conditions.

Temperature Response and Shape Memory Activation

The shape memory effect and superelastic behavior of nitinol alloys manifest differently in square versus flat wire configurations due to thermal mass and surface-area-to-volume relationships. Shape memory nitinol square shape wire exhibits more uniform temperature distribution during thermal cycling because heat penetrates equally from all sides, resulting in consistent phase transformation throughout the cross-section. This uniform activation proves advantageous in applications requiring precise actuation timing, such as thermal actuators or temperature-sensitive release mechanisms. The square geometry's balanced thermal properties ensure that when the material is heated above its austenite finish temperature, the entire cross-section transforms simultaneously, generating predictable force outputs. Flat nitinol wire, with its greater surface area relative to volume, responds more rapidly to temperature changes, which can be either advantageous or problematic depending on application requirements. The thin dimension (0.25mm) in flat configurations allows quick heat dissipation, making these wires highly responsive to ambient temperature fluctuations. For superelastic applications at room temperature, both geometries perform admirably when operated above their transformation temperature threshold, but shape memory nitinol square shape wire provides more consistent mechanical properties across varying environmental conditions. Our manufacturing process allows customization of transformation temperatures to match specific operational environments, ensuring optimal superelastic performance whether the application demands activation at -10°C or requires stability up to 10°C and beyond.

Application-Specific Selection Criteria

Medical Device and Biomedical Engineering Requirements

In medical device manufacturing, the choice between shape memory nitinol square shape wire and flat nitinol depends heavily on device function, anatomical considerations, and regulatory requirements. Flat nitinol wire dominates applications requiring broad tissue contact or minimal profile insertion, such as orthodontic archwires where the 2.6mm width dimension allows effective force distribution across multiple teeth while the 0.25mm thickness minimizes oral cavity interference. Cardiovascular stents often utilize flat wire geometries that can be woven or braided to create tubular structures with optimal radial force characteristics. However, shape memory nitinol square shape wire offers distinct advantages in surgical instruments, bone staples, and mechanical deployment mechanisms where structural rigidity and multidirectional stability are paramount. The biocompatibility of both configurations remains excellent when manufactured to ASTM F2063 specifications, which govern composition, mechanical properties, and inclusion content for surgical implant materials. Our bright surface finish on shape memory nitinol square shape wire meets the stringent cleanliness standards required for medical applications, with surface oxides providing natural passivation that enhances corrosion resistance in physiological environments. Medical device engineers can request samples to conduct biocompatibility testing, mechanical evaluation, and prototype development before committing to production quantities, ensuring the selected wire geometry integrates seamlessly into their device design while meeting FDA or equivalent regulatory requirements.

Industrial Automation and Robotics Integration

Industrial applications increasingly leverage nitinol's unique properties for actuators, sensors, and adaptive components, with geometry selection driven by force requirements and spatial constraints. Shape memory nitinol square shape wire provides superior performance in linear actuators and positioning systems where consistent force delivery across multiple operational planes is necessary. Robotic grippers utilizing nitinol actuators benefit from square wire's ability to generate uniform closing forces regardless of grip orientation. The predictable stress-strain behavior of square wire simplifies control system design, as engineers can model mechanical response without accounting for orientation-dependent properties. Research departments developing advanced robotics increasingly specify shape memory nitinol square shape wire for artificial muscle applications, where the material's ability to contract upon heating and return to original length when cooled mimics biological muscle function. Our capability to produce custom dimensions beyond the standard 0.25mm × 2.6mm flat wire specifications enables researchers to optimize wire geometry for specific force-displacement requirements. Industrial automation systems incorporating nitinol components appreciate the material's maintenance-free operation—no lubrication required, minimal wear, and reliable performance through millions of cycles. The 2kg minimum order quantity supports both prototype development and small-scale production, while our large stock of standard sizes ensures rapid delivery for time-sensitive projects.

Precision Manufacturing and Specialized Component Fabrication

Manufacturers producing precision components must consider how wire geometry affects downstream fabrication processes, including cutting, forming, welding, and assembly operations. Shape memory nitinol square shape wire presents distinct advantages in applications requiring welded joints or mechanical fastening, as the four flat surfaces provide consistent contact areas for resistance welding or laser joining processes. The symmetrical geometry simplifies fixture design and automated handling systems, reducing manufacturing complexity and associated costs. Flat nitinol wire, alternatively, excels in applications involving coiling, braiding, or weaving operations where flexibility along one axis is beneficial. Eyeglass frame manufacturers, for instance, utilize flat wire's spring-like properties to create temple arms that grip comfortably while maintaining style aesthetics. The superelastic properties of both geometries enable cold-working operations that would fracture conventional metals—nitinol can be bent to small radii, formed into complex shapes, and released to spring back without permanent deformation. Our shape memory nitinol square shape wire maintains consistent mechanical properties throughout its length, enabling manufacturers to achieve repeatable results in automated production environments. Professional services we provide include technical consultation on forming processes, heat treatment protocols for setting permanent shapes, and troubleshooting to optimize manufacturing yields. Whether your application demands the structural consistency of square wire or the directional flexibility of flat profiles, we deliver reliable quality backed by ISO9001, SGS, and TÜV certifications that verify our manufacturing capabilities and quality management systems.

Conclusion

Selecting between shape memory nitinol square shape wire and flat nitinol ultimately requires careful analysis of application-specific mechanical requirements, environmental conditions, and manufacturing constraints. Square wire offers superior structural uniformity and multidirectional stability, while flat configurations provide directional flexibility and enhanced surface contact. Both geometries exhibit the remarkable superelastic and shape memory properties that make nitinol indispensable across medical, industrial, and research applications. Understanding these fundamental differences enables engineers to optimize component performance and reliability.

As a leading China shape memory nitinol square shape wire factory and China shape memory nitinol square shape wire supplier, Baoji Hanz Metal Material Co., Ltd. brings seven years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy to every project. Our direct supply model and cost advantages help you save money without compromising quality, while our large stock of standard sizes ensures fast delivery when time matters. As a trusted China shape memory nitinol square shape wire manufacturer and China shape memory nitinol square shape wire wholesale provider, we offer comprehensive OEM services tailored to your specific requirements—whether custom sizes, specific alloy compositions, or specialized packaging options. Our team works closely with you to ensure seamless integration into your projects. Ready to discuss your nitinol requirements? Contact us at baojihanz-niti@hanztech.cn and discover how our expertise can elevate your next innovation.

References

1. Duerig T, Pelton A, Stöckel D. "An Overview of Nitinol Medical Applications." Materials Science and Engineering: A, 1999, 273-275: 149-160.

2. Morgan NB. "Medical Shape Memory Alloy Applications—The Market and Its Products." Materials Science and Engineering: A, 2004, 378(1-2): 16-23.

3. Otsuka K, Ren X. "Physical Metallurgy of Ti-Ni-Based Shape Memory Alloys." Progress in Materials Science, 2005, 50(5): 511-678.

4. Elahinia MH, Hashemi M, Tabesh M, Bhaduri SB. "Manufacturing and Processing of NiTi Implants: A Review." Progress in Materials Science, 2012, 57(5): 911-946.

5. Lagoudas DC, Hartl DJ, Chemisky Y, Machado LG, Popov P. "Constitutive Model for the Numerical Analysis of Phase Transformation in Polycrystalline Shape Memory Alloys." International Journal of Plasticity, 2012, 32-33: 155-183.
