The DNA of Stents: Medical-Grade Nitinol Tube Explained

In the realm of modern medical technology, few materials have revolutionized minimally invasive procedures as profoundly as nitinol tubes. These remarkable shape memory alloy components serve as the fundamental building blocks of countless medical devices, earning them the metaphorical title of "the DNA of stents." The nitinol tube represents a perfect fusion of advanced metallurgy and biomedical engineering, offering unprecedented capabilities in cardiovascular interventions, surgical instruments, and implantable devices. Understanding the intricate properties and applications of medical-grade nitinol tubes is essential for appreciating their pivotal role in transforming patient care and surgical outcomes across diverse medical specialties.

Understanding the Core Properties of Medical-Grade Nitinol Tubes

Superelasticity and Shape Memory Characteristics

The defining characteristic of nitinol tubes lies in their extraordinary superelastic properties, which fundamentally distinguish them from conventional metallic materials. When subjected to mechanical stress, a nitinol tube can undergo substantial deformation—up to 8% strain—and return to its original shape upon unloading, without permanent deformation. This phenomenon occurs through a reversible phase transformation between austenite and martensite crystal structures, enabling the material to absorb and release mechanical energy repeatedly. The superelastic behavior of nitinol tubes is particularly pronounced within the austenite finish temperature range of -20 to 80 degrees Celsius, making them ideal for body temperature applications. This unique property allows medical devices constructed from nitinol tubes to navigate through tortuous anatomical pathways while maintaining their structural integrity and predetermined shape upon deployment.

Biocompatibility and Corrosion Resistance

Medical-grade nitinol tubes demonstrate exceptional biocompatibility, making them suitable for long-term implantation in the human body. The passive oxide layer that forms naturally on the surface of nitinol tubes provides excellent corrosion resistance in biological environments, preventing the release of potentially harmful ions. This biocompatibility is crucial for applications where nitinol tubes are used in cardiovascular stents, orthopedic implants, and other devices that remain in contact with body fluids for extended periods. The material's resistance to fatigue and wear ensures that nitinol tubes can withstand millions of loading cycles without degradation, a critical requirement for devices such as heart valve frames and vascular stents that must function reliably throughout a patient's lifetime. The polished surface finish achievable on nitinol tubes, with internal roughness values of Ra ≤1.2μm and external roughness of Ra ≤0.6μm, further enhances their biocompatibility by minimizing tissue irritation and thrombogenicity.

Precision Manufacturing and Dimensional Control

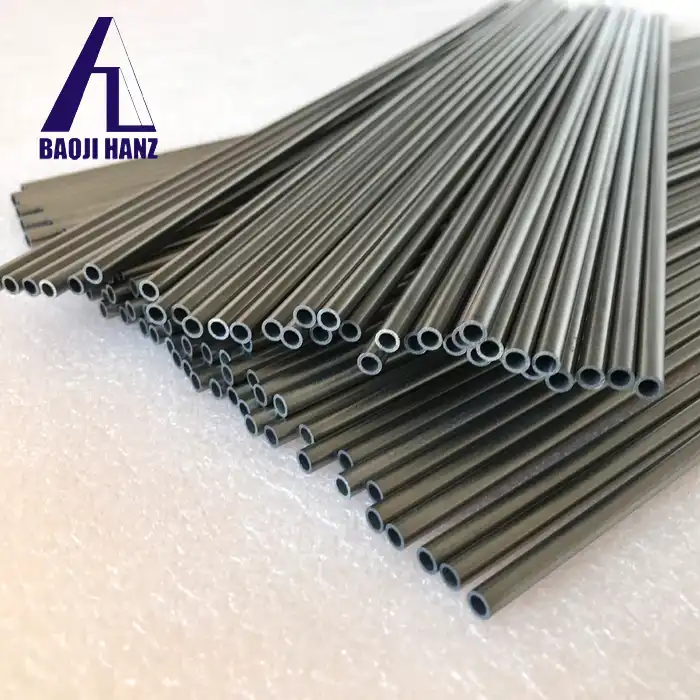

The manufacturing of medical-grade nitinol tubes requires extraordinary precision to achieve the tight tolerances demanded by medical applications. Advanced manufacturing techniques enable the production of nitinol tubes with outer diameters ranging from a minimum of 0.2mm to 30mm, with wall thicknesses as thin as 0.05mm. This level of precision is achieved through specialized deep hole working processes and careful control of the material's composition and heat treatment. The seamless construction of nitinol tubes eliminates potential weak points that could compromise device performance, while welded options provide flexibility for specific applications. The ability to manufacture nitinol tubes in lengths ranging from 500-1000mm, with dimensions determined by the relationship between outer diameter and wall thickness, allows for customization to meet diverse medical device requirements. Quality control measures ensure that each nitinol tube meets stringent ASTM F2603 standards, guaranteeing consistent performance and reliability in critical medical applications.

Manufacturing Excellence and Quality Standards

Advanced Production Techniques

The production of medical-grade nitinol tubes involves sophisticated manufacturing processes that combine traditional metallurgical techniques with cutting-edge technology. The process begins with the careful preparation of high-purity nickel-titanium alloy, where precise control of the nickel-to-titanium ratio determines the material's transformation temperatures and mechanical properties. Nitinol tubes are manufactured through either seamless or welded construction methods, each offering distinct advantages depending on the intended application. Seamless nitinol tubes provide superior structural integrity and uniform wall thickness, making them ideal for high-stress applications such as cardiovascular stents and surgical instruments. The manufacturing process incorporates advanced heat treatment protocols that precisely control the material's transformation temperatures, ensuring that the nitinol tube exhibits optimal superelastic behavior at body temperature. Quality control measures throughout the manufacturing process include dimensional inspection, mechanical testing, and microstructural analysis to verify that each nitinol tube meets the exacting standards required for medical applications.

Surface Treatment and Finishing

The surface treatment of nitinol tubes plays a crucial role in their performance and biocompatibility. Advanced polishing techniques achieve mirror-like surface finishes that minimize surface roughness and eliminate potential sites for bacterial adhesion or thrombus formation. The polished surface of nitinol tubes not only enhances their aesthetic appearance but also reduces friction during device deployment and improves the overall performance of medical devices. Alternative surface treatments, such as controlled oxidation to create a burned blue finish, can provide additional corrosion resistance and alter the material's surface properties to meet specific application requirements. The surface treatment process must be carefully controlled to avoid introducing surface defects or contamination that could compromise the biocompatibility of the nitinol tube. Advanced cleaning and passivation procedures ensure that the final product meets the stringent cleanliness requirements of medical device manufacturing, with particular attention to removing any residual manufacturing chemicals or particulates that could pose risks to patient safety.

Quality Assurance and Testing Protocols

Medical-grade nitinol tubes undergo rigorous testing protocols to ensure they meet the highest quality standards required for medical applications. Mechanical testing includes tensile strength evaluation, fatigue testing, and superelastic property verification to confirm that the nitinol tube can withstand the mechanical stresses encountered in clinical use. Dimensional inspection using precision measurement equipment verifies that each nitinol tube meets the specified tolerances for outer diameter, wall thickness, and length. Microstructural analysis through scanning electron microscopy and X-ray diffraction confirms the proper phase composition and grain structure of the material. Chemical analysis ensures that the nickel-titanium composition falls within the specified range and that no harmful impurities are present. Biocompatibility testing following ISO 10993 standards evaluates the cytotoxicity, sensitization potential, and systemic toxicity of the nitinol tube material. These comprehensive testing protocols provide assurance that every nitinol tube meets the stringent requirements for safety and performance in medical applications.

Clinical Applications and Medical Device Integration

Cardiovascular Stent Applications

Nitinol tubes serve as the foundation for numerous cardiovascular interventions, particularly in the construction of self-expanding stents used to treat arterial blockages. The superelastic properties of nitinol tubes enable stents to be compressed to small diameters for delivery through narrow catheters, then expand to their predetermined size upon deployment at the treatment site. This capability has revolutionized the treatment of peripheral arterial disease, carotid artery stenosis, and other vascular conditions by enabling minimally invasive procedures that reduce patient trauma and recovery time. The fatigue resistance of nitinol tubes is particularly important in cardiovascular applications, where stents must withstand millions of cardiac cycles without failure. The biocompatibility of nitinol tubes ensures that cardiovascular stents can remain in the body indefinitely without causing adverse tissue reactions or complications. Advanced stent designs utilizing nitinol tubes incorporate sophisticated geometries that optimize radial force distribution, minimize vessel trauma, and promote proper healing and endothelialization.

Surgical Instrument Development

The unique properties of nitinol tubes have enabled the development of innovative surgical instruments that enhance precision and reduce invasiveness in various medical procedures. Nitinol tubes are used in the construction of flexible surgical tools, such as guidewires, retrieval devices, and minimally invasive surgical instruments that can navigate through complex anatomical pathways. The superelastic behavior of nitinol tubes allows surgical instruments to bend and flex during use while maintaining their shape and function, providing surgeons with enhanced maneuverability and control. In colorectal surgery, devices constructed from nitinol tubes are used for reconnecting intestinal segments after pathogen removal, taking advantage of the material's biocompatibility and shape memory properties to ensure proper healing and function. The corrosion resistance of nitinol tubes ensures that surgical instruments can be repeatedly sterilized and reused without degradation, making them cost-effective solutions for healthcare facilities. The development of specialized nitinol tube configurations has enabled the creation of instruments with unprecedented capabilities, such as shape-changing surgical tools that can adapt to different anatomical requirements during procedures.

Implantable Device Applications

Nitinol tubes play a crucial role in the construction of various implantable medical devices, where their unique combination of properties provides advantages over traditional materials. In orthopedic applications, nitinol tubes are used in bone fixation devices, spinal implants, and joint replacement components that benefit from the material's superelasticity and biocompatibility. The shape memory properties of nitinol tubes enable the development of self-deploying implants that can be inserted in a compressed state and expand to their functional configuration once implanted. Dental applications utilize nitinol tubes in orthodontic wires and implant components, where the material's ability to apply constant, gentle forces promotes optimal tooth movement and bone integration. The fatigue resistance of nitinol tubes is particularly important in implantable devices that must function reliably for decades without replacement. Advanced implant designs incorporating nitinol tubes take advantage of the material's unique properties to create devices that more closely mimic the mechanical behavior of natural tissues, improving patient outcomes and reducing the risk of complications.

Conclusion

Medical-grade nitinol tubes represent a remarkable convergence of advanced materials science and biomedical engineering, serving as the foundational components that enable countless life-saving medical interventions. Their unique combination of superelasticity, biocompatibility, and precision manufacturing capabilities has revolutionized the field of minimally invasive medicine, earning them recognition as "the DNA of stents." From cardiovascular stents to surgical instruments and implantable devices, nitinol tubes continue to push the boundaries of what is possible in modern healthcare, offering patients safer, more effective treatment options with improved outcomes and reduced recovery times.

As the leading China nitinol tube factory, Baoji Hanz Metal Material Co., Ltd. stands at the forefront of this technological revolution, leveraging seven years of expertise in nitinol shape memory alloy manufacturing to deliver superior products to medical device manufacturers worldwide. Our position as a trusted China nitinol tube supplier is built on our commitment to quality, innovation, and customer satisfaction. As your preferred China nitinol tube manufacturer, we offer comprehensive OEM services tailored to your specific requirements, whether you need custom sizes, specific alloy compositions, or specialized packaging options. Our role as a China nitinol tube wholesale provider ensures cost-effective solutions with direct supply advantages and fast delivery from our extensive inventory of standard sizes. We invite you to partner with us in advancing medical technology and improving patient care through the exceptional properties of our medical-grade nitinol tubes. Contact our team at baojihanz-niti@hanztech.cn to discuss your specific requirements and discover how our expertise can contribute to the success of your medical device projects.
