The Science Behind Nitinol Wire’s Shape Memory and Superelasticity

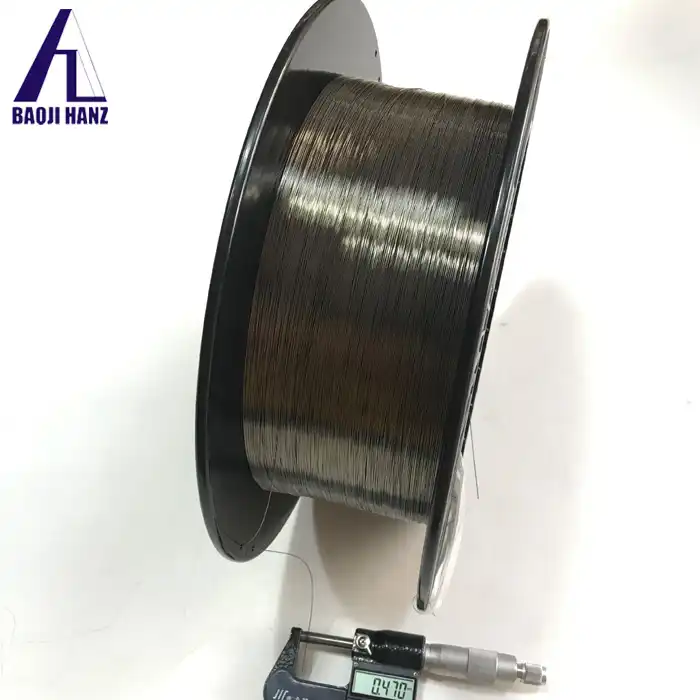

Industrial nitinol wire is a big step forward in the study of new materials because it can remember its shape and stretch in ways that normal metals can't. This nickel-titanium alloy wire is mostly made up of nickel (about 55%) and titanium (45%). It goes through reversible phase changes that let it "remember" set forms and go back to them after being deformed. These features come from changes in the crystal structure between the martensite and austenite phases. This is why industrial nitinol wire is so important in precision manufacturing fields that need high mechanical stability and thermal response.

Understanding Nitinol Wire: Composition and Core Properties

Chemical Composition and Alloy Architecture

Because of the way its atoms are structured, nitinol has many unique properties. Nickel-titanium alloy wire used in industry usually follows ASTM F2063 guidelines, which make sure that the chemical ratios that control phase transformation behavior are always the same. The stiffness of the material stays at 6.45 grams per cubic centimeter, which makes it stronger and lighter than most metals. Even small changes of 0.1% in nickel content can have a big effect on transformation temperatures. This shows how important it is to have controlled production processes.

Phase Transformation Mechanics

Nitinol's useful qualities come from a change in solid-state phase between two crystalline structures. The material is in a twisted martensitic phase at lower temperatures, which makes it flexible and easy to shape. When heated above its austenite finish temperature (Af), the metal changes into a hard austenitic phase and goes back to the shape it was in before. This change that can be undone makes the shape memory effect possible, in which hot wire that has been bent returns to its original shape. When the material is heated above its Af temperature, it becomes superelastic. This means that it can be stretched up to 8% without permanently breaking. Only spring steels and titanium alloys can do this.

Critical Physical Properties

Performance of an industrial nitinol wire can be defined by a number of working factors. Customization of transition temperatures from 0°C to 100°C can be done during production, which matches the behavior of the material to its intended use. A protective titanium oxide layer on the surface makes it more resistant to corrosion than stainless steel in bacterial and chloride-rich settings. Mechanical longevity is shown by high resistance to fatigue. Wires that have been properly handled can withstand millions of loading cycles. Different technical needs can be met by diameter ranges from 0.05 mm to 4.0 mm, and tight tolerances of ±0.01 mm or ±0.02 mm make sure that parts work together in precision systems.

Industrial Applications and Advantages of Nitinol Wire

Deployment Across Industrial Sectors

Manufacturing engineers are asking for nickel-titanium alloy wires more and more for uses that need dynamic mechanical reactions. Robotic devices use the material's ability to shrink when heated resistively, making them smaller than gas systems. For sound damping devices and movable structures that need to be able to handle changes in temperature, aerospace parts use superelastic wire. In industrial processing equipment, temperature-sensitive valve controls use phase transformation limits to automatically control flow without using extra power sources. Precision mechanical fittings work well with alloys that can change sizes in a way that can be undone. This makes interference fits possible that can be triggered by heat.

Performance Comparison with Traditional Materials

In comparison to stainless steel wire, industrial nitinol wire is more flexible and can handle higher recovered strain limits. Stainless steel 304 usually gives way at 0.2% strain, but superelastic nitinol stays elastic up to 8% strain before it deforms permanently. This feature gets rid of worries about spring-back during forming operations and increases the service life of parts in settings with cyclic stress.

Nickel-titanium alloy wires are much better at resisting rust and staying stable at high temperatures than copper-based metals. Copper metals break down quickly in oxidative or corrosive environments, but nitinol's passive oxide layer stays strong in a wider range of circumstances. There are also chances to cut down on weight. Nitinol's density of 6.45 g/cm³ is between aluminum and steel, so it can be used to make smaller systems that still work well.

Heat Treatment and Property Optimization

Nitinol's useful properties are activated and improved by controlled heat processes. In order to shape-set, the wire has to be held in a certain shape and heated to 500–550°C for a set amount of time. The training design is locked in place by rapid quenching. After that, the temperature is heated and cooled several times between 300°C and 400°C to finetune the transformation temperatures and change the temperature hysteresis band between the changes.

The factors of the process must be carefully watched. In order to keep surfaces from oxidizing, which lowers wear performance, furnace atmospheres need to be protected by inert gases. The rate at which an alloy cools affects the formation of precipitates within it, which in turn affects the mechanical strength and sharpness of change. Programmable temperature controls in vacuum or argon-atmosphere furnaces make sure that the same results are achieved in each output batch.

Comparing Nitinol Wire with Alternative Industrial Wires

Material Selection Criteria

Choosing what to buy depends on how well the features of the material match the needs of the purpose. Wire selection is often based on how flexible it needs to be. Nitinol's superelastic range lets it bend at angles that aren't possible with hardened steel wire of the same thickness. According to tests of mechanical strength, austenitic nitinol has a lower final tensile strength (about 900–1200 MPa) than high-carbon steel. However, the material can store a lot more elastic energy than most metals.

When working with chemicals or in the ocean, corrosion protection is very important. Some types of stainless steel can pit when exposed to chloride solutions above a certain concentration, but nickel-titanium alloy wires don't react. Copper is better for maximum current carrying because it is a better electrical conductor, but nitinol's conductivity (about 18 µΩ·cm) is enough for resistive heating uses.

Cost-Benefit Analysis

Industrial nitinol wire is more expensive than common metals because it needs more expensive raw materials. Nickel-titanium alloy wire is usually 10–20 times more expensive than stainless steel wire of the same size. But lifetime cost analyses often show that the investment is worth it. Longer replacement times because of better resistance to fatigue mean less work needs to be done on upkeep. Functional integration, in which a single nitinol part replaces several standard parts, makes assembly easier and lowers the number of pieces that need to be kept on hand.

When engineers take advantage of shape memory or superelastic effects, they can simplify designs. Power delivery infrastructure is not needed for actuators that don't need any extra energy intake other than thermal cycling. Material cost differences may not be as important in miniaturized devices because they take up less room. This is especially true in medical devices and aircraft uses where space and weight restrictions are very strict.

Specification Selection Guidelines

When choosing a diameter for industrial nitinol wire, you have to weigh the needs for mechanical force against the needs for movement. Higher actuator forces are produced by wires that are 1.0 to 4.0 mm thick, but they need more heating power and respond more slowly to temperature changes because they have more thermal mass. Fine gauges (0.05–0.3 mm) allow for tight-radius bends and quick change cycles that work well for micro-actuator uses.

The temperature requirements for transformation are in line with operating conditions. Af temperatures between 0°C and 25°C are needed for applications that need shape return close to room temperature. For high-temperature industrial processes, Af ranges of 60–100°C may be needed to keep the superelastic property throughout heat cycles.

The surface finish affects how well it resists rust and how smoothly it glides. Bright-annealed surfaces have smooth topographies that make sliding contact uses last longer. Pickled finishes get rid of the scale that forms after heat treatment, making the surface ready for more coats. Oxide finishes are better at being compatible with living things and can be asked for when biological systems are going to be integrated.

Procurement Guide for Industrial Nitinol Wire: How to Buy with Confidence?

Purchasing Channels and Order Structures

Wholesale purchasing plans work well for makers who need a steady source of goods that they make in large quantities. In order to keep stocking costs and unit prices in balance, minimum order amounts usually start at 1 kg or 500 meters. Custom orders can include non-standard diameters, proprietary transformation temperatures, or unique packing shapes. However, lead times are usually longer than 8–12 weeks because production batches go through custom processing sequences.

Bulk buying deals help established production programs save money on costs. When there aren't enough supplies, volume agreements let people negotiate price structures and set priorities. Sample amounts help with the qualification steps of materials, which lets engineering teams check how well they work in application-specific tests before committing to large-scale production.

Pricing Dynamics and Budget Planning

Industrial nitinol wire prices are affected by a number of things. When drawing wire, the diameter affects the return estimates. Finer gauges cost more because they are harder to work with. Pricing is affected by tolerances. Tighter dimensional controls (±0.01 mm) need more quality checking steps than normal tolerances (±0.02 mm). Customizing the transformation temperature adds technical costs and complicated heat treatment steps that make each unit more expensive.

Nickel and titanium feedstocks are subject to volatile market situations. Nickel prices change based on how much is mined around the world and how much stainless steel is needed. Titanium availability relies on how busy the aircraft industry is and how many sponges can be made. Long-term supply deals with price adjustment rules keep relationships with suppliers strong and protect against sudden price increases.

Supplier Evaluation Framework

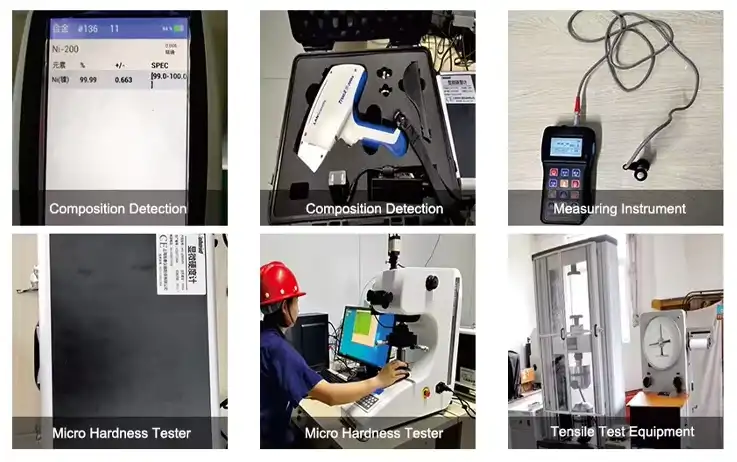

Verification of certification sets a standard level of quality security. Getting registered with ISO 9001 shows that you follow organized quality management practices. ASTM F2063 compliance means that the material meets the guidelines for size and makeup that apply to industrial-grade materials. The ability to test things using differential scanning calorimetry (DSC) to confirm the change temperature and tension testing to confirm the mechanical properties show that the person is technically competent.

Assessments of suppliers' production ability make sure they can meet volume needs without affecting shipping times. Vacuum arc remelting ovens in factories make metals that are cleaner and have fewer impurities, which improves their fatigue performance. With the ability to make wires with diameters ranging from 0.05 mm to 4.0 mm, signal manufacturing is very flexible.

Traceability tools for industrial nitinol wire let you keep track of a batch from the time the raw materials are delivered until the final review. Quality checks and regulatory compliance needs are met by documentation packages that include material certifications, test results, and processing records. Global buying teams can make cross-border deals easier if they have experience with international shipping and the right export paperwork.

Ensuring Optimal Performance: Heat Treatment and Maintenance of Nitinol Wire

Controlled Heat Treatment Procedures

To get the useful qualities you want, you need to do careful thermal processing. Shape-setting processes start with designing a device that holds the wire in place in the shape that needs to be remembered. Making fixtures out of ceramic or stainless steel means they can handle high temperatures without losing their shape. When you tension the wire during heat treatment, it changes the stress level in the trained structure, which in turn changes the actuation force patterns.

Temperature control tools must keep the working zone of the oven at a constant temperature within ±5°C. Programmable controls run multiple thermal cycles, which include ramp rates, soak times, and cooling patterns, that decide the final microstructure. Controlling the atmosphere stops oxidation, and argon or nitrogen purge gets rid of oxygen until it's less than 50 parts per million. Vacuum burners get rid of all air pollution, leaving behind clean surfaces that last as long as possible.

Differential scanning calorimetry (DSC) research is used for post-treatment testing to confirm the transformation temperatures. When heat moves back and forth between the martensite and austenite phases, it creates endothermic and exothermic peaks that show the phase changes. Peak temperatures help with final process changes to center transition ranges that stay within specification windows.

Storage and Handling Best Practices

The factors of the environment during storage affect the state of the material. Controlling humidity keeps surfaces from tarnishing, and desiccants in tight boxes keep air dry. Temperature stability stops phase changes that aren't supposed to happen. For example, materials with low Af temperatures that are kept in warm places may partly change, which can change their mechanical properties. Self-weight can bend coil wires, so they need support. Spools with the right core sizes spread loads equally.

Handling rules keep surface damage to a minimum. Protective gloves keep skin oils from getting on things, which can speed up localized rusting. When you bend something, you have to follow the minimum radius rules, because too much bending causes lasting deformation even in superelastic grades. To get clean ends without making the material next to the cutting tool harder, the tools must be sharp.

Inspection and Troubleshooting

Industrial nitinol wire degradation can be found before it causes functional breakdowns through routine examination. Surface cracks that are spreading from stress concentrations can be seen with the naked eye. Measuring the diameter makes sure that the dimensions stay the same over time. Transformation temperature testing through easy thermal cycling shows that the shape memory properties are still present.

Memory effect degradation shows up as shape return that isn't full or less actuation force. Some of the reasons for this are warming beyond the safe range, too much mechanical stress above the superelastic plateau, or building up of fatigue. Retraining may be needed through more heat treatment rounds for remediation, but materials showing microcracking need to be replaced.

Over time, repeated loading can cause mechanical wear, which shows up as cracks or gradual softening. Lowering the amplitude of the strain makes the service life longer; for superelastic uses, working below 4% strain makes the durability much better. Electropolishing and other surface processes get rid of tiny flaws that can cause cracks, making the material more resistant to wear.

Conclusion

Because industrial nitinol wire has special thermomechanical qualities that come from being able to change phases between martensite and austenite, this nickel-titanium alloy wire is a good choice for next-generation industrial systems. The advantages of superior superelasticity, customizable shape memory behavior, and exceptional fatigue resistance make up for the problems that regular metallic lines have. For implementation to go smoothly, it's important to carefully choose specifications that work with the working environment, build partnerships with suppliers based on quality assurance and expert skill, and follow the right heat treatment and upkeep procedures. Industrial nitinol wire is often the best choice for uses that need to be mechanically reliable, thermally responsive, and have new designs when procurement teams weigh the prices of materials against their long-term performance benefits.

FAQ

What transformation temperature should I specify for my application?

The transformation temperature you choose will depend on where you work. To make sure that the austenite changes completely, set the Af temperature 10–15°C below the activation point you want. For uses that need superelastic behavior, the Af temperature needs to be below the lowest working temperature, which for most people is between 0°C and 15°C. Higher Af ranges (60–100°C) help keep superelasticity during heat cycles in industrial processes that happen at high temperatures. Based on your temperature profile and mechanical needs, our expert team can help you choose the best specs.

How does wire diameter affect actuation performance?

Larger sizes produce stronger actuator forces, but they also need more heating power and respond more slowly to temperature changes because they have more thermal mass. Fine wires (0.05–0.3 mm) allow for fast transformation cycles and small bending radii, but they also release less power. Figure out how much force is needed, then choose the smallest width that meets that requirement for the fastest reaction time and the most efficient use of energy.

Can nitinol wire be welded or joined to other materials?

When you directly fuse two different metals together, you make weak intermetallic phases that are easy to break. Mechanical crimping, swaging, or adhesive gluing are all good ways to put things together. In some situations, laser welding with tantalum interlayers makes it possible to connect stainless steel parts. Get in touch with our engineering team for help finding the right joining methods for your assembly plan.

What causes premature fatigue failure in nitinol components?

Too much pressure amplitude speeds up the start of wear cracks. Limiting superelastic action to less than 4% strain makes the service life a lot longer. Surface flaws caused by bad handling or mistakes in the manufacturing process collect stress and lower endurance. The purity of the material affects its wear resistance. For example, vacuum arc remelted metals with low inclusion content work better than regular grades. Check that the amounts of strain stay within safe limits and choose high-purity materials for important cycling uses.

Partner with HANZ for Reliable Industrial Nitinol Wire Supply

Baoji Hanz Metal Material Co., Ltd. has been working with nickel-titanium alloy wires for more than seven years and can provide industrial nitinol wire options that meet strict technical requirements. Our detailed standard plan includes sizes ranging from 0.05 mm to 4.0 mm, and you can change the transformation temperatures, tolerances, and surface finishes to fit your exact needs. We keep our stock stable and have a strong supply chain to back it up. This means that we can serve standard and custom orders quickly, and our flexible minimum order sizes start at just 1 kg or 500 meters.

Our ISO 9001, SGS, and TUV certifications show that we are dedicated to quality excellence, and our state-of-the-art research and development (R&D) and testing facilities make it possible to precisely characterize materials and check their performance. Each shipment comes with all the paperwork you need to support your quality assurance processes, such as material approvals, batch traceability, and test results. Our expert team offers full pre-sale advice and ongoing support after the sale, whether you need shape memory metal sheet and tube materials for precision parts or superelastic wire for actuator assemblies.

Contact our team at baojihanz-niti@hanztech.cn to talk about the details of your project. As a reliable company that makes industrial nitinol wire, we can offer direct supply at a low cost, help with developing custom specifications, and a trustworthy relationship for long-term industrial projects that need materials to work consistently.

References

Otsuka, K., & Wayman, C.M. (1998). Shape Memory Materials. Cambridge University Press, Cambridge.

Duerig, T., Pelton, A., & Stöckel, D. (1999). "An overview of nitinol medical applications." Materials Science and Engineering: A, 273-275, 149-160.

Miyazaki, S., & Otsuka, K. (1989). "Development of shape memory alloys." ISIJ International, 29(5), 353-377.

ASTM International. (2012). ASTM F2063-12: Standard Specification for Wrought Nickel-Titanium Shape Memory Alloys for Medical Devices and Surgical Implants. West Conshohocken, PA.

Lagoudas, D.C. (2008). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science, New York.

Pelton, A.R., Schroeder, V., Mitchell, M.R., Gong, X.Y., Barney, M., & Robertson, S.W. (2008). "Fatigue and durability of Nitinol stents." Journal of the Mechanical Behavior of Biomedical Materials, 1(2), 153-164.
