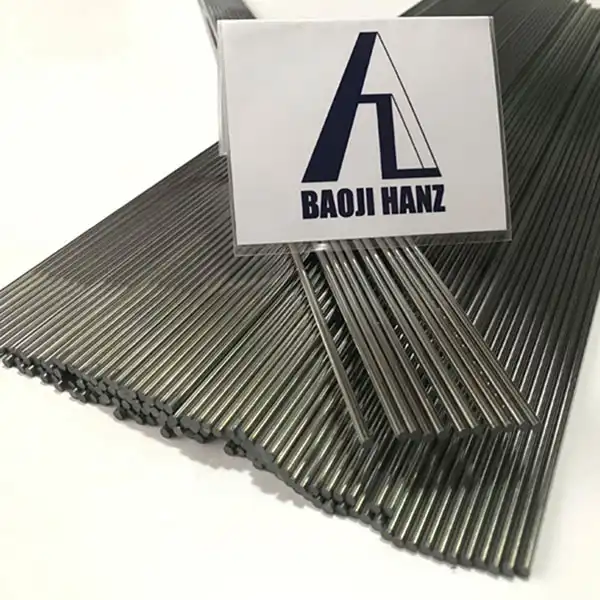

Unlock the Power of Shape Memory with Nitinol Rods

The revolutionary world of smart materials has been transformed by the remarkable properties of Nitinol shape memory alloys, with nitinol rods standing at the forefront of this technological advancement. These extraordinary materials, composed of nickel-titanium alloys, possess the unique ability to remember their original shape and return to it when heated, making them invaluable across numerous industries from medical devices to aerospace applications. The nitinol rod represents a perfect fusion of cutting-edge metallurgy and practical engineering, offering unprecedented possibilities for designers and engineers seeking materials that can adapt, respond, and perform under varying conditions. Understanding the power of shape memory through nitinol rods opens doors to innovative solutions that were previously impossible with conventional materials.

Understanding the Fundamental Properties of Nitinol Rods

Shape Memory Effect and Superelasticity

The nitinol rod exhibits two distinct but interconnected phenomena that make it extraordinary: the shape memory effect and superelasticity. The shape memory effect allows the nitinol rod to return to its predetermined shape when heated above its transformation temperature, typically ranging from -10°C to 100°C depending on the specific alloy composition. This remarkable property stems from a thermoelastic martensitic phase transformation within the material's crystal structure, where the nitinol rod undergoes a reversible change between two distinct crystalline phases. When deformed at low temperatures, the material exists in its martensitic phase, allowing for significant deformation without permanent damage. Upon heating, the nitinol rod transforms to its austenitic phase, automatically returning to its original configuration with extraordinary precision. This dual-phase behavior makes nitinol rods ideal for applications requiring precise, repeatable shape changes, such as medical stents, actuators, and temperature-sensitive switches.

Composition and Microstructure Analysis

The exceptional properties of nitinol rods are directly attributed to their precise chemical composition, typically consisting of approximately 55-56% nickel and 44-45% titanium by weight. Even minute variations in this composition can dramatically alter the transformation temperatures and mechanical properties of the nitinol rod, making precise control during manufacturing crucial for achieving desired performance characteristics. The microstructure of nitinol rods reveals a complex arrangement of crystalline phases that enable the shape memory effect, with the material's ability to undergo reversible phase transformations being the key to its unique behavior. Advanced manufacturing techniques ensure that each nitinol rod maintains consistent composition throughout its length, with strict quality control measures implemented to verify chemical accuracy within narrow tolerances. The crystalline structure of nitinol rods can be further modified through specific heat treatments and thermomechanical processing, allowing manufacturers to tailor the material's properties to meet specific application requirements while maintaining the fundamental shape memory characteristics.

Mechanical Properties and Performance Characteristics

Nitinol rods demonstrate exceptional mechanical properties that set them apart from conventional materials, with ultimate tensile strengths ranging from 1103 to 1378 MPa depending on the specific alloy variant and processing conditions. The superelastic behavior of nitinol rods allows them to undergo strains of up to 8% while maintaining a permanent set of less than 0.5%, demonstrating remarkable recovery capabilities that exceed those of traditional elastic materials. This extraordinary elasticity, combined with the shape memory effect, enables nitinol rods to function effectively in applications requiring both flexibility and precise shape control. The elongation properties of nitinol rods typically exceed 10%, providing excellent ductility while maintaining high strength characteristics. Temperature-dependent behavior is another crucial aspect of nitinol rod performance, with different alloy compositions offering active transformation temperatures ranging from -20°C to +20°C, allowing engineers to select materials optimized for specific operating environments and application requirements.

Applications and Industries Utilizing Nitinol Rods

Medical and Biomedical Applications

The medical industry has embraced nitinol rods as revolutionary materials for creating life-saving devices and implants that leverage the unique properties of shape memory alloys. Cardiovascular stents manufactured from nitinol rods can be compressed to minimal diameters for insertion through small catheters, then expand to their predetermined shape once positioned within blood vessels, providing structural support while maintaining flexibility to accommodate natural vessel movement. Orthopedic applications utilize nitinol rods in bone fixation devices, where the material's superelastic properties allow for gradual, controlled compression that promotes proper bone healing while reducing stress shielding effects commonly associated with rigid metallic implants. Dental applications have found nitinol rods particularly valuable in orthodontic wires and brackets, where the material's ability to maintain constant, gentle forces throughout the treatment process improves patient comfort while reducing the frequency of adjustments required. The biocompatibility of nitinol rods, combined with their unique mechanical properties, makes them ideal for minimally invasive surgical instruments that must navigate complex anatomical pathways while maintaining precise control and shape retention.

Industrial and Engineering Applications

Industrial applications of nitinol rods span numerous sectors, with the material's unique properties enabling innovative solutions to complex engineering challenges. In the aerospace industry, nitinol rods serve as actuators for morphing wing technologies, where their ability to change shape in response to temperature variations allows for real-time aerodynamic optimization without complex mechanical systems. Automotive applications utilize nitinol rods in active suspension systems and engine components, where their temperature-responsive behavior enables adaptive performance optimization based on operating conditions. The construction industry has discovered innovative uses for nitinol rods in seismic isolation systems, where their superelastic properties provide exceptional energy absorption and dissipation capabilities during earthquake events. Manufacturing processes benefit from nitinol rods in precision positioning systems and automated assembly equipment, where their predictable shape memory behavior enables highly accurate, repeatable movements without the complexity of traditional servo systems. The fishing industry has adopted nitinol rods for specialized applications where their flexibility and shape memory properties provide advantages in tackle design and performance.

Emerging Technologies and Future Applications

The continuous development of nitinol rod technology is opening new frontiers in smart materials applications, with researchers exploring possibilities in robotics, renewable energy, and advanced manufacturing systems. Robotic applications are beginning to incorporate nitinol rods as artificial muscles and actuators, where their ability to contract and expand in response to electrical heating provides more natural, organic movement patterns compared to traditional mechanical systems. Solar energy applications are investigating nitinol rods for sun-tracking systems, where their temperature-responsive behavior could enable passive solar panel orientation without complex electronic control systems. Advanced manufacturing is exploring the use of nitinol rods in adaptive tooling systems, where their shape memory properties could enable real-time tool geometry changes to optimize cutting performance and extend tool life. The electronics industry is researching nitinol rods for thermal management applications, where their predictable thermal response could provide autonomous cooling system adjustments based on operating temperatures, potentially revolutionizing heat dissipation in high-performance computing systems.

Manufacturing Excellence and Quality Assurance

Advanced Production Techniques

The manufacturing of high-quality nitinol rods requires sophisticated production techniques that ensure consistent properties and performance characteristics throughout the material. Vacuum induction melting processes are employed to create the initial ingots, with precise control of atmospheric conditions preventing contamination and ensuring optimal chemical composition. Hot and cold working processes are carefully controlled to achieve the desired mechanical properties while maintaining the integrity of the shape memory characteristics. The nitinol rod production process involves multiple stages of thermomechanical processing, including rolling, drawing, and annealing treatments that refine the microstructure and optimize the transformation behavior. Quality control measures are implemented at every stage of production, with continuous monitoring of chemical composition, mechanical properties, and transformation temperatures ensuring that each nitinol rod meets strict specifications. Advanced testing equipment, including differential scanning calorimetry and mechanical testing systems, provides comprehensive characterization of material properties, ensuring consistent performance across production batches.

Surface Treatment and Finishing Options

Surface treatment of nitinol rods plays a crucial role in determining their performance characteristics and suitability for specific applications. Polished surfaces provide optimal biocompatibility for medical applications while reducing friction and improving fatigue resistance in dynamic applications. Black oxide treatments create protective surface layers that enhance corrosion resistance while providing distinctive visual identification for specific alloy compositions. Pickled surfaces remove scale and contaminants from the manufacturing process, providing clean, reactive surfaces suitable for subsequent coating or bonding operations. The choice of surface treatment for nitinol rods depends on the intended application, with medical devices requiring the highest levels of surface cleanliness and biocompatibility, while industrial applications may prioritize corrosion resistance and wear characteristics. Advanced surface modification techniques, including ion implantation and plasma treatments, are being developed to further enhance the surface properties of nitinol rods for specialized applications.

Quality Control and Certification Standards

Comprehensive quality control systems ensure that nitinol rods meet the highest standards for performance and reliability across all applications. ASTM F2063 certification provides standardized specifications for nitinol materials used in medical applications, ensuring consistent quality and performance characteristics that meet regulatory requirements. ISO 9001 quality management systems provide frameworks for continuous improvement and customer satisfaction, with documented processes ensuring traceability and accountability throughout the production chain. SGS and TUV certifications provide independent verification of quality systems and material properties, giving customers confidence in the reliability and performance of nitinol rods. Testing protocols include mechanical property verification, chemical composition analysis, and transformation temperature characterization, with comprehensive documentation maintained for each production batch. Long-term quality assurance programs include accelerated aging tests and fatigue analysis to ensure that nitinol rods maintain their properties throughout their intended service life.

Conclusion

The remarkable properties of nitinol rods continue to drive innovation across multiple industries, from life-saving medical devices to advanced aerospace applications. These shape memory alloys represent a perfect convergence of advanced metallurgy and practical engineering, offering solutions that were previously impossible with conventional materials. The unique combination of superelasticity, shape memory effect, and biocompatibility makes nitinol rods indispensable for applications requiring adaptive, responsive materials that can perform reliably under demanding conditions.

As a leading China nitinol rod factory with seven years of expertise in Nitinol Shape Memory Alloy, Superelastic Nitinol Alloy, and Nickel Titanium Alloy, Baoji Hanz Metal Material Co., Ltd. stands as your trusted China nitinol rod supplier offering direct supply advantages and cost savings. Our position as a premier China nitinol rod manufacturer ensures fast delivery from extensive stock of standard sizes, while our China nitinol rod wholesale services provide competitive pricing for bulk orders. We offer comprehensive OEM services to meet specific client requirements, from custom sizes to specialized alloy compositions and packaging options. Our team works closely with customers to ensure seamless integration of our products into their projects. Contact us today at baojihanz-niti@hanztech.cn to unlock the power of shape memory with our premium nitinol rods.

References

1. Otsuka, K., & Wayman, C. M. (1999). Shape Memory Materials. Cambridge University Press.

2. Lagoudas, D. C., & Machado, L. G. (2011). Shape Memory Alloys: Modeling and Engineering Applications. Springer Science & Business Media.

3. Mohd Jani, J., Leary, M., & Subic, A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

4. Elahinia, M., Hashemi, M., & Tabesh, M. (2012). Manufacturing and processing of NiTi implants: A review. Progress in Materials Science, 57(5), 911-946.
