What are Nitinol alloy blocks used for?

Nitinol alloy blocks are versatile components with a wide range of applications across various industries. These remarkable materials, composed of nickel and titanium, exhibit unique properties such as shape memory and superelasticity, making them invaluable in numerous fields. Nitinol alloy blocks serve as the foundation for creating intricate devices and components in medical, aerospace, automotive, and consumer electronics sectors. In the medical field, they're used to manufacture stents, guidewires, and orthodontic archwires. Aerospace engineers utilize nitinol alloy blocks to develop actuators and vibration dampers. The automotive industry incorporates these blocks into safety systems and engine components. Additionally, consumer electronics benefit from nitinol alloy blocks in the production of mobile device antennas and eyeglass frames. The exceptional characteristics of nitinol, including its biocompatibility, corrosion resistance, and ability to withstand extreme temperatures, make it an ideal material for innovative applications across diverse industries.

Properties and Characteristics of Nitinol Alloy Blocks

Shape Memory Effect

The shape memory effect is one of the most fascinating properties of nitinol alloy blocks. This phenomenon allows the material to "remember" its original shape and return to it when heated above a specific transition temperature. The shape memory effect occurs due to the unique crystal structure of nitinol, which undergoes a reversible phase transformation between its austenite and martensite phases. This property enables nitinol alloy blocks to be used in applications where controlled, repeatable shape changes are required, such as in actuators, thermal switches, and medical implants.

Superelasticity

Superelasticity, also known as pseudoelasticity, is another remarkable characteristic of nitinol alloy blocks. This property allows the material to undergo large deformations without permanent damage, returning to its original shape upon removal of the applied stress. The superelastic behavior of nitinol is attributed to its stress-induced martensitic transformation, which occurs at temperatures above the austenite finish temperature. This unique property makes nitinol alloy blocks ideal for applications requiring flexibility and resilience, such as orthodontic archwires, eyeglass frames, and cell phone antennas.

Biocompatibility and Corrosion Resistance

Nitinol alloy blocks exhibit excellent biocompatibility, making them suitable for use in medical devices and implants. The material's ability to form a stable titanium oxide layer on its surface contributes to its corrosion resistance and biocompatibility. This protective layer prevents the release of nickel ions, which could potentially cause allergic reactions in some individuals. The combination of biocompatibility and corrosion resistance makes nitinol alloy blocks an ideal choice for long-term implantable devices, such as stents, bone plates, and artificial heart valves.

Applications of Nitinol Alloy Blocks in Various Industries

Medical and Dental Applications

The medical industry extensively utilizes nitinol alloy blocks for a wide range of applications. In cardiovascular medicine, nitinol-based stents are used to treat blocked arteries, taking advantage of the material's shape memory and superelasticity to conform to the body's vessels. Orthodontics benefits from nitinol archwires, which provide consistent, gentle forces for tooth movement. Surgical instruments, such as guidewires and catheters, are also manufactured from nitinol alloy blocks, leveraging their flexibility and kink resistance. In orthopedics, nitinol is used in bone plates, spinal fixation devices, and artificial joints, where its biocompatibility and mechanical properties prove advantageous.

Aerospace and Automotive Industries

Nitinol alloy blocks find numerous applications in the aerospace sector. Aircraft manufacturers use nitinol-based actuators for various control surfaces, taking advantage of the material's high power-to-weight ratio and ability to operate in extreme temperatures. Vibration dampers made from nitinol help reduce noise and improve structural integrity in aircraft and spacecraft. In the automotive industry, nitinol alloy blocks are used in safety systems, such as impact-absorbing bumpers and airbag deployment mechanisms. Engine components, including valves and seals, also benefit from nitinol's unique properties, enhancing performance and durability in high-temperature environments.

Consumer Electronics and Robotics

The consumer electronics industry leverages nitinol alloy blocks for various innovative applications. Mobile device antennas made from nitinol offer improved reception and durability due to their superelastic properties. Eyeglass frames benefit from nitinol's flexibility and shape memory, providing comfortable and long-lasting eyewear. In the field of robotics, nitinol alloy blocks are used to create artificial muscles and actuators, enabling more lifelike and efficient movements in robotic systems. The material's ability to generate significant force while maintaining a compact size makes it ideal for miniature robotic applications and microelectromechanical systems (MEMS).

Manufacturing Processes and Challenges in Working with Nitinol Alloy Blocks

Melting and Casting Techniques

The production of nitinol alloy blocks begins with the careful melting and alloying of nickel and titanium. Vacuum induction melting (VIM) is commonly used to ensure high purity and precise composition control. This process involves melting the raw materials in a vacuum environment to prevent contamination and oxidation. Once melted, the alloy is cast into ingots or blocks using various techniques such as vacuum arc remelting (VAR) or electron beam melting (EBM). These advanced melting and casting methods are crucial for achieving the desired microstructure and properties in nitinol alloy blocks.

Heat Treatment and Shape Setting

Heat treatment plays a critical role in optimizing the properties of nitinol alloy blocks. The process involves carefully controlled heating and cooling cycles to achieve the desired phase transformation temperatures and mechanical characteristics. Shape setting, a crucial step in manufacturing nitinol components, involves heating the material to a specific temperature while constraining it in the desired shape. This process allows the nitinol alloy block to "memorize" its intended form, enabling the shape memory effect. Precision in temperature control and timing during heat treatment and shape setting is essential for ensuring consistent and reliable performance of nitinol products.

Machining and Surface Finishing

Machining nitinol alloy blocks presents unique challenges due to the material's superelastic properties and work hardening tendency. Conventional machining techniques often result in rapid tool wear and poor surface finish. To overcome these issues, specialized machining methods such as electrical discharge machining (EDM), laser cutting, and water jet cutting are employed. Surface finishing of nitinol components is crucial for enhancing their biocompatibility and corrosion resistance. Techniques such as electropolishing, passivation, and coating applications are used to create a smooth, oxide-rich surface layer that improves the material's performance in various applications.

Conclusion

Nitinol alloy blocks represent a groundbreaking material with unparalleled versatility across numerous industries. Their unique properties, including shape memory and superelasticity, have revolutionized medical devices, aerospace components, and consumer products. As research continues, the potential applications for nitinol alloy blocks continue to expand, promising innovative solutions to complex engineering challenges. The future of this remarkable material is bright, with ongoing developments in manufacturing processes and new applications constantly emerging. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

Other related product catalogues

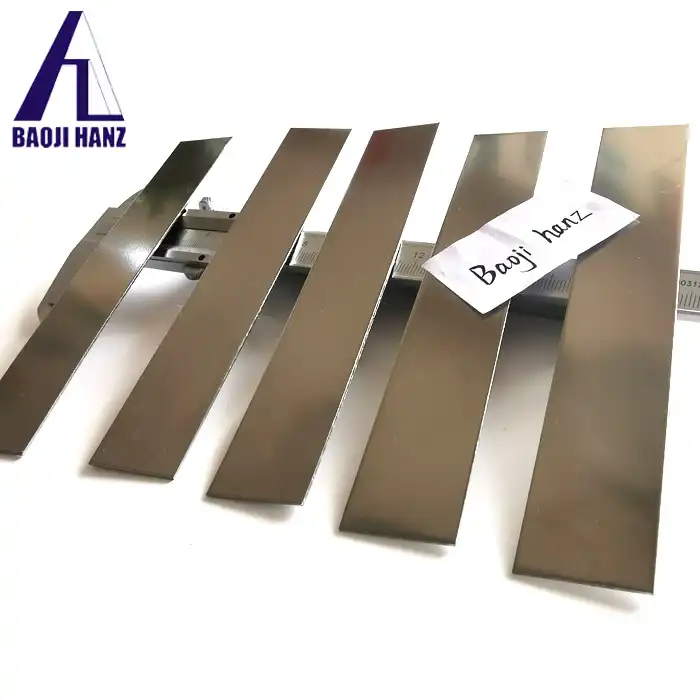

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Otsuka, K., & Ren, X. (2005). Physical metallurgy of Ti–Ni-based shape memory alloys. Progress in Materials Science, 50(5), 511-678.

2. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273-275, 149-160.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

4. Machado, L. G., & Savi, M. A. (2003). Medical applications of shape memory alloys. Brazilian Journal of Medical and Biological Research, 36(6), 683-691.

5. Elahinia, M. H., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2012). Manufacturing and processing of NiTi implants: A review. Progress in Materials Science, 57(5), 911-946.

6. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: A review. Materials & Design, 33, 577-640.
