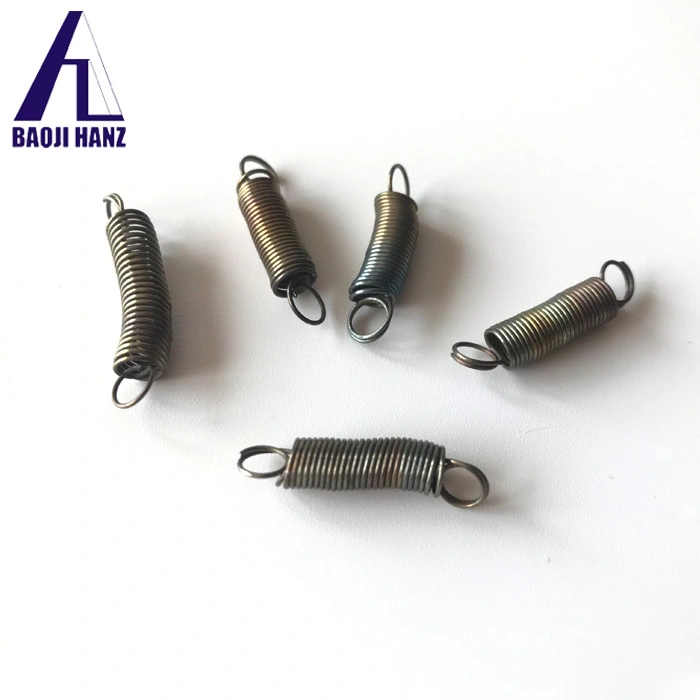

What are the applications of bidirectional nickel titanium alloy springs?

Bidirectional nickel titanium alloy springs represent a remarkable advancement in material science, offering unique functionality that traditional springs cannot match. These specialized components utilize the shape memory and superelastic properties of nitinol (nickel-titanium alloy) to provide two-way actuation capabilities - extending when heated and contracting when cooled, all without external mechanical force. This bidirectional movement makes them invaluable across numerous industries where precision, reliability, and autonomous movement are critical. From medical devices that navigate the human body to aerospace components that must adapt to extreme conditions, bidirectional nickel titanium alloy springs are transforming how engineers approach complex mechanical challenges with elegant, material-based solutions.

Medical Applications of Bidirectional Nickel Titanium Alloy Springs

Minimally Invasive Surgical Instruments

Bidirectional nickel titanium alloy springs have revolutionized minimally invasive surgical procedures by enabling the development of sophisticated instruments that can navigate through the complex anatomy of the human body. These springs provide precise control and maneuverability in confined spaces, making them ideal for endoscopic and laparoscopic tools. The unique temperature-responsive properties allow surgical instruments to change shape or configuration once they reach body temperature (37°C), facilitating access to difficult-to-reach areas with minimal tissue trauma. For example, catheters equipped with bidirectional nickel titanium alloy springs can navigate through tortuous blood vessels with remarkable precision. The springs' superelastic nature, capable of withstanding strains up to 8% without permanent deformation, ensures these instruments maintain their functionality even after repeated use. With a fatigue life of 100,000 to 1 million cycles and full compliance with ISO 13485 medical standards, these components deliver exceptional reliability in critical surgical applications where failure is not an option.

Orthodontic and Dental Applications

In orthodontics and dentistry, bidirectional nickel titanium alloy springs have transformed treatment approaches by providing consistent, gentle forces over extended periods. These springs are particularly valuable in dental arch wires and expansion devices, where their ability to maintain nearly constant force regardless of displacement creates more comfortable and effective tooth movement. Orthodontic appliances utilizing bidirectional nickel titanium alloy springs can be designed with specific transformation temperatures tailored to oral cavity conditions, typically calibrated within the normal temperature type range (20-40°C). The springs' corrosion resistance in body fluids prevents degradation and maintains biocompatibility throughout treatment. Available in diameters as small as 0.1mm with carefully controlled effective turns (3-20 turns), these springs can be precisely engineered to deliver specific biomechanical forces ranging from 0.1N to 50N. This precision allows orthodontists to create customized treatment plans that address individual patient needs while minimizing discomfort and treatment duration compared to conventional steel springs.

Cardiovascular Devices and Implants

The cardiovascular field has embraced bidirectional nickel titanium alloy springs for their unique combination of biocompatibility, fatigue resistance, and functional properties. These springs are integral components in stents, heart valve frames, and atrial septal defect closure devices, where they provide both structural support and dynamic functionality. The ability to customize the springs' transformation temperature points allows engineers to design implants that deploy precisely at body temperature after delivery through minimally invasive catheters. With wire diameters ranging from 0.2mm to 5mm and outer spring diameters between 2mm and 50mm, manufacturers can create cardiovascular devices tailored to specific anatomical requirements. The superelastic properties of these springs enable devices to withstand the continuous cyclical loading of the cardiac cycle without fatigue failure, contributing to their impressive durability of up to 1 million cycles. Additionally, the polished surface treatment enhances hemocompatibility by reducing platelet adhesion and thrombus formation, a critical consideration for any blood-contacting device. These advanced materials meet rigorous ASTM F2063 standards for memory alloy materials, ensuring their safety and efficacy in life-critical cardiovascular applications.

Industrial and Consumer Applications

Temperature-Responsive Actuators and Sensors

Bidirectional nickel titanium alloy springs excel as temperature-responsive actuators and sensors in various industrial automation systems. Their unique ability to generate mechanical movement directly from thermal energy without motors or solenoids creates opportunities for simplified, energy-efficient designs. These springs can be precisely calibrated to respond to specific temperature thresholds, making them ideal for thermal management systems and safety devices. In industrial settings, bidirectional nickel titanium alloy springs with high temperature transformation points (40-120°C) provide reliable actuation for equipment protection, automatically responding to overheating conditions by extending to trigger shutdowns or activate cooling systems. The springs' operational temperature range of -50°C to 150°C (with high-temperature models functioning up to 200°C) ensures consistent performance across diverse environmental conditions. Their compact form factor—with customizable wire diameters from 0.1mm to 5mm and lengths from 5mm to 200mm—allows integration into space-constrained applications where traditional electromechanical systems wouldn't fit. Additionally, these actuators operate silently and without electricity, making them valuable in noise-sensitive environments or hazardous locations where electrical sparks pose explosion risks. The proven durability of bidirectional nickel titanium alloy springs, maintaining performance through hundreds of thousands of actuation cycles, translates to exceptional long-term reliability in critical sensing and control applications.

Automotive Systems and Components

The automotive industry leverages bidirectional nickel titanium alloy springs to enhance vehicle performance, efficiency, and safety through temperature-adaptive components. These specialized springs provide elegant solutions for thermal management systems, adjustable suspension elements, and climate control mechanisms. Engine cooling systems benefit from bidirectional nickel titanium alloy springs that automatically adjust radiator shutters or coolant flow based on temperature changes, optimizing engine efficiency across operating conditions. With hardness ratings of 42-50 HRC and customizable driving forces ranging from 0.1N to 50N, these springs can be engineered to handle the substantial mechanical loads typical in automotive applications. Their remarkable fatigue resistance—surviving up to 1 million cycles—ensures reliable operation throughout a vehicle's service life, even under the continuous vibration and thermal cycling inherent to automotive environments. The springs' lightweight nature contributes to vehicle weight reduction efforts, improving fuel efficiency without compromising functionality. Modern advanced driver assistance systems (ADAS) also incorporate these springs in sensor protection mechanisms that respond to temperature variations, extending sensor life in extreme climates. Automotive engineers particularly value the springs' consistent performance characteristics and their ability to operate without electrical input, providing fail-safe functionality for safety-critical systems even during electrical system failures.

Aerospace and Aviation Applications

Bidirectional nickel titanium alloy springs have secured a crucial role in aerospace applications where extreme reliability, weight reduction, and performance across broad temperature ranges are non-negotiable requirements. These specialized components provide elegant solutions for thermal compensation systems, deployment mechanisms, and vibration control in aircraft and spacecraft. Satellite systems utilize bidirectional nickel titanium alloy springs for antenna and solar panel deployment mechanisms that activate in response to the temperature differential between Earth's shadow and direct sunlight, eliminating the need for complex motorized systems. The springs' operating temperature range of -50°C to 200°C (for high-temperature variants) makes them uniquely suited to function reliably in the extreme thermal cycling of orbital environments. Aircraft environmental control systems employ these springs with precisely calibrated transformation temperatures to regulate air flow and cabin pressure with minimal energy consumption. With customizable wire diameters (Φ0.1~5mm) and spring outer diameters (Φ2~50mm), aerospace engineers can design components that meet exact specifications while minimizing weight—a critical consideration where every gram impacts fuel efficiency and payload capacity. The springs' exceptional fatigue resistance of up to 1 million cycles ensures maintenance-free operation over extended service periods, reducing lifecycle costs for aerospace operators. These advanced materials comply with stringent industry standards, providing the documented reliability necessary for mission-critical aerospace applications.

Advanced Technical Applications

Robotics and Automation Systems

Bidirectional nickel titanium alloy springs are transforming robotics and automation systems by enabling more sophisticated movement control with simplified mechanisms. These intelligent components provide muscle-like actuation that responds directly to temperature changes, creating opportunities for more biomimetic designs in soft robotics and collaborative robots. In precision robotic grippers, bidirectional nickel titanium alloy springs deliver controlled, gentle grasping forces that automatically adjust to object contours when exposed to varying temperatures, enhancing handling capabilities for delicate items. The springs' remarkable combination of lightweight properties and high force output—customizable from 0.1N to 50N depending on wire diameter and heat treatment process—creates favorable power-to-weight ratios for mobile robotics applications where energy efficiency is paramount. Their resilience to repeated cycling, with fatigue life extending to 1 million actuation cycles, ensures long-term reliability in automated manufacturing systems that operate continuously. Engineers appreciate the design flexibility offered by these springs, available in wire diameters from 0.1mm to 5mm and outer diameters ranging from 2mm to 50mm, allowing precise matching to specific application requirements. The bidirectional shape memory effect provides built-in redundancy in critical systems, as the springs can reliably return to either of two predetermined shapes based on temperature. This property enables fail-safe mechanisms in collaborative robots working alongside humans, automatically retracting or extending components to prevent injuries during system anomalies.

Smart Consumer Electronics

The consumer electronics industry has embraced bidirectional nickel titanium alloy springs to create more durable, sophisticated products with enhanced user experiences. These specialized components enable innovative features in smartphones, wearables, and other personal devices where space constraints, reliability, and elegant mechanical solutions are highly valued. Smartphone camera modules utilize bidirectional nickel titanium alloy springs with precisely controlled effective turns (3-20 turns) to provide optimal auto-focus mechanisms and optical image stabilization systems that automatically adjust to environmental temperature changes. The springs' superelasticity allows folding smartphones and tablets to incorporate hinge mechanisms that withstand hundreds of thousands of folding cycles without performance degradation—far exceeding the capabilities of conventional materials. Wearable fitness devices benefit from temperature-responsive bidirectional nickel titanium alloy springs that adjust fit and sensor contact pressure in response to body heat, enhancing comfort and measurement accuracy. Available in various temperature activation ranges, including body-temperature calibrated options (37°C), these springs can be perfectly tuned for on-body applications. Their corrosion resistance to perspiration and environmental exposure ensures consistent performance throughout the product lifecycle. Consumer electronics manufacturers value these springs' ability to provide sophisticated mechanical functionality in extremely compact forms, with spring outer diameters as small as 2mm and wire diameters down to 0.1mm. This miniaturization potential enables the continued evolution toward smaller, more feature-rich personal electronic devices without compromising durability or user experience.

Smart Building Technologies

Bidirectional nickel titanium alloy springs are revolutionizing smart building technologies by enabling energy-efficient, self-regulating systems that respond automatically to environmental temperature changes without requiring electrical power or complex control systems. These innovative components support sustainable building design through passive temperature management and automatic adjustment of various building elements. Smart ventilation systems incorporate bidirectional nickel titanium alloy springs calibrated to specific temperature thresholds, automatically opening and closing vents to optimize natural airflow and reduce HVAC energy consumption. Available in customizable temperature activation points ranging from 0°C to 120°C, these springs can be precisely engineered to respond at the ideal temperatures for maintaining building comfort. Automatic shading systems employ bidirectional nickel titanium alloy springs to adjust louver positions based on solar heat gain, providing natural daylighting while preventing overheating without requiring motors or sensors. The springs' impressive fatigue life of 100,000 to 1 million cycles ensures decades of reliable operation in building systems, making them ideal for integration into architectural elements with expected lifespans of 50+ years. Fire safety systems benefit from these springs' ability to function reliably even during power outages, automatically opening smoke evacuation dampers when temperatures rise to dangerous levels. With driving forces ranging from 0.1N to 50N and a wide range of available dimensions (wire diameter Φ0.1~5mm, spring outer diameter Φ2~50mm), system designers can create customized solutions for various building applications and scales. The springs' silent operation enhances occupant comfort by eliminating the mechanical noise associated with conventional motorized systems, contributing to healthier indoor environments.

Conclusion

Bidirectional nickel titanium alloy springs represent a remarkable advancement in material science, offering unique capabilities that continue to expand possibilities across numerous industries. Their exceptional combination of shape memory effect, superelasticity, durability, and customizable properties makes them invaluable components in applications ranging from life-saving medical devices to energy-efficient building systems. As engineering challenges grow increasingly complex, these intelligent materials provide elegant solutions that conventional materials simply cannot achieve.

At Baoji Hanz Metal Material Co., Ltd., we're passionate about helping your projects succeed with our premium bidirectional nickel titanium alloy springs. With 7 years of specialized expertise in nitinol technologies, we offer not only superior products but significant cost advantages through direct supply. Need your springs quickly? Our large inventory of standard sizes ensures fast delivery to keep your production on schedule. For custom requirements, our comprehensive OEM services can tailor every aspect from dimensions to specific transformation temperatures. Contact our experts today at baojihanz-niti@hanztech.cn to discover how our bidirectional nickel titanium alloy springs can transform your next innovation.
