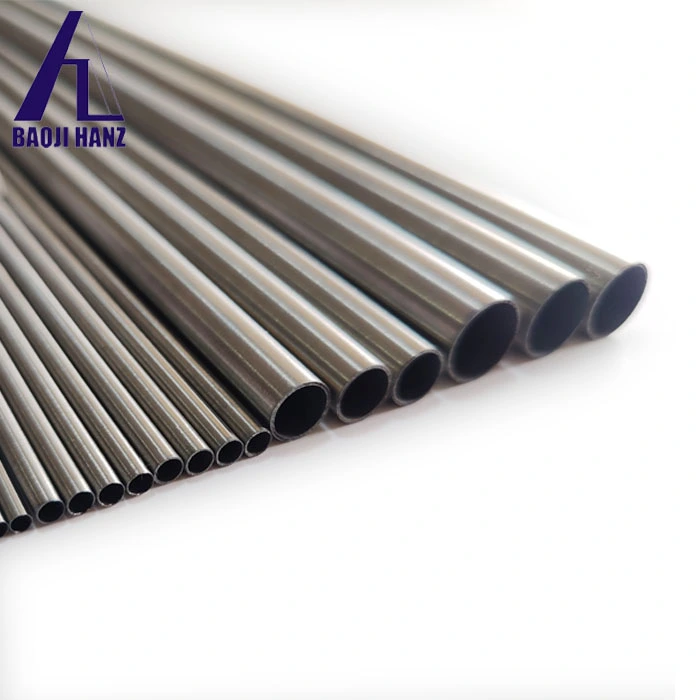

What are the manufacturing processes for super elastic nitinol pipes?

Raw Material Preparation and Melting

Selection of High-Purity Nickel and Titanium

The journey of manufacturing super elastic nitinol pipes begins with the careful selection of raw materials. High-purity nickel and titanium are essential for achieving the desired properties of the final product. The purity levels typically exceed 99.9% for both elements, ensuring minimal contamination that could affect the alloy's performance. Suppliers often provide certificates of analysis to verify the composition and quality of the raw materials.

Vacuum Arc Remelting (VAR) Process

Once the raw materials are selected, they undergo a sophisticated melting process known as Vacuum Arc Remelting (VAR). This technique is crucial for producing high-quality nitinol ingots. The VAR process takes place in a vacuum chamber, where an electric arc is used to melt the nickel and titanium. The vacuum environment prevents oxidation and reduces the risk of impurities being introduced into the alloy. The molten metal is then carefully cooled to form a homogeneous ingot, which serves as the starting point for further processing.

Composition Control and Homogenization

Achieving the precise composition of nickel and titanium is paramount in producing super elastic nitinol pipes. The ratio of these elements significantly influences the alloy's properties, including its transformation temperature and superelastic behavior. Advanced techniques such as electron beam melting or plasma arc melting may be employed to ensure uniform composition throughout the ingot. After melting, the ingot undergoes a homogenization process, typically involving heat treatment at high temperatures, to eliminate any compositional variations and ensure consistent properties throughout the material.

Forming and Shaping Processes

Hot Working and Extrusion

The nitinol ingot, once properly homogenized, enters the forming stage. Hot working is often the initial step, where the ingot is heated to temperatures above 800°C and shaped using techniques such as forging or rolling. This process helps break down the as-cast structure and improves the material's workability. Following hot working, extrusion is a common method used to create the initial pipe shape. The heated nitinol billet is forced through a die with the desired cross-sectional shape, resulting in a long, continuous pipe form. The extrusion process helps refine the grain structure and enhances the material's mechanical properties.

Cold Drawing and Intermediate Annealing

To achieve the final dimensions and superior mechanical properties of super elastic nitinol pipes, a series of cold drawing operations are performed. This process involves pulling the pipe through progressively smaller dies, reducing its diameter and wall thickness while increasing its length. Cold drawing significantly strengthens the material but also introduces internal stresses. To alleviate these stresses and maintain workability, intermediate annealing steps are crucial. These heat treatments, typically performed at temperatures between 600-800°C, help restore ductility and prepare the material for further drawing operations.

Precision Machining and Surface Finishing

The final shaping of super elastic nitinol pipes often involves precision machining techniques. Computer Numerical Control (CNC) machining may be used to achieve tight tolerances and complex geometries. Surface finishing is another critical aspect of the manufacturing process. Techniques such as electropolishing or mechanical polishing are employed to remove surface imperfections, reduce roughness, and enhance the pipe's corrosion resistance. For applications requiring specific surface properties, coatings or surface treatments may be applied to further improve performance or biocompatibility.

Heat Treatment and Property Optimization

Shape Setting and Memory Imparting

One of the most fascinating aspects of super elastic nitinol pipes is their ability to remember a predetermined shape. This property is imparted through a carefully controlled shape-setting process. The pipe is fixed in the desired configuration and subjected to high temperatures, typically between 400-500°C, for a specific duration. This heat treatment allows the atoms within the crystal structure to rearrange, effectively "memorizing" the shape. The cooling rate and subsequent thermal cycling play crucial roles in optimizing the shape memory effect and superelastic properties of the nitinol pipe.

Aging and Precipitation Hardening

To fine-tune the mechanical properties of super elastic nitinol pipes, aging treatments are often employed. These treatments, conducted at lower temperatures than shape setting, promote the formation of Ni-rich precipitates within the material's microstructure. The size, distribution, and volume fraction of these precipitates significantly influence the alloy's transformation temperatures and mechanical behavior. By carefully controlling the aging parameters, manufacturers can tailor the superelastic response and fatigue resistance of the nitinol pipes to meet specific application requirements.

Quality Control and Property Verification

The final stage in manufacturing super elastic nitinol pipes involves rigorous quality control and property verification. Advanced testing methods such as Differential Scanning Calorimetry (DSC) are used to determine transformation temperatures accurately. Mechanical testing, including tensile and fatigue tests, ensures that the pipes meet the required strength and durability standards. Non-destructive testing techniques like ultrasonic inspection or X-ray analysis may be employed to detect any internal defects or inconsistencies. Surface characterization methods, such as scanning electron microscopy, help verify the quality of the pipe's surface finish and assess its suitability for the intended application.

Conclusion

The manufacturing of super elastic nitinol pipes is a complex process that combines advanced metallurgy, precision engineering, and sophisticated heat treatments. From raw material selection to final property optimization, each step plays a crucial role in producing pipes with exceptional superelastic and shape memory characteristics. As research in this field continues to advance, we can expect further refinements in manufacturing techniques, leading to even more innovative applications for these remarkable materials. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
