What are the physical properties of Nitinol alloy blocks?

Nitinol alloy blocks possess a remarkable set of physical properties that make them highly sought-after in various industries. These unique materials, composed of nickel and titanium, exhibit exceptional characteristics such as shape memory and superelasticity. Nitinol blocks typically contain approximately 55-56% nickel and 44-45% titanium by weight, though slight variations can significantly alter their properties. The most notable physical attributes of Nitinol alloy blocks include their ability to remember and return to a pre-set shape when heated (shape memory effect), their capacity to undergo large deformations without permanent damage (superelasticity), and their excellent biocompatibility. Additionally, Nitinol blocks demonstrate high corrosion resistance, fatigue strength, and wear resistance. These properties, combined with their unique phase transformation behavior between austenite and martensite states, make Nitinol alloy blocks invaluable in applications ranging from medical devices and aerospace components to consumer electronics and robotics.

Mechanical Properties of Nitinol Alloy Blocks

Strength and Elasticity

Nitinol alloy blocks exhibit exceptional strength and elasticity, setting them apart from conventional metallic materials. The yield strength of Nitinol can range from 195 to 690 MPa, depending on its composition and heat treatment. This high strength-to-weight ratio makes Nitinol blocks ideal for applications requiring robust yet lightweight materials. The elastic modulus of Nitinol varies significantly between its austenitic (83 GPa) and martensitic (28-41 GPa) phases, contributing to its unique mechanical behavior.

Superelasticity

One of the most remarkable properties of Nitinol alloy blocks is their superelasticity. This characteristic allows the material to undergo large deformations (up to 8% strain) and return to its original shape upon unloading, without permanent damage. This behavior is attributed to the stress-induced transformation between austenite and martensite phases. Superelastic Nitinol can withstand strains up to 10 times greater than ordinary spring materials, making it invaluable in applications requiring flexible yet durable components.

Shape Memory Effect

The shape memory effect is another distinctive property of Nitinol alloy blocks. This phenomenon allows the material to "remember" and return to a pre-set shape when heated above its transformation temperature. The shape memory effect occurs due to the reversible, temperature-dependent phase transformation between martensite and austenite. This property enables Nitinol blocks to be used in actuators, temperature-sensitive switches, and self-expanding medical devices.

Thermal Properties of Nitinol Alloy Blocks

Phase Transformation Temperatures

The thermal behavior of Nitinol alloy blocks is characterized by their phase transformation temperatures. These critical temperatures include the martensite start (Ms), martensite finish (Mf), austenite start (As), and austenite finish (Af) temperatures. For typical Nitinol compositions, these temperatures range from -50°C to 100°C, though they can be adjusted through slight changes in composition or heat treatment. The ability to tailor these transformation temperatures makes Nitinol blocks versatile for various applications across different temperature ranges.

Thermal Conductivity and Expansion

Nitinol alloy blocks exhibit moderate thermal conductivity, typically ranging from 8.6 to 18 W/(m·K), depending on their phase state. This property makes them suitable for applications requiring controlled heat transfer. The thermal expansion coefficient of Nitinol varies between its austenitic (11 x 10^-6/°C) and martensitic (6.6 x 10^-6/°C) phases, contributing to its unique thermomechanical behavior. The relatively low thermal expansion compared to other metals helps maintain dimensional stability in temperature-sensitive applications.

Latent Heat of Transformation

During phase transformation, Nitinol alloy blocks absorb or release latent heat. The latent heat of transformation for Nitinol is approximately 24.2 J/g, which is significant compared to other shape memory alloys. This property is crucial in applications utilizing the shape memory effect, as it affects the speed and energy requirements of the transformation process. The latent heat also contributes to Nitinol's ability to dampen vibrations and absorb energy, making it valuable in shock-absorbing and noise-reduction applications.

Electrical and Magnetic Properties of Nitinol Alloy Blocks

Electrical Resistivity

Nitinol alloy blocks possess unique electrical properties that vary with their phase state. The electrical resistivity of Nitinol ranges from 50 to 110 μΩ·cm, depending on its composition and temperature. Interestingly, the resistivity of the austenitic phase (about 100 μΩ·cm) is higher than that of the martensitic phase (about 70 μΩ·cm). This difference in resistivity between phases has led to the development of Nitinol-based sensors and actuators that respond to electrical stimuli.

Magnetic Susceptibility

The magnetic properties of Nitinol alloy blocks are relatively weak compared to ferromagnetic materials. Nitinol exhibits paramagnetic behavior in its austenitic phase and becomes slightly ferromagnetic in its martensitic phase. The magnetic susceptibility of Nitinol is typically around 3.0 x 10^-6 emu/g, which is low enough to make it compatible with magnetic resonance imaging (MRI) in medical applications. This low magnetic susceptibility, combined with its other favorable properties, makes Nitinol an excellent choice for medical implants and devices.

Piezoelectric-like Behavior

Although Nitinol is not inherently piezoelectric, it can exhibit piezoelectric-like behavior under certain conditions. When a Nitinol alloy block undergoes phase transformation, it can generate small electrical voltages in response to mechanical stress. This pseudo-piezoelectric effect, while not as pronounced as in true piezoelectric materials, has been explored for energy harvesting and sensing applications. The coupling of mechanical and electrical properties in Nitinol opens up possibilities for innovative smart material systems and self-powered devices.

Conclusion

Nitinol alloy blocks showcase a remarkable array of physical properties that set them apart from conventional materials. Their unique combination of shape memory, superelasticity, and favorable mechanical, thermal, and electrical characteristics make them invaluable in diverse applications. As research continues to uncover new aspects of Nitinol's behavior, its potential for innovation in fields ranging from medicine to aerospace remains boundless.If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

Other related product catalogues

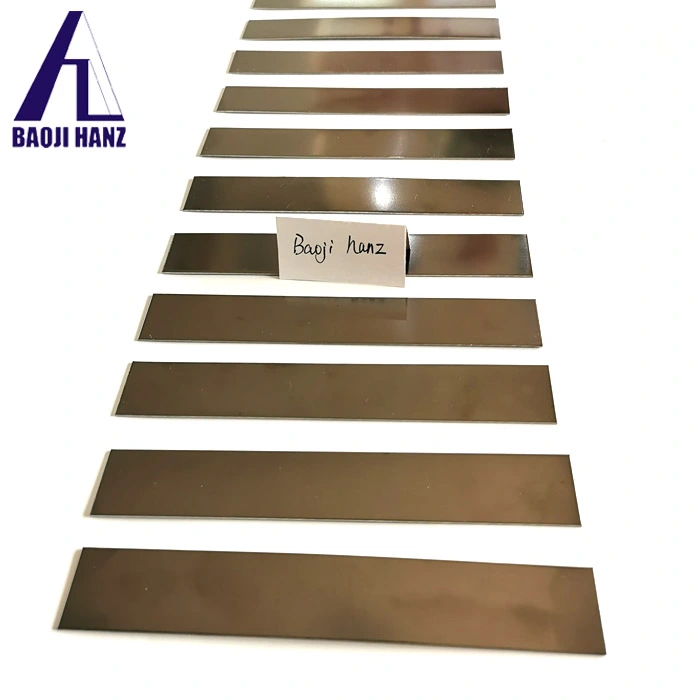

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Duerig, T. W., Melton, K. N., Stockel, D., & Wayman, C. M. (2013). Engineering aspects of shape memory alloys. Butterworth-Heinemann.

2. Lagoudas, D. C. (Ed.). (2008). Shape memory alloys: modeling and engineering applications. Springer Science & Business Media.

3. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

4. Otsuka, K., & Wayman, C. M. (Eds.). (1999). Shape memory materials. Cambridge university press.

5. Sun, L., Huang, W. M., Ding, Z., Zhao, Y., Wang, C. C., Purnawali, H., & Tang, C. (2012). Stimulus-responsive shape memory materials: a review. Materials & Design, 33, 577-640.

6. Yamauchi, K., Ohkata, I., Tsuchiya, K., & Miyazaki, S. (Eds.). (2011). Shape memory and superelastic alloys: Technologies and applications. Elsevier.
