What are the properties of superelastic Nitinol springs?

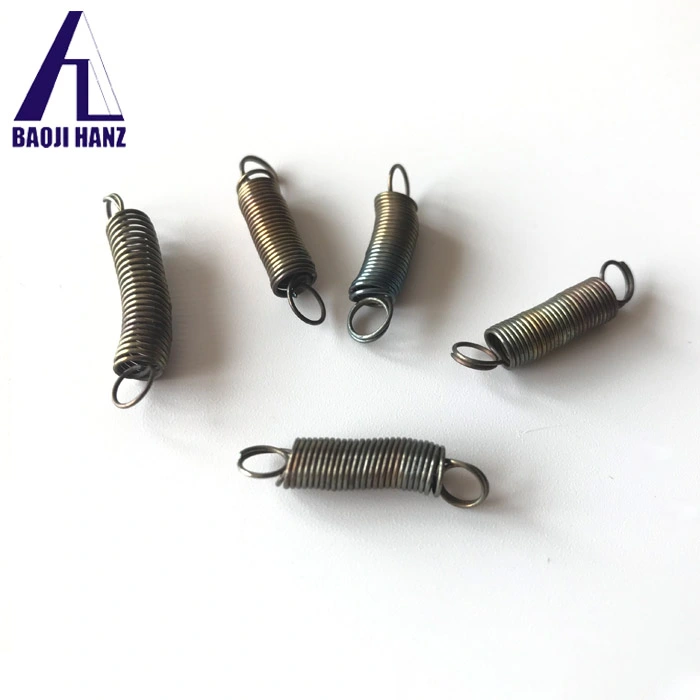

Fundamental Properties of Superelastic Nitinol Springs

Superelasticity: The Defining Characteristic

Superelasticity is the hallmark property of Nitinol springs, setting them apart from conventional spring materials. This remarkable feature allows Nitinol springs to undergo substantial deformation and return to their original shape without permanent damage. The superelastic behavior stems from the unique crystalline structure of Nitinol, which can transition between two stable phases: austenite and martensite. When stress is applied, the material undergoes a reversible phase transformation, enabling it to withstand strains up to 8% without plastic deformation. This exceptional elasticity makes superelastic Nitinol springs ideal for applications requiring large deflections and consistent performance over numerous cycles.

Temperature-Dependent Behavior

Super elastic nitinol springs exhibit fascinating temperature-dependent properties. The material's behavior is intricately linked to its transformation temperatures, which can be tailored during the manufacturing process. At temperatures above the austenite finish temperature (Af), Nitinol displays its superelastic properties. Below this temperature, the material may exhibit shape memory effects. This temperature sensitivity allows for the design of springs that can adapt their mechanical properties based on environmental conditions, opening up a world of possibilities for smart and responsive systems.

High Fatigue Resistance

One of the most valuable properties of superelastic Nitinol springs is their outstanding fatigue resistance. Unlike traditional spring materials that may experience fatigue failure after repeated cycles of stress, Nitinol springs can withstand millions of loading cycles without significant degradation. This exceptional durability is attributed to the material's unique phase transformation mechanism, which distributes stress more evenly throughout the spring structure. The high fatigue resistance of superelastic Nitinol springs makes them ideal for applications requiring long-term reliability and consistent performance, such as in medical devices, aerospace components, and automotive systems.

Mechanical Advantages of Superelastic Nitinol Springs

Non-Linear Stress-Strain Behavior

Super elastic nitinol springs exhibit a distinctive non-linear stress-strain relationship, which sets them apart from conventional spring materials. This non-linearity results in a unique force-deflection curve characterized by a plateau region. During this plateau, the spring can undergo significant deformation with minimal increase in force. This property allows Nitinol springs to maintain a relatively constant force over a wide range of displacements, making them invaluable in applications requiring consistent force output, such as in orthodontic archwires or medical stents. The non-linear behavior also contributes to the spring's ability to absorb and dissipate energy, enhancing its shock-absorbing capabilities.

High Strength-to-Weight Ratio

Another mechanical advantage of superelastic Nitinol springs is their impressive strength-to-weight ratio. Despite their remarkable elasticity, these springs possess high tensile strength, typically ranging from 750 to 1500 MPa. This combination of strength and low density makes Nitinol springs an excellent choice for weight-sensitive applications, particularly in aerospace and portable electronic devices. The high strength-to-weight ratio allows for the design of compact, lightweight spring components that can withstand substantial loads and operate reliably in demanding environments.

Corrosion Resistance

Superelastic Nitinol springs boast excellent corrosion resistance, surpassing that of many conventional spring materials. The formation of a stable titanium oxide layer on the surface of Nitinol provides natural protection against various corrosive environments. This inherent corrosion resistance makes Nitinol springs suitable for use in harsh conditions, including marine environments, chemical processing equipment, and biomedical implants. The material's ability to resist corrosion not only enhances the longevity of the springs but also ensures consistent performance and safety in critical applications where material degradation could have serious consequences.

Unique Characteristics and Applications of Superelastic Nitinol Springs

Biocompatibility and Medical Applications

One of the most remarkable characteristics of super elastic nitinol springs is their biocompatibility, which has led to their widespread use in medical applications. The material's compatibility with human tissues, combined with its unique mechanical properties, makes it an ideal choice for various medical devices and implants. Nitinol springs are commonly used in orthodontic archwires, where their superelasticity provides gentle, consistent force for tooth movement. In cardiovascular applications, Nitinol springs are utilized in stents and heart valve frames, leveraging their ability to compress for minimally invasive insertion and then expand to their predetermined shape once deployed. The material's biocompatibility and mechanical properties have revolutionized medical device design, enabling the development of more effective and less invasive treatments.

Shape Memory Effect and Thermal Actuation

While superelasticity is the primary focus of this article, it's worth noting that Nitinol springs can also exhibit shape memory effects under certain conditions. This property allows the spring to be deformed at low temperatures and then recover its original shape when heated above its transformation temperature. This shape memory effect enables the creation of thermally actuated devices, where the Nitinol spring can generate force or motion in response to temperature changes. Applications of this characteristic include thermal actuators, temperature-sensitive safety devices, and self-expanding medical implants. The combination of superelasticity and shape memory effects in a single material makes Nitinol springs incredibly versatile and adaptable to a wide range of engineering challenges.

Damping and Vibration Absorption

Superelastic Nitinol springs possess excellent damping properties, making them effective in vibration absorption and energy dissipation applications. The material's unique stress-induced phase transformation mechanism allows it to convert mechanical energy into heat more efficiently than traditional spring materials. This characteristic makes Nitinol springs valuable in applications where vibration control is critical, such as in aerospace structures, automotive components, and high-precision instruments. The springs can help reduce noise, improve comfort, and extend the lifespan of equipment by minimizing the harmful effects of vibrations. Additionally, the damping properties of Nitinol springs can be tuned by adjusting the alloy composition and heat treatment, allowing engineers to optimize their performance for specific applications.

Conclusion

Super elastic nitinol springs represent a remarkable advancement in materials science, offering a unique combination of properties that have transformed numerous industries. Their exceptional elasticity, fatigue resistance, and biocompatibility have opened up new possibilities in medical devices, aerospace, and beyond. As research continues, the potential applications for these extraordinary springs continue to expand, promising innovative solutions to complex engineering challenges. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
