What factors affect the manufacturing and performance of nitinol in medical devices?

The manufacturing and performance of medical nitinol pipesare influenced by a complex interplay of factors. Nitinol, a unique alloy of nickel and titanium, has revolutionized the medical device industry due to its remarkable shape memory and superelastic properties. These characteristics make it ideal for applications such as stents, guidewires, and orthodontic arches. However, several critical factors affect the production and functionality of nitinol-based medical devices.The composition and purity of the raw materials play a crucial role in determining the final properties of nitinol. The precise ratio of nickel to titanium, typically around 50-50 atomic percent, significantly impacts the alloy's transformation temperatures and mechanical behavior. Additionally, the manufacturing process, including melting, forming, and heat treatment, profoundly influences the microstructure and, consequently, the performance of nitinol components. Surface finish and cleanliness are paramount, as they affect biocompatibility and corrosion resistance. Furthermore, the specific medical application dictates the required properties, such as the transformation temperature range and mechanical strength, which must be carefully controlled during production.

Raw Material Selection and Composition Control

Importance of High-Purity Nickel and Titanium

The foundation of medical nitinol pipelies in the selection of high-purity nickel and titanium. These raw materials must meet stringent quality standards to ensure the final alloy's performance and biocompatibility. Impurities can significantly alter the transformation temperatures and mechanical properties of nitinol, potentially compromising its functionality in medical applications. Manufacturers often employ advanced purification techniques, such as vacuum arc remelting and electron beam melting, to achieve the necessary purity levels.

Precise Control of Nickel-Titanium Ratio

The exact ratio of nickel to titanium in the alloy is critical in determining its shape memory and superelastic properties. Even slight variations in composition can lead to substantial changes in transformation temperatures and mechanical behavior. Typically, the ratio is maintained close to equiatomic (50-50 atomic percent), but small adjustments can be made to fine-tune the alloy's characteristics for specific medical applications. Advanced analytical techniques, such as inductively coupled plasma mass spectrometry (ICP-MS), are employed to ensure precise compositional control during the manufacturing process.

Impact of Trace Elements on Nitinol Properties

While the primary focus is on nickel and titanium, trace elements can have a disproportionate impact on nitinol's properties. Elements like oxygen, carbon, and nitrogen, even in small quantities, can affect the alloy's transformation temperatures, strength, and ductility. Some trace elements, such as copper or chromium, may be intentionally added in minute amounts to modify specific properties. However, strict control over these additions is crucial to maintain consistency and predictability in the final product's performance. Manufacturers must employ sophisticated analytical techniques and quality control measures to monitor and manage trace element levels throughout the production process.

Manufacturing Processes and Heat Treatment

Melting and Ingot Formation Techniques

The initial stage of nitinol production involves melting and forming ingots, which serves as the foundation for all subsequent processing steps. Vacuum induction melting (VIM) is commonly employed to create homogeneous nitinol ingots while minimizing contamination. This process allows for precise control over the alloy composition and helps eliminate impurities that could compromise the material's properties. Advanced techniques like vacuum arc remelting (VAR) or electron beam melting (EBM) may be used for further refinement, enhancing the ingot's uniformity and purity. The careful execution of these melting processes is crucial in establishing the baseline characteristics of the nitinol alloy.

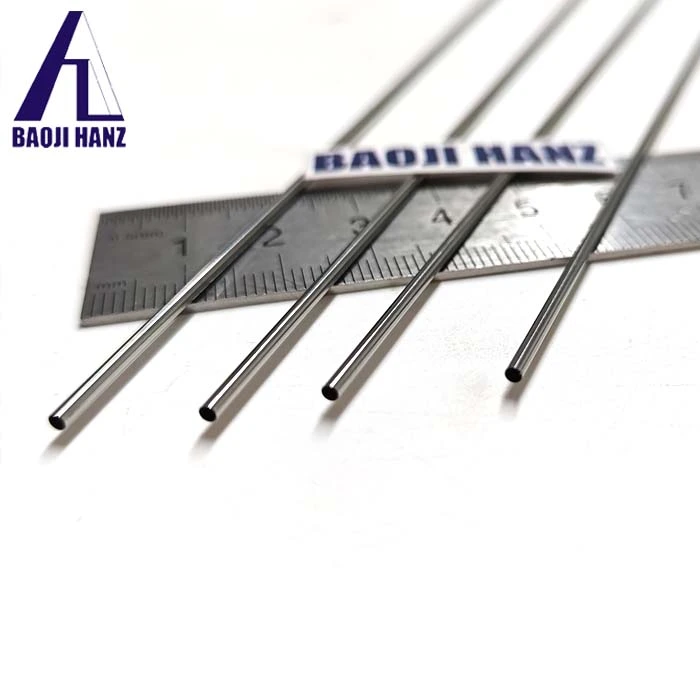

Forming and Shaping Processes for Medical Nitinol Pipe

Transforming nitinol ingots into medical-grade components, such as medical nitinol pipe, requires specialized forming and shaping processes. Hot working techniques, including rotary forging and extrusion, are often employed to break down the as-cast structure and improve the material's uniformity. Cold drawing is then used to achieve the desired dimensions and mechanical properties of the medical nitinol pipe. This process involves carefully controlled reductions in cross-sectional area, often with intermediate annealing steps to prevent work hardening and maintain the alloy's unique properties. The precision of these forming processes directly impacts the final product's performance, particularly in applications requiring tight tolerances and specific mechanical responses.

Critical Role of Heat Treatment in Property Optimization

Heat treatment is perhaps the most critical step in optimizing the properties of nitinol for medical applications. The specific heat treatment protocol, including temperature, duration, and cooling rate, determines the alloy's transformation temperatures, shape memory effect, and superelastic behavior. Solution annealing at high temperatures followed by rapid quenching helps establish the desired microstructure. Subsequent aging treatments can fine-tune the precipitation of Ni-rich phases, which play a crucial role in shape memory and superelastic properties. For medical nitinol pipe and other components, precise control over these heat treatment parameters is essential to achieve the desired balance of flexibility, strength, and fatigue resistance required for specific medical device applications.

Surface Finish and Biocompatibility Considerations

Surface Treatment Techniques for Enhanced Performance

The surface characteristics of nitinol medical devices, including medical nitinol pipe, significantly influence their performance and biocompatibility. Various surface treatment techniques are employed to optimize these properties. Electropolishing is a common method used to create a smooth, uniform surface that enhances corrosion resistance and reduces the risk of thrombus formation in vascular applications. Mechanical polishing and chemical etching may also be used to achieve specific surface finishes. Advanced techniques like plasma ion implantation or physical vapor deposition can be employed to modify surface properties further, enhancing wear resistance or altering the material's interaction with biological tissues.

Importance of Surface Cleanliness in Medical Applications

Surface cleanliness is paramount in medical-grade nitinol components, as contaminants can compromise biocompatibility and device performance. Rigorous cleaning protocols are implemented throughout the manufacturing process to remove any residues from machining, handling, or heat treatment. Ultrasonic cleaning, often using specialized solvents, is commonly employed to remove particulates and organic contaminants. High-purity water rinsing and controlled drying processes ensure that the surface remains free from impurities. For medical nitinol pipe and other implantable devices, cleanliness standards are exceptionally stringent, often requiring clean room environments and validated cleaning processes to meet regulatory requirements.

Biocompatibility Testing and Regulatory Compliance

Ensuring the biocompatibility of nitinol medical devices is critical for their safe and effective use in clinical settings. Comprehensive testing protocols, aligned with international standards such as ISO 10993, are implemented to evaluate the material's biological safety. These tests assess various aspects of biocompatibility, including cytotoxicity, sensitization, irritation, and long-term implantation effects. For medical nitinol pipe and other components intended for long-term implantation, additional testing may be required to evaluate their performance under physiological conditions. Manufacturers must navigate complex regulatory landscapes, providing extensive documentation and test results to demonstrate compliance with standards set by agencies like the FDA or EMA. This rigorous approach to biocompatibility testing and regulatory compliance is essential in ensuring the safety and efficacy of nitinol-based medical devices.

Conclusion

The manufacturing and performance of medical nitinol pipesare influenced by a multitude of interconnected factors. From raw material selection and precise composition control to sophisticated manufacturing processes and meticulous surface treatments, each step plays a crucial role in determining the final product's characteristics. As the medical device industry continues to innovate, understanding and optimizing these factors will remain essential for developing advanced, reliable nitinol-based solutions that improve patient outcomes and expand the possibilities of minimally invasive medical procedures. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.

Other related product catalogues

Nickel titanium memory alloy in addition to the production of nickel-titanium strips, can also produce other similar products, such as nickel-titanium plate, nickel titanium flat wire, nickel titanium foil, nickel titanium wire, nickel titanium tube, nickel titanium spring, nickel titanium paper clips, nickel titanium wire rope.



References

1. Pelton, A. R., Stöckel, D., & Duerig, T. W. (2000). Medical Uses of Nitinol. Materials Science Forum, 327-328, 63-70.

2. Shabalovskaya, S. A. (2002). Surface, corrosion and biocompatibility aspects of Nitinol as an implant material. Bio-Medical Materials and Engineering, 12(1), 69-109.

3. Duerig, T., Pelton, A., & Stöckel, D. (1999). An overview of nitinol medical applications. Materials Science and Engineering: A, 273-275, 149-160.

4. Elahinia, M. H., Hashemi, M., Tabesh, M., & Bhaduri, S. B. (2012). Manufacturing and processing of NiTi implants: A review. Progress in Materials Science, 57(5), 911-946.

5. Mohd Jani, J., Leary, M., Subic, A., & Gibson, M. A. (2014). A review of shape memory alloy research, applications and opportunities. Materials & Design, 56, 1078-1113.

6. Firstov, G. S., Van Humbeeck, J., & Koval, Y. N. (2004). High-temperature shape memory alloys: Some recent developments. Materials Science and Engineering: A, 378(1-2), 2-10.
