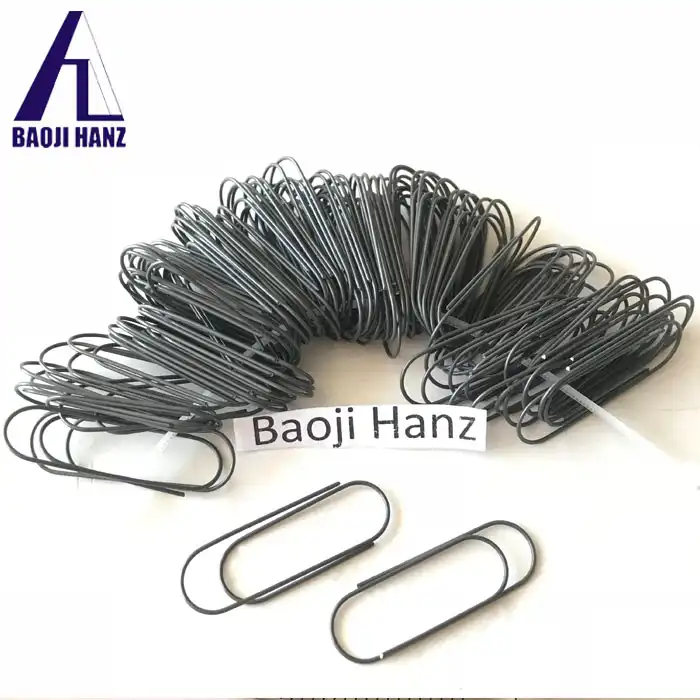

What is a nitinol paperclip and how does it work?

The Science Behind Nitinol Paperclips

Crystal Structure and Phase Transformation

Nitinol's unique properties stem from its crystalline structure and the ability to transition between two distinct phases. At higher temperatures or in its relaxed state, nitinol adopts an austenite crystal structure, characterized by a cubic arrangement of atoms. This configuration gives the alloy its rigidity and desired shape. When cooled or subjected to stress, nitinol transforms into a martensite phase with a more flexible, monoclinic crystal structure. This phase change occurs through a diffusionless process, meaning atoms shift positions relative to their neighbors without breaking atomic bonds. The transformation temperature, often referred to as the transition temperature, can be tailored during the manufacturing process by adjusting the nickel-titanium ratio and incorporating trace elements. For paperclips, this temperature is typically set near or slightly above room temperature to ensure optimal performance in office environments. The reversible nature of this phase transformation is key to the paperclip's ability to "remember" and return to its original shape.

Superelasticity and Stress-Induced Martensite

Superelasticity, another critical property of nitinol paperclips, allows them to undergo large deformations without permanent damage. When stress is applied to a nitinol paperclip at a temperature above its transition temperature, it induces a phase change from austenite to martensite. This stress-induced martensite is highly flexible, enabling the paperclip to bend or twist significantly without breaking. Upon removal of the stress, the martensite reverts to austenite, and the paperclip springs back to its original shape. This behavior differs from conventional elastic deformation in metals, where atoms simply stretch their bonds. In nitinol, the stress-induced phase change allows for much larger deformations – up to 8-10% strain compared to less than 1% for most metals. This superelastic effect gives nitinol paperclips their exceptional flexibility and resilience, making them resistant to permanent deformation from typical office use.

Shape Memory Effect and Thermal Activation

The shape memory effect in nitinol paperclips manifests when they are deformed below their transition temperature and then heated. At lower temperatures, the nitinol is in its martensite phase and can be easily bent or twisted. When heated above the transition temperature, the alloy transforms back to austenite, recovering its pre-set shape with considerable force. This thermal activation can be used to "reset" a severely deformed paperclip, restoring its original form and functionality. Engineers can program specific shapes into nitinol during manufacturing through a process called shape-setting. By heating the alloy to high temperatures (typically around 500°C) while constrained in the desired shape, then rapidly cooling it, the austenite crystal structure "remembers" this configuration. This shape memory persists through subsequent deformations and can be repeatedly recovered through heating cycles, giving the products their remarkable shape recovery abilities.

Advantages of Nitinol Paperclips in Office Applications

Enhanced Durability and Longevity

Nitinol paperclips offer superior durability compared to traditional steel alternatives. Their superelastic properties allow them to withstand repeated bending and twisting without fatigue or permanent deformation. This resilience translates to a longer lifespan, reducing the frequency of replacement and potentially lowering office supply costs over time. The ability to recover from severe distortions through heating also means that nitinol paperclips can be "rejuvenated" rather than discarded, further extending their useful life. The corrosion resistance of nitinol also contributes to the longevity of these paperclips. Unlike steel paperclips that may rust over time, especially in humid environments, nitinol paperclips maintain their appearance and functionality even under adverse conditions. This makes them particularly suitable for use in coastal areas or locations with high humidity levels, where traditional paperclips might deteriorate more rapidly.

Improved Functionality and Versatility

The unique properties of nitinol endow these paperclips with enhanced functionality. Their superelasticity allows them to securely hold together a larger number of pages than conventional paperclips without permanent deformation. This makes them especially useful for temporarily binding thick documents or organizing extensive files. The shape memory effect can be leveraged to create paperclips that adjust their grip in response to temperature changes, potentially offering a more secure hold in varying office conditions. Nitinol paperclips can also be designed with more complex shapes that would be impractical or impossible with traditional materials. For example, paperclips with multiple bends or intricate patterns can be created, offering both improved functionality and aesthetic appeal. These design possibilities open up new avenues for customization and branding in office supplies, allowing companies to create unique, branded paperclips that serve both practical and marketing purposes.

Potential for Smart Office Solutions

The responsive nature of nitinol opens up possibilities for integrating paperclips into smart office solutions. For instance, temperature-sensitive nitinol paperclips could be developed to change shape or color in response to environmental conditions, potentially serving as simple indicators of document storage conditions. In more advanced applications, the shape memory effect could be harnessed to create self-organizing filing systems, where paperclips adjust their configuration based on predefined temperature cues. Furthermore, the biocompatibility of nitinol makes these paperclips safer in office environments where accidental ingestion or skin contact might occur. This property, combined with nitinol's non-magnetic nature, also makes these paperclips suitable for use in medical or research settings where traditional ferromagnetic paperclips might interfere with sensitive equipment or procedures. As offices become increasingly high-tech and multifunctional, the versatility of nitinol paperclips positions them as a forward-thinking choice for modern workspaces.

Manufacturing Processes and Challenges

Alloy Composition and Melting

The production of nitinol paperclips begins with precise control of the alloy composition. The ratio of nickel to titanium is critical in determining the transition temperature and mechanical properties of the final product. Typically, the alloy consists of approximately 55-56% nickel and 44-45% titanium by weight, though small variations can significantly affect performance. The raw materials are melted in a vacuum or inert atmosphere using techniques such as vacuum induction melting or vacuum arc remelting to prevent oxidation and ensure purity. Achieving homogeneity in the melt is crucial, as even slight variations in composition can lead to inconsistent properties across the batch. Advanced melting techniques, such as electron beam melting or plasma arc melting, may be employed to enhance compositional control and reduce impurities. The molten alloy is then cast into ingots, which serve as the starting material for subsequent forming processes.

Forming and Shape-Setting

The nitinol ingots undergo a series of hot-working and cold-working processes to achieve the desired shape and mechanical properties. Hot rolling or extrusion is often used to break down the as-cast structure and improve homogeneity. Cold working, through processes like wire drawing or sheet rolling, further refines the microstructure and enhances the superelastic and shape memory properties. The material may undergo multiple cycles of working and annealing to optimize its performance. Shape-setting is a critical step in manufacturing nitinol paperclips. The alloy is constrained in the desired paperclip shape and heat-treated at temperatures typically ranging from 400°C to 550°C. This process, known as shape memory annealing, imparts the "memory" of the austenite phase configuration. Precise control of temperature, time, and cooling rate is essential to achieve the desired transition temperature and shape recovery characteristics. Advanced techniques such as laser shape-setting or localized heat treatment may be employed for more complex paperclip designs.

Quality Control and Testing

Rigorous quality control measures are essential in nitinol paperclip production to ensure consistent performance. Non-destructive testing methods such as X-ray diffraction or differential scanning calorimetry are used to verify the crystal structure and transformation temperatures. Mechanical testing, including cyclic loading and thermal cycling, assesses the superelastic behavior and shape memory effect. Surface analysis techniques may be employed to check for impurities or oxide layers that could affect performance. Manufacturers must also contend with the challenges of machining and finishing nitinol, which can be difficult due to its work-hardening behavior and tendency to form a hard oxide layer. Specialized cutting tools and techniques, such as water jet cutting or electrical discharge machining, may be necessary for intricate paperclip designs. Surface treatments like electropolishing or passivation are often applied to enhance corrosion resistance and biocompatibility. These processes require careful control to maintain the alloy's functional properties while achieving the desired surface finish.

Conclusion

Nitinol paperclips represent a fascinating intersection of materials science and everyday utility. Their unique combination of superelasticity and shape memory offers enhanced durability, functionality, and potential for innovation in office supplies. As manufacturing techniques continue to evolve, we can anticipate even more sophisticated and application-specific nitinol paperclips, potentially revolutionizing how we think about these simple yet essential tools in our workspaces. If you want to get more information about this product, you can contact us at baojihanz-niti@hanztech.cn.
