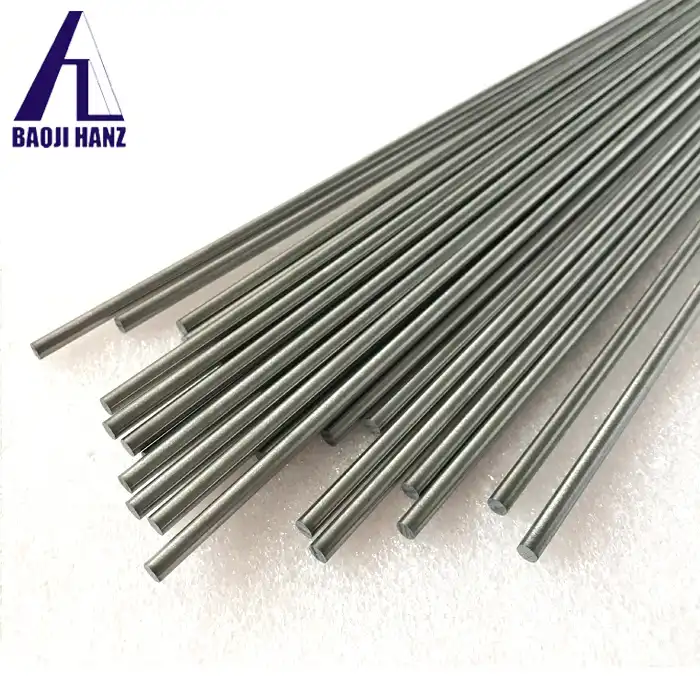

What is a nitinol rod?
2024-07-25 19:15:31
How Does a Nitinol Rod Work?
Nitinol, an abbreviation for Nickel-Titanium Naval Ordnance Laboratory, exhibits two closely related and unique properties: shape memory and superelasticity. The shape memory effect allows the material to return to its original shape after being deformed when exposed to a certain temperature. Superelasticity, on the other hand, refers to the material's ability to undergo large deformations and immediately return to its original shape upon unloading, without needing to be heated.
The magic behind these properties lies in the crystal structure of Nitinol. At lower temperatures, Nitinol exists in a martensitic phase which can be easily deformed. When heated above its transformation temperature, it shifts to an austenitic phase, reverting to its original shape. This transition can be finely tuned by adjusting the alloy's composition and the manufacturing process.
Applications of Nitinol Rods
Nitinol rods are used in various fields due to their unique properties:
-
Medical Devices: One of the most significant applications of Nitinol rods is in the medical field. They are used in stents, guidewires, orthodontic wires, and other implantable devices due to their biocompatibility and ability to undergo significant deformation and return to their original shape within the body (XOT Metals) (Edgetech Industries LLC).
-
Industrial Uses: Nitinol rods are also utilized in actuators, couplings, and other mechanical devices that benefit from their superelasticity and shape memory properties. They are particularly valuable in aerospace and robotics, where precision and reliability are critical (Refractory Metals and Alloys) (Edgetech Industries LLC).
-
Consumer Products: The unique properties of Nitinol make it useful in everyday products as well, such as eyeglass frames that can return to their original shape after being bent, or cellphone antennae that can withstand repeated flexing (Refractory Metals and Alloys) (Edgetech Industries LLC).
What Are the Properties of Nitinol Rods?
The properties of Nitinol rods are defined by their composition and the specific manufacturing process used. Generally, Nitinol is composed of about 55-56% nickel by weight, with the balance being titanium. This composition can be adjusted to fine-tune the transformation temperature and the specific characteristics of the shape memory and superelastic effects (XOT Metals) (Refractory Metals and Alloys).
Key Characteristics
-
Shape Memory Effect: This property allows Nitinol to "remember" its original shape and return to it when heated. This is particularly useful in medical implants that need to be inserted in a deformed state and then return to their functional shape at body temperature (Refractory Metals and Alloys).
-
Superelasticity: Nitinol can undergo large strains (up to 10-30 times more than ordinary metals) and immediately return to its original shape. This is valuable in applications where materials are subjected to repeated stress and need to recover without permanent deformation (Edgetech Industries LLC) (Edgetech Industries LLC).
-
Corrosion Resistance: Nitinol is highly resistant to corrosion, which makes it suitable for use in harsh environments, including inside the human body (XOT Metals).
-
Biocompatibility: Its compatibility with biological tissues makes it ideal for medical implants and devices (Refractory Metals and Alloys) (Edgetech Industries LLC).
What Are the Different Types of Nitinol Rods?
Nitinol rods come in various forms, depending on their intended application and the specific properties required.
-
Shape Memory Nitinol Rods: These are designed to exploit the shape memory effect, making them ideal for applications where the material needs to return to a pre-defined shape upon heating. They are used in medical devices, actuators, and other precision instruments.
-
Superelastic Nitinol Rods: These rods are designed to undergo large elastic deformations and are commonly used in applications requiring high flexibility and resilience, such as in stents and eyeglass frames.
-
Medical Grade Nitinol Rods: These rods meet stringent biocompatibility and performance standards, making them suitable for use in the human body. They are often used in implants, surgical instruments, and other medical devices.
Why is Nitinol Used in Medical Devices?
Nitinol's unique properties make it especially valuable in the medical field. Its ability to undergo significant deformation and return to its original shape at body temperature is particularly useful for minimally invasive surgical procedures. For instance, Nitinol stents can be compressed for insertion into blood vessels and then expand to their original shape to support the vessel once in place.
Moreover, the biocompatibility and corrosion resistance of Nitinol ensure that it does not react adversely with bodily tissues and fluids, making it safe for long-term implantation. The material's superelasticity also allows medical devices to flex with the body's movements without breaking or causing damage.
How is Nitinol Manufactured and Processed?
The manufacturing process of Nitinol is complex and requires precise control over composition and temperature to achieve the desired properties. The primary steps involve melting the raw materials (nickel and titanium), casting the alloy, and then subjecting it to various thermal and mechanical treatments to induce the shape memory and superelastic effects.
Processing Techniques
-
Thermal Treatment: Heating and cooling cycles are used to set the transformation temperatures and fine-tune the properties of the alloy. This process is critical for achieving the desired shape memory and superelastic characteristics.
-
Mechanical Working: The alloy is drawn into rods, wires, or other shapes through processes such as rolling, drawing, and extrusion. This mechanical working helps align the crystal structure and enhance the material's properties.
-
Surface Treatment: The surface of Nitinol rods can be treated to improve their performance and longevity. Common surface treatments include polishing, pickling, and applying protective coatings to enhance corrosion resistance and biocompatibility.
Conclusion
Nitinol rods are a fascinating and versatile material with unique properties that make them invaluable in various applications, particularly in the medical field. Their ability to undergo significant deformation and return to their original shape, combined with their biocompatibility and corrosion resistance, make them ideal for medical implants, surgical instruments, and other critical applications. The complex manufacturing process ensures that these rods meet the stringent requirements of their intended uses, making Nitinol a truly remarkable material.
References
- Nitinol Rod - Edgetech Industries
- Nitinol Alloys - XOT Metals
- NT0401 Nitinol Wire/Rod - Refractory Metals and Alloys
- Nitinol Rod - Edgetech Industries
