What is a nitinol tube for stents?

In the rapidly evolving field of cardiovascular medicine, medical professionals face a critical challenge: finding materials that can withstand the dynamic environment of blood vessels while providing reliable support for patients suffering from arterial blockages and strictures. Nitinol tubes for stents represent a revolutionary solution that combines the unique properties of nickel-titanium alloy with advanced engineering to create medical devices capable of self-expansion and shape memory functionality. These specialized nitinol tubes serve as the foundation for manufacturing stents that can be compressed for delivery through narrow catheters and then expand to their predetermined shape once positioned in the target vessel, offering patients minimally invasive treatment options with superior biocompatibility and long-term performance.

Understanding Nitinol Tubes and Their Unique Properties

• The Science Behind Nitinol Alloy Composition

Nitinol is a nickel-titanium alloy known for its remarkable molecular structure and properties, with its composition typically including approximately 55% nickel and 45% titanium, with minor variations depending on the application. The precise chemical composition for medical-grade nitinol tubes includes Ni: 55.4%–56.2%, with carefully controlled impurities including C≤0.07, H≤0.005, O≤0.050, and N≤0.05. This specific composition enables the alloy to exhibit two distinct crystal structures: austenite at higher temperatures and martensite at lower temperatures. The transformation between these phases is what gives nitinol tubes their extraordinary properties, making them ideal for stent applications where consistent performance under varying physiological conditions is crucial.

• Superelasticity and Shape Memory Characteristics

Nitinol tubing for cardiovascular stents exhibits remarkable properties like superelasticity and shape memory, enabling it to return to its original shape after deformation and flex under stress without breaking. The superelastic behavior of nitinol tubes allows them to undergo significant deformation—up to 8-10% strain—and return to their original shape when the stress is removed. This property is particularly valuable in stent applications where the device must navigate through tortuous blood vessels during delivery while maintaining its structural integrity. The shape memory effect enables nitinol tubes to be manufactured in their expanded stent configuration at high temperatures, then cooled and compressed for delivery, automatically returning to their predetermined expanded shape when deployed at body temperature.

Manufacturing Specifications for Medical-Grade Nitinol Tubes

• Precision Engineering and Dimensional Requirements

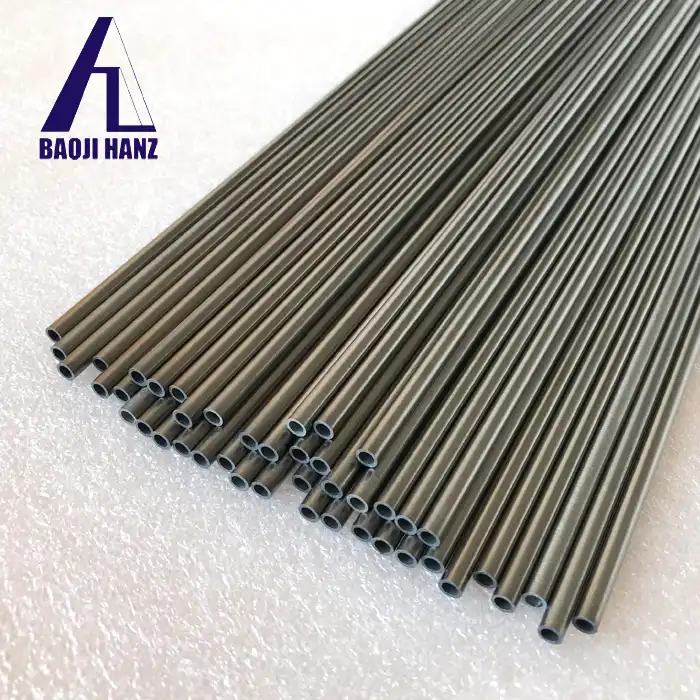

Modern nitinol tubes for stent manufacturing require exceptional precision to meet the demanding requirements of cardiovascular applications. These tubes are produced with outside diameters ranging from 0.2mm to 30mm and wall thicknesses from 0.05mm to 2mm, allowing for customization based on specific vessel sizes and patient anatomies. The manufacturing process involves sophisticated deep hole working techniques to achieve large diameter and thin wall configurations while maintaining structural integrity. Advanced centerless grinding processes ensure that the outside surface is smooth and free from defects, while specialized cleaning procedures guarantee that the inside surface is oxide-free and oil-free, meeting the stringent requirements for medical device applications.

• Surface Treatment and Quality Standards

The surface quality of nitinol tubes directly impacts their biocompatibility and long-term performance in the human body. Multiple surface treatment options are available, including medical-grade polished surfaces that minimize tissue reaction, black oxide surfaces for specific applications, and as-cleaned surfaces for standard medical uses. All nitinol tubes manufactured for stent applications must comply with international standards including ASTM F2063-05 and ASTM F2633-07, ensuring consistent quality and performance. The manufacturing process includes rigorous quality control measures with production process monitoring documents retained for at least five years, providing full traceability for medical device manufacturers.

Applications of Nitinol Tubes in Stent Technology

• Cardiovascular Stent Applications

Nitinol stents are manufactured to a size slightly larger than the target vessel size and delivered constrained in a delivery system, positioning themselves against the vessel wall with a low, "chronic" outward force while resisting outside forces with significantly higher strength. This unique characteristic makes nitinol tubes ideal for manufacturing self-expanding stents used in coronary arteries, peripheral vessels, and carotid arteries. The superelastic properties ensure that the stent maintains consistent radial force over time, preventing restenosis while accommodating the natural movement and pulsation of blood vessels. The biocompatibility of nitinol reduces the risk of thrombosis and inflammatory responses, leading to improved patient outcomes and reduced need for long-term anticoagulation therapy.

• Specialized Medical Applications

Nitinol stents are designed for treating recurrent urethral strictures, with configurations that prevent tissue hyperplasia ingrowth, demonstrating the versatility of nitinol tubes beyond cardiovascular applications. The shape memory properties of nitinol tubes make them suitable for manufacturing stents used in biliary tract procedures, esophageal applications, and airway management. The ability to create complex geometries and maintain precise dimensions ensures that nitinol tube-based stents can be tailored to specific anatomical requirements, providing physicians with versatile treatment options for various medical conditions.

Mechanical Properties and Performance Characteristics

• Strength and Durability Parameters

The mechanical properties of superelastic Nitinol alloy have played a major role in the explosion of peripheral artery stenting, with modern stents demonstrating reasonable resilience and durability. High-quality nitinol tubes exhibit ultimate tensile strength of minimum 1000 MPa, fracture elongation of minimum 10%, and loading plateau stress (at 3% strain) of minimum 380 MPa. These exceptional mechanical properties ensure that stents manufactured from nitinol tubes can withstand the cyclic loading conditions present in the cardiovascular system without failure. The permanent set after 6% strain remains below 0.3%, demonstrating the excellent recovery characteristics that are essential for long-term stent performance.

• Temperature Transformation Properties

The austenite finish temperature (Af) of medical-grade nitinol tubes is carefully controlled to be maximum 15°C, ensuring that the material remains in its superelastic state at body temperature. This temperature control is crucial for stent applications where consistent mechanical properties must be maintained regardless of minor temperature variations within the human body. The transformation temperature is precisely engineered during the manufacturing process through controlled heat treatment and can be adjusted based on specific application requirements, providing flexibility for different stent designs and deployment strategies.

Quality Assurance and Manufacturing Excellence

• International Standards and Certifications

Baoji Hanz Metal Material Co., Ltd. maintains the highest quality standards in nitinol tube manufacturing, with all products meeting ISO9001, SGS, and TUV guidelines through a stringent quality control system. The company's manufacturing processes comply with ASTM standards specifically designed for medical applications, ensuring that every nitinol tube meets the exacting requirements of medical device manufacturers. Advanced R&D, production, and testing equipment enable continuous quality improvement and the development of innovative solutions for challenging medical applications.

• Production Capabilities and Lead Times

With over 10 years of nitinol manufacturing experience, Baoji Hanz Metal Material Co., Ltd. offers reliable production capabilities with lead times of 15-30 working days after payment confirmation. The company maintains extensive inventory of standard sizes to enable fast delivery for urgent requirements, while also providing custom manufacturing services for specialized applications. The minimum order quantity of 2 meters ensures accessibility for both small-scale research projects and large-scale commercial production, supported by comprehensive technical consultation and after-sales support services.

Conclusion

Nitinol tubes for stents represent a critical advancement in medical technology, utilizing the temperature-dependent shape-memory properties of nickel-titanium alloy to create self-expanding devices that provide superior biocompatibility and performance in cardiovascular applications. The exceptional combination of superelasticity, shape memory, and biocompatibility makes these specialized tubes the material of choice for modern stent manufacturing, offering patients minimally invasive treatment options with excellent long-term outcomes.

Cooperate with Baoji Hanz Metal Material Co., Ltd.

As a leading China nitinol tubes factory and China nitinol tubes supplier, Baoji Hanz Metal Material Co., Ltd. brings 7 years of expertise in Nitinol Shape Memory Alloy manufacturing with direct supply cost advantages and fast delivery from extensive stock. Our China nitinol tubes manufacturer offers High Quality nitinol tubes at competitive nitinol tubes price with OEM services tailored to your specifications. Whether you need nitinol tubes for sale for research or commercial applications, our professional team provides comprehensive support from pre-sale consultation to after-sales service. Contact our China nitinol tubes wholesale specialists at baojihanz-niti@hanztech.cn for custom solutions and competitive quotations.

FAQ

Q: What makes nitinol tubes superior to other materials for stent manufacturing?

A: Nitinol tubes offer unique superelasticity and shape memory properties that allow stents to be compressed for delivery and self-expand at body temperature while maintaining consistent radial force.

Q: What are the standard dimensions available for medical-grade nitinol tubes?

A: Standard nitinol tubes are available with outside diameters from 0.2mm to 30mm and wall thicknesses from 0.05mm to 2mm, with custom dimensions available upon request.

Q: How long is the typical production time for nitinol tubes?

A: Standard production time ranges from 15-30 working days after payment confirmation, with expedited delivery available for standard sizes from stock inventory.

Q: What quality standards do medical-grade nitinol tubes meet?

A: Medical-grade nitinol tubes comply with ASTM F2063-05, ASTM F2633-07, ISO9001, SGS, and TUV standards, ensuring biocompatibility and performance reliability.

References

1. Duerig, T., Pelton, A., & Stöckel, D. "An overview of nitinol medical applications." Materials Science and Engineering A, 1999.

2. Morgan, N.B. "Medical shape memory alloy applications—the market and its products." Materials Science and Engineering A, 2004.

3. Shabalovskaya, S.A. "Surface, corrosion and biocompatibility aspects of Nitinol as an implant material." Bio-Medical Materials and Engineering, 2002.

4. Ryhänen, J. "Biocompatibility evaluation of nickel-titanium shape memory metal alloy." Dissertation, University of Oulu, 1999.
