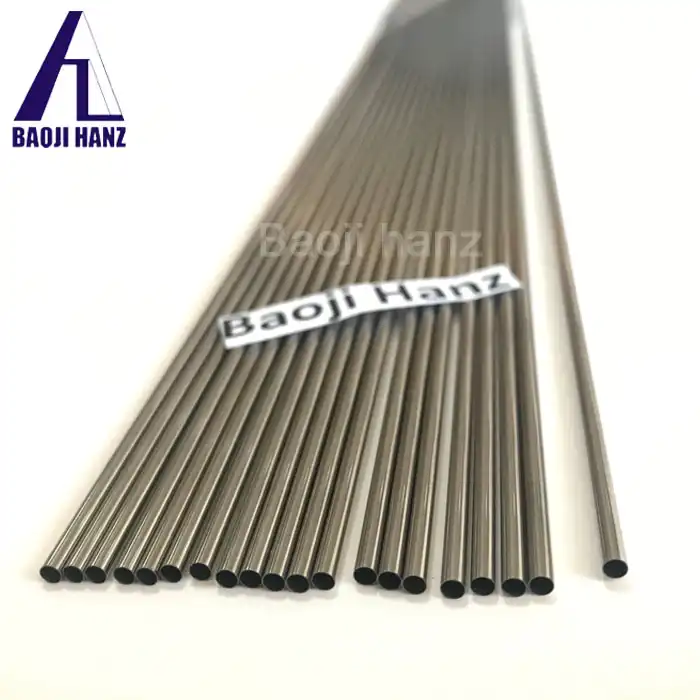

What is a superelastic nitinol tube used for?

Properties and Characteristics of Superelastic Nitinol Tubes

Unique Composition and Structure

Superelastic nitinol tubes are composed of a nearly equiatomic alloy of nickel and titanium. This specific composition gives nitinol its extraordinary properties, including superelasticity and shape memory effect. The crystal structure of nitinol undergoes a reversible phase transformation between austenite and martensite, which is the key to its unique behavior. This transformation allows the material to undergo large deformations and return to its original shape without permanent damage.

Superelasticity and Shape Memory

The hallmark of the product is their ability to undergo significant deformation and return to their original shape upon removal of stress. This property, known as superelasticity, allows nitinol tubes to be bent, twisted, or compressed to a remarkable degree without breaking or permanently deforming. Additionally, the shape memory effect enables these tubes to "remember" and return to a predetermined shape when heated above a certain temperature. These characteristics make superelastic nitinol tubes incredibly versatile and suitable for applications requiring flexibility, resilience, and shape recovery.

Biocompatibility and Corrosion Resistance

Another crucial aspect of Super elastic nitinol tube is their excellent biocompatibility and corrosion resistance. The formation of a stable titanium oxide layer on the surface of nitinol provides protection against corrosion in various environments, including the human body. This attribute, combined with its non-toxic nature, makes superelastic nitinol tubes ideal for medical implants and devices. The material's ability to withstand harsh conditions without degradation also extends its use to marine and aerospace applications, where durability is paramount.

Manufacturing Processes of Superelastic Nitinol Tubes

Melting and Ingot Formation

The production of the product begins with the precise melting of nickel and titanium in carefully controlled ratios. This process typically involves vacuum induction melting or vacuum arc remelting to ensure purity and homogeneity of the alloy. The molten metal is then cast into ingots, which serve as the raw material for subsequent processing steps. Achieving the correct composition and minimizing impurities during this stage is crucial for the final properties of the product.

Hot Working and Cold Drawing

The nitinol ingots undergo hot working processes such as forging or extrusion to break down the as-cast structure and improve the material's properties. This step is followed by a series of cold drawing operations, where the material is progressively reduced in diameter to form tubes. Cold drawing is a critical process that not only shapes the tube but also imparts the necessary mechanical properties through work hardening. Intermediate annealing steps may be required to restore ductility and facilitate further drawing.

Heat Treatment and Surface Finishing

The final stage in manufacturing Super elastic nitinol tube involves precise heat treatment to set the desired shape and optimize the material's superelastic properties. This heat treatment, often called shape setting, is performed at specific temperatures and durations to achieve the required phase transformation characteristics. After heat treatment, the tubes may undergo various surface finishing processes, such as electropolishing or passivation, to enhance their surface properties, corrosion resistance, and biocompatibility. These finishing steps are particularly important for medical-grade nitinol tubes, ensuring they meet stringent quality and safety standards.

Applications of Superelastic Nitinol Tubes

Medical Devices and Implants

Superelastic nitinol tubes have found extensive use in the medical field, revolutionizing minimally invasive procedures and implantable devices. In cardiovascular applications, nitinol stents provide superior flexibility and conformability to blood vessels, reducing the risk of restenosis. Orthopedic devices, such as bone staples and spinal fixation rods, benefit from nitinol's ability to exert constant, gentle forces for bone realignment. Endoscopic instruments and guidewires made from the product offer exceptional maneuverability in tortuous anatomical pathways, enhancing diagnostic and therapeutic procedures.

Aerospace and Automotive Industries

The aerospace sector has embraced superelastic nitinol tubes for their unique combination of lightweight properties and high strength-to-weight ratio. These tubes are used in vibration damping systems, deployable structures, and adaptive wing designs. In the automotive industry, nitinol tubes find applications in impact absorption systems, self-repairing body panels, and adaptive aerodynamic components. The material's ability to undergo large deformations and return to its original shape makes it ideal for creating structures that can adapt to changing environmental conditions or withstand impact without permanent damage.

Consumer Products and Robotics

The versatility of Super elastic nitinol tube extends to consumer products and cutting-edge robotics applications. In the realm of consumer goods, nitinol tubes are used in eyeglass frames, providing durability and flexibility that traditional materials cannot match. They are also found in high-end sports equipment, such as golf club shafts and tennis racket frames, where their energy-absorbing properties enhance performance. In robotics, superelastic nitinol tubes enable the creation of flexible actuators and compliant mechanisms, paving the way for soft robotics and biomimetic designs. These applications showcase the material's ability to combine strength, flexibility, and functionality in innovative ways.

Conclusion

Super elastic nitinol tube represent a remarkable advancement in materials science, offering a unique combination of properties that enable groundbreaking applications across various industries. From revolutionizing medical procedures to enhancing aerospace technologies and inspiring innovative consumer products, these versatile tubes continue to push the boundaries of what's possible in engineering and design. If you want to get more information about this product, you can contact us at: baojihanz-niti@hanztech.cn.
